VALOGIN Price List 1/4 1 inch DVGW Approved Butterfly Handle 2 Brass Ball Valve
- Category: Valves >>>
- Supplier: Zhejiang Valogin Technology Co. Ltd.
Share on (60517404651):
Product Overview
Description
Product Overview

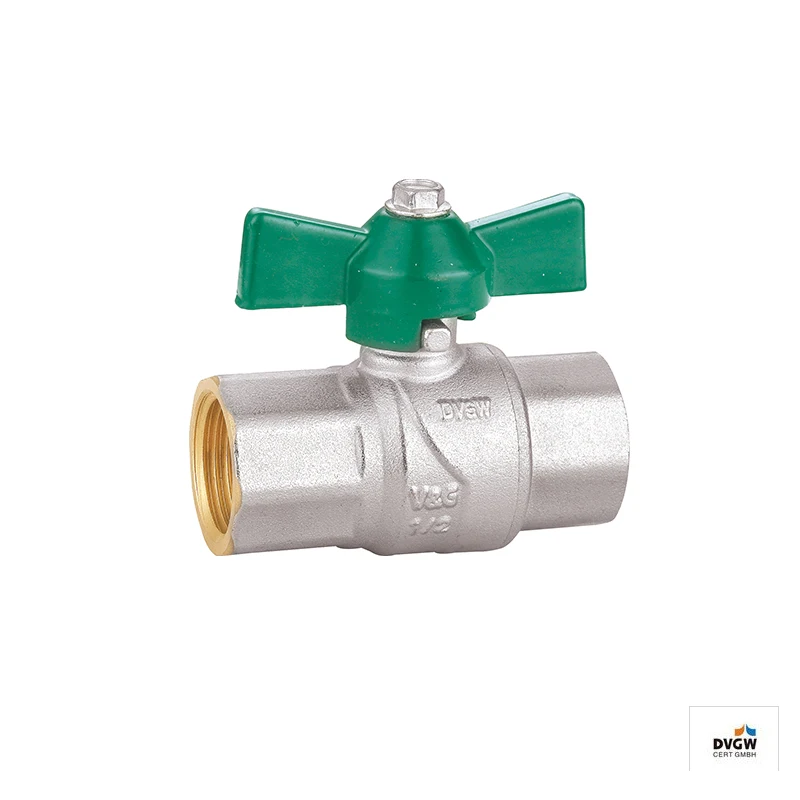

DVGW WATER BALL VALVE, FULL FLOW, FEMALE-FEMALE
Water ball valve suitable for drinkable water, piping water system and heating system
FEATURES AT A GLANCE
Size: 1/4"~1"
DVGW APPROVED, EN13828 standard, full flow
Female/female threads.
Butterfly handle in Aluminum.
Body in nickel-plated brass.
Working temperatures: -20°C, 120°C.
Working pressure:PN40
DVGW APPROVED, EN13828 standard, full flow
Female/female threads.
Butterfly handle in Aluminum.
Body in nickel-plated brass.
Working temperatures: -20°C, 120°C.
Working pressure:PN40
Threads Type :
Threads:
- ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
Threads:
- ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
No | Item | Data |
1 | Supply capacity | 1000000 pcs/month |
2 | Minimum order | 500 pieces |
3 | Conventional packing | in the box/carton or as each customer required |
4 | Application | Gas ball valve suitable for installation in family and industry gas system. |

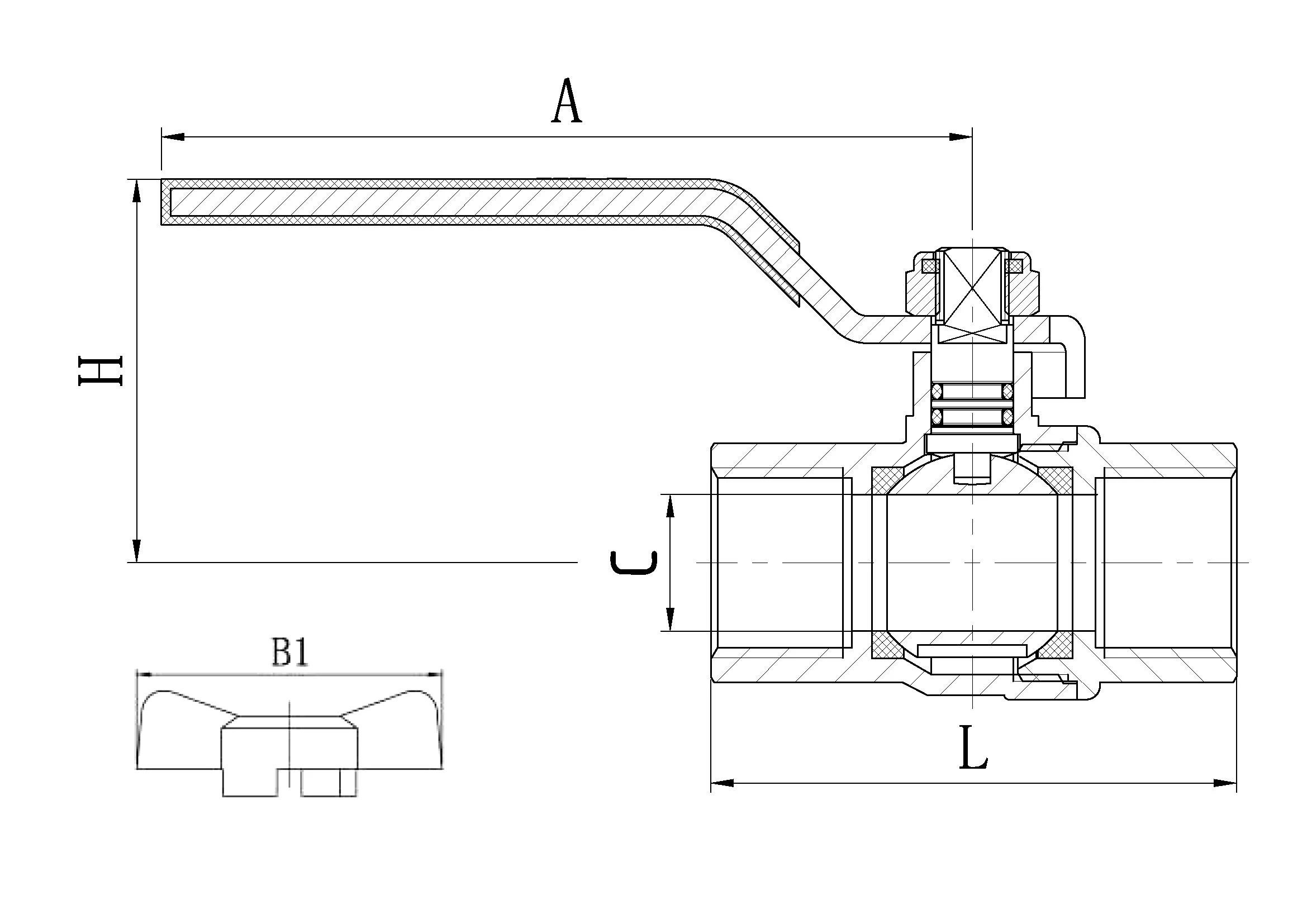

SIZE | CODE | B1 | C | L | H |
1/4"(DN8) | VG10.71031.08 | 52.5 | 10 | 45.5 | 38 |
3/8"(DN10) | VG10.71031.10 | 52.5 | 12 | 55.8 | 38.5 |
1/2"(DN15) | VG10.71031.15 | 52.5 | 15 | 58 | 54 |
3/4"(DN20) | VG10.71031.20 | 52.5 | 20 | 67 | 46 |
1"(DN25) | VG10.71031.25 | 65 | 25 | 80.8 | 60 |
Standard Package
Company Profile
Zhejiang Valogin Technology Co., LTD founded in 1985, after years of development, we are now a leading manufacturing of brass valves, fittings and distribution manifolds for plumbing, gas and heating systems, for use in residential , industrial and commercial settings. We are committed to provide the world best one-stop solution for water, gas, oil and heating systems. With manufacturing ability from material to spare parts, Valogin has formed a vertical production supply chain which effectively improving the capacity, shortening the delivery time, and trying to gain our presence in the whole world.
120 million in turnover, of which more than 90% comes from international market, 7 buildings covering 64,000 sqm, 1100 employees and 30000 tons of brass processed per year. These are key numbers regarding our company .
120 million in turnover, of which more than 90% comes from international market, 7 buildings covering 64,000 sqm, 1100 employees and 30000 tons of brass processed per year. These are key numbers regarding our company .
30K
The production capacity of Valogin is 30,000 ton per year.
100+
We distribute our products to over 100 countries across 6 continents globally
100+
We hold over 100+ patents coming from our technology & design.
120+
With an annual turnover of $120,000,000.
MANUFACTURING
With manufacturing ability from material to spare parts , valogin has formed a vertical production supply chain , effectively
improving the capacity and shortening the delivery time . Continuous quality control on raw material, production process and finished products.
The lean production line not only saves labor costs, but also increases the productivity from 160 pcs to 450 pcs per 8 hours of each employee , and the first pass rate has been increased to 99% , the strong capability of “ Scheduled and Qualified “ provides excellent products and services to our customers all over the world.
The lean production line not only saves labor costs, but also increases the productivity from 160 pcs to 450 pcs per 8 hours of each employee , and the first pass rate has been increased to 99% , the strong capability of “ Scheduled and Qualified “ provides excellent products and services to our customers all over the world.
Valogin has 38 sets hot forging equipments with production capacity 28 Tons per day
Valogin has realized 90% of core spare parts produced by ourselves in order to guarantee the quality and satisfy delivery time
Valogin has realized 80% automatic production of core spare components parts through continuous automatic production equipment, there is 5 sets automatic assembly line with production capacity 65,000 pcs per day .
Valogin has realized 90% of core spare parts produced by ourselves in order to guarantee the quality and satisfy delivery time
Shipments
Certifications
SALES AND SERVICE NETWORK
FAQ
Q1： Can I have a sample order for valve?
A1：Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2：Do you have any MOQ limit for valve order?
A2: Low MOQ, 1pc for sample checking is available.
A2: Low MOQ, 1pc for sample checking is available.
Q3： How do you ship the goods and how long does it take to arrive?
A3: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
A3: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q4：How to proceed an order for valve?
A4:
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A4:
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5：Do you offer guarantee for the products?
A5: Yes, we offer 10 years warranty to our products.
A5: Yes, we offer 10 years warranty to our products.
