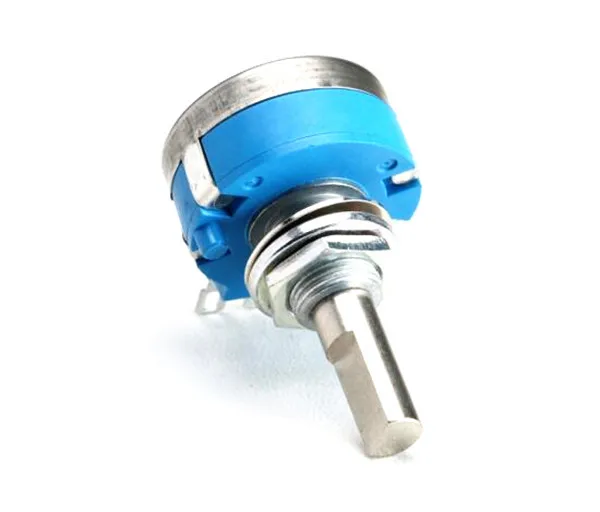

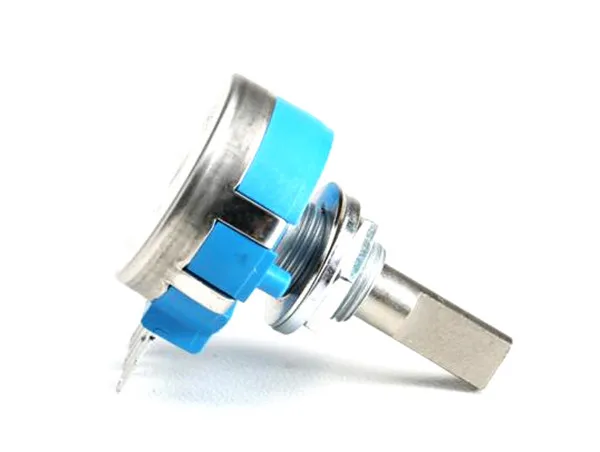

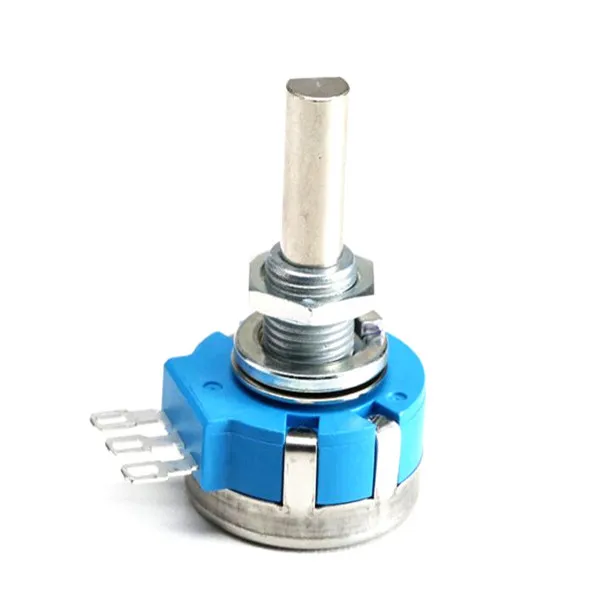

RVQ24YN03 rotary potentiometer 10k with ip67 waterproof

RVQ24YN03 rotary potentiometer 10k with ip67 waterproof

Products datasheet:

1.) Mechanical specifications:
       a.) total rotational angle: 300±10°
       b.) rotational torque: 20~200gf.cm
       c.) click position is available
       d.) rotation stop strength: 8kgf.cm Max
       e.) residual resistance: Max 10 ohm

  2.) Electrical specifications:
       a.) total resistance range: 500 ohm <=  R <=  1M ohm ± 10%
                                                     500 ohm >=  R  >= 1M ohm ± 30%
       b.) resistance taper: A, B, C, D
       c.) power rating: 0.2 w
       d.) Max. operating voltage: AC 500 V
       e.) rotational noise: less than 47 m
       f.) insulation resistance: 50M ohm or more
       g.) withstanding voltage: 500V AC for 1min
       h.) rotation life: 15,000 Cycles Min
