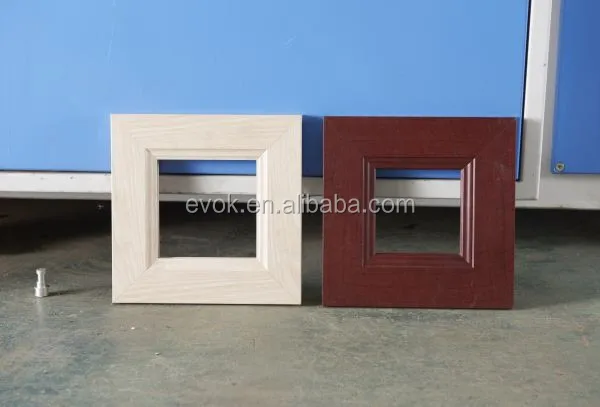

Function: Used for assemble cabinet doors, drawer,picture frame,mirror frame,closet frame,furniture frame
with or without tenon.
High speed: Glue is solidified by heating in 2-20seconds,which can operate flow work.
Labor saving: Greatly reduces the manual time,saving the labor
High quality: Noneed to use staple gun and improved subsequent pocedures,the glue can fast cure under pressure sate,high gluing strength.
High precision: Adopt the ball screw and presicion linear guide,and stepper motor controls accuracy,diadonal tolerance of frame≤0.5mm
Low cost: One frame pnly costs about 0.003-0.04kw.h
Convenient: Adopt humanized touch-screen, PLC control, complete parameter.The pressure, power,heating time ,cooling time can be adjusted.
Model
TC-868-1350*850
TC-868-1500*1000
TC-868-2200*850
TC-868-3200*850
Max.working size
1350*850
1500*1000
2200*850
3200*850
Presurzing mode
Servo precision screw
Servo precision screw
Servo precision screw
Servo precision screw
Overall dimension
2150*1330mm
2200*1500mm
2650*1330mm
4050*1330mm
Weight
900kg
1000kg
1600kg
1700kg
All Categories
Our Service
A. Pre-sales service 1. Indicate the specified function and equipment configuration. 2. Professional feedback on all kinds of technical questions. 3. Help to meet the needs of the individualized product. For example,OEM,ODM. 4. Welcome to visit our factory at any time. B. On-purchase service 1. Provide the product performance and technical specification document sheets. 2. Confirm the changes or special requirements in the production process. 3. Welcome to visit our factory to inspect. C. After-sales service 1. Provide installation, commissioning, operation, maintenance and other guidance. 2. Provide easy-wearing parts and common used spare parts. 3. 24 hours on line service. 4. Engineers available to service machinery overseas.
Customer First. Good will is the best policy.
-High Srandard.
-Fine Quyality.
-Famous Brand.
-Excellent Service
All products are ISO9001:2008 and CE certificated.
Wildly distributed through China and ecported to Europe, the Middle East, Asia and Oceania.
We are dedicated to continually perfecting our performance and providing high quality products
in appreciation for the support and cooperation of our customers.
FAQ
Q1: Are U Manufacture or Trading Company ? A: We are manufacture company, and we have a professional team for good service.
Q2: How long the machine can be used? A: It depends how you use, if use it in good maintenance, at least 10 years.
Q3: How to ensure the safety? A: There have the overlod and over heat protection,it ensure working people safety.
Q4: What is the difference with other producer? A: "EVOK" means "Every machine is OK". We specialize in designing and manufacturing
woodworking machines. We have introduced advanced technology from abroad and own a
skillful R&D team. The key components of each machine are entirely bought from Italy,
Germany, Japan and Taiwan area.
Q5: What do U major in? A: In the recent years, EVOK has successfully designed and developed a series of woodworking
