hidden vehicle radar inspection in vehicle safety application speed camera system with box

Product Overview

Description

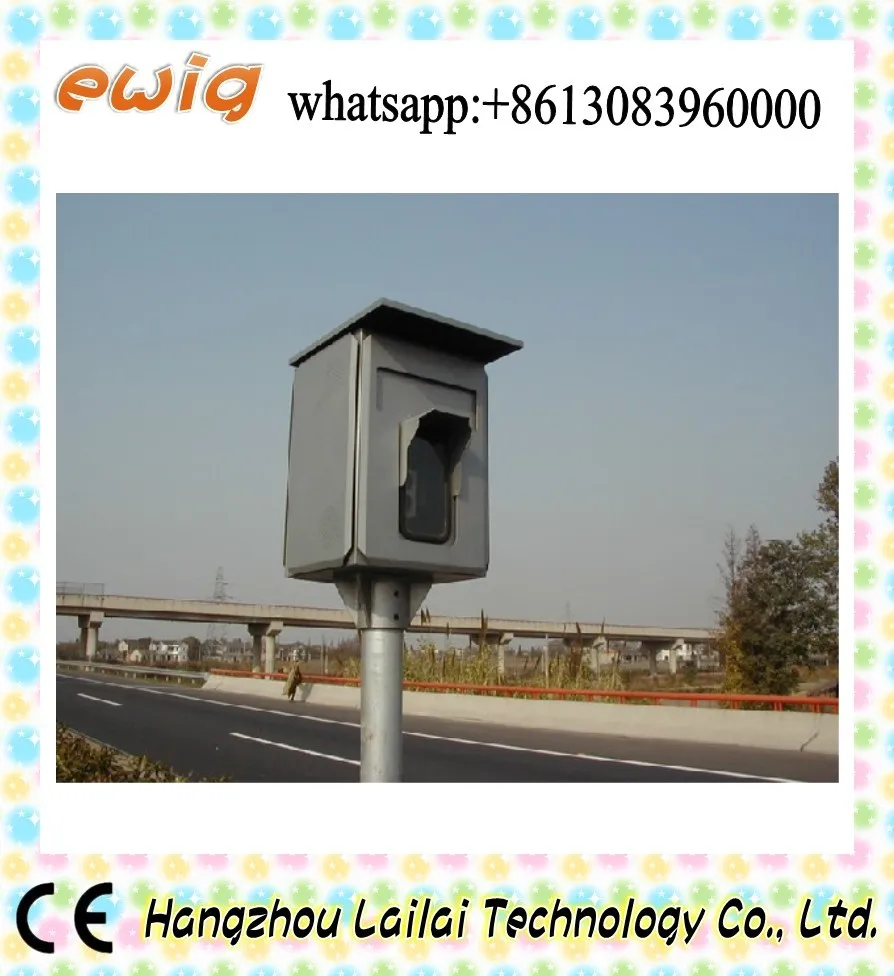

 HIDDEN SPEED CAMERA  WITH BOX

Horizontal installation——capture image:



  spefications of the speeding capture system

* flat narrow band radar, high precision, less error, more reliable.

* real-time speed display easy to find illegals

* Flexible and convenient communication, optical fiber, wifi, 3G, u disk

* the speeding capture system was design and produced all by ourself, technical improvement and maintenance and is customized available.

* software has complete, friendly interface, simply operating and easy maintenance.

* hardware from famous brand, more reliable and stable.

* all of the equipment will pass through strict testing and aging test to make sure good quality.

* unattended, save human resource.

* automatically record all the over speed vehicle, more effeciently.

* generate speeding tickets immediately or later, will not disturb real traffic.

* no loop needed, Strong position mobility, the camera capture system could be installed any target area.

* rich record information, full evidence support. Photos will show Illegal speed, over speed rate, time, place and so on.

* large volume, 2000000 photos, 10days video(25 posts per second)

* convenient management. Each digital image as a seperate file in central database system. Iamge call up according to various demand, time, place...

§7 parameter

* speed range:5~250km/h

* accuracy:99%

* capture rate:>98%;

*Capture images efficiently:>95%;

*  image resolution:2048*1536(3,000,000 pixels  HD)

* gray level:256

* image volume:>2000000pcs

* power consumption:100W

* power voltage:AC 220V,50Hz;

* work temperature:-30℃~+70℃;

Euipment list:

1,Precision flat narrow band radar from Russia, 1pcs

2,3,000,000 pixels  HD CCD camera(license recognition, Offline automatic snap, auto record, upload), 1pcs

3,Sync flash, 1pcs

4,speed capture software, 1pcs

5,power, data lines, 1set

6,waterproof shield, 1pcs

7,5 million HD lens 25mm, 1pcs

8,electric cebinet, 1pcs

The listing is for one capture point. computer could use user computer, 1 more capture point use one computer.
