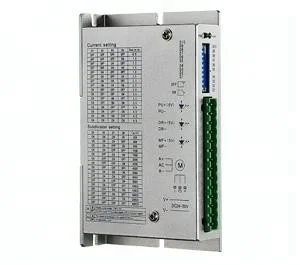

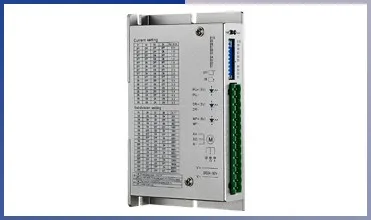

High Quality Hard Aluminium Stepper Motor Driverr
stepper motor driver
 |
DV245 Brand: DVS Original: China The DVS860 is full digital 2-phase stepper drive based on DSP control and It is designed by DVS company for use with the 2-phase hybrid stepper motor of all kinds with nema 17 to nema23. It is widely used in engraving machines,milling machines, packing machines, labeling machines and medical machines. |
Main Features:
l 16 channels constant angle, constant torque micro steps, highest micro step: 40000ppr
l Highest response frequency: 200Kpps
l Current of winding will be reduced by approximately 50% when no step pulse command is received for
1.5 seconds
l Opto-isolated signal I/O
l Drive current is adjustable in 8 channels from 0.8A/phase to 4.5A/phase
l Single power supply from Single power supply from DC24V-50V
l Better to overcome the problem of low frequency vibration

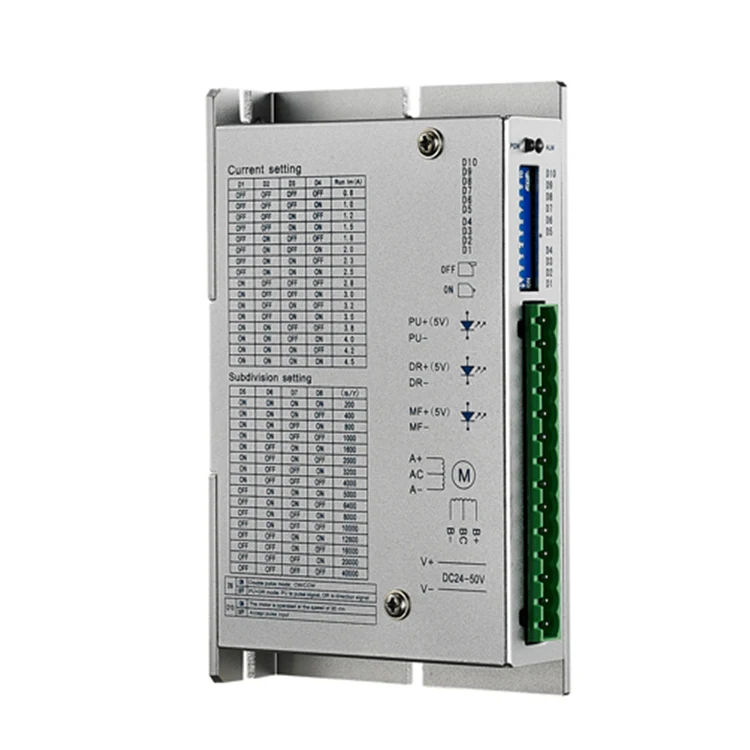

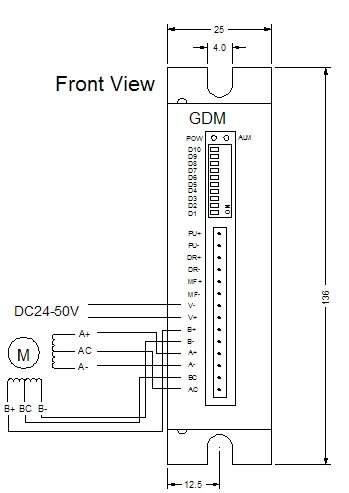

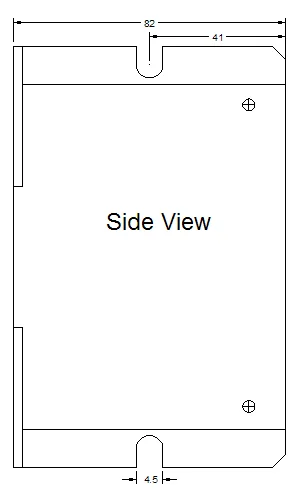

l Dimension : 136×25×82mm3; Net Weight : 0.4Kg
Port | Number | Symbol | Functions / Applications | Definition |
Signal Port | 1 | PU+ | Positive of opto-isolated input signal | Connect to positive supply, drive voltage ranges from 5V to +28V. Current-limiting resistance is not needed when it is over 5V. |
2 | PU- | DP9=OFF, PU is step pulse signal | With the falling edge of the signal PU, the motor executes an angular step. The input resistance is 220Ω. Low voltage 0-0.5V, high voltage more than 4V, pulse width>2.5μS. | |
DP9=ON, PU is positive step pulse signal | ||||
3 | DR+ | Positive of opto-isolated input signal | Connect to the end of the power supply, drive voltage ranges from 5V to +28V. Current-limiting resistance is not needed when it is over 5V. | |
4 | DR- | DP9=OFF, DR is direction signal | Change the motor’s direction of rotation. Input resistance is 220Ω. Low voltage 0-0.5V, high voltage more than 4V, pulse width>2.5μS | |
DP9=ON, DR is negative step pulse signal | ||||
5 | MF+ | Positive of opto-isolated input signal | Connect to the end of the power supply, drive voltage ranges from 5V to +28V. Current-limiting resistance is not needed when it is over 5V. | |
6 | MF- | Motor free signal | The motor is in the free state and the driver stops working when it is effective. | |
Motor And Power Supply | 7 | V- | Power supply | DC24-50V |
8 | V+ | |||
9 | A+ | Connection |
| |
10 | A- | |||
11 | B+ | |||
12 | B- | |||
13 | BC | |||
| 14 | AC |
Current Setting:
The stepper drive working current is set by DIP switches D1 to D4.
Current(A) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | 2.3 | 2.5 |
D1 | OFF | OFF | OFF | OFF | ON | OFF | OFF | OFF |
D2 | OFF | OFF | OFF | OFF | ON | ON | ON | ON |
D3 | OFF | OFF | ON | ON | OFF | OFF | ON | ON |
D4 | OFF | ON | OFF | ON | OFF | ON | OFF | ON |
Current(A) | 2.8 | 3.0 | 3.2 | 3.5 | 3.8 | 4.0 | 4.2 | 4.5 |
| D1 | ON | ON | ON | ON | ON | ON | ON | ON |
| D2 | OFF | OFF | OFF | OFF | ON | ON | ON | ON |
| D3 | OFF | OFF | ON | ON | OFF | OFF | ON | ON |
| D4 | OFF | ON | OFF | ON | OFF | ON | OFF | ON |
Subdivision Setting:
The subdivision(micro step) is set by DIP switches D5 to D8, D9 and D10 are function settings,
16 channels in total.
Subdivision (ppr) | 200 | 400 | 800 | 1000 | 1600 | 2000 | 3200 | 4000 |
D5 | ON | ON | ON | ON | ON | ON | ON | ON |
D6 | ON | ON | ON | ON | OFF | OFF | OFF | OFF |
D7 | ON | ON | OFF | OFF | ON | ON | OFF | OFF |
D8 | ON | OFF | ON | OFF | ON | OFF | ON | OFF |
Subdivision (ppr) | 5000 | 6400 | 8000 | 10000 | 12800 | 16000 | 20000 | 40000 |
| D5 | OFF | OFF | OFF | OFF | OFF | OFF | OFF | OFF |
| D6 | ON | ON | ON | ON | OFF | OFF | OFF | OFF |
| D7 | ON | ON | OFF | OFF | ON | ON | OFF | OFF |
| D8 | ON | OFF | ON | OFF | ON | OFF | ON | OFF |
D9 | ON, double pulse: PU is positive pulse signal, DR is negative pulse signal. | |||||||
| OFF, single pulse: PU is pulse signal, DR is direction signal. | ||||||||
| D10 | Self detect switch(OFF:accept external pulse, ON:the drive sends pulse to make the motor work at the speed of 30r/min. | |||||||
Note: The subdivisions can be customized by your requirement.
Note: The carton box is designed by DVS company.
