accelerator control push pull cable

Product Overview

Description

[Pull-Pull 4B, Control Cables]

Description:                       Applications:                               Features:

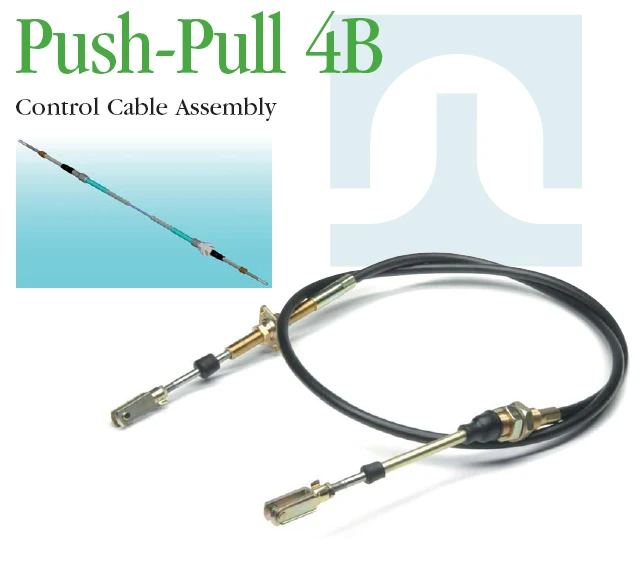

Push-Pull 4B                        • Clutch controls                             • Truck crane — cross link system
Industrial Control                 • Heavy duty lanyards                     • In conjunction with most
Cable Assembly                                                                               control lever systems

                                                                                                    • Power take off

                                                                                                    • Gear selection

                                                                                                    • Hydraulic valve systems

Material:                                  End Fittings:                             • Accelerator systems

• Plated Steel                             • Rod Ends                               • Stainless steel end rod

  Standard, Optional                                                                         options available

  Stainless Steel

• Plastic Coated

   High Tensile Steel
   Lined Conduit
• Armored Push-Pull Steel
   Innermember
• Black
   polypropylene

 [Push-Pull Industrial]

Commercial, cost effective product range for simple push-pull applications. Available in four different sizes. The inner member consists of a multi-strand high tensile steel cable, which is overwound with an armored covering to prevent spreading under compressive loads. This also gives a smooth surface for  low-friction sliding action.

The conduit consists of low-friction hard plastic, reinforced by high tensile steel wires, of sufficient number and size to completely surround the plastic. The wires are laid longitudinally with a gradual spiral. Black UV stabilized polypropylene is extruded over the whole in a thickness sufficient to provide a tough hard-wearing jacket which will withstand working stressed between -40°C and 100°C.
It is highly resistant to abrasion and most organic and inorganic media. Available with swivel flange, in both metric and UNF thread mounting fittings.





[Push-Pull 4B Specifications]



Push-Pull 4B30 — M5





Push-Pull 4B60 — M10





Push-Pull 4B45 — M8





Push-Pull 4B45 — M6



All line art dimensions are represented as follows: in (mm)

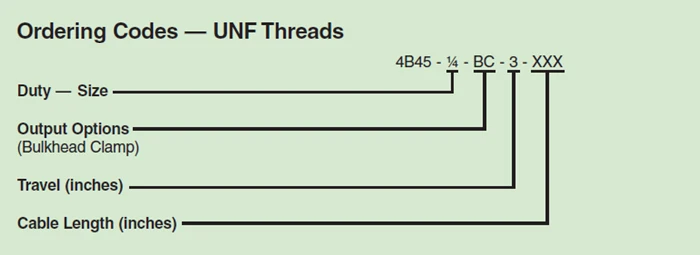

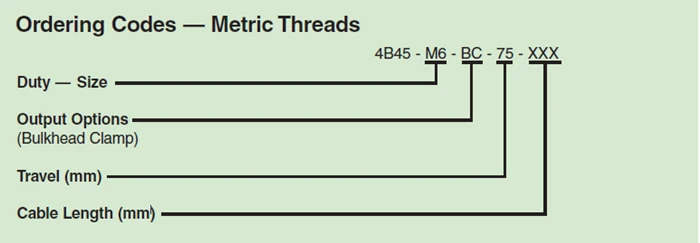

[Push -Pull 4B Order Code]
