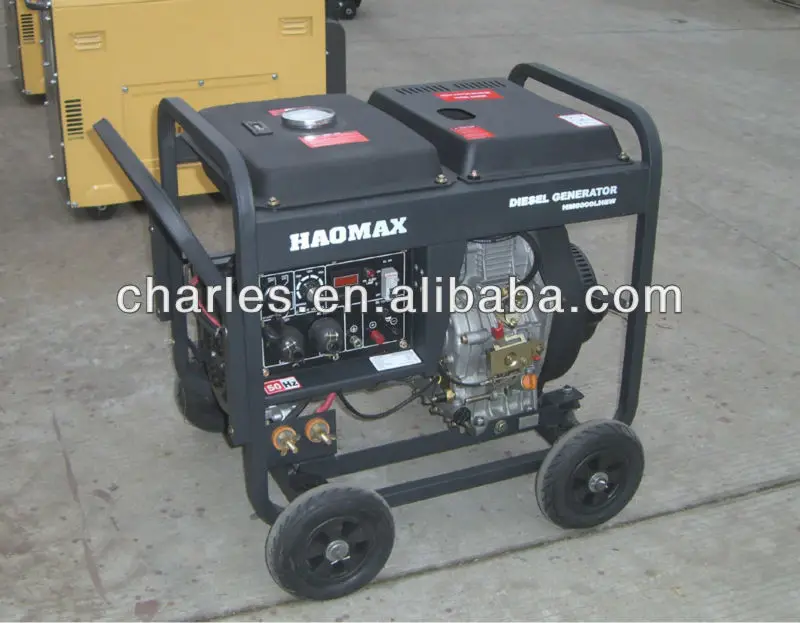

5.0kw180A 200A open type air cooled diesel generator with welder

Diesel welding generator
200A welding current
Welding generator as doube function
100% copper alternator
CE,SONCAP,OEM

Engine model: HM186F

Bore ×stroke: 86 ×72mm

Total displacement: 418cc

Compressed ratio:20:01

Starting way:Electric with key

Starting motor capacity:12V 1.4kW

Battery capacity: 12V 36AH

DC output: 12V  8.3A

Lubricating way:Pressure & splashing

Lubricating Oil used: SAE10W30 (CD grade above)

Fuel used:0#(summer),-10#(winter),-35#(too cooled)

Type: single-cylinder, four-stroke

Exciting way:Brush, exciting-self voltage-constant (with AVR)

Fuel consumption under full loading:270g/kw.h

Dimensions: L×W×H (mm) 800*570*740
