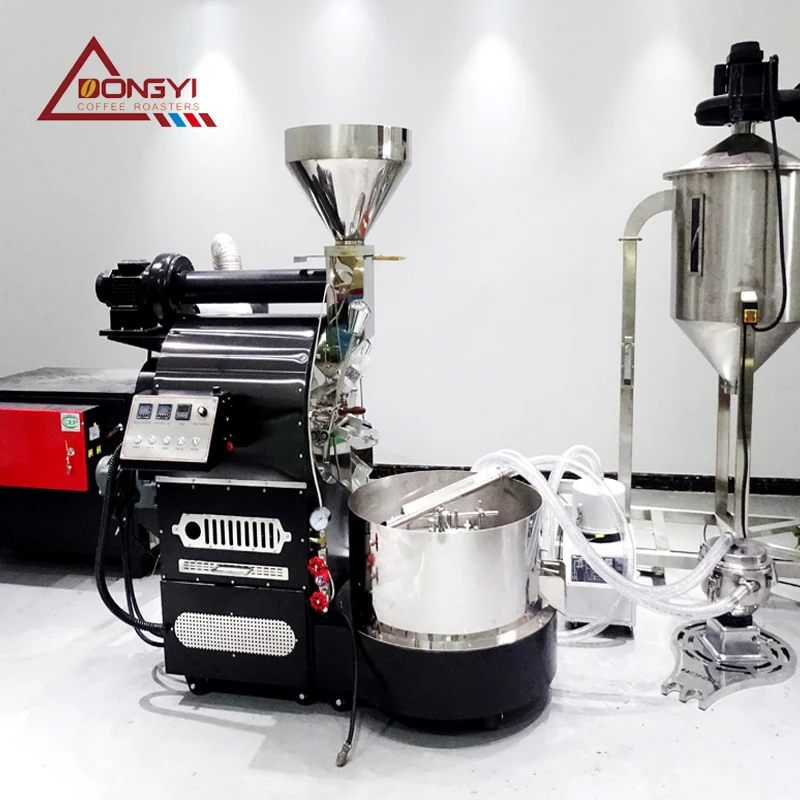

China 3kg price green coffee bean roasting baking bakery machinery machines commercial coffee machines for sale:
Product Description
Hand Built for Craft Roasting
♥Total Control:
Digital electronic gas control, Magnehelic drum pressure gauge, Variable drum and fan speeds. Powerful dedicated cooling fan.
♥Heavy Duty
Build Industrial quality, solid plate and all stainless steel construction.
♥Advanced USB Data Logging
State of the art real time roast data and logging via four factory installed thermocouples, Drum speed, fan speed, and gas pressure available into the datalogging platform of your choice.
♥Natural or LP Gas
High output, fully adjustable natural and LP gas burners.
Rotating color options allow you to match your roaster to your style, ask about current color offerings.
DY-3kg coffee bean roaster specification:
Roaster Size
1377 x 908 x 1680 mm
Roaster Weight
345 kg
Chaff Collector Size
406 x 1322 mm
Chaff Collector Weight:
34 kg
Drum Construction
Double-walled Drum, 310 Stainless Steel, Welded
Batch Size
0.6-3.6kg
Average Roasting Time:
< 15 minute batch
Power
Single Phase, 220V, 15A, 50-60Hz
Step-Up Transformer
120V to 220V, 1000W
Drum Motor
200W
Exhaust Fan Motor
400W
Cooling Fan Motor
200W
Cooling Tray Stirring Motor:
100W
Fuel Type
LP Gas -or- Natural Gas
Max. BTU
60,000
Burner Control
Manual Valve
Gas Connection
1/2" NPT
Gas Pressure Required
LP Gas: 7” of water column Natural Gas: 11” of water column
Gas Orifices Size
LP Gas: 0.7 mm (installed at factory) Natural: 0.9 mm (see conversion/instructions)
Max Gas Usage
1.3 lb/hr (0.6 kg/hr)
Typical Roaster Exhaust High Temp
400°F - 450°F
Chaff Collector Exhaust High Temp
300°F
Cooling Tray Exhaust High Temp
180°F
Max Exhaust
300 CFM
Exhaust Venting Type Required:
Class III, Positive Pressure
Bluetooth
Modbus CP210/artisan software
Logging Thermocouples:
BT, ET, Incoming Air

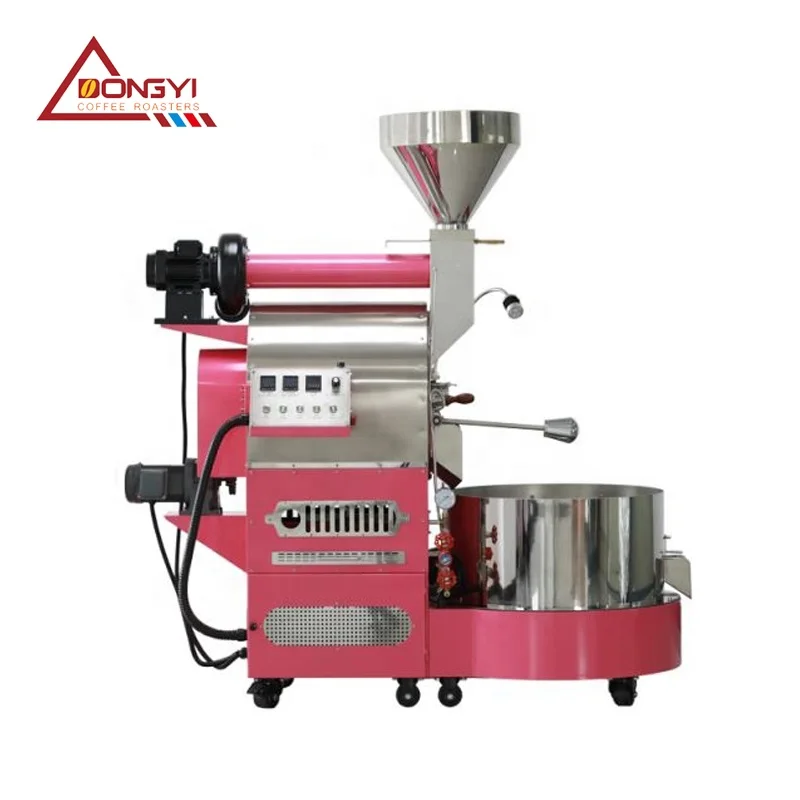

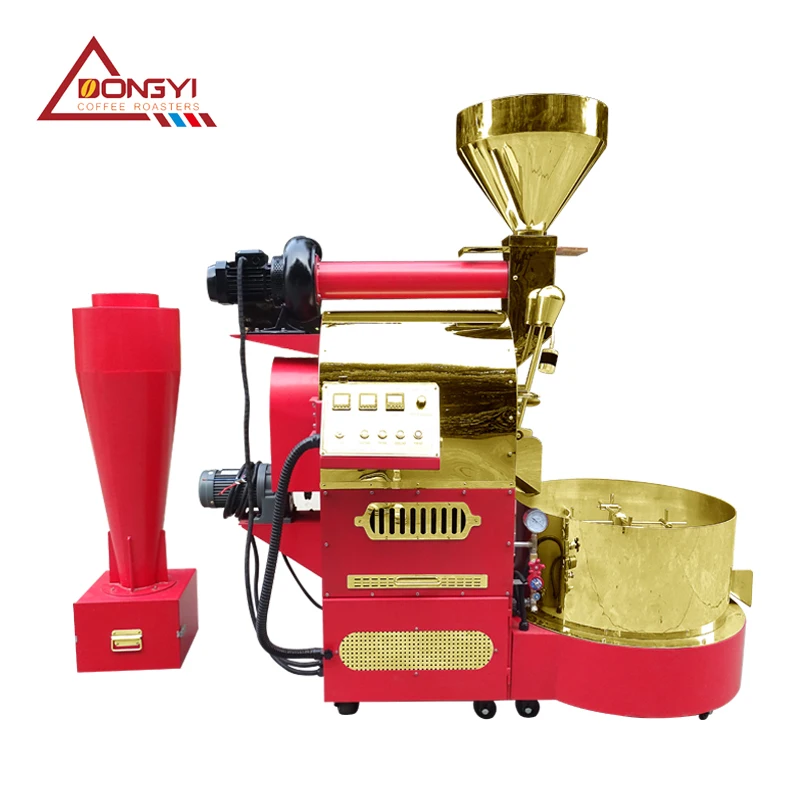

Color On Roaster Body
Black,Red,White,Pink

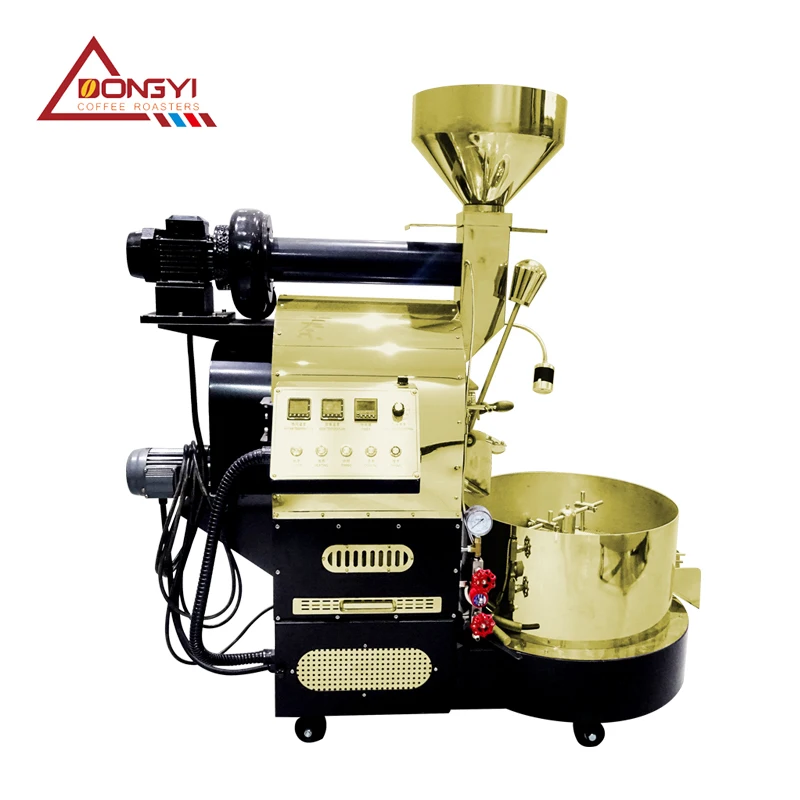

Color On Housing Plate
Golden,Silver,Rose Gold
(Mirror or no fingerprint)
Black Titanium,Riffled Plate
Advantages
*1 year sold 2000+ to the world
*Germany technology made by Military production
*Electronic speed governor for HOT AIR [JMC TOP BRAND]

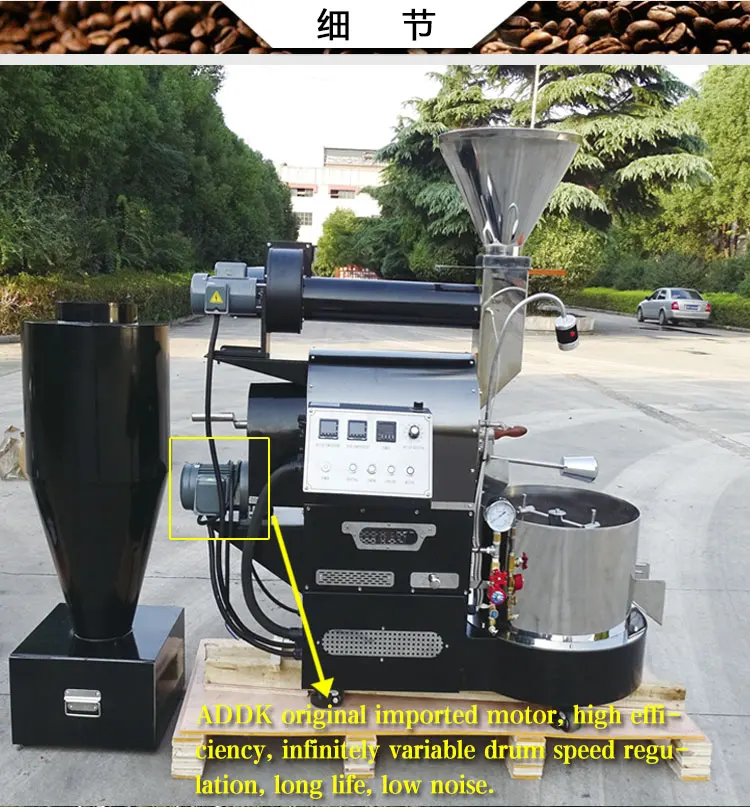

*ADDKA superior motor with OMRON VFD converter speed control [TOP BRAND]
*310SUS double wall drum/cast iron drum option
*Artisan roasting data logging [Bluetooth connect computer]
*25℃+ warm up temperature rate per minute
*Cast Iron gas burner [1-300kg gas roaster]
*carbon fiber heating tube [1-6kg electric roaster]
*CE,UL,RoHS,ISO9001:2000
features
1 Food Grade 310 Stainless Steel Drum for even heating.
2. insulation layer to prevent heat consumption and excellent insulation effect
3. 360' heating elements to provide even heated on coffee beans
4. 4 independent power motors which can do roasting and beans cooling down at same time. 2 Mins Fully Cool down.

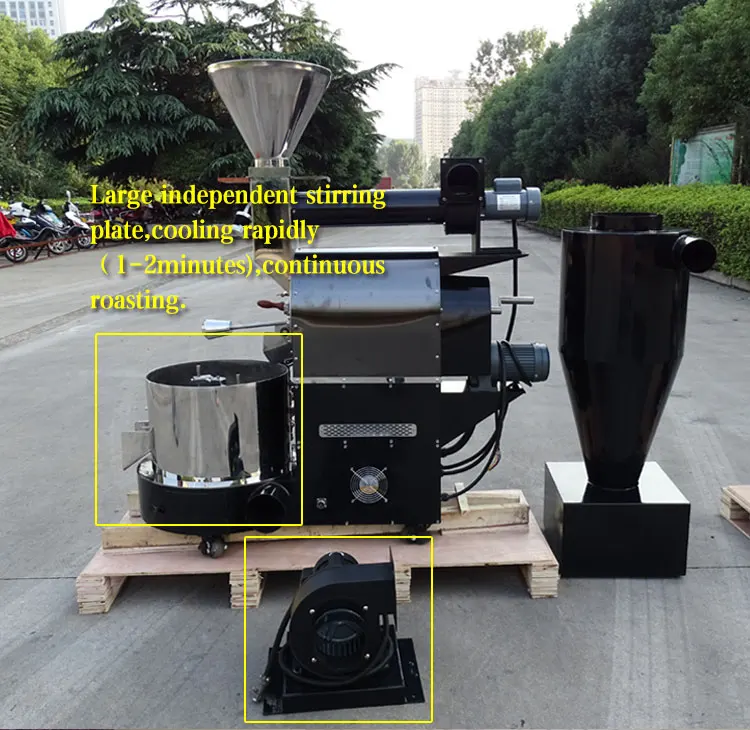

5. High quality stainless steel cooling tray with bigger size from 36cm to 48cm for 1kg-3kg roasters to save a lot cooling time.
6. Adjustable speed motor control for drum suit for roasting different kinds of beans.

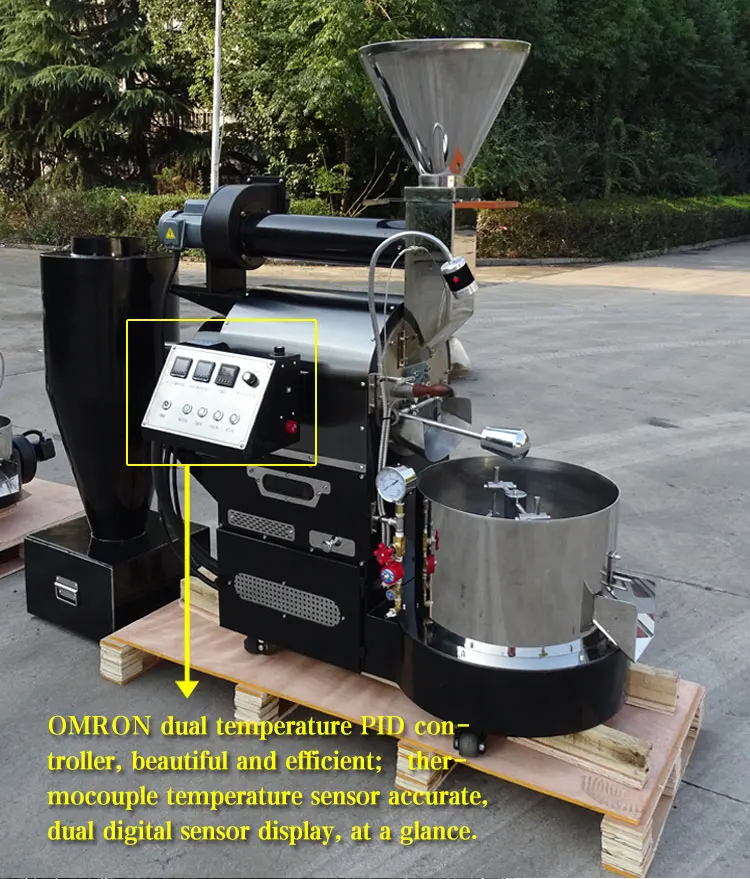

7 OMRON Dual Thermometer, Data output supported.
8 Optional Artisan Software to see roasting profile, Real time dynamic temperature curve.
9. Adjustable hot air control.

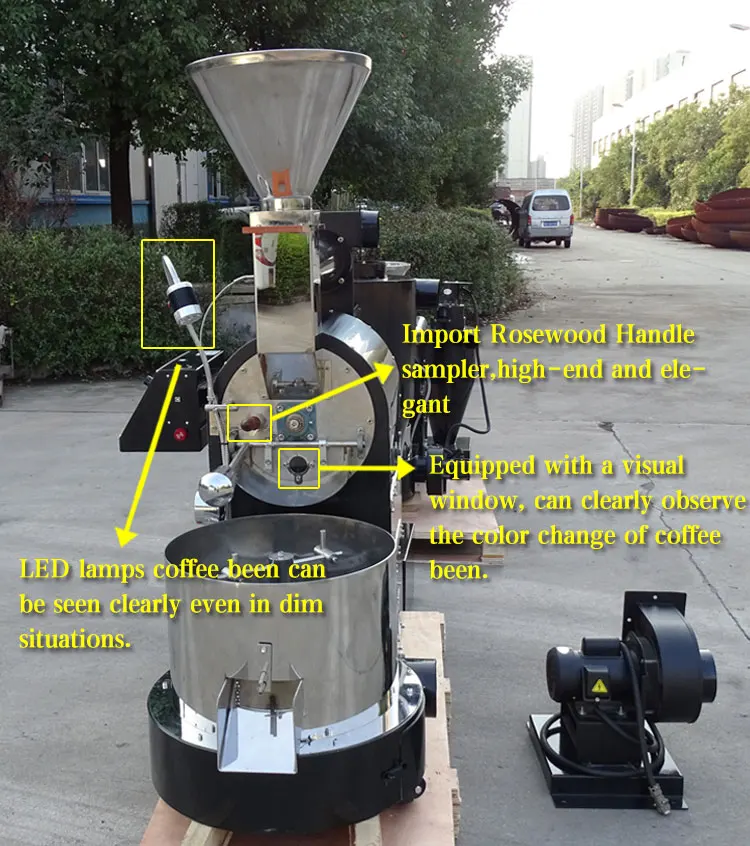

10. High quality wooden handle for sampling spoon.
11. Electric or Gas optional.
Our Services
Company Information
CE ISO Certification
delivery&shipping
Packing
1.Standard wooden box 2.Custom Package
Delivery
1.Stock within 5-10 working days. 2.Wholesales Orders: 7-15 working days according to different order. 3.OEM: 15 working days after receiving your sample confirmation and payment.
Shipping
1. DHL/UPS Air and Sea Shipping 2.Normally, products in stock will take around 3-5 working days from China to destination country. Please note that some remote places need 1-3 working days more.
