vibro hopper feeder system /bin activator

Product Overview

Description





Introduction of  Vibrating Feeder



The GZD circular vibrating feeder is a silo arch-breaking feeding device calculated by cubage . the feeder is installed under the silo bottom with multi functions : feeding material to the next procedure evenly and continuously , can also break arching , stop feeding flow and control feeding flow ,  eliminate silo segregation caused by mixing of different granulate and different proportion materials



The silo feeder equipment is suitable for all kinds of powder and granular materials  .adapted to circular , square , steel or concrete silos.





Features of Feeding Machine



1. feeding materials evenly , arch-breaking

2.  fully sealed , without dust flying , protected environment

3. suitable for powders and particles feeding

4.  simple structure , easy operation and maintenance

5. low noise , low power consumption

6. can also produce the feeder machine according to customer's drawings







Customized Service : voltage , frequency , dimension , material and other special design

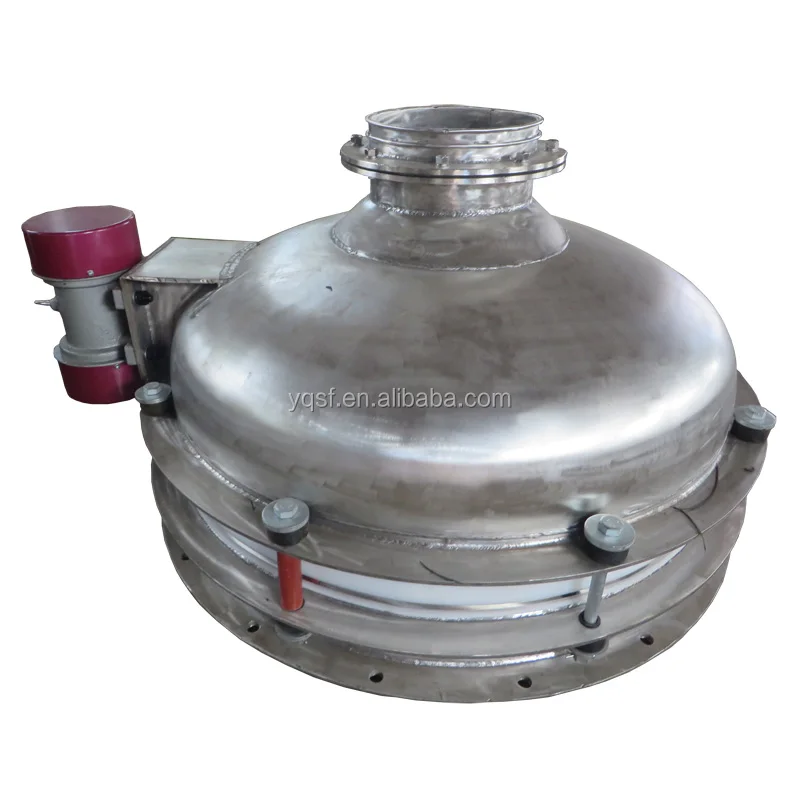

stainless steel vibrating feeder	stainless steel vibration feeder

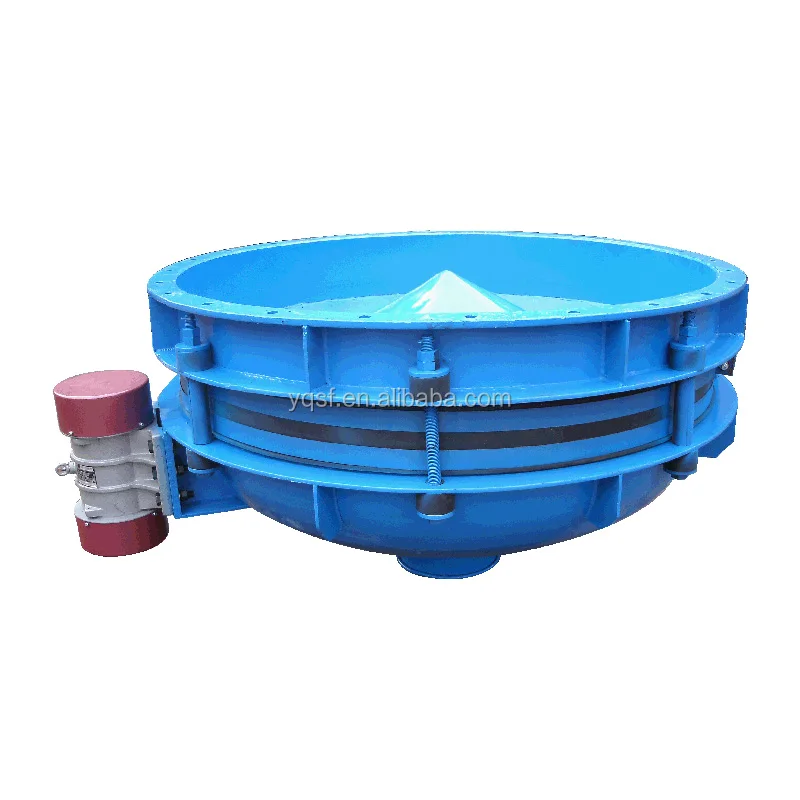

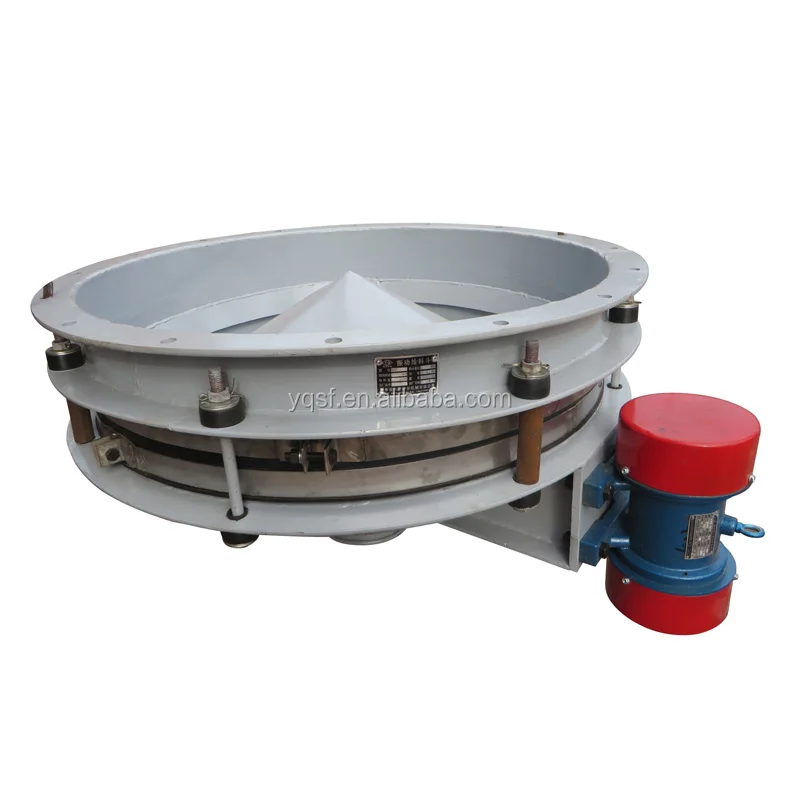

carbon steel vibratory feeder	carbon steel vibrate feeder











outlet valve according to customer's needs , can       adding this special design to control feeding  speed







outlet of the feeder welded thick stainless steel with long service time .





 Parameters of Vibrating Silo Feeder





Model	Vibration feeder diameter A(mm)	Bunker diameter (m)	Motor Power (kw)	Flange outer diameter C(mm)	Weight(kg)	Excitation strength scope (kg)	Discharge hole D(mm)
GZD04	400	0.4-0.8	0.15	490	50	0-150	120
GZD06	600	0.6-1.2	0.2	710	100	0-250	150
GZD08	800	0.8-1.6	0.5	930	180	0-500	200
GZD10	1000	1.0-2.0	0.75	1130	300	0-1000	250
GZD12	1200	1.2-2.4	1.10	1330	450	0-1500	250
GZD15	1500	1.5-3.0	1.50	1660	650	0-2000	300
GZD20	2000	2.0-4.0	1.50	2200	1200	0-3000	400









packaging : outer with standard plywood case ,

                 inner with moisture-proof & water-proof membrane

delivery : 3-5 days after deposit
