The type CleanerTM roller conveyor blast machine is mainly designed for the treatment of steel pipes or tubes in the steel construction or steel preparation industries. The machines can be delivered as standalone units or integrated into an automatic transportation or sawmill/bore line.
The standard Roller Conveyor is our type CleanerTM blast machine, available in throughfeed diameters from 30 mm to 2000 mm.
Automatic loading/unloading systems are optional.
Find more detailed information about the offerings from each model below.
Advantages
QGW CleanerTM Roller conveyor shot blasting machinesare self contained, robustly built and designed for the economical and efficient surface treatment of Pipes and tubes.
• Solid manganese rolls in blast compartment • Tested and proven WildblastTM blast wheels • Automatic abrasive removal system • Automatic PLC control • Installed without the need for further exhaust ducting • Quick turnaround, easy assembly and commissioning
• High life time by use of S-WindTMair separator.
The systems can be used as single machines or integrated into descaling and anti-corrosion treatment lines.
Parameter
Type
QGW10
QGW15
QGW20
QGW25
QGW30
Pipe Diameter (mm)
30-100
50-150
50-300
152-1400
1000-2000
Pipe Length (m)
1.2-12.0
1.2-16.0
1.2-12.0
3.0-12.0
4.5-18.0
Wheels*Power
2*15 kw
4*15 kw
4*22 kw
6*22 kw
8*22 kw
Work Speed
1-4 m/min

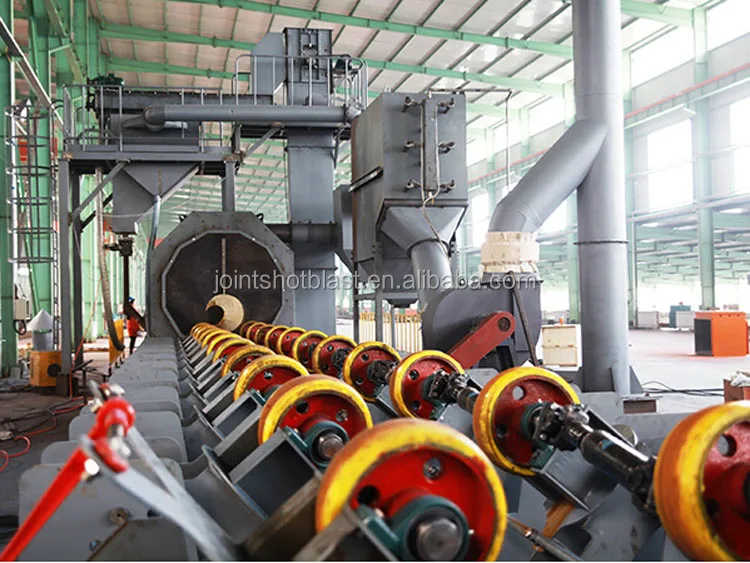

Detailed Images
Key components
Packaging & Shipping
Seaworthy plastic bag+plywood box.
20' GP or 40' GP.
Company Information
As a leader in surface preparation technology, Joint Group designs, manufactures and sells worldwide a complete range of high quality shot/sand blasting machines for the foundry and forging industries.Located in China, Joint Group shot/sand blasting machines and parts are working in over 60 countries’ workshop.
Leading companies in the foundry, automotive, aerospace, energy, marine, rail, construction and many other industries have used Joint Group’s products and services to improve productivity and profitability for over 50 years.
Joint Group continues to use the experience of having the large installed base in the industry to deliver the best solution for the customer.Joint Group’s approach to solving customers’ operating challenges is unique in the industry. Using insight gained from thousands of different applications across a variety of different industries.
