Damping Vibration Stabilize And Balance Mount Pads
Product Description
Machinery Mount Pads Description
The anti-vibration mount can used in metal working machines, satin pressure machine tools, textile, printing machinery, food processing machines, rubber machines, wire and cable machines, packaging machines, generators and heavy equipment.
The desired penetration into the horn under the machine foot bolt holes. To spin and load-bearing plate contact with reality, then the level of machine adjustment (bolt clockwise rotation lift the machine), Adjusted the machine level. Tighten the nut, fixed level status. Because rubber creep phenomenon, for the first time, adjust the machine level again after two weeks.

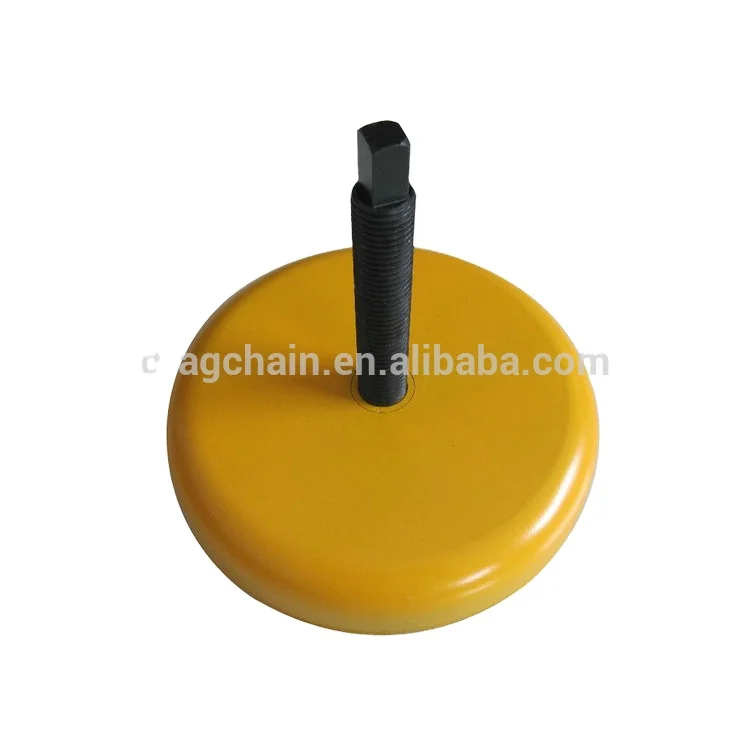

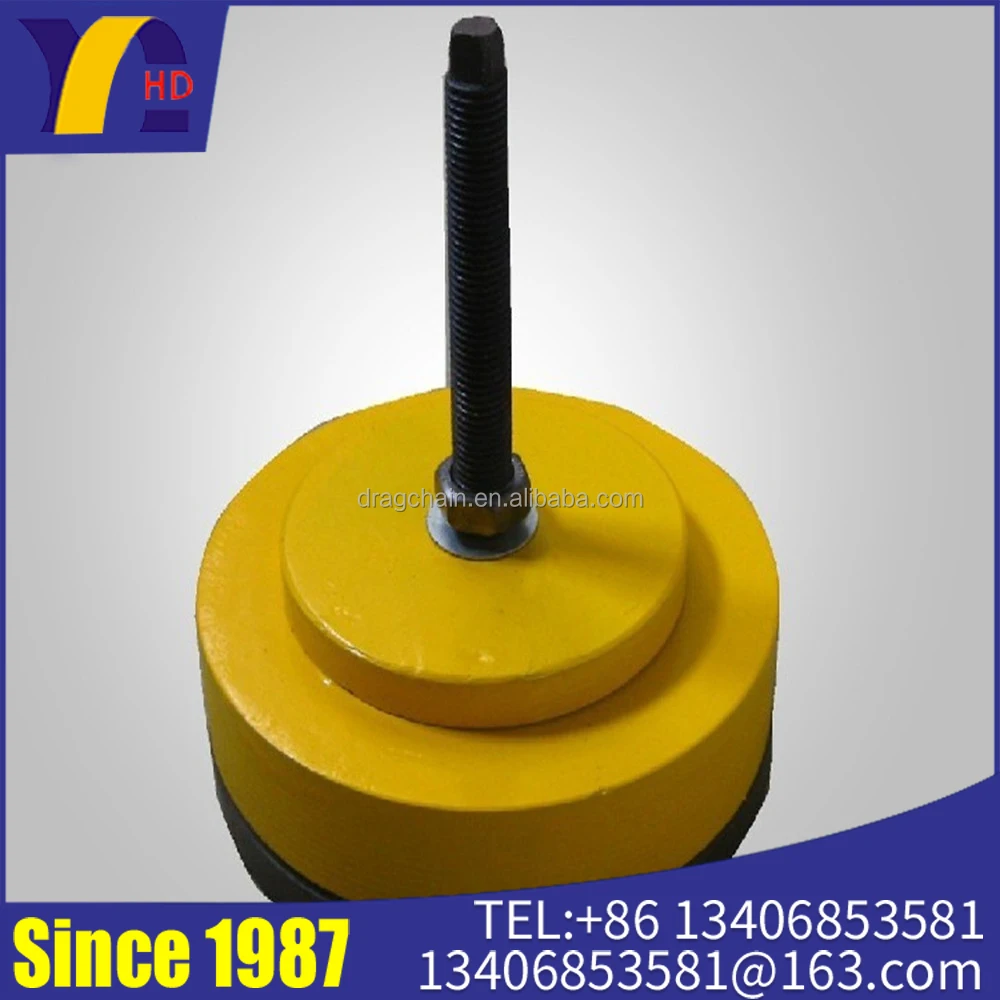

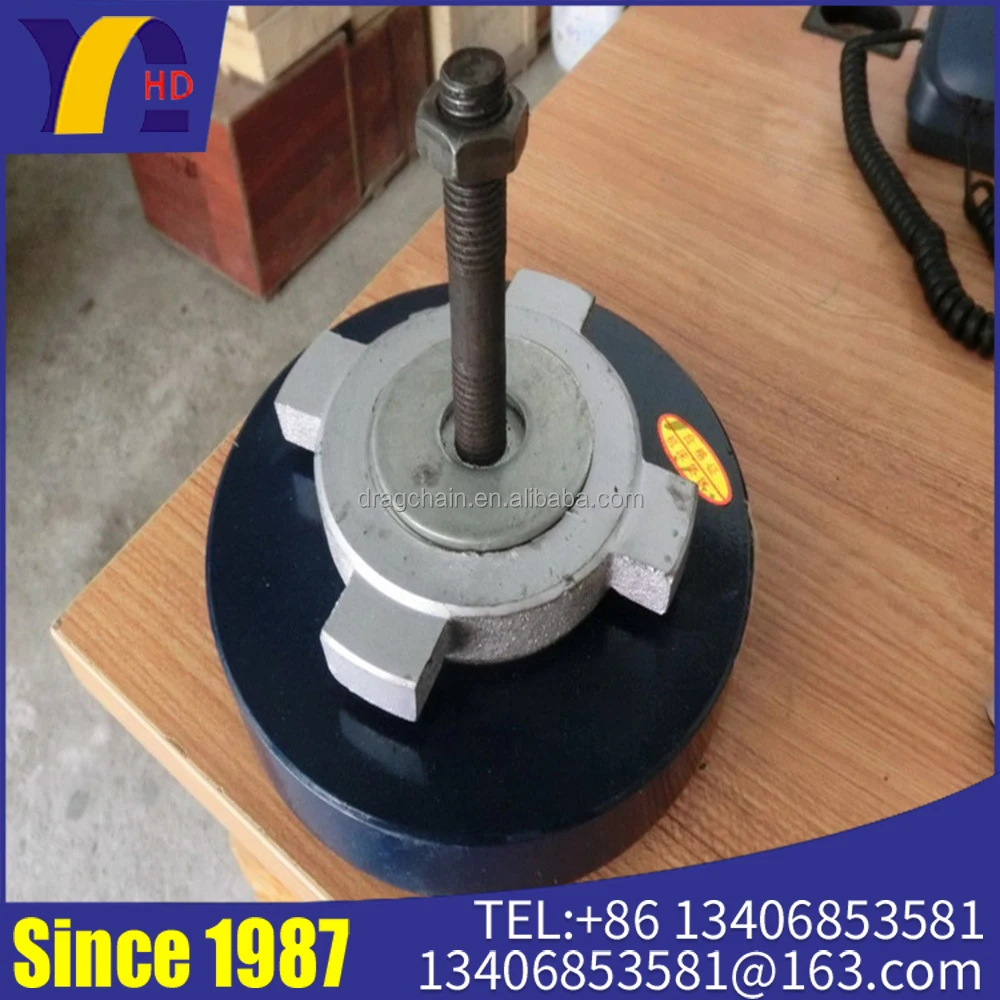

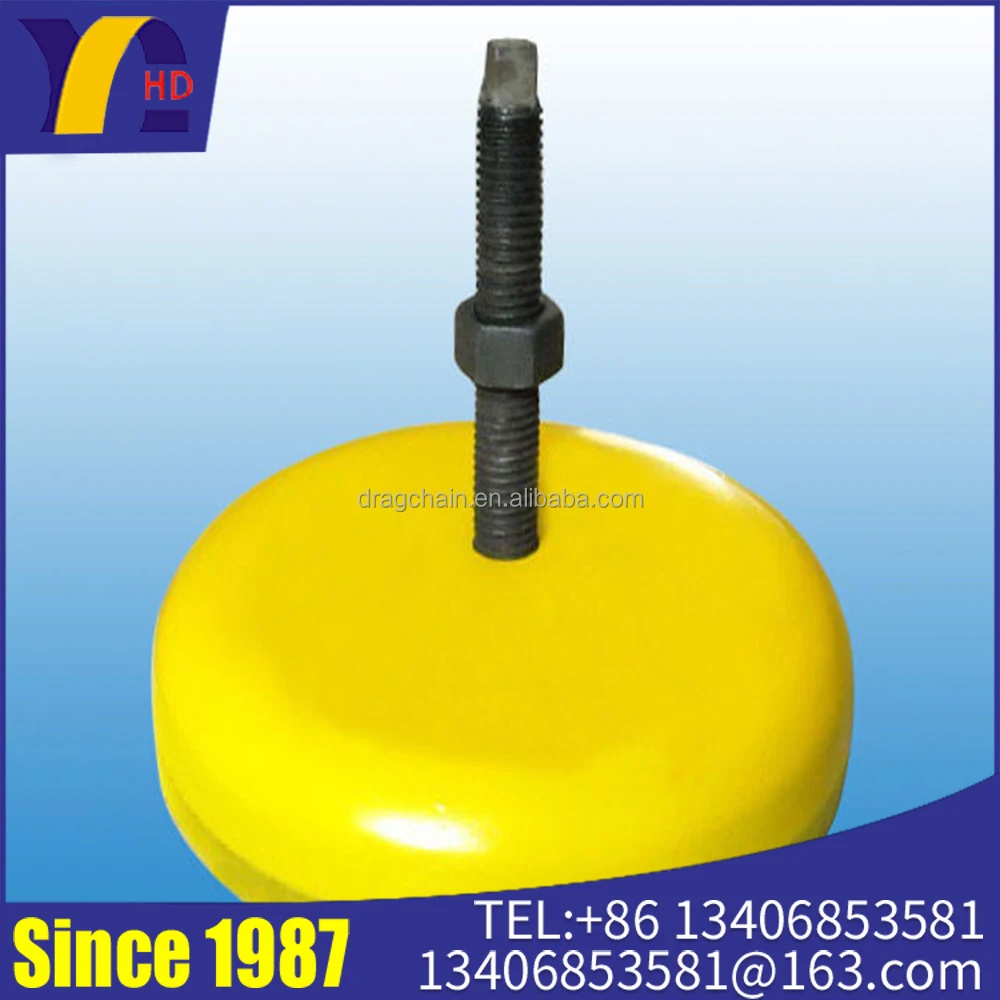

Machinery Mount Pads Show
Machinery Mount Pads Feature
The anti-vibration mount can effectively reduce the machine self-vibration; reduce the vibration force exposed or incoming, to ensure the products’ accuracy and quality. Also, the anti-vibration mount prevent the vibration and noise of building, united the all kinds of machine tools, adapt the technology development.
Large adaptive range, convenient and fast.
NBR synthetic rubber, resistant to oil and coolants.
Machinery Mount Pads Size
Model
01
02
03
04
05
06
07
08
09
Diameter (mm)
130
160
180
200
220
240
260
280
300
Height (mm)
50
60
70
80
100
Thread
12
16
18
20
24
Height Adjust (mm)
15
20
25
30
Load Per Mount (N)
4000-8000
6000-12000
7000-14000
8000-16000
9000-18000
10000-20000
11000-22000
12500-25000
15000-30000
Packaging & Shipping
Trade
MOQ: 10 Boxes
Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram; 30% deposits; 70% balance before delivery or against copy of BL
Delivery Time: 3-7 days for samples; Within 10 days for batch goods.
Packaging: Carton or wooden cases
Shipping: By Air or by Sea for batch goods, for FCL OR LCL; Airport/ Port receiving;
Our Services
Service
Professional & Passion Sales team 24 hours at your service Participating in the various exhibitions help you to know us more completely sample could be sent in 1-2 days OEM of customized products / logo / brand / packing is accepted small qty accepted & quick delivery
Can send you samples for free
Company Information
Company Information
Qingyun Huade Machine Tool Accessories Producing Co., Ltd. is a set of machine tool accessories, development, application and research for the integration of professional enterprise. Our products are:Machine tool drag chain, machine shield, Chip conveyor, machine tools mat iron, working lamp, Cable drag chain, Plastic drag chain, Nylon drag chain, Steel drag chain, Engineering drag chain, Guideway cover, Screw shield, Chain plate chip removal machine, Shock pad iron, adjustable mounts.
