cable adhesive dual wall heat shrink sleeve
US $0.10-$1.00
Хус клейкая термоусадочная трубка для проводов и кабелей/термоусадочная трубка с клеем
- Category: Cable Sleeves >>>
- Supplier: Dongguan Ke Yu New Material Technology Co. Ltd.
Share on (60518865125):
Product Overview
Description
HUS-Double Wall Heat Shrink Tubing With Adhesive
Waterproof heat-shrinkable tubing with glue
Product Description
Hus-Double wall heat shrink tube with glue (adhesive ) made of outer flame-resistant insulated polyolefin PE material layer and inner transparent EVA hot melt adhesive layer. With superior insulation and sealing capacities against water, damp and corrosion and convenient stripping-fastening function.
Application
HUS-Glue heat shrink tube , Adhesive Heat shrinkable tubing widely used in all kinds of wire harnesses, electric wires and cables, connectors, metal pipes and others.
Features
Features & Benefits
1, Flame-resistant, anti-UV
2, Heat Shrink Ratio: 3:1 ,4:1
3, waterproof, damp-proof, anti-corrosion, prevent gas leakage.
4, RoHs, UL, Halogen Free, REACH.
Operating Indexes:
1, First shrink temp.:70℃
2, Final shrink temp.:125℃
3, Operating temp.:-45℃~125℃
Up to standard: Approvals
Meet RoHs, 125 ℃, 600V
Detailed Images
Advantages

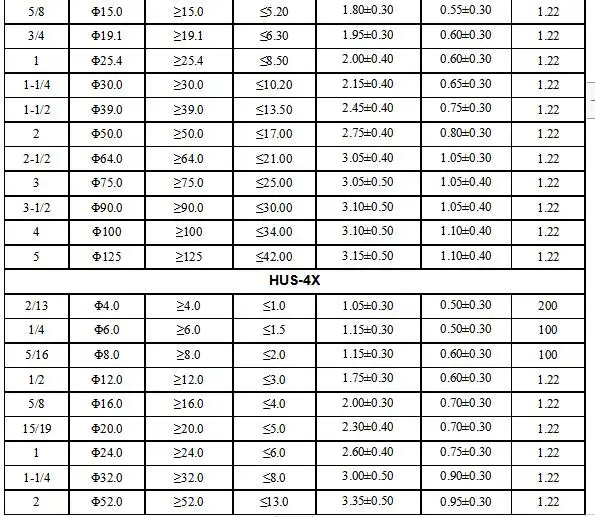

Product Dimension
Nominal Size | As supplied (mm) | After recovered ( mm ) | Standard Packing (M/Roll)
| |||
(Inch) | (mm) | D :Inside diameter | d : Inside diameter | T: Total wall thickness | t. : Adhesivel thickness |
|
HUS-3X(3:1) | ||||||
3/32 | Φ2.4 | ≥2.4 | ≤0.80 | 0.80±0.30 | 0.40±0.20 | 200 |
1/8 | Φ3.2 | ≥3.2 | ≤1.00 | 0.90±0.30 | 0.40±0.20 | 200 |
3/16 | Φ4.8 | ≥4.8 | ≤1.60 | 1.05±0.30 | 0.40±0.20 | 100 |
1/4 | Φ6.4 | ≥6.4 | ≤2.20 | 1.25±0.30 | 0.45±0.20 | 100 |
5/16 | Φ7.9 | ≥7.9 | ≤2.70 | 1.35±0.30 | 0.45±0.20 | 100 |
3/8 | Φ9.5 | ≥9.5 | ≤3.20 | 1.45±0.30 | 0.50±0.20 | 50 |
1/2 | Φ12.7 | ≥12.7 | ≤4.20 | 1.65±0.30 | 0.50±0.20 | 1.22 |
.
