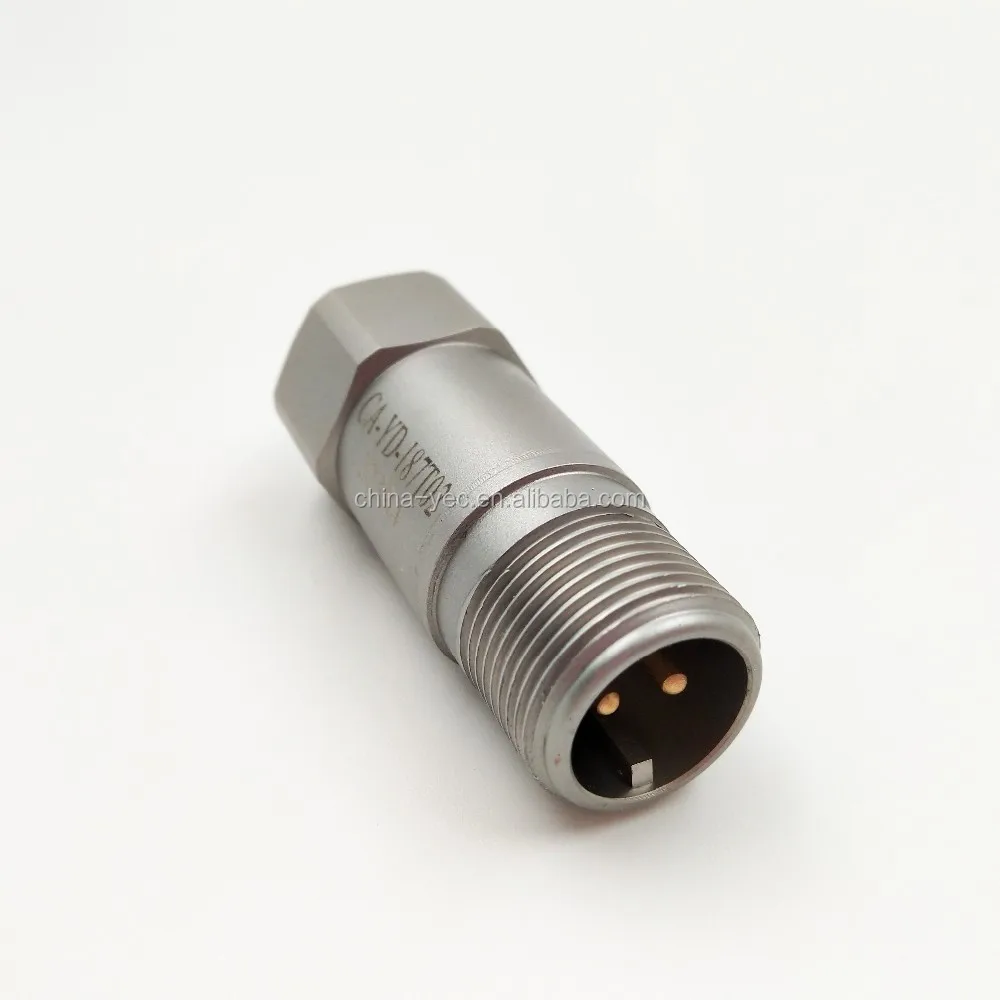

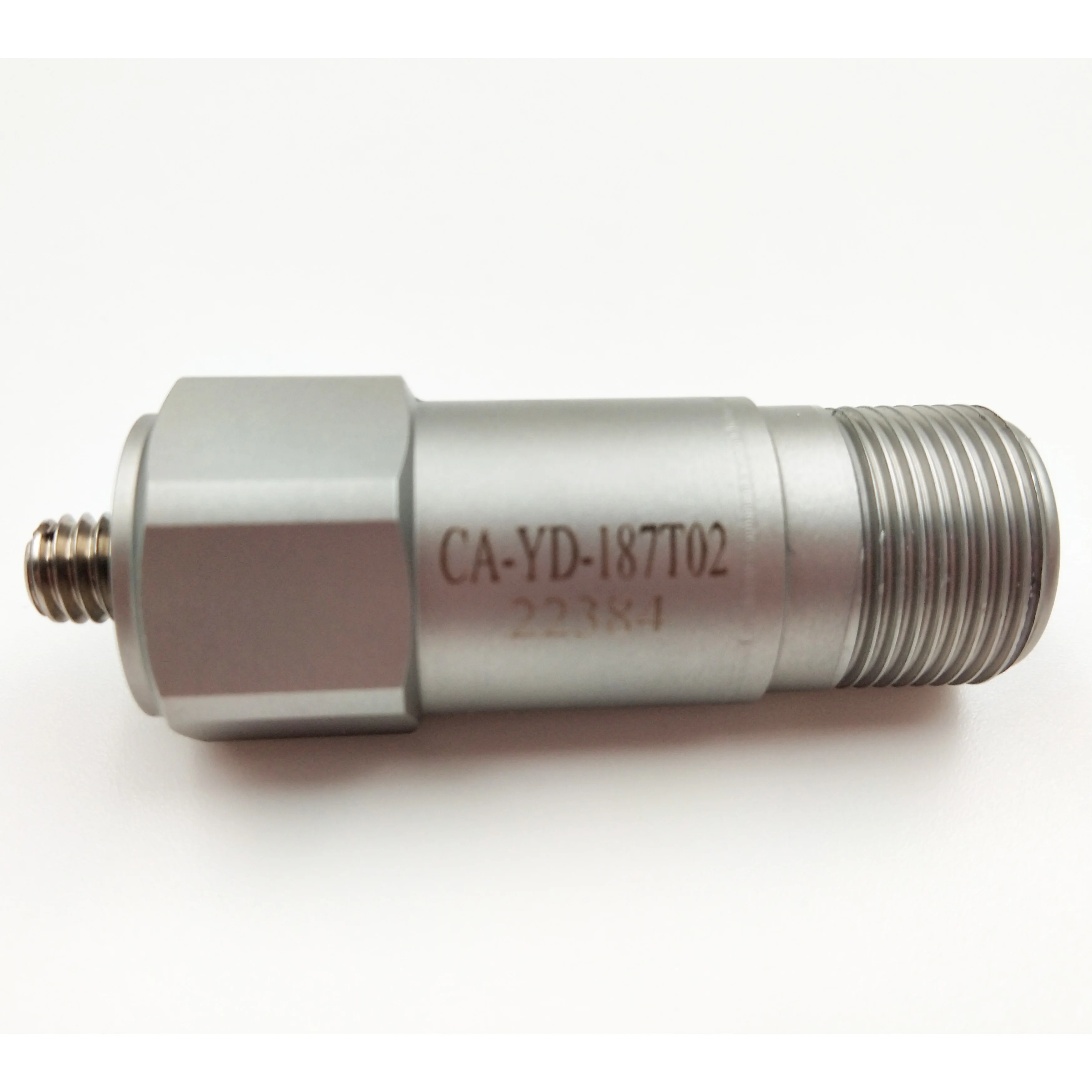

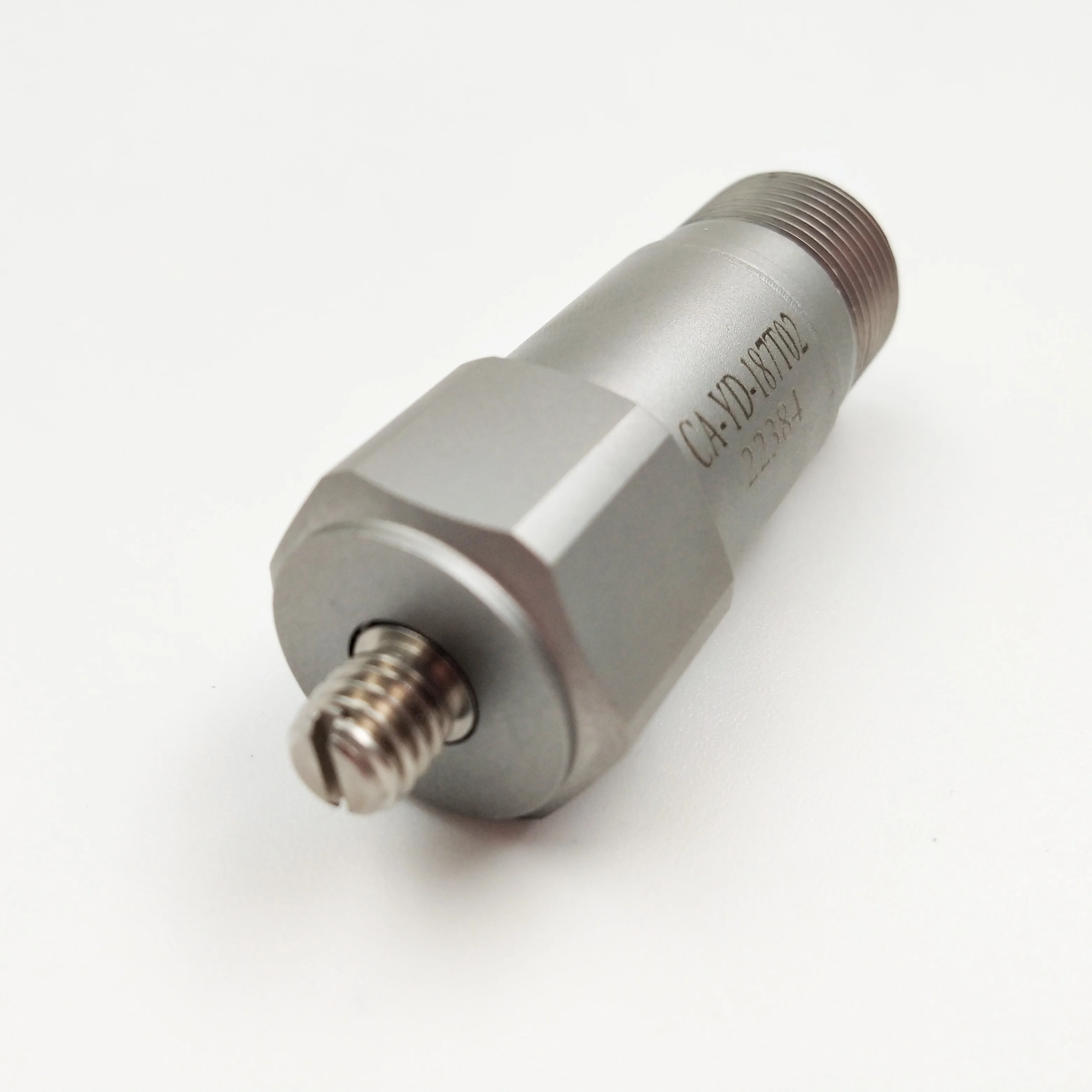

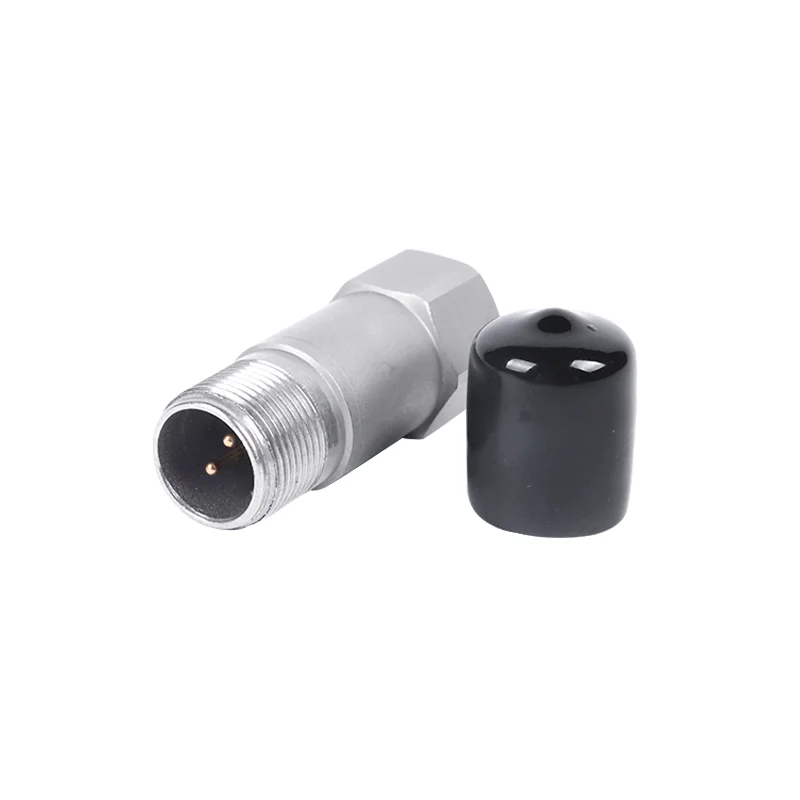

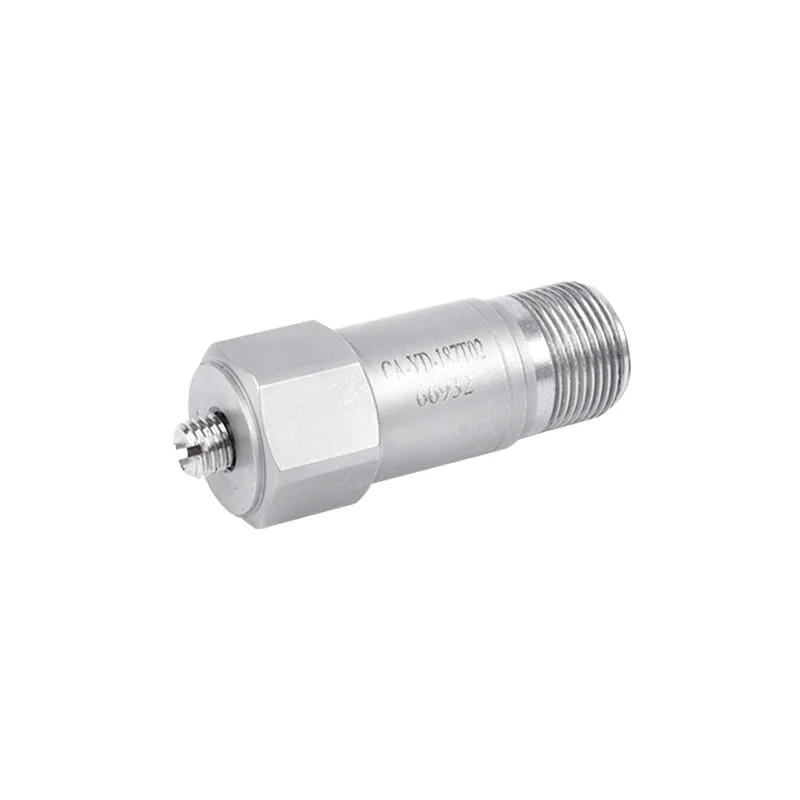

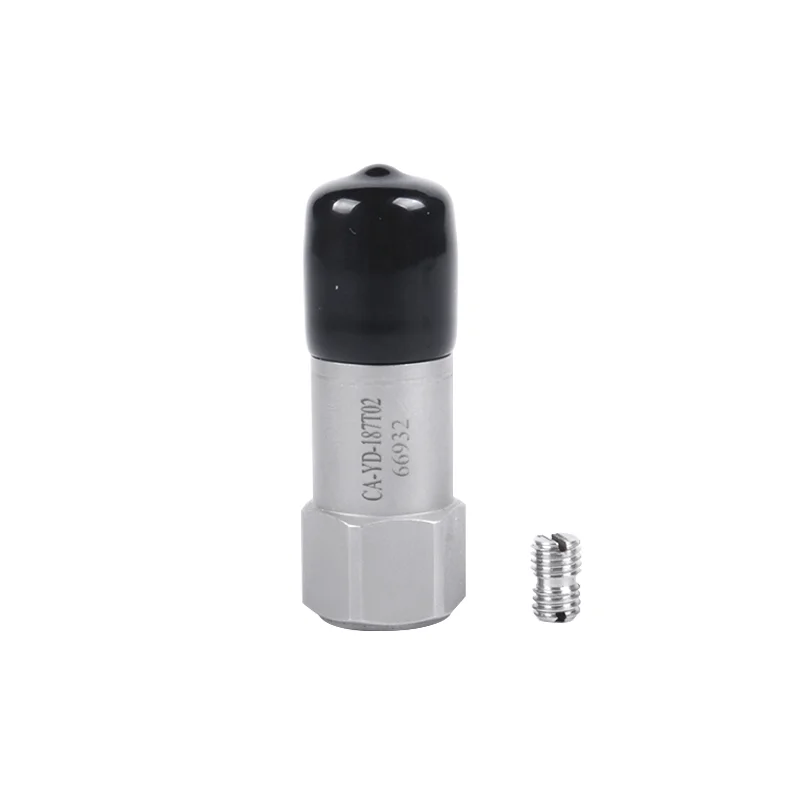

IEPE piezoelectric accelerometer vibration sensor CA-YD-187T02
IEPE piezoelectric accelerometer vibration sensor CA-YD-187T02
IEPE piezoelectric accelerometer vibration sensor CA-YD-187T02
IEPE piezoelectric accelerometer vibration sensor CA-YD-187T02
IEPE piezoelectric accelerometer vibration sensor CA-YD-187T02
IEPE piezoelectric accelerometer vibration sensor CA-YD-187T02

IEPE piezoelectric accelerometer vibration sensor CA YD 187T02

Share on (60518955036):


Price:$90.00 - $120.00

Quantity:


Product Overview

Description


Product Description

IEPE PIEZOELECTRIC VIBRATION SENSOR

IEPE is the abbreviation of Integrated Electronics Piezo Electric.

The power supply and signal output use the same cable (Internationally known as ICP).

IEPE piezoelectric accelerometer sensor can be customized with the TEDS function.

Product Features
1).Built-in IEPE, low noise, strong resistance of disturbance
2).Isolated, Floating, industrial site monitoring
3).2-pin MIL-C-5015 two-pin socket output
Product Parameters
\t
Sensitivity(20±5℃)
\t
100mv/g
\t
Measurement Range(pk)
\t
±50 g
\t
Max Transverse Sensitivity
\t
<5%
\t
Frequency Response(±10%)
\t
0.6~10,000 Hz
\t
Frequency Response(±3dB)
\t
0.4~13,000 Hz
\t
Mounting Resonant Frequency
\t
30 KHz
\t
Amplitude linearity
\t
≤1%
\t
Operating Temp. Range
\t
-40~+120 ℃
\t
Temperature Response
\t
See Graph
\t
Shock Limit(pk)
\t
5000 g
\t
Noise(rms)
\t
<50 μV
\t
Output Impedance
\t
<100 Ω
\t
Operating Voltage(Constant current source)
\t
18~28 VDC
\t
Operating Current
\t
2~10 mA
\t
DC Bias Voltage
\t
12±2 VDC
\t
Case Isolation
\t
≥108 Ω
\t
Mounting
\t
1/4-28
\t
Output
\t
Top 5/8-24 2-pin Socket

                                    Temperature Response

                                       Frequency Response

Accessories
\t
Certificate
\t
Calibration parameters
\t
1/4-28 Stud
\t
one
\t
3106A(5015)Plug, Cable(RVVP)
\t
one (3m),one end free
