Product Overview
Description
Product Description
| Model | YS85M-36 | YS90M-36 | YS95M-36 | YS100M-36 | YS105M-36 | YS110M-36 |
| Rated Maximum Power at STC | 85W | 90W | 95W | 100W | 105W | 110W |
| Maximum Power Voltage (Vmp) | 17.81V | 17.87V | 17.91V | 18.11V | 18.21V | 18.27V |
| Maximum Power Current (Imp) | 4.78A | 5.04A | 5.31A | 5.53A | 5.77A | 6.03A |
| Open Circuit Voltage ( Voc) | 21.32V | 21.41V | 21.52V | 22.61V | 22.73V | 22.85V |
| Short Circuit Current (Isc) | 5.32A | 5.51A | 5.81A | 5.91A | 6.02A | 6.15A |
| Module Efficiency | 13.05% | 13.81% | 14.58% | 15.34% | 16.11% | 16.88% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | ||||||
| Mechanical Parameters | ||||||

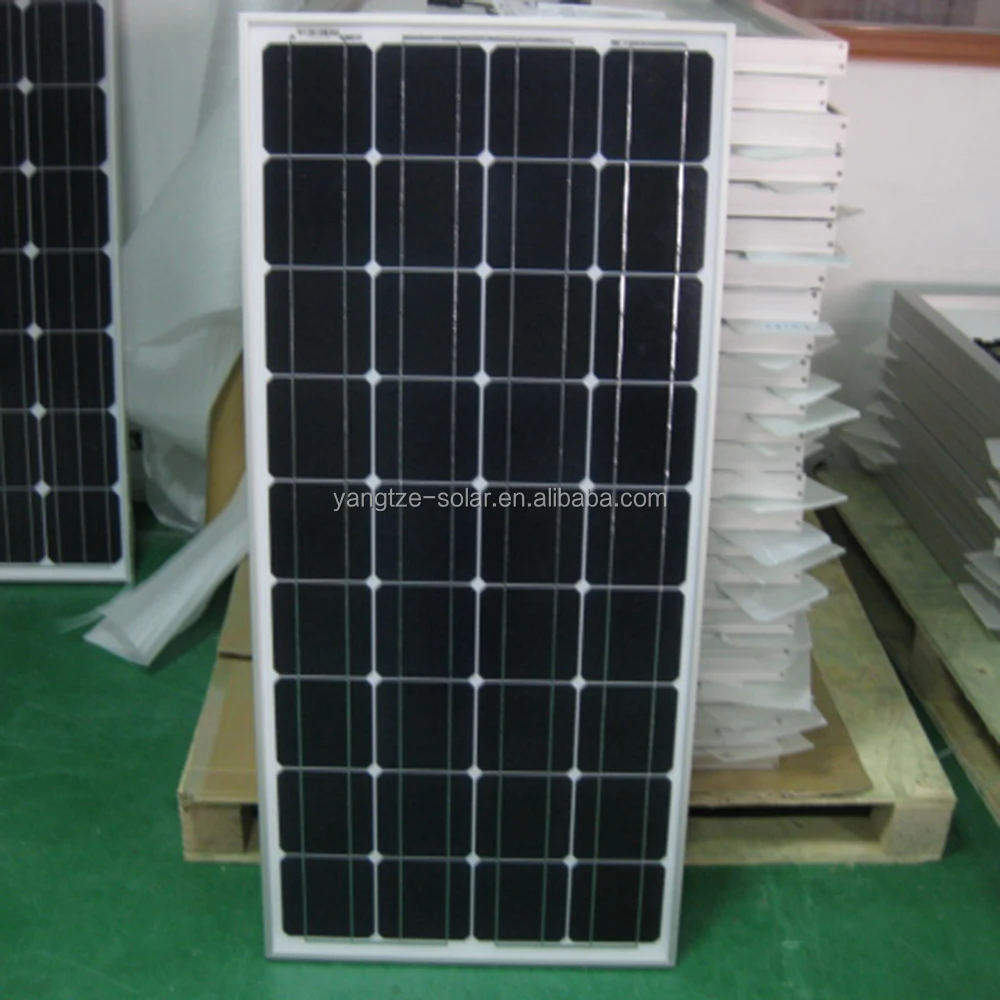

| Cell Type | Mono-crystalline 125x125mm (6inch) | |||||
| No. of Cells | 36 (4x9) | |||||
| Dimension | 1199x543x35mm | |||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | |||||
| Junction Box | IP65&IP67 Rated | |||||
| Output Cable | Section Size: 2.5mm² , Length: 600mm | |||||
| Frame | Anodized Aluminum Alloy | |||||
| No. of Bypass Diodes | 2 | |||||
| Connector | MC4 Compatible | |||||
| Working Conditions | ||||||
| Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) / 600V(UL) | |||||
| Operating Temperature | -40°c~+85°c | |||||
| Maximum Series Fuse | 15A | |||||
| NOCT | 45±2°c | |||||
| Application Class | Class A | |||||
| Temperature Coefficient | ||||||
| Temperature Coefficient of Pmax | -0.40%/°c | |||||
| Temperature Coefficient of Voc | -0.30%/°c | |||||
| Temperature Coefficient of Isc | +0.06%/°c | |||||
Packaging & Shipping
Company Information
♦ Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) , CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
Certifications
