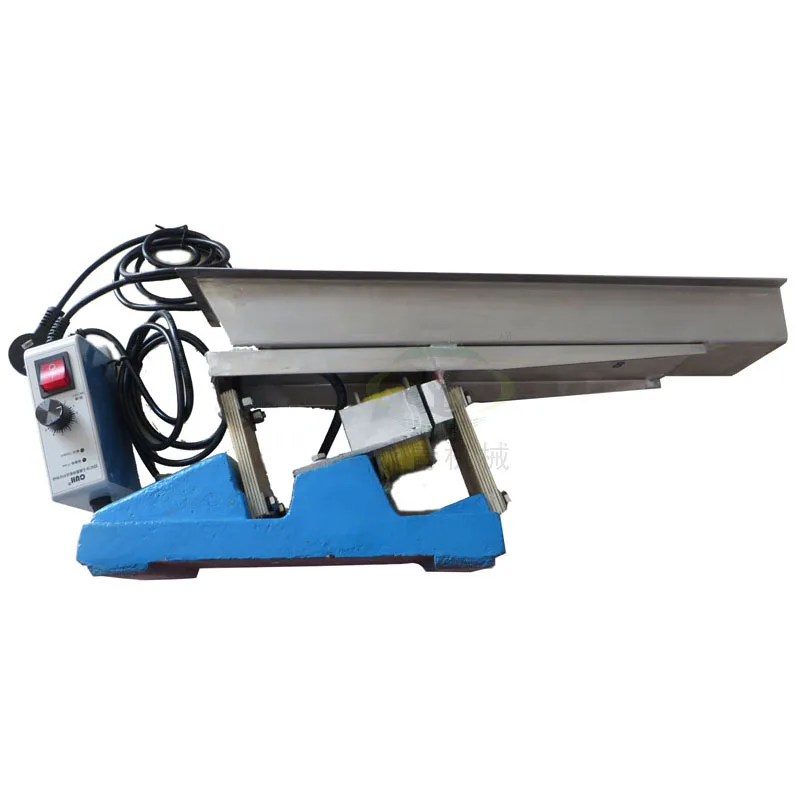

small size electromagnetic vibrator feeder uniform feeding equipment for belt conveyors

Product Overview

Description





Introduction of  Electromagnetic Vibrating Feeder



Electromagnetic feeder is a new type of feeding equipment , using electromagnetic exciter as the vibration source to drive hopper trough work .



The feeder machine is mainly used for  used for transmitted  massive, granular and powdered materials from storage silo to the receiving devices , feeding material eqably ,continuously ,quantificationally so that prevent receiving devices halted due to unevenness feeding.



Vibrating Feeder is widely applied to  metallurgy, coal, mineral processing, building materials, chemicals, abrasives materials etc. can  feeding the belt conveyors , bucket elevators , screening equipments and crushers . can also used for quantitative packing realize production automation equiped with electronic scales or a computer







Features of Feeding Machine



1. small size , light weight , simple structure ,easy installation

2.  without rotary  parts , no need bearing or lubrication , less breakdown , low maintanence cost

3. low noise ,  low energy consumption .

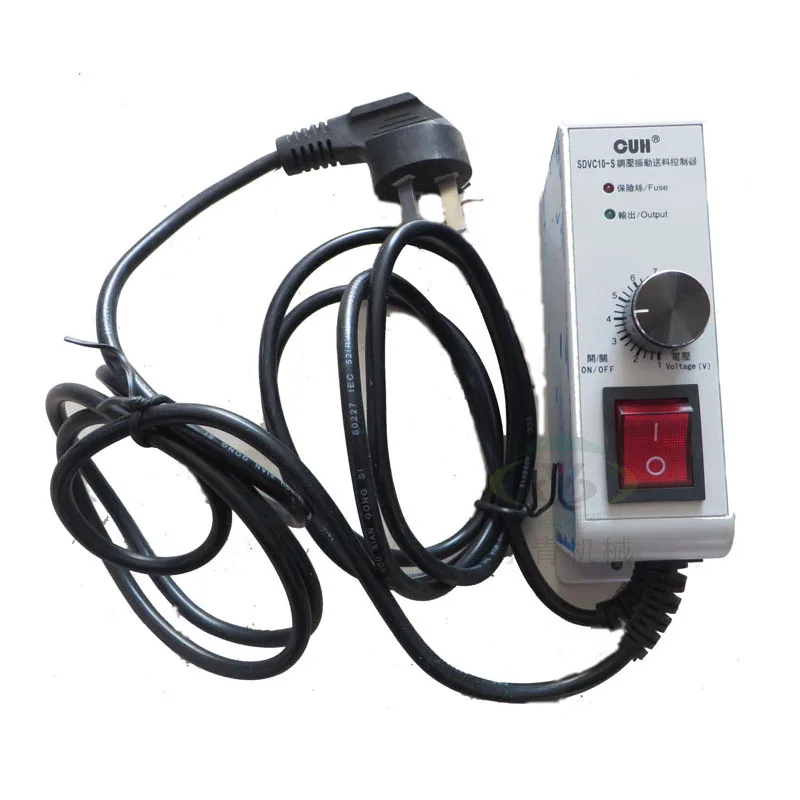

4. conveniently adjust feeding flow ,  feeding materials uniformly ,continuously ,quantificationally

5.less wear of trough , suitable for abrasive material

6. special design available according to customer's requirement











GZ series for large capacity (usually used for mining,chemical,coal,etc.)	GZV series for small  capacity (used for food , chemical , medicine ,etc.)

























 Parameters of Electromagnetic Crusher Feeder





Model	Capacity (t/h)		Max feeding size (mm)	Amplitude(mm)	Voltage(V)	Working Current(A)	Power(kw)	Weight (kg)
	Horizontal	-10°
GZ 1	5	7	50	1.5	220	1.34	0.06	73
GZ 2	10	14	50	1.5	220	3.0	0.15	146
GZ 3	25	35	75	1.5	220	4.58	0.2	217
GZ 4	50	70	100	1.5	220	8.4	0.45	412
GZ 5	100	140	150	1.5	220	12.4	0.65	656
GZ 6	150	210	200	1.5	380	16.4	1.5	1252
GZ 7	250	350	250	1.5	380	24.6	3	1920
GZ 8	400	560	300	1.5	380	39.4	4	3040
GZ 9	600	840	350	1.5	380	47.6	5.5	3750
GZ 10	750	1050	500	1.5	380	39.4*2	4*2	6495
GZ 11	1000	1400	500	1.5	380	47.6*2	5.5*2	7680

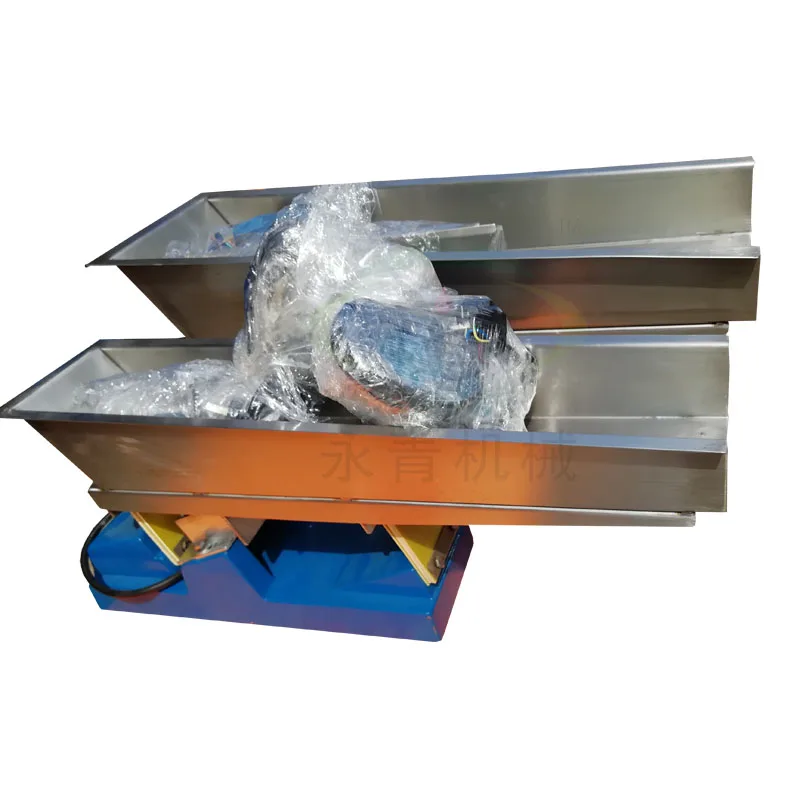

packaging : outer with standard plywood case ,

                 inner with moisture-proof & water-proof membrane

delivery : 3-5 days after deposit
