push pull cable match up with throttle for kind of engineering machines
- Category: >>>
- Supplier: Shanghai Phidix Trading Co. Ltd.
Share on (60519133702):
Product Overview
Description
Product Description

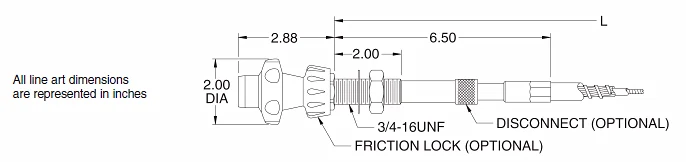

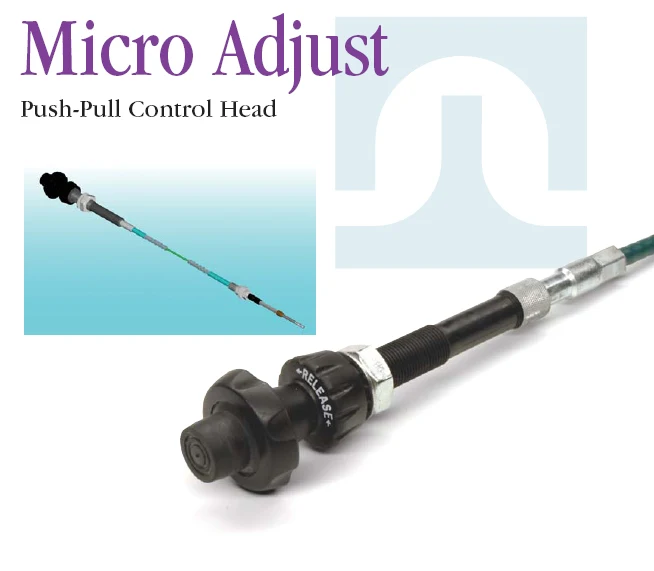

[Micro Adjust Push-Pull Control Head]
Description: Applications: Features:
Micro Adjust • Throttle control • Load: 20lb maximum
Industrial Push-Pull • Regulating valve • Travel: 3.00 maximum
Control Head • Threaded mount
• Friction lock
• Disconnect
Material: End Fittings:
• Plated Carbon • See Hardware/End
Steel Corrosion- Fittings or Call
Proof Control Heads Factory for More Information
[Control Head Industrial]

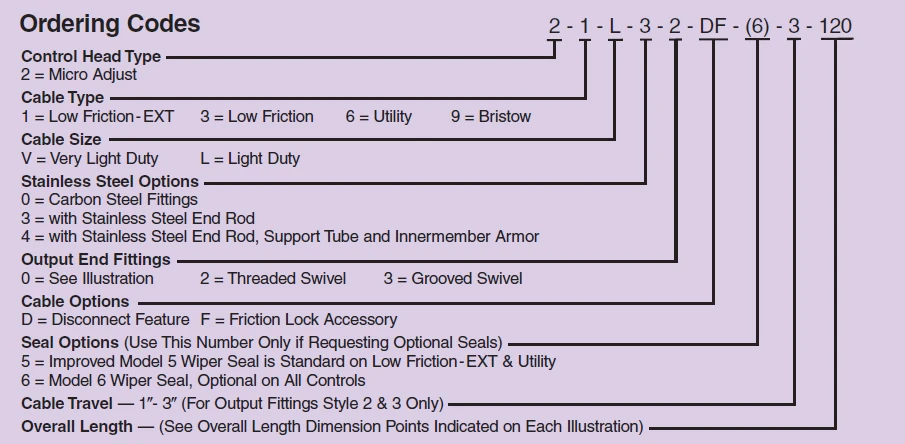

Micro Adjust control heads are ideal for remote operation of a throttle, regulating valve, or other applications needing precise adjustment capabilities. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. A flexible dust seal protects the internal release mechanism. Rotating the knob clockwise extends the output in the finite mode, and counter-clockwise retracts. Four and one-half turns results in 1 of linear travel. The maximum recommended load is 20lbs. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications where vibration is excessive. A disconnect feature and various output end configurations are available to suit a particular application. The ordering code and technical description show these choices.
[Micro Adjust]
[Conduits & Inner-members with Different Loads]

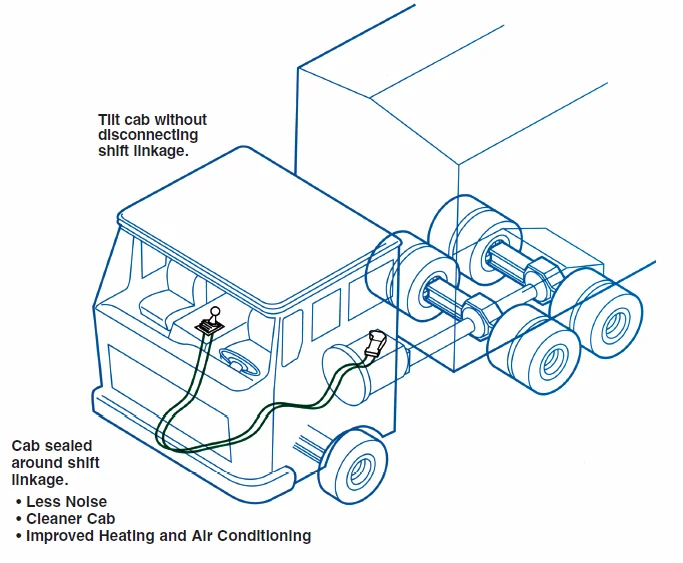

Application
Company Information
Phidix Motion Controls (PMC) started the business in 2004, and became the only authorized Cable Assembler in China by the American based company Cablecraft Motion Controls (CMC) in 2011.
CMC was originally a subsidiary of Tuthill Group (more than 100 years history), headquartered in New Haven Indiana US and became independent in 2011. CMC can offer diverse high-end drive control products and engineering solutions. The product line includes control flexible shaft of the various specifications, cab units and a category range of standard parts, widely used in high-end industrial customer markets, such as luxury bus, heavy truck, aerospace, construction machinery, rail transportation, agricultural machinery, gardening equipment, racing cars, military vehicles, tanks etc. as selection of shift control, throttle cable, clutch cable, brake line, valve and other mechanical transmission controls.
Just after CMC became the independent group in 2011, PMC became the only authorized Assembler in China responsible for the manufacturing, assembly, sales, technical support, after-sales service of control items from CMC, acted as the multi-functional management and development center (PMDC) for the R&D of creative control technology, parts manufacturing, cable assembly and the import and export business as well.
Today, thousands of personalized products designed and produced by PMC in China are selling to all over the world.
Certifications
Our Services
If you are interested in our products,please tell us which model,quality you want to order.
A performa invoice will be made for your order.
We will deliver the product ASAP when we receive your payment.
Please contact us without hesitation, we are pleased to welcome to you!!!
