hot sell!!! DC inverter air source heat pump all in one EN14825 SCOP A

Product Overview

Description









We are a joint venture company with Spain, specialized with light commercial air conditioner and professional heat pump for more than 30 years. Our units are mainly exported to Europe and the quality is very good.

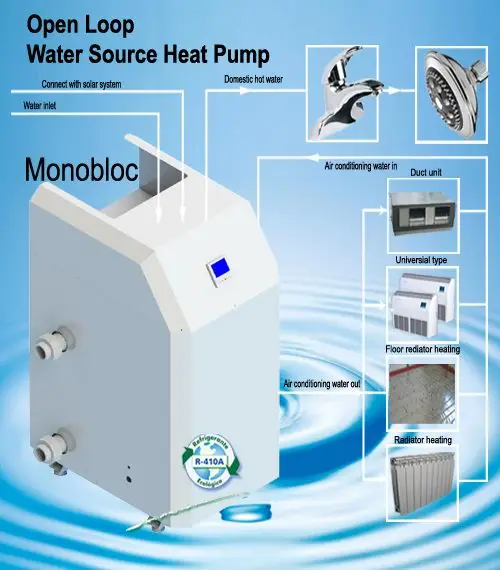

We have a very large product range, both air source and water source heat pump. Both split type and monobloc type.





We are the leading company in China, specialy for the inverter heat pump, we have the most completed full range inverter heat pump for more than 5 years. From 6kw , 9kw, 11kw, 16kw, 17kw( 3phs), 25kw



The performance has been very reliabel and the Scop is very high. We have got the testing report from TUV for and EN14511 and EN 14825, also Erp





air source heat pump, we have the following series:

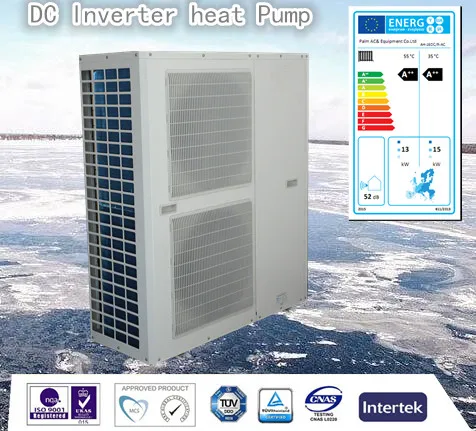

1. DC  Inverter monobloc  ASHP with EN14825  Cert for Scop and Erp from TUV , And NRTL for North America







Higher efficiency than normal air source heat pump.



Erp  Energy level A+++, Scop 4.5



Space Heating,  cooling and domestic hot water function



Extremely energy saving, super cost saving with 410a



Operation range from -20c to 53 c



 Inverter Wilo water pump & ZIEHL-ABEGG EC fan motor  as optional,

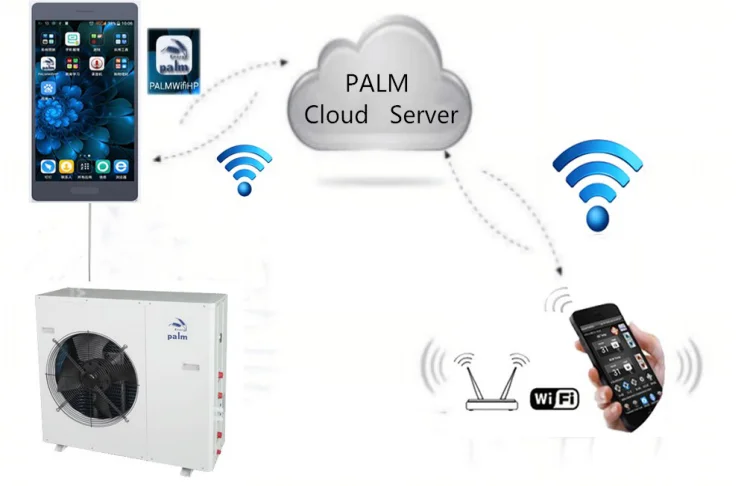

WIFI control available



 Super high performance and realibility.























Models

Air temp/outlet water temp

AH9DCR-AC

SCOP

AH11DCR-AC

SCOP

AH14DCR-AC

SCOP

AH16DCR-AC

SCOP

AH17DC-ACS

SCOP

AH25DC-ACS

SCOP

AH30DC-ACS

Heating capacity/Power input (KW)

at A20/W35°C

10.6/1.89

5.61

14.4/2.77

5.2

19.3/3.32

5.81

21.1/3.89

5.42

22.8/4.4

5.18

33.3/5.85

5.69

38.6/7.6

5.08

at A7/W35°C

7.8/1.7

4.59

10.6/2.5

4.24

14.2/2.99

4.75

15.5/3.5

4.43

16.78/3.97

4.23

25.7/5.38

4.78

29.8/7

4.26

at A7/W45°C

7.41/1.99

3.72

9.97/3.07

3.25

13.4/3.47

3.86

14.73/4.1

3.59

15.95/4.65

3.43

23.7/6.4

3.7

27.5/8.35

3.29

at A2/W35°C

6.98/1.65

4.23

9.54/2.45

3.89

12.8/2.92

4.38

14/3.42

4.09

15.1/3.88

3.89

22.9/5.2

4.4

26.5/6.77

3.91

at A2/W45°C

6.67/1.95

3.42

8.97/3

2.99

12/3.4

3.53

13.3/4.02

3.31

14.15/4.37

3.24

21.1/6.2

3.4

24.4/8.07

3.02

Cooling Capacity/Power input(KW)

at A35/ W18ºC

8.4/2.25

3.73

10.81/2.76

3.92

14.6/3.84

3.8

15.7/4.5

3.49

15.51/3.9

3.98

23.1/5.82

3.97

27.5/8.2

3.35

at A35/W7ºC

6.64/2.31

2.87

8.54/2.84

3.01

11.53/3.94

2.93

12.4/4.61

2.69

12.25/4

3.06

18.25/5.96

3.06

22.6/8.8

2.57

Max.currentt                           (A)

12

15

23

25

8.5

15

15

Electric supply

230V/50~60HZ

400V/50~60HZ

Max.water temperature            ( oC)

60

Running temperature range      (oC)

-25 ~ 43

Refrigerant circuit

Refrigerant

R410a/32A

DC Inverter compressor(s)

Toshiba

Sanyo

Mitsubishi

Mitsubishi

Mitsubishi

Mitsubishi

Heat exchange

Copper and Hydrauphilic Aluminum Fin

Air flow     (m3/h)

2400

2900

4000

5600

5600

7000

11000

Water circuit

Heat exchanger

Plate heat exchanger

In/Out pipe

DN20(3/4")

DN25(1'')

DN25

DN32

DN32

Water flow  (m3/h)

≥1.2

≥1.8

≥2

≥2

≥2

≥3.7

≥4.6

permitted pressure

≤0.8MPa

Unit dimensions   WxHxD   (mm)

1115*710*425

1115*960*425

1091*1017*400

1115*1280*425

1115*1280*425

1164*1462*425

Pacage dimensions   WxHxD   (mm)

1155*890*500

1155*1150*500

1192*1170*480

1155*1450*500

1155*1450*500

1270*1640*560

Net weight                               (Kg)

90

114

140

150

150

185

Gross weight                            (Kg)

101

127

150

163

163

200

Noise level                             (dB(A))

46

49

52

52

52

58

Loading quantity for 20'/40'

44/88

44/88

42/84

22/44

22/44

19/40

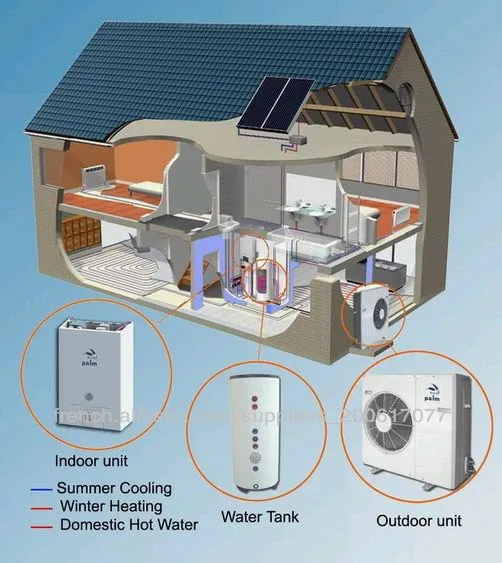

2.    Tritherma split type ASHP ON OFF AND DC INVERTER with EN14825



Cooling, heating, and domestic hot water in one solution.



High efficiency



Easy installation. Only two pcs. Including the AC tank but not DHW tank  inside the unit.



Can utilize the existing water tank available at home.



Low working temperature for -25



Adapt to Solar panel, floor heating, radiator, fan coil. Very flexible with the installation.



7 sizes available:6k,8k, 11k, 14k, 17k & 20k, 23k.



DC inverter available with 8kw 11kw,and 15kw..









3. Triaqua split type ASHP with EN14511



Cooling, heating, and domestic hot water in one solution.



High efficiency. Have got the TUV certificate with the performance. The COP is very high. More than 4.0



Easy installation. Only two pcs, Already contents the domestic hot water tank and AC tank inside of the unit. The installation is very easy.



Low working temperature for -25.



Adapt to Solar panel, floor heating, radiator, fan coil. Very flexible with the installation.



5 sizes available 11k, 14k, 17k & 19k.and 23K







4.   EVI  monobloc ASHP working at -25C (both on off and inverter)



Most advanced two stages Enthalpy- increasing compressor. Performance very well at -25C. 20% more energy saving than normal heat pump with the extrem working condition



 Adapt to Solar panel, floor heating, radiator, fan coil. Very flexible with the installation.

High efficiency above 4.0

Working rang -25  ~ 43

fixed speed, 9kw and 11kw available

inverter range, 11kw and 15kw available
