Specification
| Model | FC-2100 FC-2100P | FC-2100/D FC-2100P/D |
| And outlet | Straight outlet | With connector |
| Detecting distance | 2mm | |
| Light source | 940nm infrared modulated light | |
| Operating voltage | DC12-24V±10%(Ripple P-P:10%Max) | |
| Current consumption | 15mA Max | |
| Load current | 100mA Max at DC 24V | |
| Output type | N=NPN.NO NC P=PNP.NO.NC | |
| Protection ciruit | Reverse polarity protection and short circuit protection | |
| Response time | 500us Max | |
| Leakage current | <0.01mA no-load | |
| Operating Temperature | -10°C-+50°C(without icing or condensation) | |
| Storage temperarure | -20°C~+60°C(No freezing allowed ) | |
| Ambient humidity | 35%-85% Relative humidity | |
| Waterproof degree | IP66 | |
| Meterial | Aluminium metal case | |
| Wiring method | φ4×2M/4-wires/φ4×2M/M8 4-wires | |

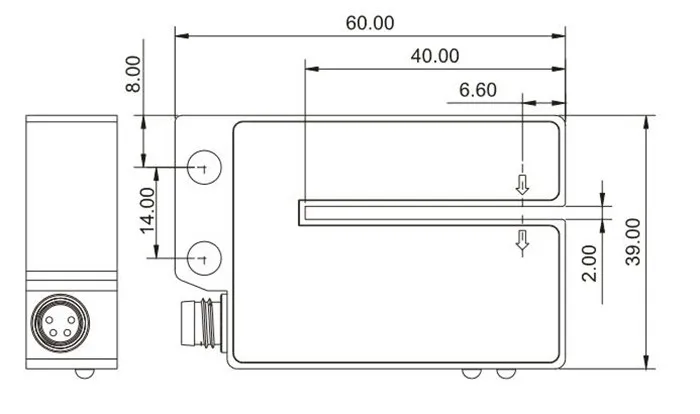

Dimension Drawing
;






Before-sales Services
1.24-hours online service;is available here. Once you have any questions, just contact us and our professional staff will reply very quickly. Email, Skype, Whatsapp or Online Message are acceptable.
;
2.Market information;also will be provided. Since we are an experienced manufacturer of sensor, the market information about sensors will be offered as long as you need.
;
On-purchase Services:
1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;
;
2.All your problems or worries will be solved quickly by our sales. It is worth noting that the;prices of our; sensors;are quite;negotiable. We have large discount for big quantity.
;
After-sales Services
1. The;warranty periodis 18 months.
;
2. If we send the;wrong parts;to you, free replacement will be available.
;
3. As for the;installation of the parts, if you have any questions, do not hesitate to contact us at any time.
Q:Are you sensors manufacturer?
A:Yes,;;over 30;years' experience in sensors field.We can make more profit for you.
our product has CE certificate.
;
Q:Can I get samples for test?
A:Yes,;we;support free test samples and shipping cost at your side.
;
Q: What's your leadtime?
A:Generally speaking,we have stocks for 110 kind of different models and can ship at any time. If we don't have stock,our leadtime is 5-7 working days.;We will pull in the production schedule if your demand is urgently.
;
Q: What's your payment term?
A:You can pay us by T/T, Paypal, Westunion.
;
Q:How do you arrange the shipment ?
A:;We normally ship by Fedex, UPS and TNT, we are VIP of this courier and get 60% discount.;;We also can accept other ship method if there is an need.;
Metal housing DC 24V 2mm fork sensor plastic Sticker label sensor
