HUS Dual wall Heat Shrink Tubing / Adhesive lined heat shrink tube /Polyolefin Heat shrink tube with adhesive

Product Overview

Description

 HUS- Dual wall Heat Shrink Tubing

Hus-Heat Shrink Tube with glue/adhesive

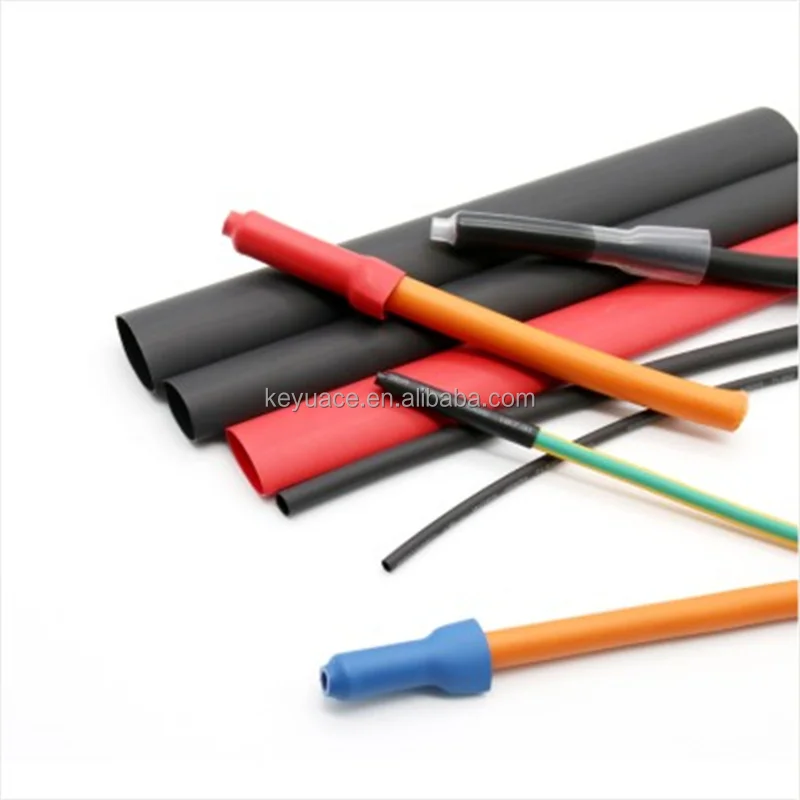

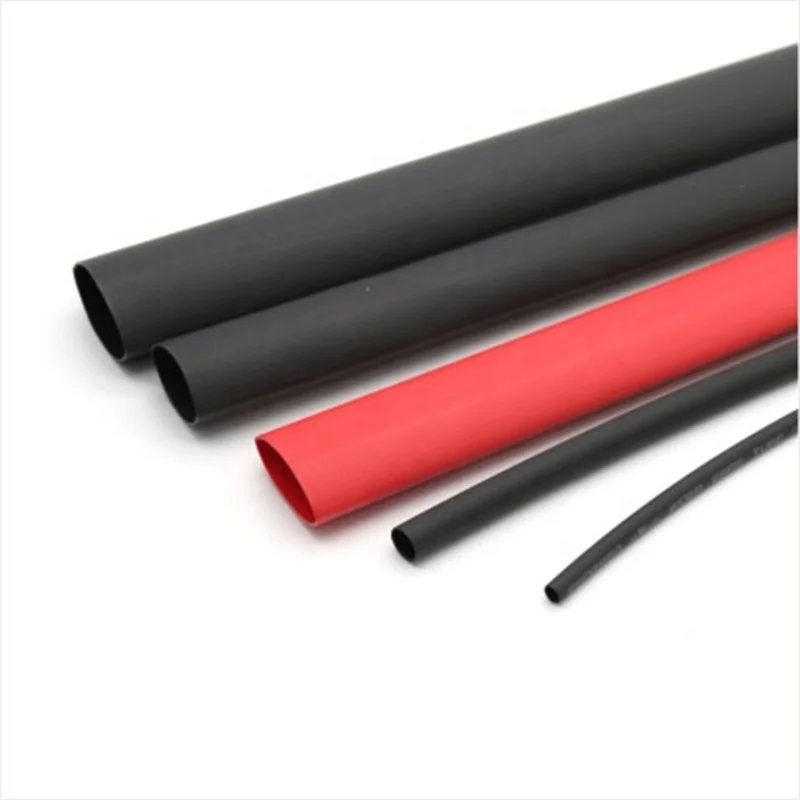

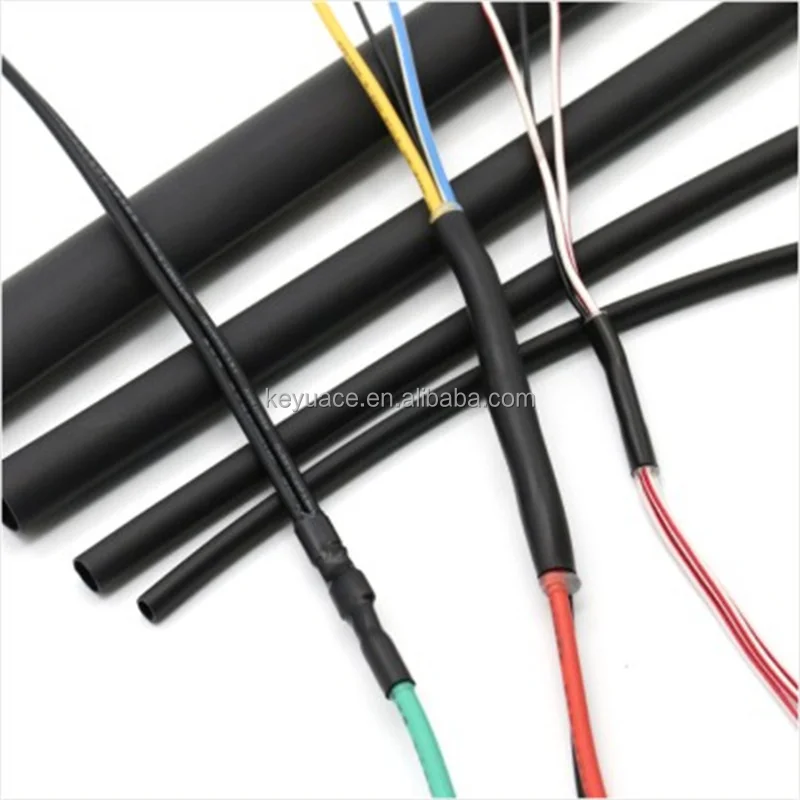

 HUS- Dual wall Heat Shrink Tubing ( also called heat shrink tube with glue , heat shrink tube with adhesive ) is made of outer flame-resistant insulated polyolefin PE material layer and inner transparent EVA hot melt adhesive layer. Dual Wall Adhesive-Lined Heat Shrink Polyolefin Tubing With superior insulation and sealing capacities against water, damp and corrosion  and convenient stripping-fastening function, it’s widely used in all kinds of wire harnesses, electric wires and cables, connectors,  metal pipes and others .

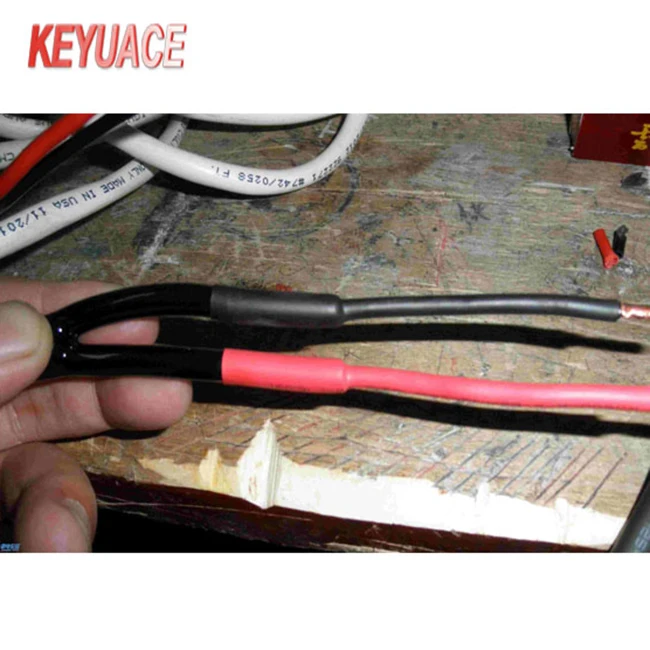

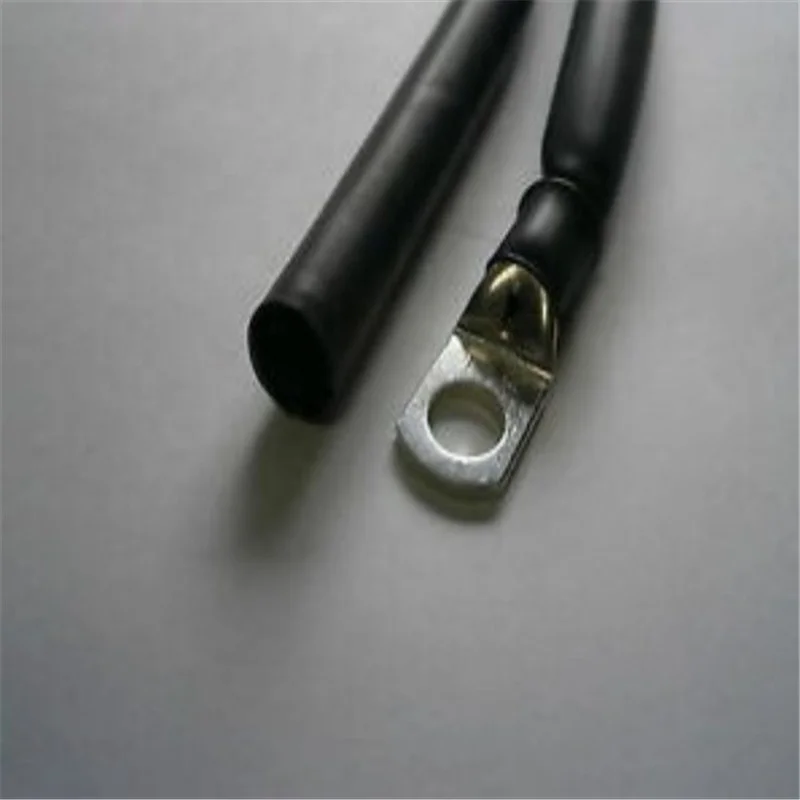

Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.



 1, Flame-resistant, anti-UV

 2, Heat Shrink Ratio: 3:1 , 4:1

 3, waterproof, damp-proof, anti-corrosion, prevent gas leakage.

 4, RoHs, UL, Halogen Free, REACH.



Operation indexes:

1, First shrink temp.:70℃

2, Final shrink temp.:125℃

3, Operating temp.:-45℃~125℃



Up to standard: Approvals

   Meet UL224, 125℃, 600V













Nominal Size		As supplied (mm)	After recovered  ( mm )			Standard  Packing (M/Roll)
mm)	inch)	D(min.) Inside diameter	d(min.) Inside diameter	Wall Total  thickness WT:	t. Adhesivel thickness
HUS-3X
¢ 2.4	3/32	≥2.4	≤0.80	0.85 ± 0.15	0.40 ± 0.10	200
¢ 3.2	1/8	≥3.2	≤1.00	0.95 ± 0.15	0.40 ± 0.10	200
¢ 4.8	3/16	≥4.8	≤1.60	1.10 ± 0.15	0.40 ± 0.10	100
¢ 6.4	1/4	≥6.4	≤2.20	1.20 ± 0.15	0.45 ± 0.10	100
¢ 7.9	5/16	≥7.9	≤2.70	1.35 ± 0.15	0.50 ± 0.15	100
¢ 9.5	3/8	≥9.5	≤3.20	1.45 ± 0.20	0.50 ± 0.15	50
¢ 12.7	1/2	≥12.7	≤4.20	1.70 ± 0.20	0.50 ± 0.15	1.22
¢ 15.0	5/8	≥15.0	≤5.20	1.80 ± 0.20	0.55 ± 0.15	1.22
¢ 19.1	3/4	≥19.1	≤6.30	2.00 ± 0.20	0.55 ± 0.15	1.22
¢ 25.4	1	≥25.4	≤8.50	2.10 ± 0.25	0.55 ± 0.15	1.22
¢ 30.0	1-1/4	≥30.0	≤10.20	2.20 ± 0.25	0.60 ± 0.15	1.22
¢ 39.0	1-1/2	≥39.0	≤13.50	2.40 ± 0.25	0.60 ± 0.15	1.22
¢ 50.0	2	≥50.0	≤17.00	2.70 ± 0.25	0.80 ± 0.15	1.22
¢ 64.0	2-1/2	≥64.0	≤21.00	3.00 ± 0.30	0.80± 0.20	1.22
¢ 76.0	3	≥76.0	≤25.00	3.00 ± 0.30	1.00 ± 0.20	1.22
¢ 90.0	3-1/2	≥90.0	≤30.00	3.00 ± 0.30	1.00 ± 0.20	1.22
¢ 100	4	≥100	≤34.00	3.00 ± 0.30	1.00 ± 0.20	1.22
¢ 125	5	≥125	≤42.00	3.00 ± 0.30	1.00 ± 0.20	1.22
HUS-4X
¢ 4.0	2/13	≥4.0	≤1.0	1.0 ± 0.15	0.40 ± 0.15	200
¢ 6.0	1/4	≥6.0	≤1.5	1.1 ± 0.15	0.40 ± 0.15	100
¢ 8.0	5/16	≥8.0	≤2.0	1.2 ± 0.15	0.50 ± 0.15	100
¢ 12.0	1/2	≥12.0	≤3.0	1.4 ± 0.15	0.50 ± 0.15	1.22
¢ 16.0	5/8	≥16.0	≤4.0	1.7 ± 0.15	0.60 ± 0.15	1.22
¢ 20.0	15/19	≥20.0	≤5.0	2.0 ± 0.25	0.60 ± 0.15	1.22
¢ 24.0	1	≥24.0	≤6.0	2.1 ± 0.25	0.60 ± 0.15	1.22
¢ 32.0	1-1/4	≥32.0	≤8.0	2.4 ± 0.25	0.70 ± 0.15	1.22
¢ 52.0	2	≥52.0	≤13.0	2.4 ± 0.25	0.70 ± 0.15	1.22





Color: Black, white, clear , red , green, yellow,  ( Other international colors can be customized)

Pointed size can be customized.





Other sizes or color all  can be customized according to customer requirements.
