6 zones PID Control Hot Temperature Controller For Plastic Injection Moulding PID control

Product Overview

Description

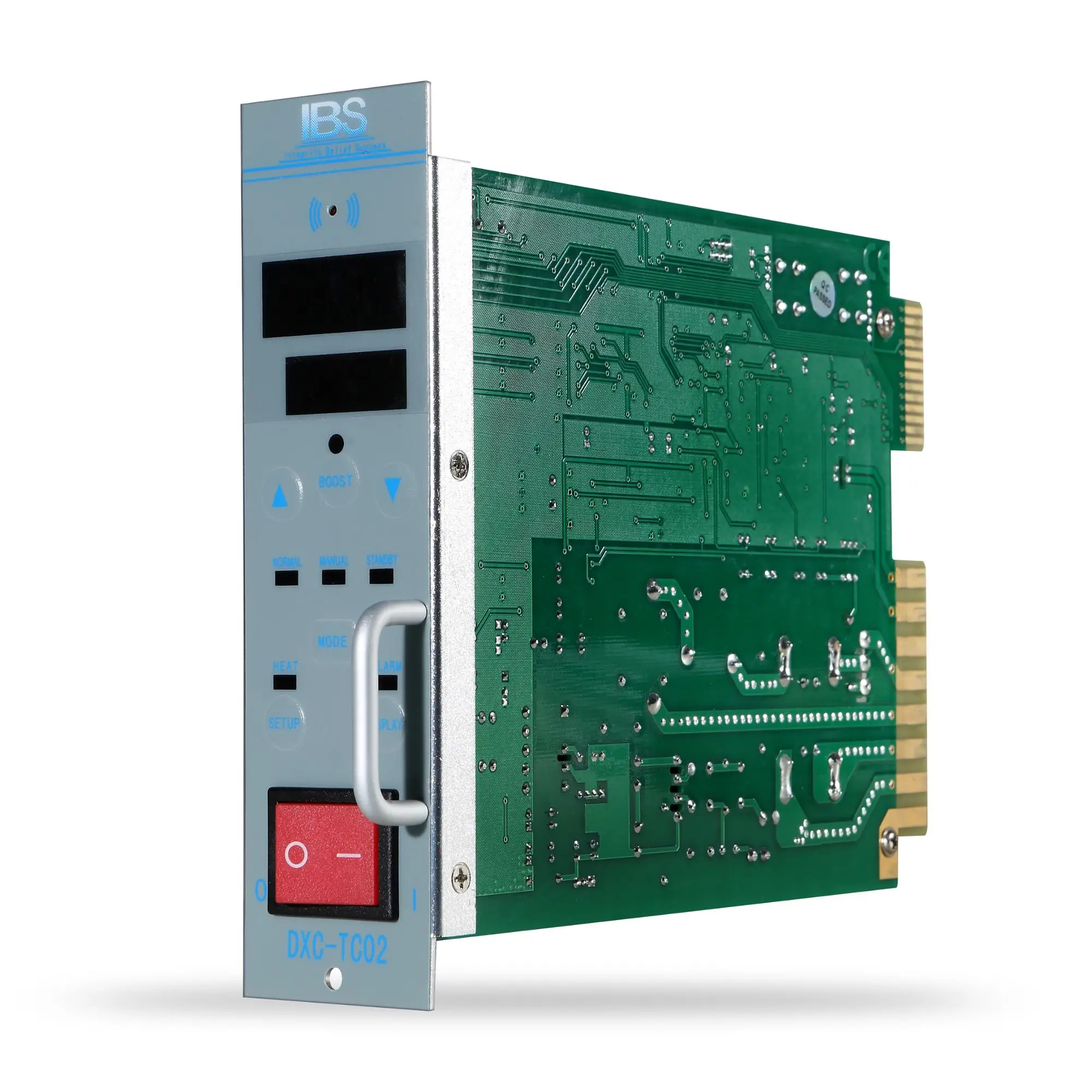

IBS DXC-TC-6P Temperature Controller features:





PRODUCTS ADVANTAGES:

1.Technical patent::                                                                                                                                                    A. Shorted heater protection                                                                                                                    B.Malposition wiring between heater and therocouple                                                                                 C.Electronic protection against neutral malfuction                                                                                               2.Auto-tuning +phase angle fired output,delivers smooth and exact power                                                       3.Softsart function for smooth start-ups                                                                                                              4.Mold doctor(troubleshoot your mold )                                                                                                                5.All standard size design ,fitted into 1-12zone and upon cabinet                                                                          6.Low temperature inside the cabinet,even in bad working condition











Performance Specifications
Control Mode	Auto & Manual
Transmit temp:	-40°F to 158°F(-40°C to 70°C)
Temperature Range	50°C-537°C
Control Accuracy	1±0.3% of span
Temperature Stability	±0.5%
Compensated Manual Control	yes
Thermocouple type	J/K optional
Advance diagnostics Indicators	yes
Temperature unit	°C or °F
Temp control range	45°C to 550°C
Repeat test precision:	±0.1%
Calibration Accuracy	0.1% of span
T/C cold junction copensation	Dynamic tracking
Point Load	15A,3500W/220V or 1650W/110V
Relative humidity	10%-95%
Cycle Time	200ms
Temperature Reset	Yes
Ramp Start TM(RS)	yes
RS Duration	10mins
RS Override temperature	1% of span
Operational Mode Priority	OFF MODE
Electrical Power Specifications
Input Voltage	AC185V-245V
Frequency	50/60HZ
DC Power Supplies	NO
Module Power Usage	NO





Pakage & shippment
Payment: 30% deposit by T/T,the balanced T/T before shippment Delivery:: 5 working days after confirm the deposit. Shippment: EXPRESS,SEA,AIR Package: International standard wooden case

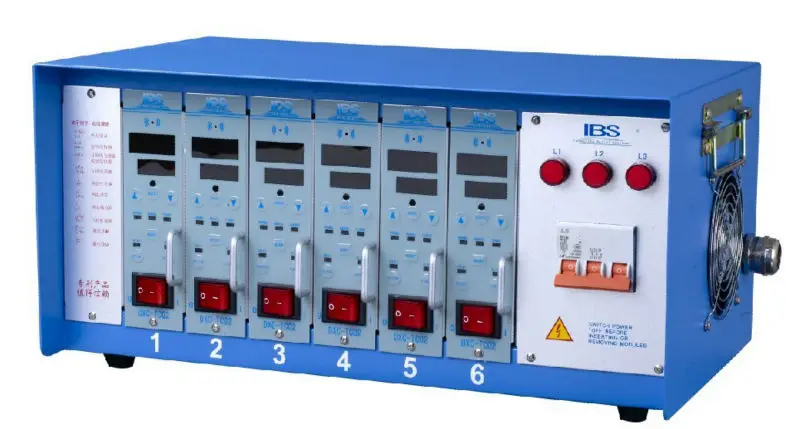

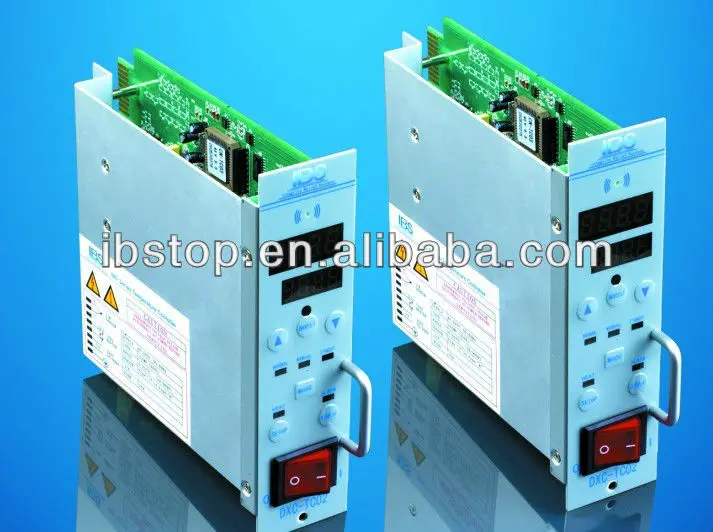

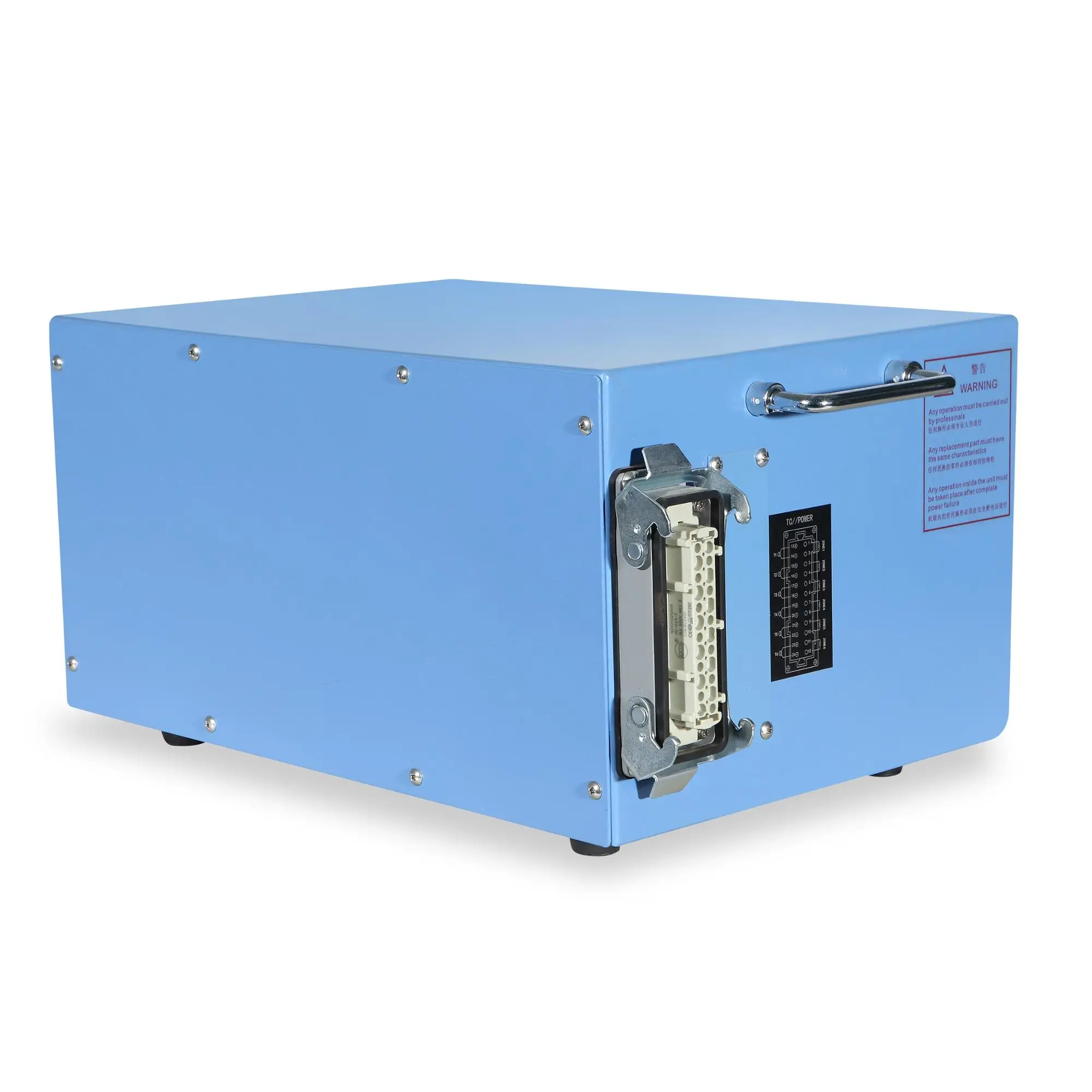

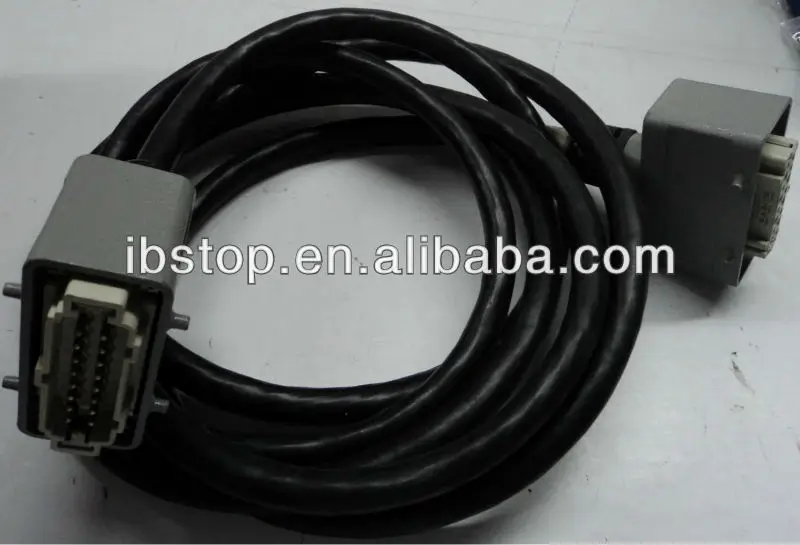

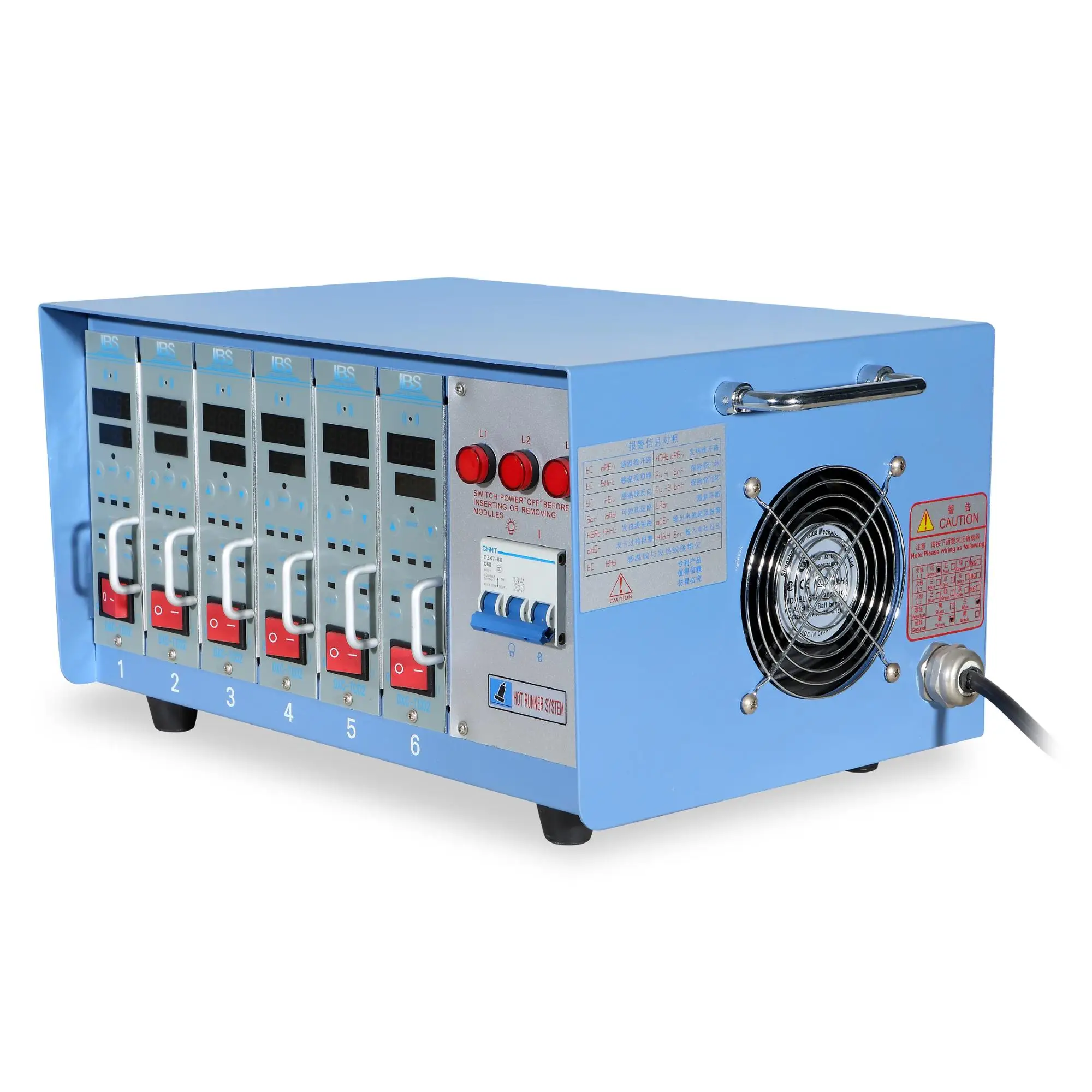

IBS DXC-TC-6P Temperature Controller Pictures and Accessories:















PACKAGES:









Shenzhen IBS stand behind you with our state of the art hot runner temperature control systems that are performance driven, customized, designed to save you money and made in China.



IBS Controller certificate:









IBS temperature controller are widely used in medical ,drinking packing ,Automative ,electric components ect and win a high reputation in domestic and overseas.















Company:













Service



1: 24 online service, email will get back in 24 hours.



2: After sale service available.



3:Have professional R&D group, all your technical requirement will be customized.







Welcome to contact us, we’re sure any of your inquiry will get prompt reply.
