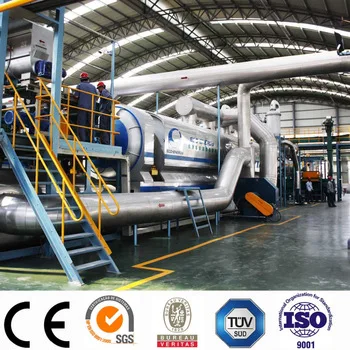

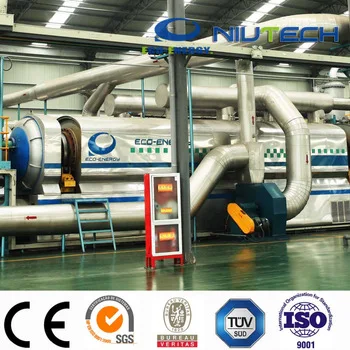

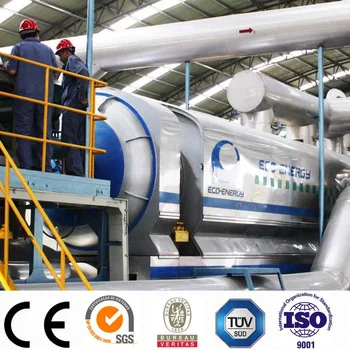

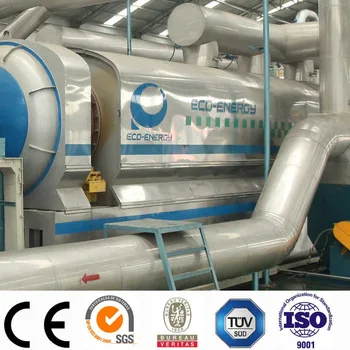

Industrial Continuous Waste Plastic Pyrolysis to Fuel Equipment
- Category: >>>
- Supplier: Niutech Environment Technology Corporation
Share on (60519683895):
Product Overview
Description
Product Description
Product Application
High oil output! continuous waste plastic to fuel machine with CE/TUV/SGS
Continuous waste plastic to fuel machine Process
→ The mixed waste plastics will be shredded and continuously fed into the pyrolysis reactor via feeding machine. The materials will be pre-heated during the conveying process and the low melting point plastic like PVC will be pyrolyst. The HCl will be then neutralized treated after separation with other materials.
→ The constant temperature heating system supplies heat to the pyrolysis reactor. The raw materials are continuously fed into the pyrolysis reactor and spreaded by the system, completing pyrolysis reaction with the high-efficiency catalyst.
→ The pyrolyst oil gas is turned into high quality fuel oil and small amount of combustible gas after following processes such as fractional distillation separation, fixed bed secondary gas catalyzing and de-waxing etc.
→ The combustible gas is totally used as fuel to the system after scrubbing, which achieves heat energy self-supporting. The gas after being burnt will be qualified discharged after gas purification process.
→ The small amount of solid residue generated from the reaction is continuously discharged out of the reactor, and that could be further processed into fuel stick.
continuous waste plastic to fuel machine systems
– Waste plastic pre-treatment system （ optional ）
– Raw material pre-heating system
– C onstant temperature heating system
– HCl absorbing system (optional depending on material)
– Continuous pyrolysis system
– Combustible gas scrubbing system
– Gas purification system
– Residual pollute-free treatment system （ optional ）
– Control subsystem
Characteristics
– Accurate constant heating and heat speading teachnology are realized.
– The material spreading system makes the material equally heated and far increases heating surface, accompanish with patent structure, that totally solved low heat transfer efficiency and coking that occurred in other technologies and equipments in the world.
– The little combustible gas is totally used as fuel to the system after scrubbing, combined with residual heat recycling system, far decreases running cost.
– The unique and complete HCL absorbing system, totally reduce the expensive sorting cost for mixture waste plastic.
– Adopting two-step catalyzing technology, which achieves higher oil yield and better quality.
– The specific gas purification system shall remove all the pollutes, such as the organic compounds and solid particles like H2S 、 CO 、 CO2 、 SO2 、 SO3 、 NOX 、 NH3 etc., which make the emission specifications comply with Europe and US etc. highly regulated country standards.
– The whole line adopts PLC Logical control system, could realize all points automatic control and to collect, calculate, record and print the data as well alarm.
Niutech Environment Technology Advantages
1) Industrial continuous, massive throughput, enhance treatment efficiency and production capability.
2) Exclusive low temperature pyrolysis technology, low consumption, enhance oil yield and quality, ensure long term, continuous and steady operation of production , dramatically expand equipment’ lifespan.
3) Exclusive anti-cocking, thermal distribution technology, enable the material equally heated and completely pyrolized, to achieved high quality product.
4) Exclusively hot seal technology, to ensure operation safe and reliable.
5) Exclusive gas purification and remaining heat recycling utilization technology, purified gas can be used for heating system as combustible gas, remaining heat can be dully utilized, realized self-supply for pyrolysis reaction without extra heating source, dramatically minimize running cost.
6) Exhaust gas of production line has been tested, all emission parameter meet the requirement of EU EEA of EU and US EPA.
7) Entire production line adopt PLC intelligent control, warning, alarm and auto-correction function, insure operation under safety condition.
8) Low requirement for manpower, Low working intensity and clean production.
Related Products
Products Name with link
45%-50% Fuel oil
Products Name with link
30%-35% Carbon Black
Products Name with link
11%-15% Scrap steel wire
Certifications
Partial of our patents and awards.
Invention Patents authorized in US, Canada Australia, Korea, India, Taiwan, Japan and many orher countries and areas.
Partial of our patents and awards..
Invention Patents authorized in US, Canada Australia, Korea, India, Taiwan, Japan and many orher countries and areas.
National Invention Patents Certificates.
National Patents Certificates.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | - (L) * -(W) * -(D) | |
Weight | *T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | - (L) * -(W) * -(D) | |
Weight | * T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
