Product Overview
Description
Product Description

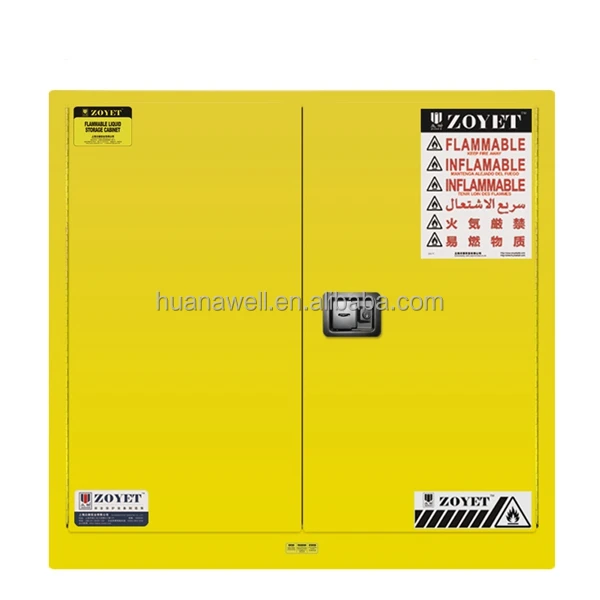

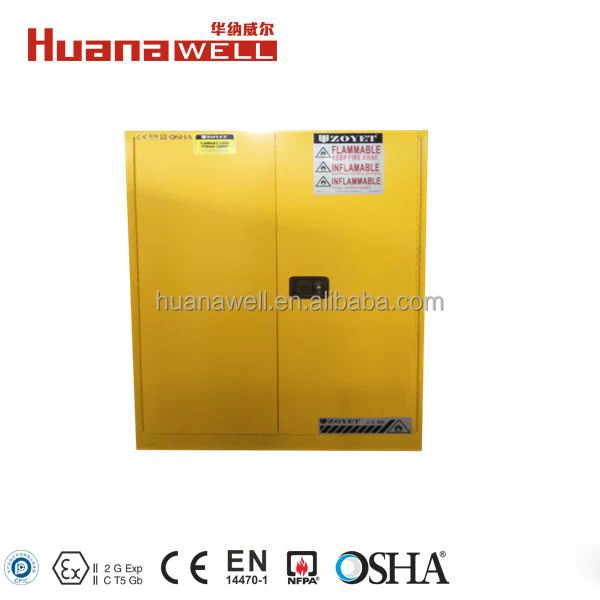

Industrial Safety Cabinet - ZYC
Flammable Liquid Storage, Explosion proof, fire proof, industrial safe storage, chemicals storage.
Industrial safety cabinet is intended to store flammable liquid and some dangerous chemical material and products. industrial safety cabinet complies with OSAH 29 CFR 1910.106 and NFPA CODE 30.
Flammable Liquid Storage, Explosion proof, fire proof, industrial safe storage, chemicals storage.
Industrial safety cabinet is intended to store flammable liquid and some dangerous chemical material and products. industrial safety cabinet complies with OSAH 29 CFR 1910.106 and NFPA CODE 30.
Model No. and Color Options | ZYC0030/Yellow |
Capacity | 30 gallons/114Liter |
No. of Doors | 2 |
Door Type | Manual closing |
No. of Shelves | 1 |
Adjustable Shelves | Yes |
Dimensions(Exterior) | 1120H*1090W*460D(mm) |
Dimensions(Interior) | 1010W*1000H*375D(mm) |
Compliance | OSHA 29 CFR 1910.106 & NFPA |
Detailed Images
* Designed to meet OSHA and NFPA 30 standards, flammable cabinet is constructed of sturdy 18-gauge (1-mm) thick double-wall,
welded steel with 1-1/2-in (38-mm) of insulating air space for fire resistance.
* High-performance, self-latching doors close easily and securely for maximum protection under fire conditions.
* Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.
* For added security, Solid-K™ handle comes with a cylinder lock and key set or accepts an optional padlock.
* Ref-L™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a
flashlight.
* Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on 2.36-in (60-mm) centers for versatile storage. Cabinets also feature a leakproof 2-in (51-mm) bottom sump, dual vents with flame arresters, four adjustable self-leveling feet, grounding connector and trilingual warning label.
* Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.
welded steel with 1-1/2-in (38-mm) of insulating air space for fire resistance.
* High-performance, self-latching doors close easily and securely for maximum protection under fire conditions.
* Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.
* For added security, Solid-K™ handle comes with a cylinder lock and key set or accepts an optional padlock.
* Ref-L™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a
flashlight.
* Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on 2.36-in (60-mm) centers for versatile storage. Cabinets also feature a leakproof 2-in (51-mm) bottom sump, dual vents with flame arresters, four adjustable self-leveling feet, grounding connector and trilingual warning label.
* Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.
Size Information
Size Chart of This Design
Name | Huanawell Model | Number of doors and style | Shelf | Capacity | Ext. Dimension H*W*D/MM |
ZYC0004 | 1 door, manual | 1 | 4Gal/15L | 560*430*430 | |
ZYC0012 | 1 door, manual | 1 | 12Gal/45L | 890*590*460 | |
ZYC0022 | 1 door, manual | 2 | 22Gal/83L | 1650*590*460 | |
Flammable | ZYC0030 | 2 door, manual | 1 | 30Gal/114L | 1120*1090*460 |
Cabinet | ZYC0045 | 2 door, manual | 2 | 45Gal/170L | 1650*1090*460 |
ZYC0060 | 2 door, manual | 2 | 60Gal/227L | 1650*860*860 | |
ZYC0090 | 2 door, manual | 2 | 90Gal/340L | 1650*1090*860 | |
ZYC0110 | 2 door, manual | 2 | 110Gal/410L | 1650*1500*860 |
