Calcium Silicate Board for Thermal Insulation

Product Overview

Description

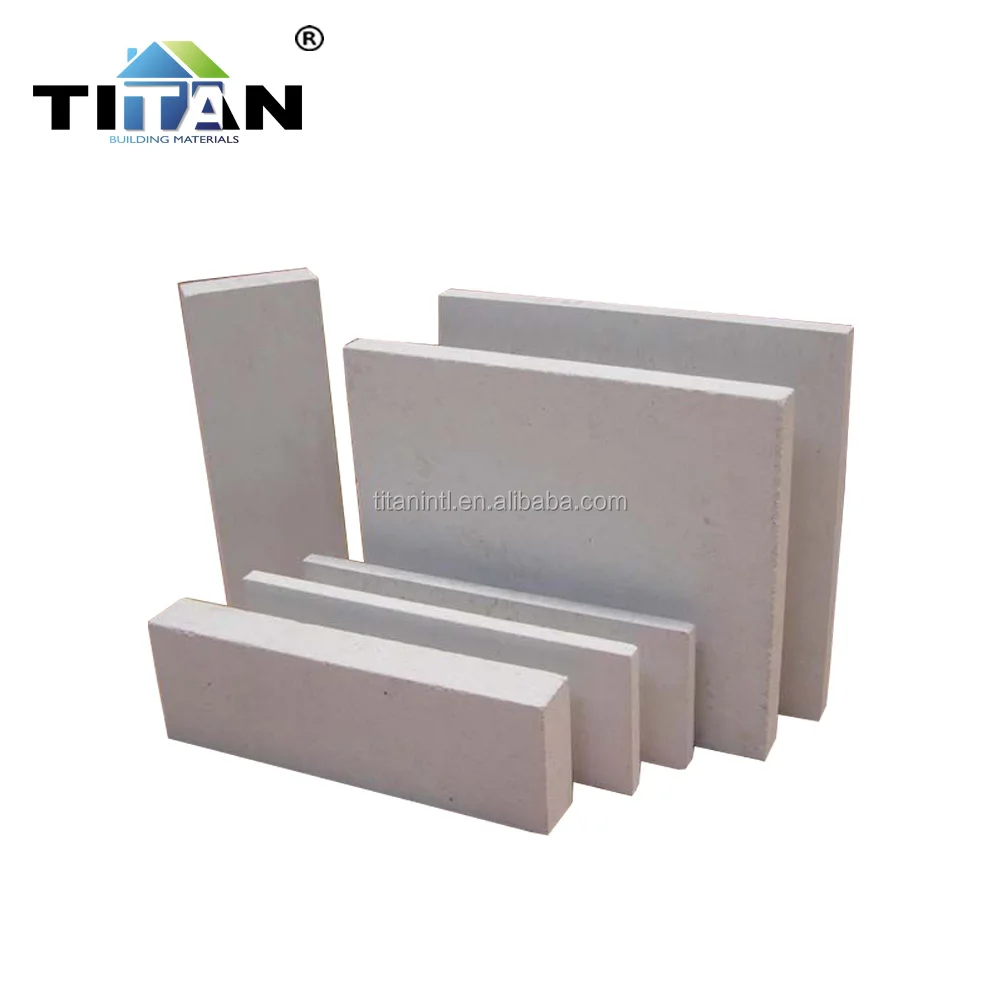

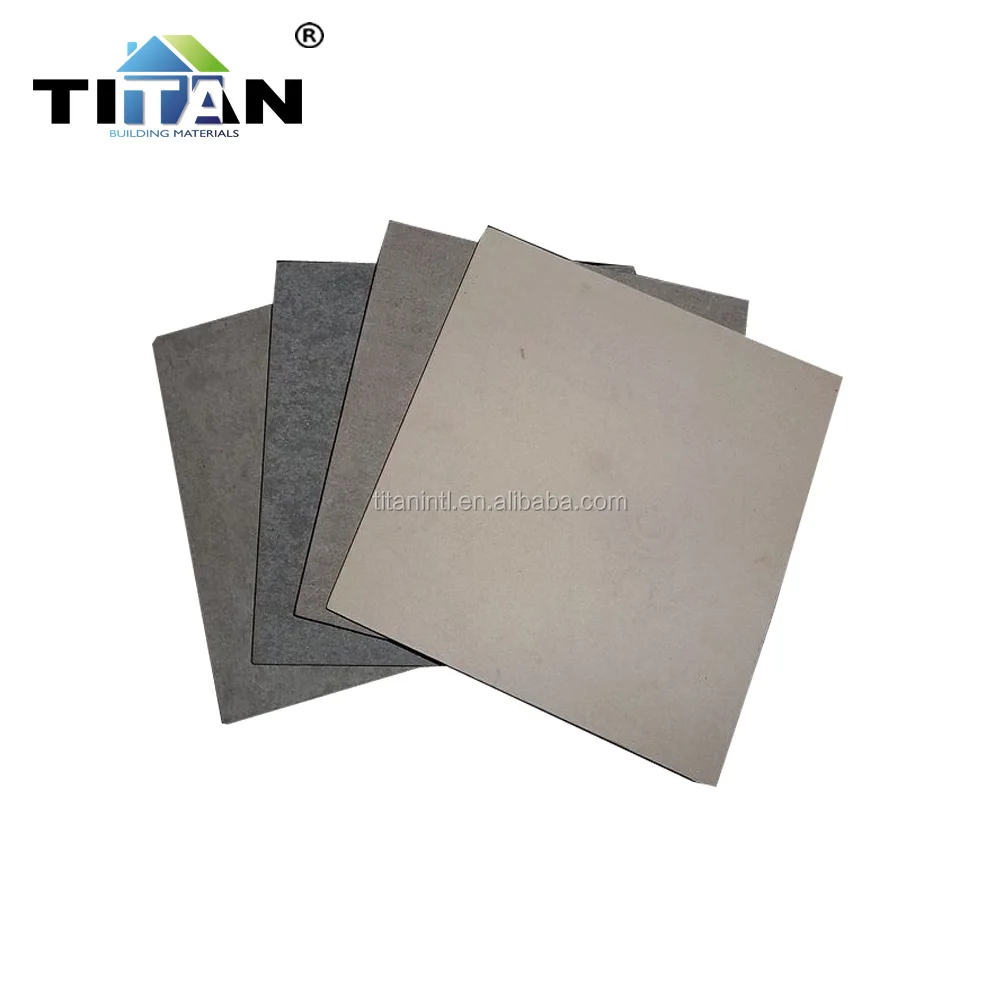

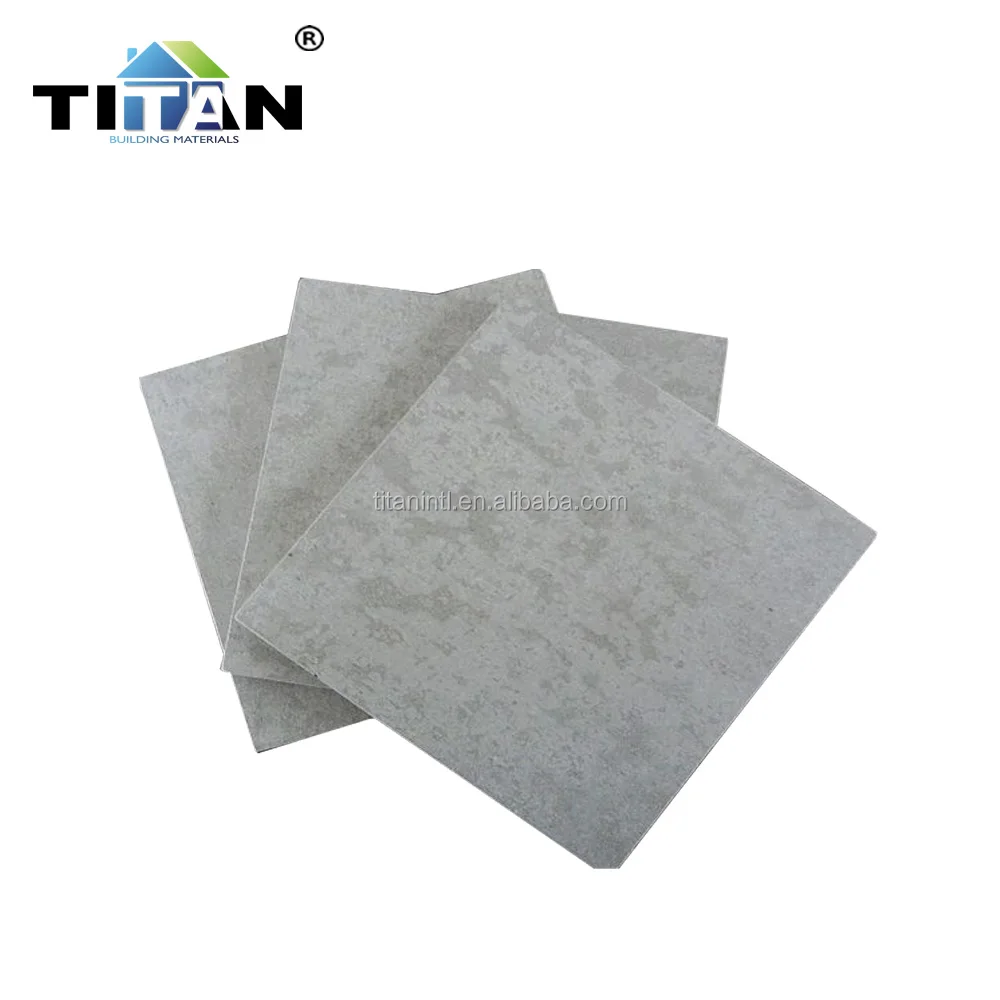

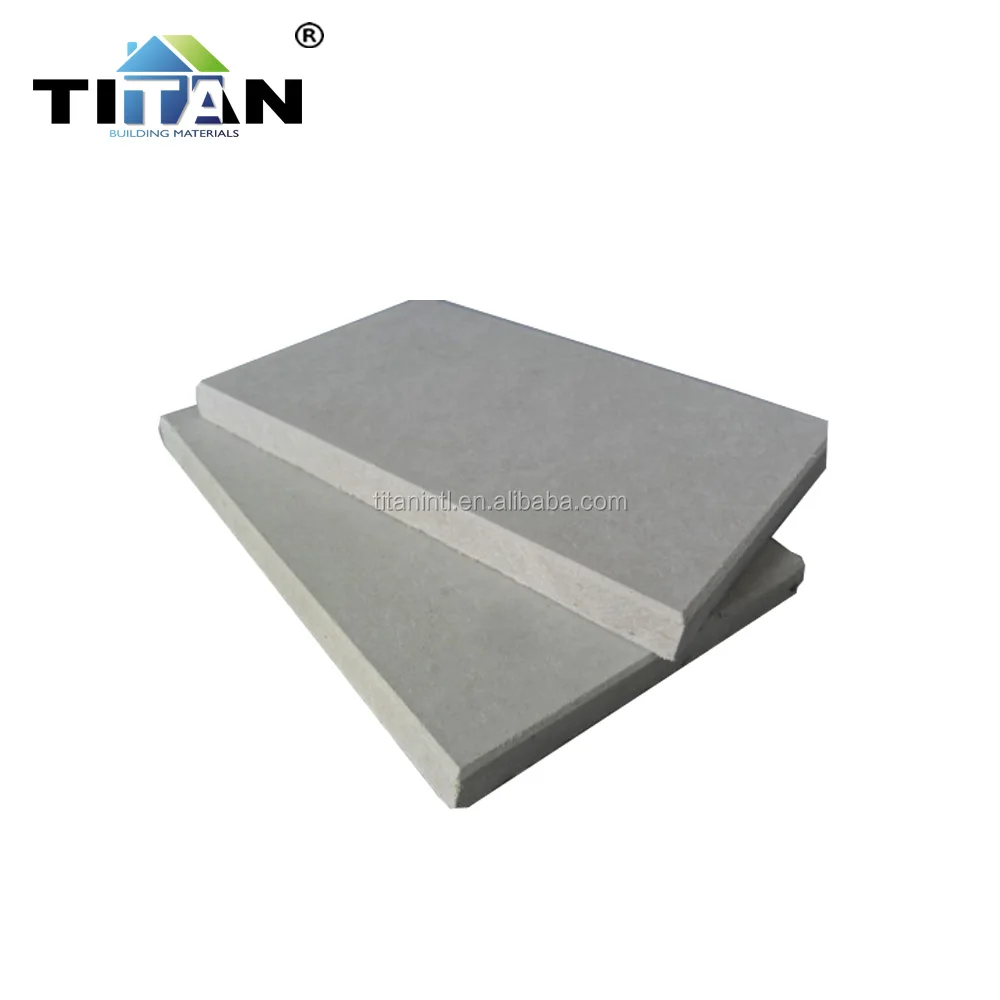

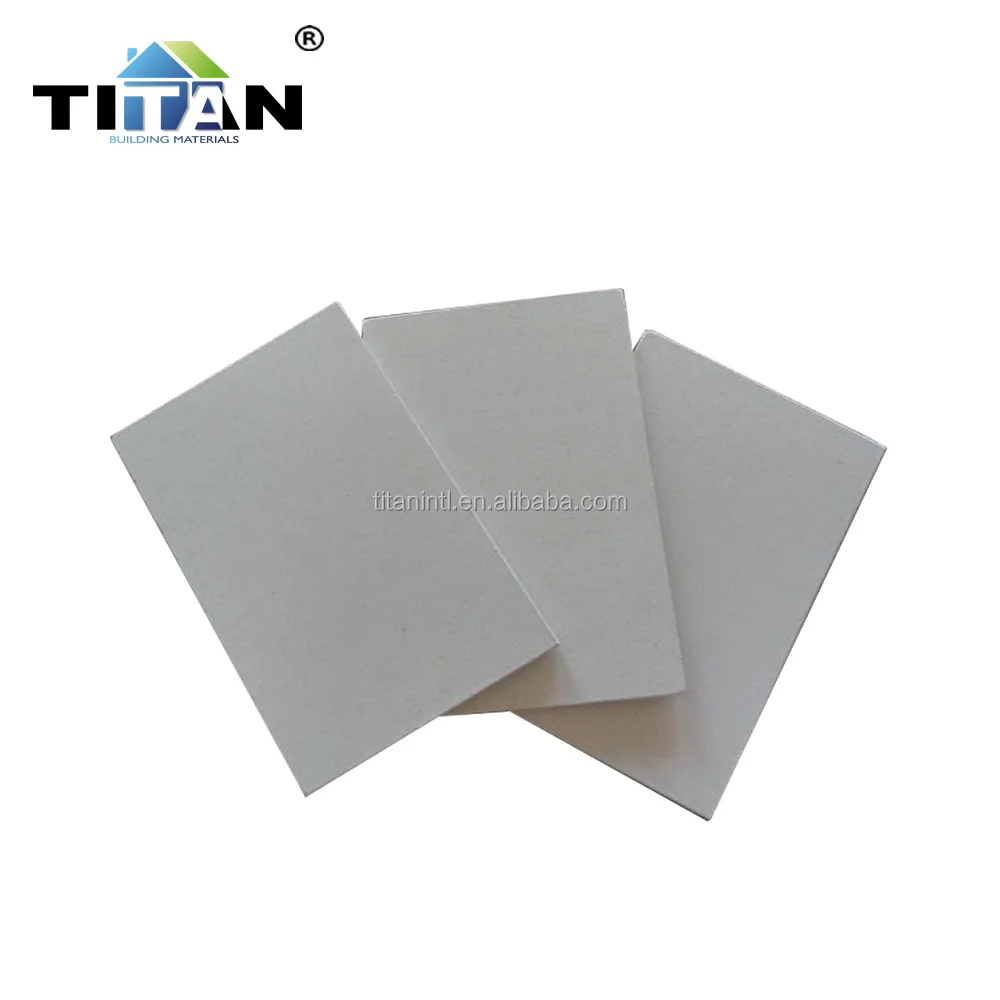

Calcium Silicate Board for Thermal Insulation







Calcium Silicate Board is a composite material made of quartz sand, cement and cellulose fibers. This product adopts imported pure paper pule from Canada, not included waste paper pulp. Fiber cement board is manufactured in a sheet form and they are used for interior and exterior suspension, partition and flooring application.The normal size is 1220×2440mm,thickness from 4.5~20mm, and density is 1.3~1.6g/cm3. There are low-density, middle-density and high-density.



Main Characteristic

1. 100% Asbestos Free
2. Fire Resistance and Moisture Resistance
3. High Strength and Good Stability
4. Inorganic Material, Anti Fungus and Antiseptic
5. Widely used in Partition and Suspension System.



Name: Calcium Silicate Board
Normal Size	1220mm × 244mm or 1200mm × 2400mm
Max. Width	1220mm
Max. Length	3050mm
Thickness	4.5mm ~ 25mm
Color	Light Grey / Dark Grey / White / Black / Yellow / Green / Red
Edge
Density	1.2 ~ 1.5kg/cm3
Water Content	≤10
Water Absorption	≤30
Fire Resistance	Incombustibility A Class(GB8624-A)
Thermal Conductivity	Average≤0.20W/m.k
Bending Strength	Transverse≥11.0N/mm3, Vertical≥8.5N/mm3
Radioactivity	Conforming to GB6566-2001 A Class
Asbestos	100% Asbestos Free
Freeze Resistance	No distortion after 25 repeated cycles of freezing and thawing
Certification	SGS



Partition Drywall Series

   Fiber Cement Board         Gypsum Board      Magnesium Oxide Board          Metal Profiles



Partition Installing Method



1. Galvanized Metal Frame

a.The top and bottom keels are fixed respectively top floor and on floor with expansion bolts.

b.The vertical keel should be aligned well according to the requirement (generally being 612 mm) with

laterally supporting keel installed.



2. Board Material Package Fixed

a.Cutting the board material to the dimensions needed (about 10mm lower than wall height)

b.Board material is fixed on keel in anchoring seam way with tapping screw: the interval of tapping screw is generally

about 200~250mm with screws sinking 0.5mm under the board face.

c.The expansion seam of about 4mm between boards should be kept.

d.The shrouding should be fixed from the middle to the four sides and cannot be operated at multipoint simultaneously

to avoid generating inner stress to make board material bucking.

e.Before board being packaged and fixed, depending the needs, glass cotton or rock cotton can be filled.



Ceiling Installing Method



1.Carry out ceiling line-measuring to determine the ceiling’s fixed position, the boom’s central range is generally 1200.

2.Connect and fix the boom and main keel with hanging piece to make the main keel keep level position.

3.Vertically fix the sub-keel to the main keel with hanging piece; the sub-keel axis’central range is 612mm.

4.Install the laterally supporting keel properly, its central ranges is 1224mm.

5.Fix the board on sub-keels with tapping screws, and to well the seam-connecting treatment.



Notice:

The hanging system of TITAN board combined with light steel keel is divided into two kinds of person-standing type

and non person-standing type; for the non person-standing type,only consider the self-weight of ceiling and light.Lamp

without loading other loads; for the person-standing type. Consider about 80~100kg load when someone repaired it.

Accessories



Product Name	Size	KGS	20 GP
Fiber Cement Board	1220×2440×6 mm	24	900 PCS
	1220×2440×8 mm	32	678 PCS
	1220×2440×10 mm	40	540 PCS
	1220×2440×12 mm	48	450 PCS
	1220×2440×15 mm	60	360 PCS
	1220×2440×18 mm	72	300 PCS
