Series AWWA C509 NRS Resilient Seat cast iron 4 inch water gate valve handwheel
- Category: >>>
- Supplier: Shanghai Ks Flow Control Equipments Co. Ltd.
Share on (60520234559):
Product Overview
Description
Product Description

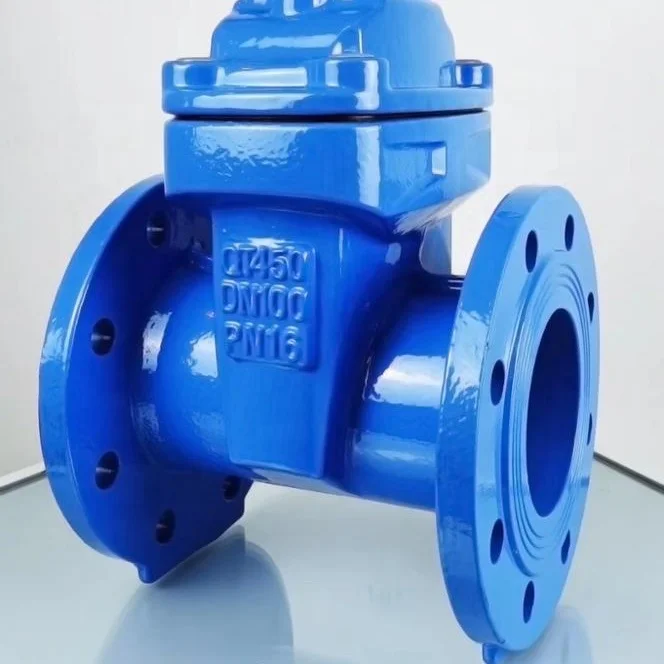

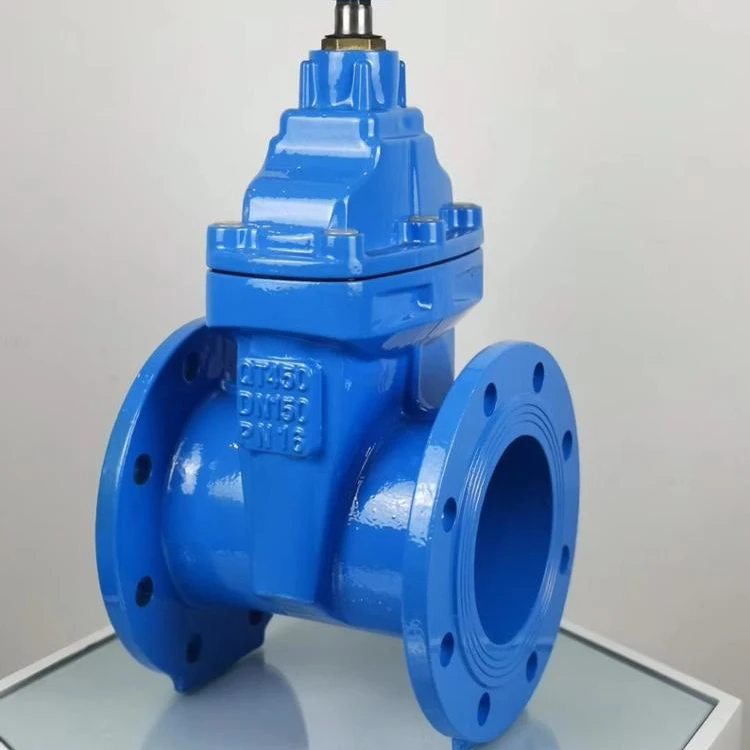

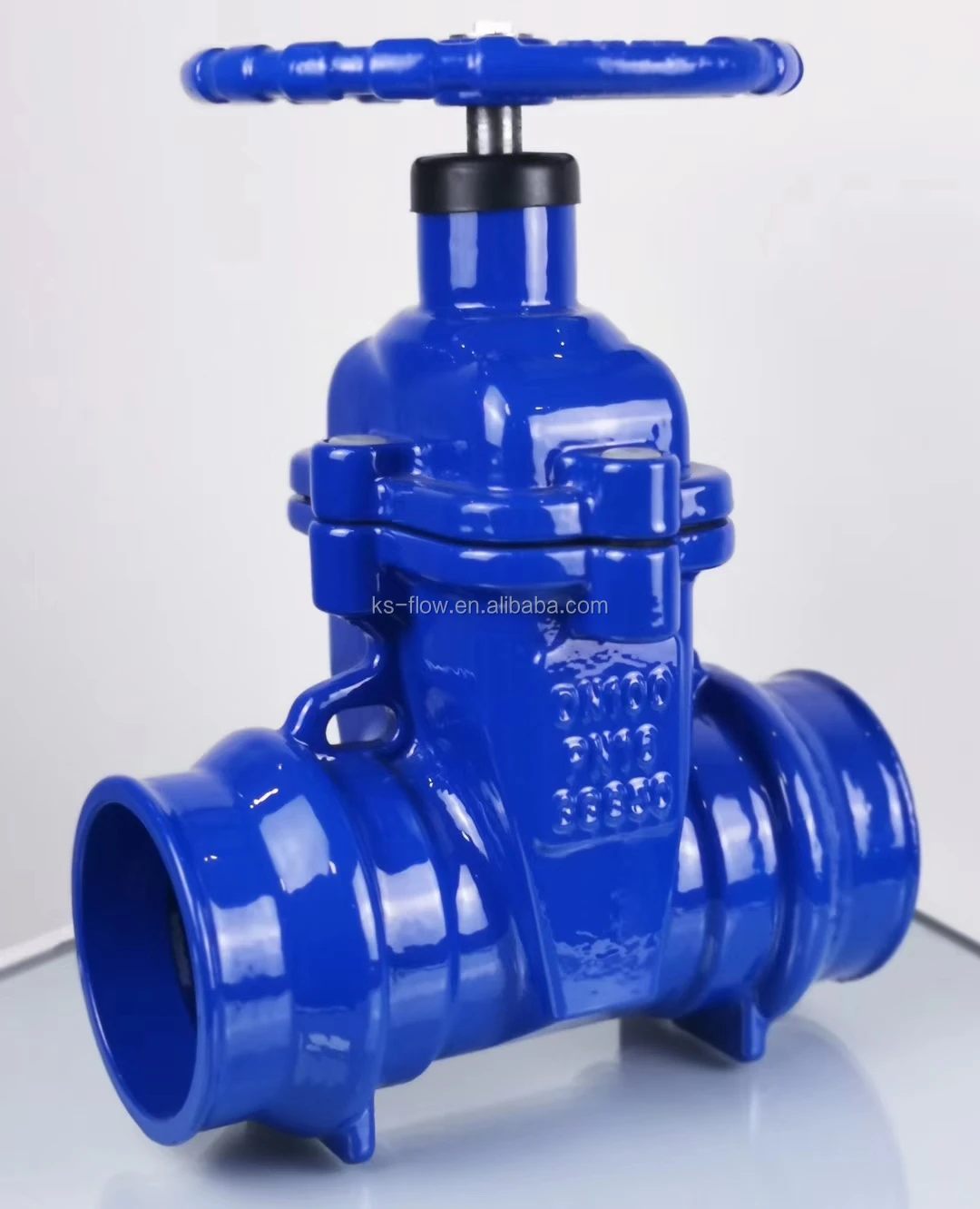

Series AWWA C509 NRS Resilient Seat cast iron 4 inch water gate valve handwheel
Features
Size: 1-1/2" - 24" ( DN40 - DN600 )
Class:125 lbs - 150 lbs
Flange end
Non-rising stem

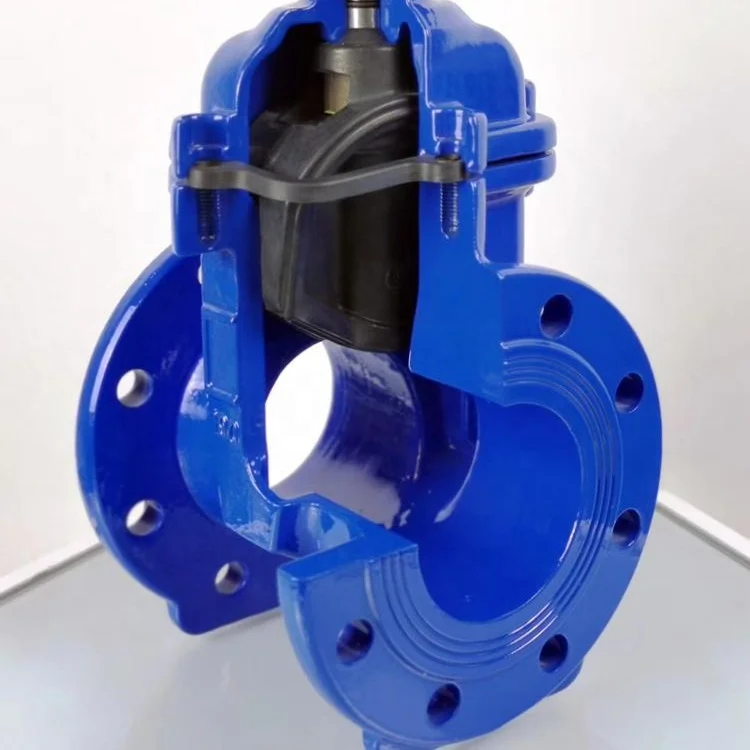

Rubber coated wedge
Full and straight bore
Epoxy coated internally and externally
SS bolts with plastic sealed
Handwheel or cap operated
Gear operated (optional)

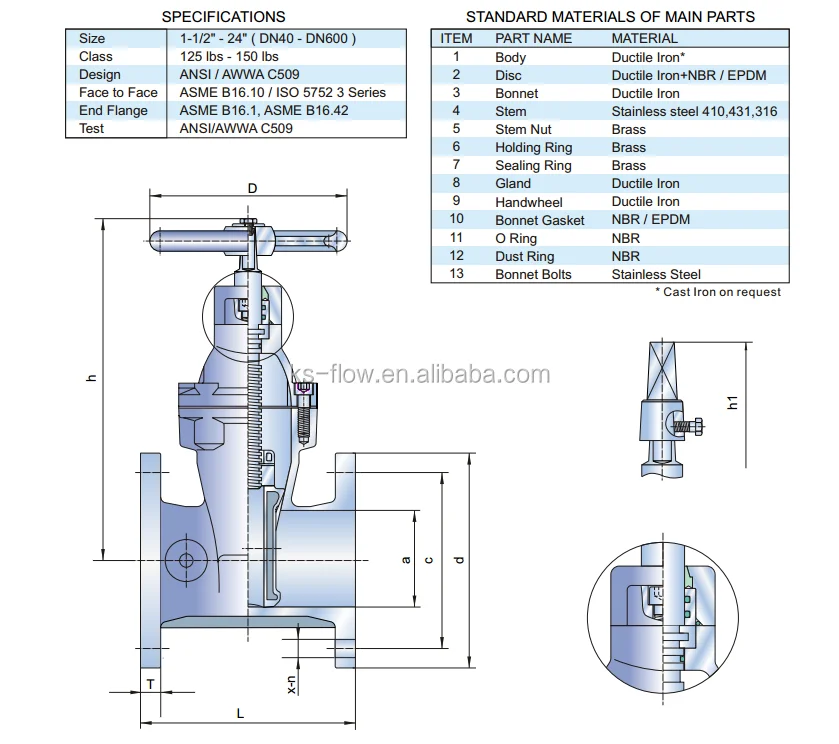

Specifications
Design ANSI / AWWA C509
Face to Face ASME B16.10 / ISO 5752 3 Series
End Flange ASME B16.1, ASME B16.42
Test ANSI/AWWA C509
STANDARD MATERIALS OF MAIN PARTS
Products Show
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Our Service
Raw Material
We will have a very strict inspection for the coming raw material which done by our QA Dpt.
Advanced Machining
KS invested a more effective control line with Germany HECKERT machining center, CNC lathe, CNC miller, CNC driller,
Inspection
Passed the ISO9001:2008 quality system authentication and API 598&API6D Request
Packing & Delivery
Packing Details : KS standard Seaworthy packing to be applied.
Delivery Details : EX-works 45-60 calendar days after we received your confirmed order, if 3rd party inspection required, delivery should be extended accordingly.4-10Days can be ok if we got the stock
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
4. Professional placement
5. Professional shock
6. Complete package
Our Certifications
Certifications
KS Flow launched our quality management and safety system as ISO 9001, ISO14001, OHSAS18001 and awarded API 6D, API 600, API 607, API 6FA, CE/PED approvals for the product.
Customer Photo
Egypt Customer
Egypt Customer
Project: Banha Power Plant
Client: Mid – Delta Electricity
Year: 2012
Location: Egypt
Product: Ball, Gate, Globe , Check Valves
Materials: WCB, A105, CF8M, F11
Size: NPS1/2 ~ NPS18
Rating: ANSI150lb ~ 600lb
Qty: 650 pcs
Iran Market
Project: Cooking Project
Client: ESFAHAN
Year: 2012
Location: Iran
Product: Ball, Gate, Globe , Check Valves
Materials: WCB, A105, CF3M, CF8, CF8M, F304, F316
Size: NPS1 ~ NPS18
Rating: ANSI150lb ~ 600lb
Qty: 2240 pcs
India Customer
Project: JSR 151Mt/a EP Project
Client: TATA Steel
Year: 2013
Location: India
Product: Ball, Gate, Check Valves
Materials: WCB, CF8M
Size: NPS2 ~ NPS40
Rating: ANSI150lb ~ 600lb
Qty: 383 pcs
FAQ
Q: What customer care the most?
A: Quality first,Excellent Technical second,Good service rank third.Price should be the last one
Q: How long is your delivery time?
A: EX-works 45-60 calendar days after we received your confirmed order, if 3rd party inspection required, delivery should be extended accordingly.If we got stock,it will be 8-10days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, but we will charge it cause what gurantee that what we offer is standard,if with poor quality we will compensate for this for everything lost what we brought our customer
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
