TeShi PID digital temperature controller fourtech temperature controller
- Category: >>>
- Supplier: Shanghai Teshi Machinery Equipment Co. Ltd.
Share on (60520335836):
Product Overview
Description
Product Description
PID temperature controller has thyristor control, PID parameter self-tuning function, manual / automatic switching function without interference, to meet the continuous and constant temperature control requirements. Have over temperature alarm function, with built-in password parameter control.
Regulation of temperature controller is integrated intelligent temperature control instrumentation, which uses a fully digital integrated design, with a programmable temperature profile or temperature control point, multiple PID adjustment, output power limiter curve programming, manual / automatic switch, soft-start, alarm switch output, real-time data query, and computer communications, and other functions, the digital temperature gauges and ZK combined thyristor voltage regulator, set the temperature measurement, regulation, driving in one meter direct output thyristor trigger signal, which drives each class thyristor load.
Temperature control instrumentation series
1. Thermal resistance: PT100, Cu50
2. Thermocouple: T / R / J / B / S / K / E / WRe3-WRe25 other 10 kinds of sensor input compatible
3. The five kinds of control options:
0. two relays bring the lower limit alarm.
1. One relay alarm output, one PID relay contact output.
2. Road relay alarm output, one SSR non-contact level PID output.
3. The two relay alarm output, SSR output level control bit.
4. One relay alarm output, one relay output control bit.
--------------------------------------------------------------------------------------
The main technical parameters
1. Working voltage: AC / DC85-250V (50Hz / 60Hz)
2. The contact capacity: AC250V / 3A
3. Contact Life: 1000000
4.SSR level: open circuit voltage of 8V
5. Measurement accuracy: 0.2% FS
6. Temperature accuracy: 0.1 ℃
7. overrun display: EEEE
8. Use of the environment: 0-50 ℃ RH≤85%
9. Meter Dimensions: 48mmX48mmX82mm
10. The instrument panel opening size: 45mmX45mm
--------------------------------------------------------------------------------------

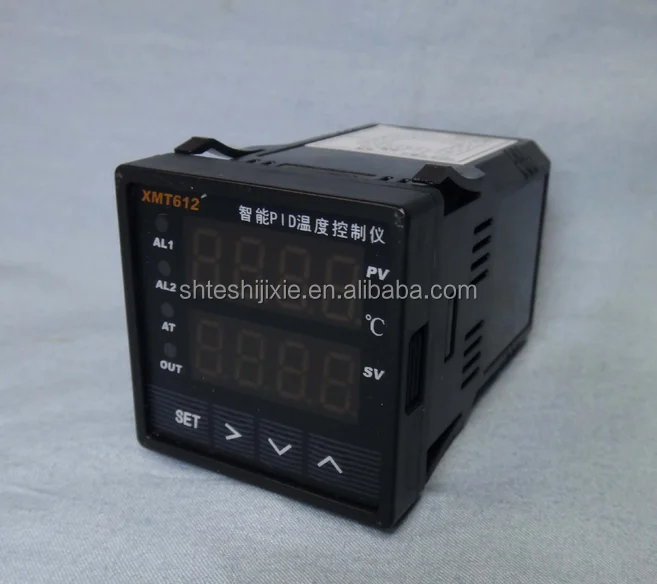

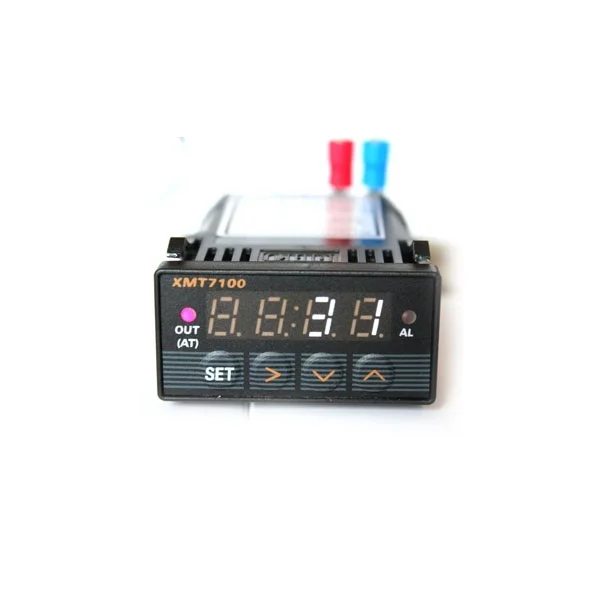

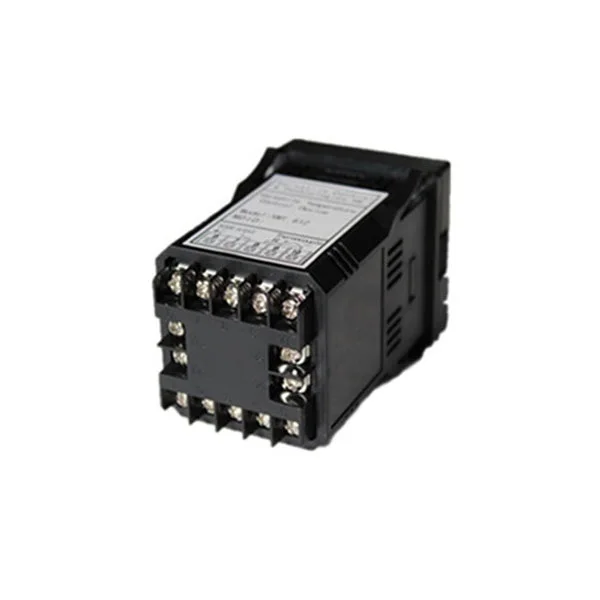

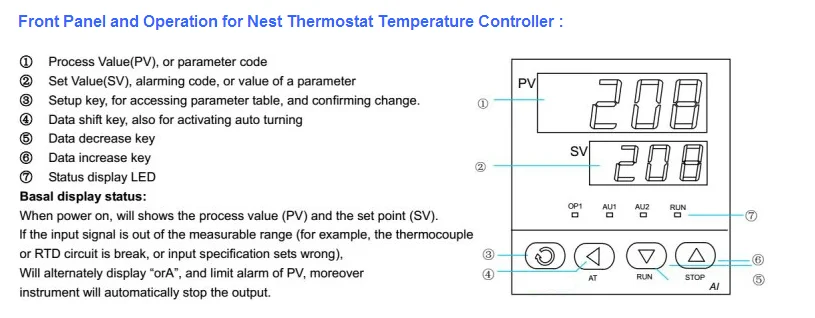

display pid temperature controller show:
--------------------------------------------------------------------------------------

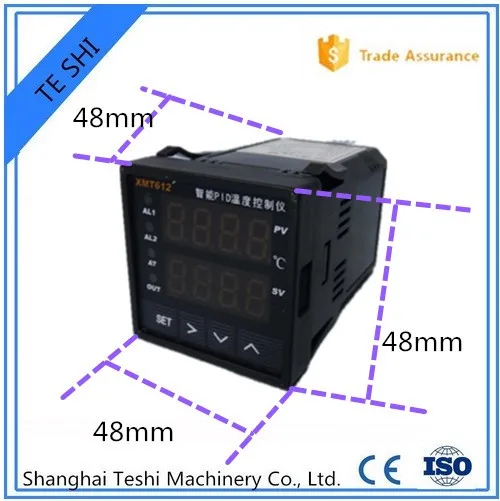

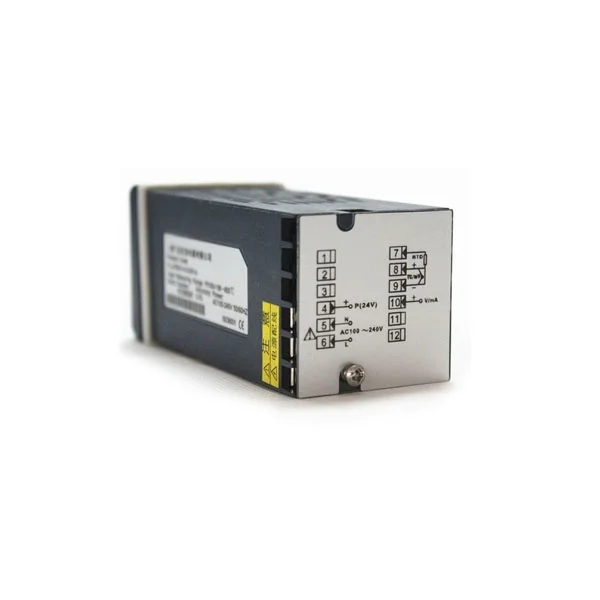

xmt-612 temperature controller size picture show:
Packaging & Shipping
--------------------------------------------------------------------------------------
you will got:
Our Services
WHY CHOOSE TeShi
- Factory with 25 years experience.
- Quick delivery ( within 3 working days).
- Retail/ Wholesale/ OEM/ ODM available. We expect to cooperate with machinery manufacturers, better price for bulk order.
- We provide after sales service and technical assistance as per the customers requirement and needs.

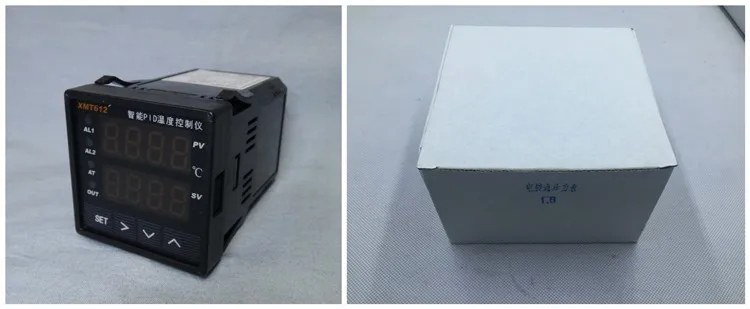

Packaging & Shipping
| XMT7100 Size 48*24mm PID WHITE LED Digital Display shinko temperature controller packing detail:1pc is in a small white box 100pcs are in a carton box gross weight:0.08kg/pc, 8kg/ctn packing size:39*24*20(cm) |
Our Services
Our company's name is Shanghai Te Shi Machinery Co., Ltd. special when we are just beginning to trade the new company.
We have a lot of experience of export products.
1. We have 10 technical staff professional design R & D engineers, we probably have five foreign trade personnel.
2. We have our own factory, we have two factories responsible for producing temperature controller and sensors.
3. We plant employees about 200,
4. Our company was established about a year, our main markets in the United States, Europe and so on.
5. Our company is divided into two parts one is responsible for sales in Shanghai, one of the main responsible for the production of Jiangsu Province in China.
6. our customer service 24 hours online for your service, you no matter what problems we will in the shortest possible time within
Company Information
Shanghai Te Shi Machinery Co., Ltd.
is one of the areas of high-tech enterprises, with Shanghai and many other research institutes and universities jointly developed a series of temperature-controlled production of electronic products sold throughout the country. Products are renowned for their excellent performance, good looks, reliability, advanced technology, good price and market reputation, won the trust of users. 2000 has passed ISO9001: 2000 quality system certification, the company has first-class production lines and testing instruments, the quality of supervision of the whole process. Enterprises have a strong technical development team and the outcome of the patent, willing to undertake regular and special products business. For the design, installation of a variety of large, medium and small automatic temperature control system. Enterprise has always believed in the "quality of legislation market, users struggle credibility, technology and development" purposes. Welcome new and old customers to buy! Thermocouple developed under special conditions: the temperature of the thermocouple as a solution in steel, copper water, aluminum water, zinc, water, and salt and other melting furnaces, cement factories and power plants, and thermocouple under special environments, high-precision long service life, the new oxidation tungsten rhenium thermocouples, low cost, high temperature, is the ideal alternative to platinum and rhodium thermocouple, some products reach the level of military products. Produced by polytetrafluoroethylene (PTFE) tubes, plates, rods, gaskets, shaped pieces and other products, resistant to acid, alkali, corrosion resistance, ideal for a wide range of high temperature, environmental protection, use, the company has a strong technology development and patent portfolio results, to undertake regular and special products business, customers can design, installation of various large and small automatic temperature control and remote monitoring body temperature control system.
