Product Overview

Description


Product Details

Three Phase Multi Function Energy Meter

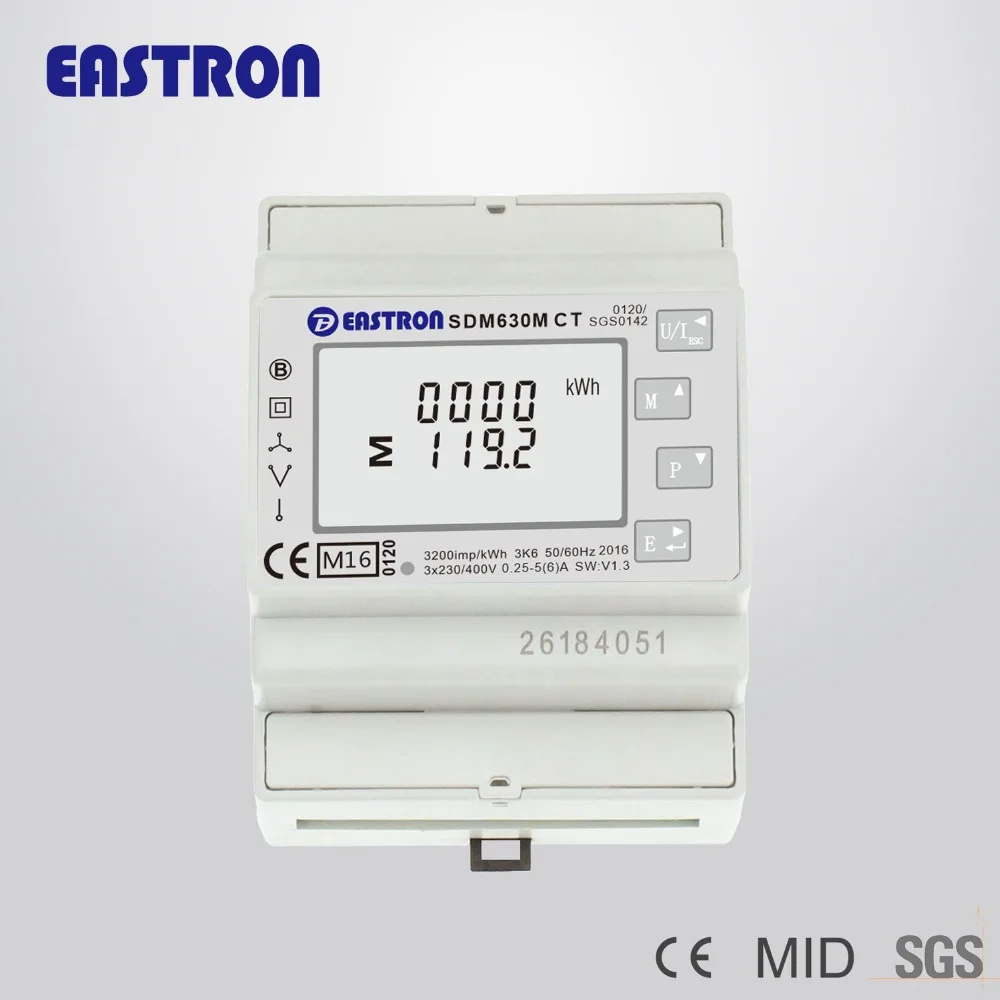

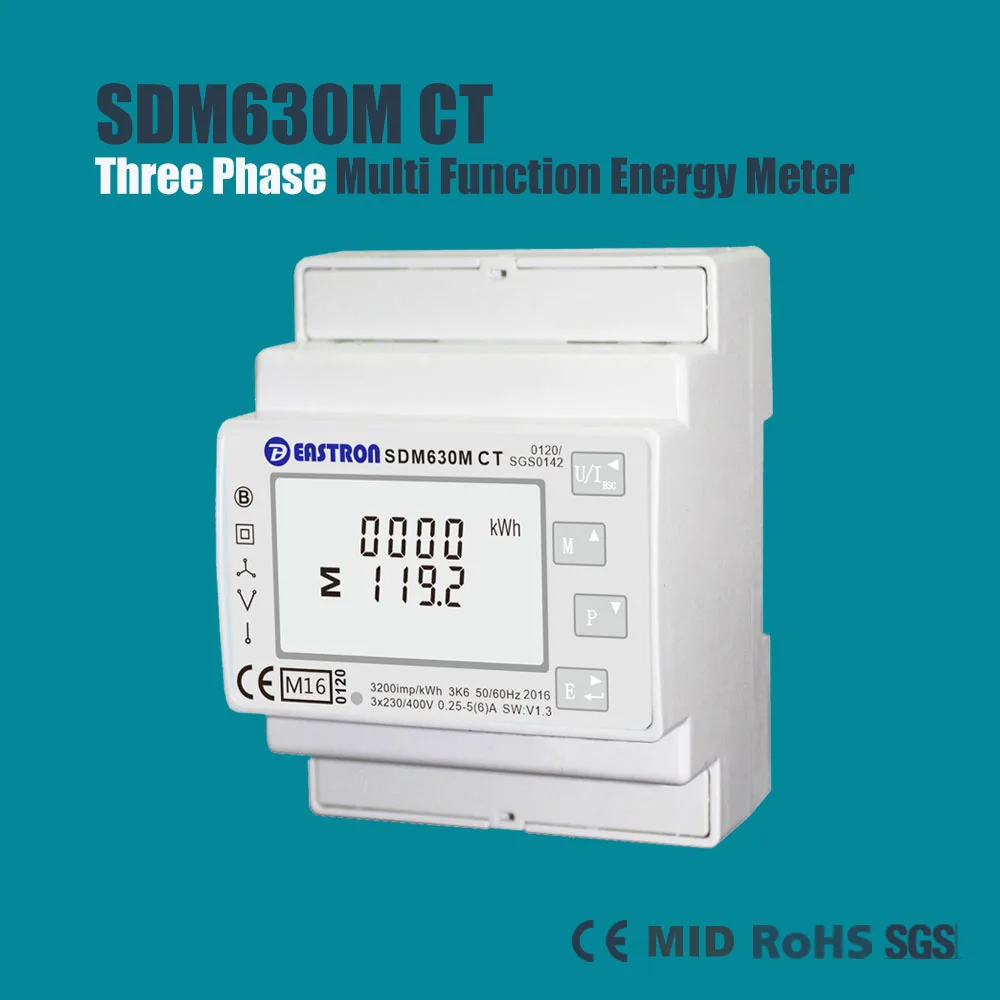

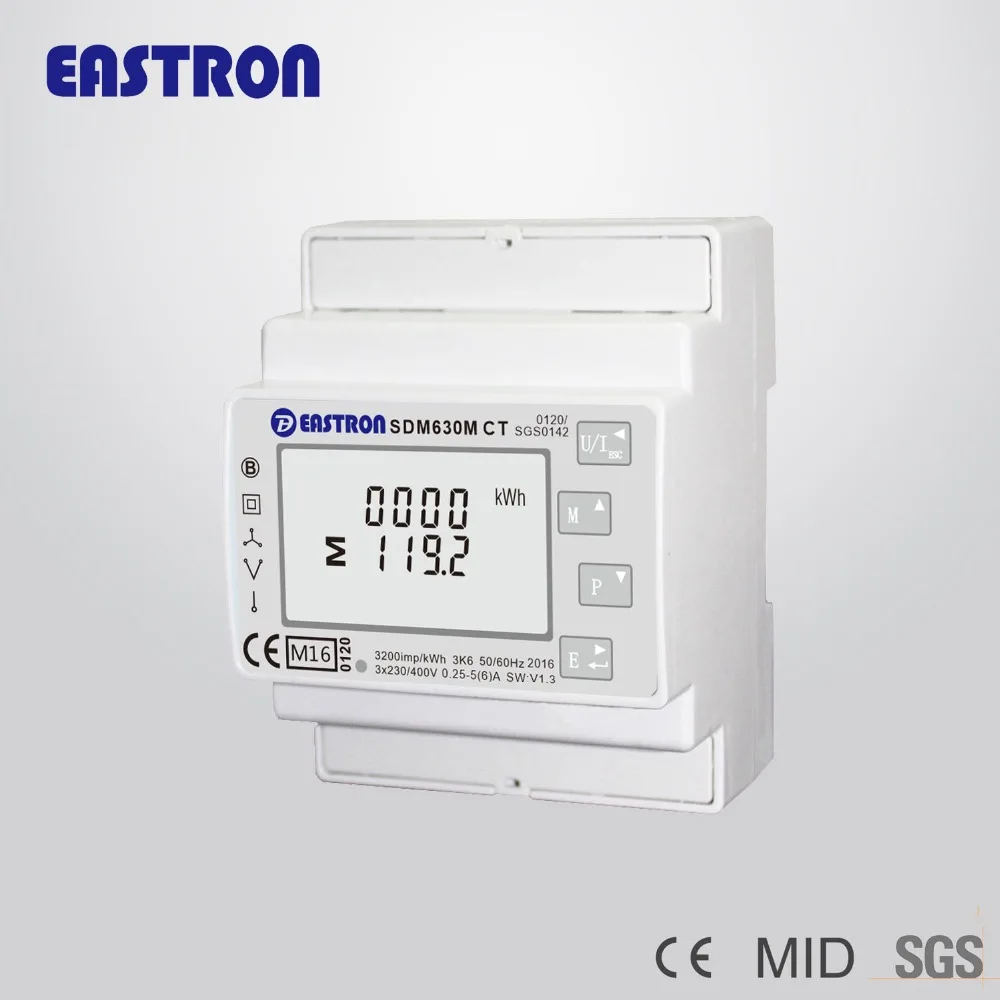

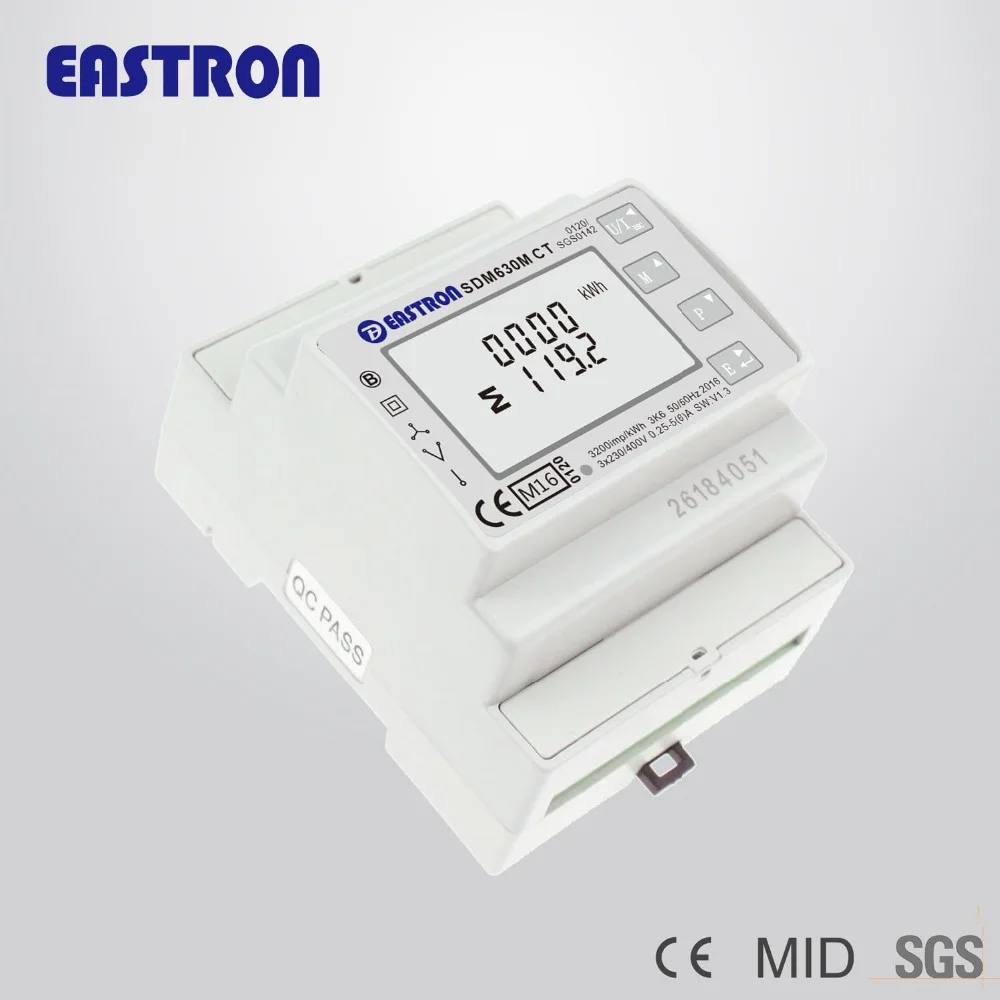

 The SDM630MCT is a three phase multifunction DIN rail meter. It can measure and display the characteristic of 1p2w, 3p3w and 3p4w supplies, including voltage, current, power, active and reactive energy imported or exported. Energy is measured in terms of kWh, kVarh, Max demand current can be measured over preset periods of up to 60 minutes.

SDM630MCT is a 1A or 5A current transformer operated and can be configured to work with a wide range of CTs. Built in pulse and RS485 Modbus RTU outputs. Configuration is password protected.

Product Introduction

Three Phase Multi Function Energy Meter

SDM630MCT is a 1A or 5A current transformer operated and can be configured to work with a wide range of CTs. Built -in pulse and RS485 Modbus RTU outputs. Configuration is password protected.

SDM630MCT can be powered from a separate auxiliary ( AC or DC) supply. Alternatively it can be powered from the monitored supply by linking the voltage reference and neutral reference into terminals in the meter.

Product Specificatio
\t
Accuracy
\t
Class 1 / Class B
\t
Impulse Voltage test:
\t
6kV @0.5J open circuit
\t
Standard:
\t
IEC62053-21
\t
Over Current Test:
\t
30.Imax for 10ms
\t
Rated Voltage(Un):
\t
3x230 (400)V
\t
Mechanical Environment:
\t
M1
\t
Voltage Range:
\t
0.8~1.2Un
\t
Electromagnetic Environment:
\t
E2
\t
Base Current (Ib):
\t
1A / 5A
\t
Working Temperature:
\t
3K6-25~+55
\t
Max. Current:
\t
6A
\t
Emissions:
\t
EN55022
\t
Mini Current:
\t
0.25A
\t
Surge Test:
\t
4kV IEC61000-4-5
\t
Starting Current:
\t
0.4% of Ib
\t
Electromagnetic RF Fields:
\t
80~2000Mhz IEC61000-4-3
\t
Power consumption
\t
＜2W/10VA
\t
Electrostatic Discharges:
\t
15kV air gap IEC61000-4-2
\t
Frequency:
\t
50/60Hz (+-2%)
\t
Climatic Influences:
\t
IEC60068-2
\t
Pulse1 Constant:
\t
3200imp/kWh
\t
Penetration of Dust & Water
\t
IP51 IEC60529
\t
Pulse 2 Constant:
\t
1000/100/10/1/0.1imp
\t
Resistance to Heat & Fire:
\t
IEC60695-2-11
\t
Remote Reading:
\t
RS485 Port
\t
Conducted Disturbances:
\t
10V IEC61000-4-6
\t
AC Voltage Test:
\t
4KV for 1min
\t
Electrical Fast Transients:
\t
4kV IEC61000-4-4
Product Details Show
Why Choose Us

About us

1, Eastron Electronic Instruments Co., Ltd is one of the leading high-tech companies of electrical measurement instruments. We always specialize in R&D, production and sales of smart meters and solutions. With advanced technologies of intelligent meter, we have developed lots of series products with excellent performance.

Equipment & technology

2,Qualityishighlyvalued,Eastronstrictlyfollow ISO9001:2008 inoperation,management. Eastron has obtained the MID(Measuring Instruments Directive) D from SGS for its production site. Eastron products had passed the European MID B,CE, ROHS 2.0 authentication and complied with relevant IEC , EN, G/B standard.

Service

3,With high quality products and reliable services, Eastron has gained a good reputation among clients and partners in more than 40 countries.Create Value to and Grow Up with Our Partners” is our working philosophy. We warmly welcome YOU contacting with us.

Certification
Product Packing
Main Products

SDM630MV CT

Multifunction energy  meter with 333mV or 100mV input. RS485 communication.

SDM630MCT-2T

Multifunction  energy meter with dual power source load.RS485 communication.

SDM630MCT-2C

Multifunction energy meter with dual input for lighting and power.RS485 communication.

SDM630Mbus

Multifunction energy meter with Bi-directional measurement for Solar Panel energy measurement. MBus communication.

SDM630-Modbus

Multifunction energy meter with Bi-directional measurement for Solar Panel energy measurement.RS485 communication.

Split Core CTs

Mini Split Core CTs with wide range of current input. 1A / 5A / 333mV / 100mV output.
