500Mbps Powerline adapter ethernet smart homeplug av500Mbps PLC for CCTV Camera

Product Overview

Description

Hnet Smart Home Plug 500M Powerline Kit Wallmount Wired Low Cost Micro PLC Adapter

Model No.:  HW-PLC7420H



   This 500Mbps powerline wallmount adapter is designed for PHY rate up to 500Mbps and throughput up to 95Mbps across the household power line. Embedding high integrated

AR7420 pset, the adapter is low in power consumption and small in size.Every power socket could become a network connection so even complicated corners that used to be unreachable with wiring is now able to go online conveniently, which is suitable and secure for use in a wide range of both residential (in-home) and commercial (offices,apartments, hotels, warehouses) network applications.

  homeplug av2 powerline kit  homeplug av2 powerline kit  homeplug av2 powerline kit homeplug av2 powerline kit

Application

• High Definition (HD) and Standard Definition

(SD) video distribution

• Higher data rate broadband sharing for power

line LAN

• Shared broadband internet access


• TV over IP (IPTV) and Voice over Internet

Protocol (VoIP)

• Backbone for wireless and wireless extender


• Video surveillance


• Online gaming

micro plc smart home wifi micro plc smart home wifi micro plc smart home wifi micro plc smart home wifi micro plc smart home wifi micro plc smart home wifi micro plc smart home wifi micro plc smart home wifi micro plc smart home wifi micro plc smart home wifi micro plc

Parameter Specification

System SPEC
pset	Atheros AR7420
SDRAM	128bits
Serial Flash	16Mbits
Standard	IEEE 1901 and HomePlug AV compliant Co-existence with HomePlug 1.0 Nodes
Peak PHY Rate	500Mbps
Peak Throughput	95Mbps UDP 95Mbps TCP
Range	Up to 300m
Frequency	2-67.5MHz
Modulation Schemes	Supports 4096/1024/256/64/16/8-QAM, QPSK,BPSK and ROBO
Security	128-bit AES
QoS	no
Max PLC Nodes	16
IGMP Streams	16
TR-069 Support	no
Media Access	CSMA/CA
IPv6/MLDv2	Support

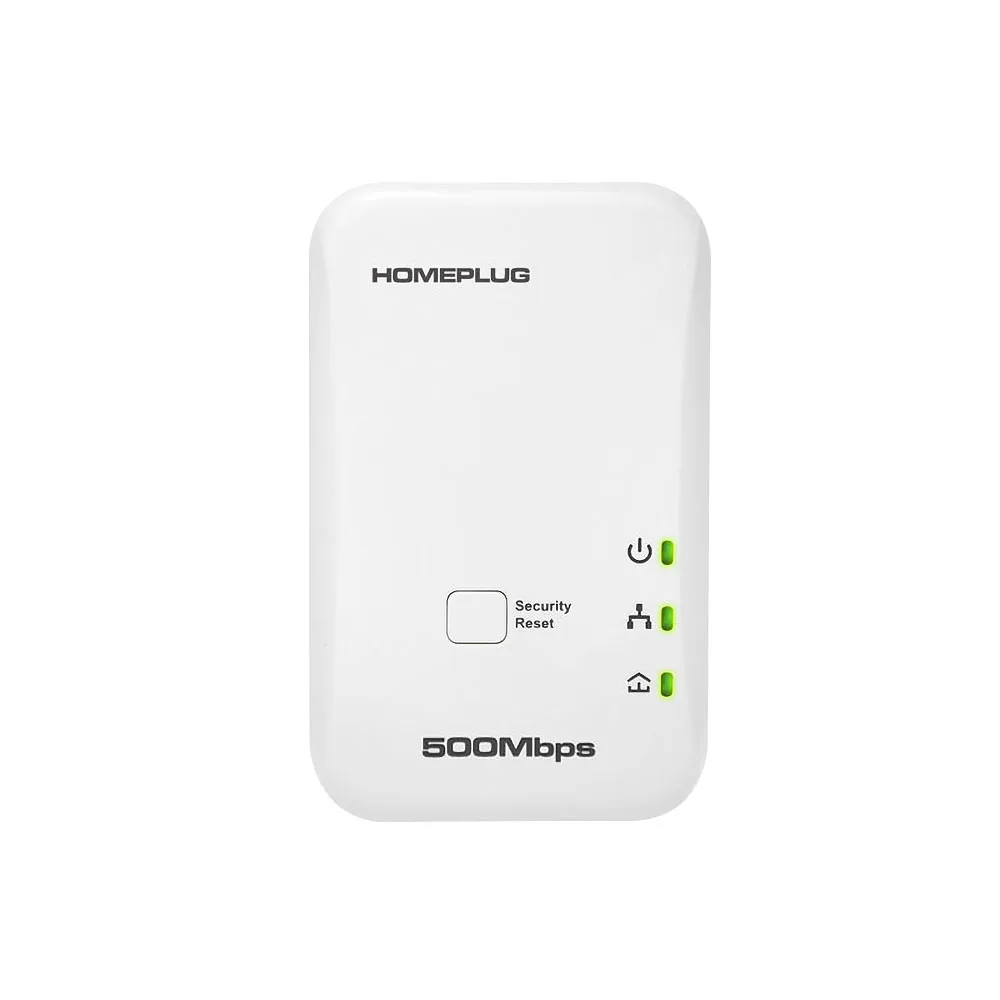

LED’s	Power Ethernet: Ethernet Link and Activity Data: PLC Link and Activity
Push Button	Security
Power Socket	Support British, Euro, Japan, US and na power connector
Ethernet Interface	1 x RJ45 for 10/100 Ethernet (Auto MDI/MDI-X)
Consumption	<2.7W 1.6W Idle 0.34W Standby
Environment Requirement
Operating Temperature	0ºC to 40ºC
Storage Temperature	-20 ºC to 70 ºC
Operating Humidity	10% to 90% Non-condensing
Storage Humidity	5% to 90% Non-Condensing
Input Rating	100-240 VAC, 50/60Hz

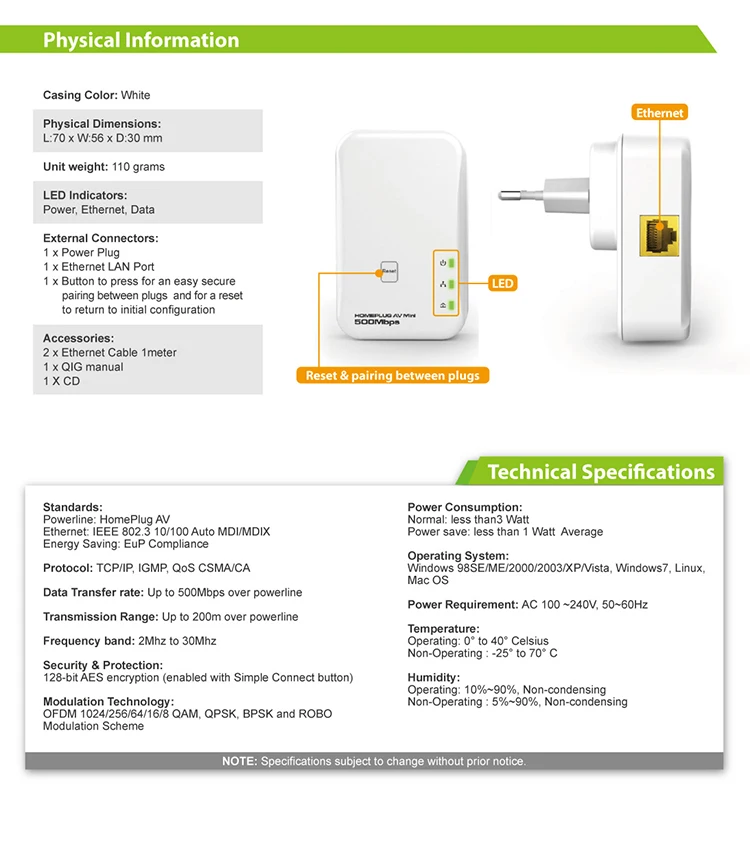

Physical Dimension
Physical Characteristics	L×W×H: 69mm*58mm*31mm
Weight	80g
