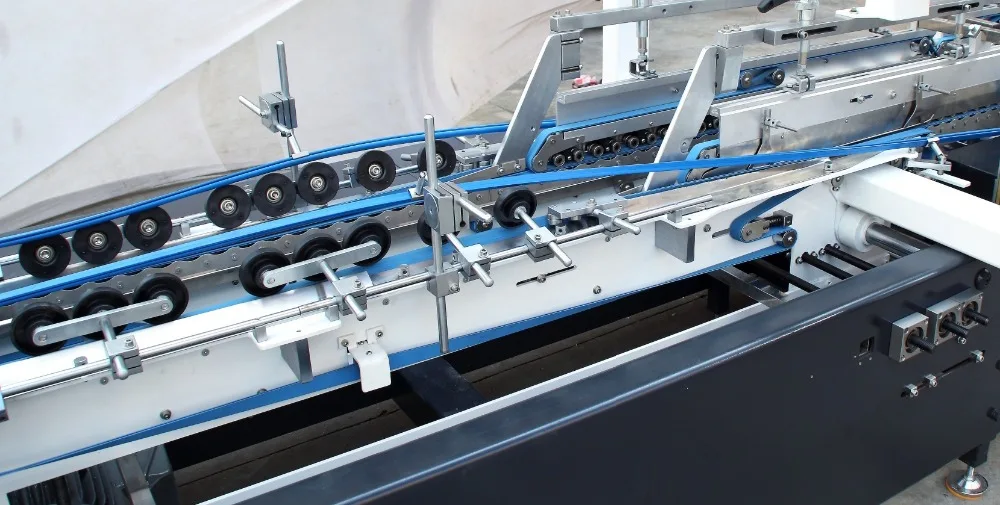

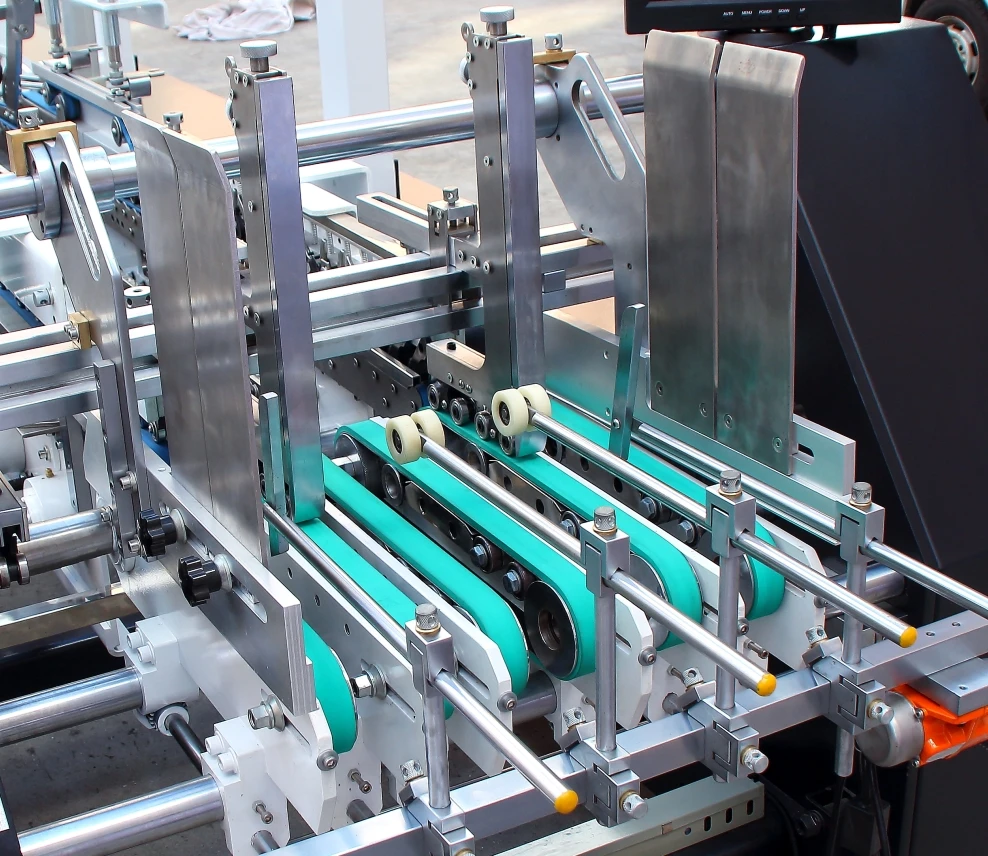

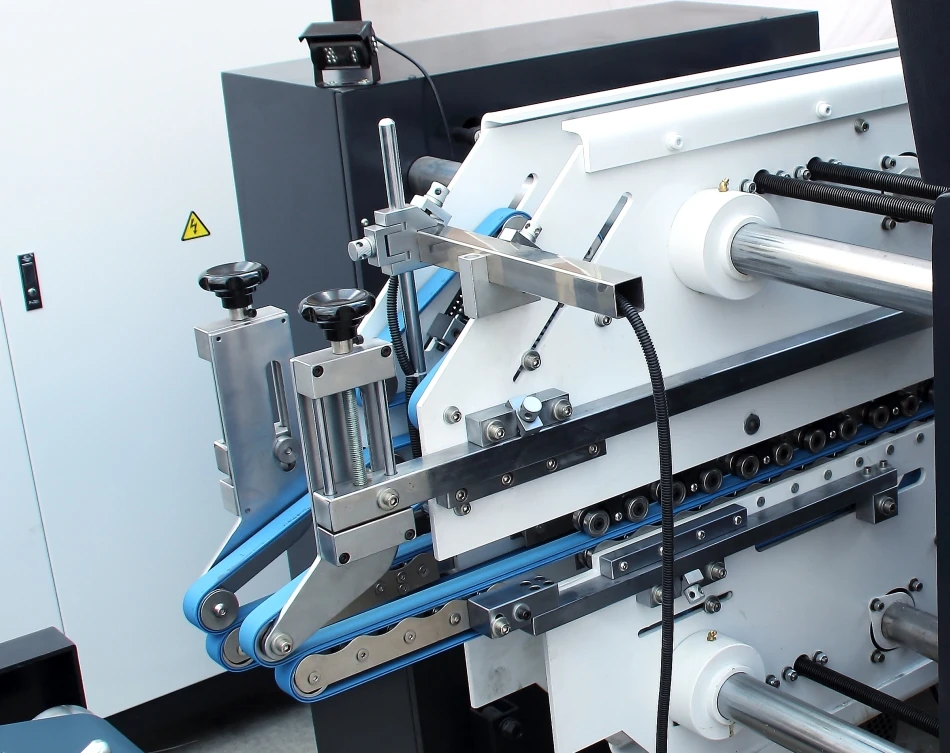

GK 650GS Automatic Four Six Corner Carton Folder Gluer with Best Quality
- Category: >>>
- Supplier: Ruian Gaoke Machinery Co. Ltd.
Share on (60520535478):
Product Overview
Description
Product Description
Product Description:
GK-650GS Automatic Four six corner carton folder gluer with best quality
GK-650GS - SERIES suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes
Remarks:
#Price Given on T/T Payment,(Extra USD500/Shipment For L/C Payment.)
#Price Term: FOB Ningbo port, China.
#Payment: T/T( 30% deposit, 70% before delivery) or L/C.
#Lead Time: 30~45 working days at sight the deposit.
#Packaging: Seaworthy Wooden pallet Packing in 40HQ (11.6*2.32*2.68 65-68CBM)
#After Sale Service:
1. Spare parts guarantee for one year,
2. Send technician for installation & training, the cost cover by buyer( round tickets, accommodation, an allowance of USD80 a day).
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Model | ||
Size of two-sides glue box and folded box: | ||
500-126 | ||
B | 400-60 | |
H | 150-20 | |
Size of bottom-locked carton and folding carton | ||
A | 650-146 | |
B | 450-60 | |
H | 180-20 | |
Size of 4 corners box and folding box | ||
B | 400-120 | |
C | 150-20 | |
Size of 6 folds box and folding box: | ||
A | ||
B | 400-100 | |
C | 150-30 | |
Samples
Detailed Images

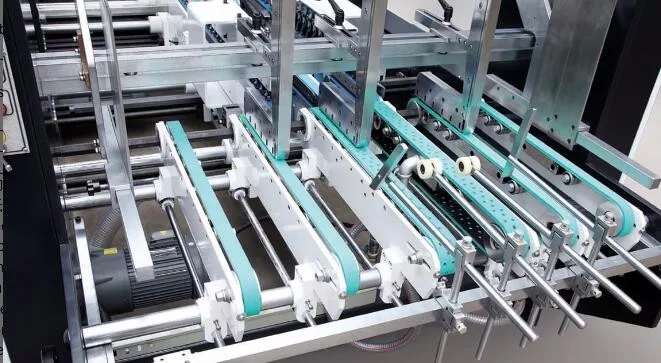

Machine Details
Feeder section
1,Independently motorized friction feeder with variable speed
2,Adjustable electronic pile vibrator.
3,Side feed gates fully adjustable to the width of the blank.
4,Two adjustable front feed knives.
Paper correction section
1,Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.

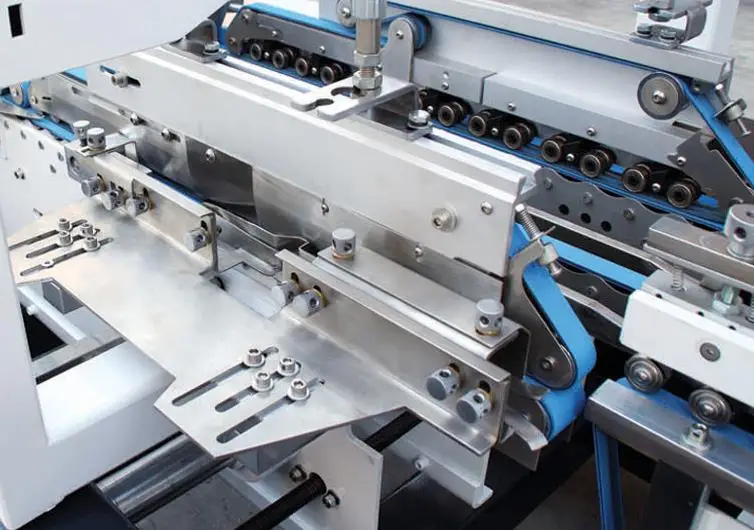

Pre-folding section
1,Left hand glue flap pre-folder up to 180º.
2,Third crease line pre-folder up to 135º.
3,1st and 3rd crease openers.

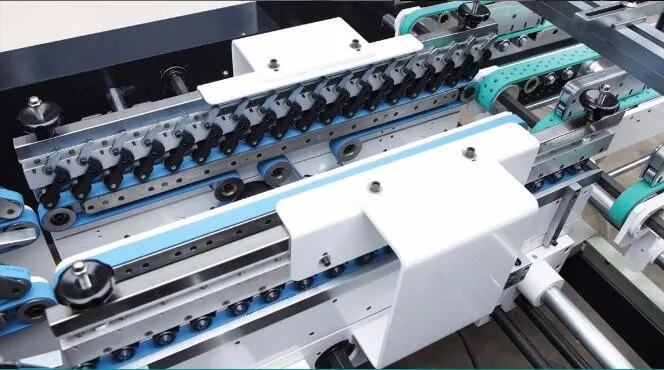

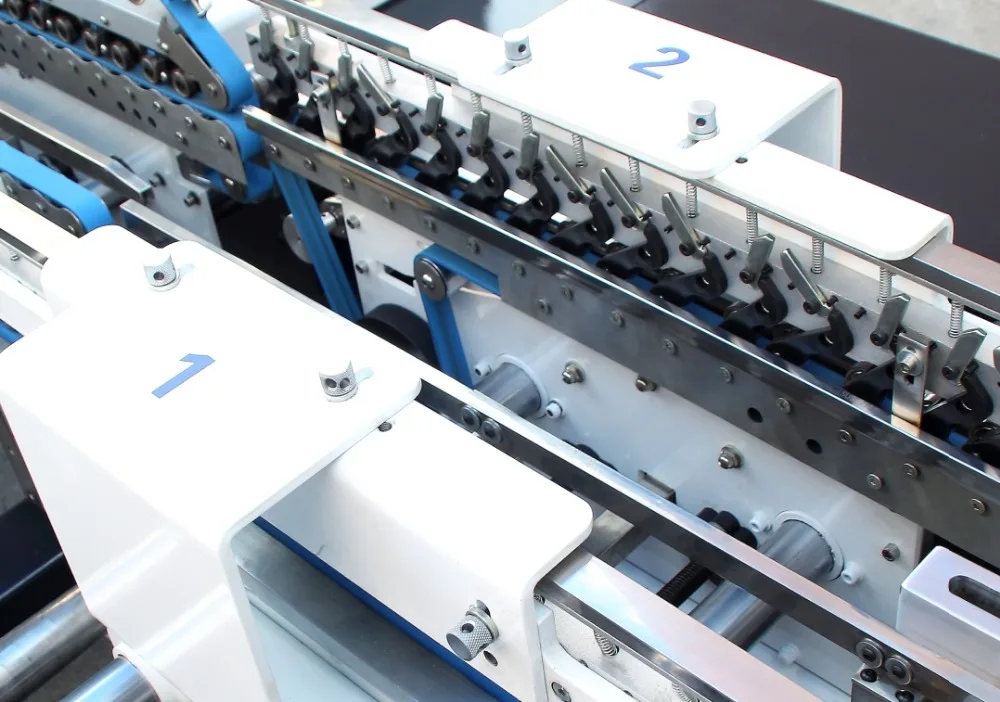

Crash lock bottom section
1,Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
2,Set of accessories for B-type lock bottom.

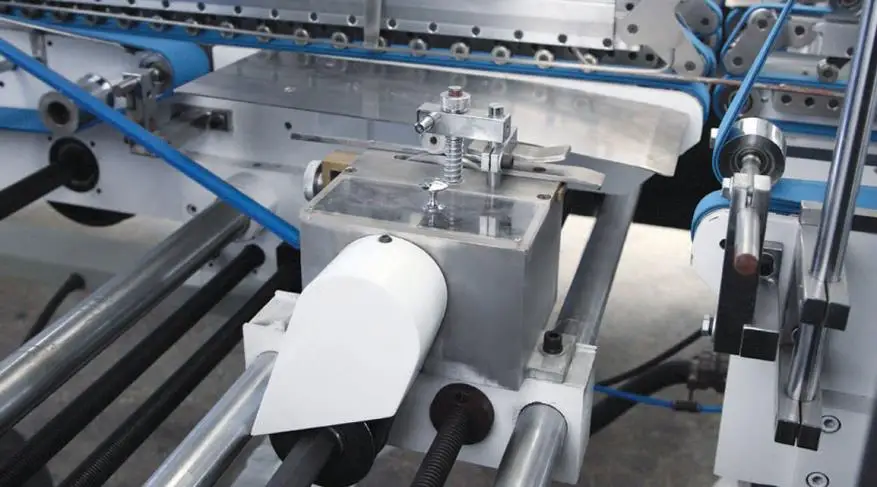

Lower gluing unit
1,One lower (left side) gluing tank.
2,Easy to remove and clean.
3,Electronic upper gluing system by guns..
Folding and Closing section
1,Smooth and accurate folding of 2nd and 4th creases.
2,Outer folding belts adjustable up to 180º with variable speed.
3,Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
4,Width-wise adjustable heavy duty compression rollers (optional).
Trombone section
1,Upper and lower drive mechanism for lengthwise adjustment.
2,Equipped with automatic belt tension-adjusting system.
3,Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow

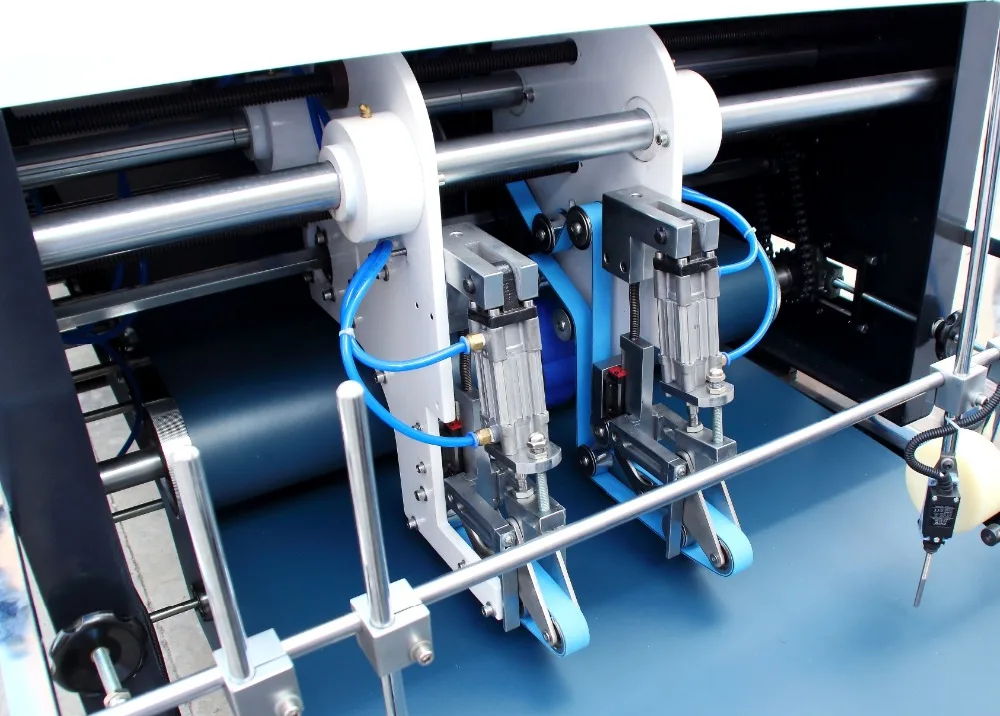

4 and 6-corner device
Motorized and untimed electronic back folding system with intelligent servo motor technology.
Servo-motor of back folding device
Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.

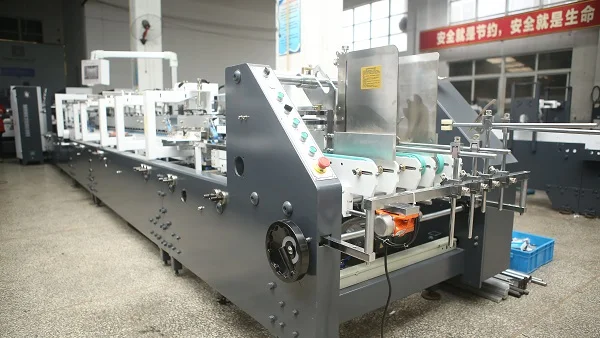

Our Factory
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 11 (L) * 1.4 (W) * 1.8 (D)m | |
Weight | 4.2T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 11 (L) * 1.4 (W) * 1.8 (D)m | |
Weight | 4.2T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
