Product Overview

Description

2016 top sale asphalt crack sealing and spraying machine,road crack sealing machine,bitumen joint sealant

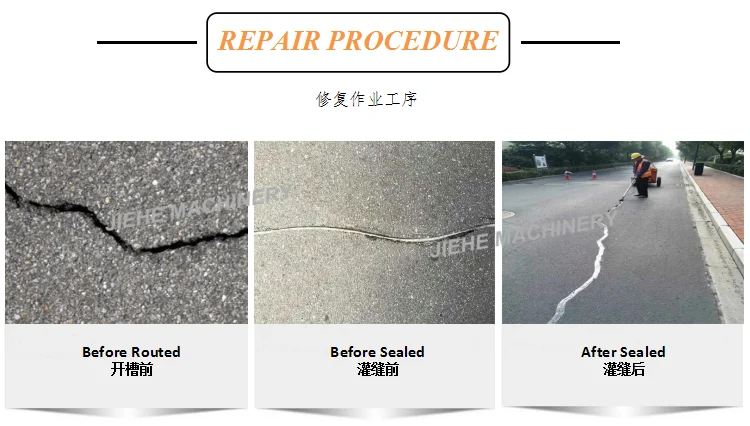

Cracking in pavements occurs when a stress is built up in a surface layer that exceeds the tensile or shear strength of the pavement causing a fissure or crack to open. Crack sealing and crack filling are methods which can be used to repair these cracks in pavement surfaces. The cause of the crack and its activity play a dominant role in determining the success of crack sealing or filling operations.



JIEHE has 3 models of crack sealing machines,100,160,200 liters model.The specialty of JIEHE crack sealing machines :

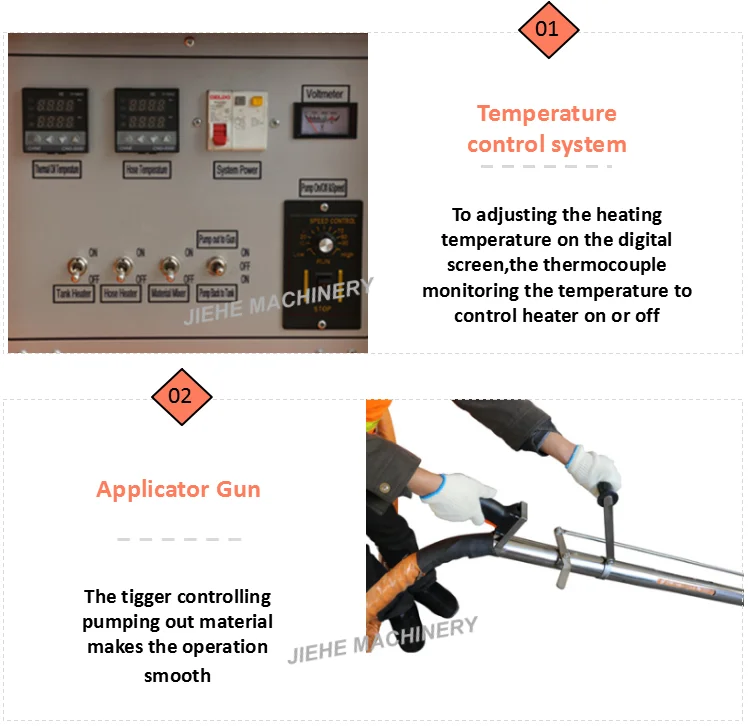

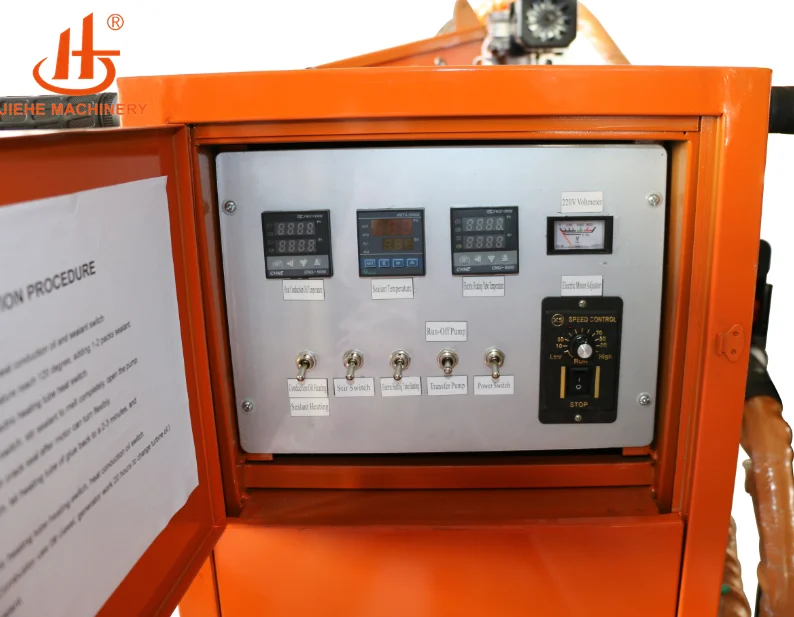

Temperature Controlling System: The thermocouple monitors the crack filling material temperature,the burner turns off and on to keep material heated at the adjusted temperature.This system avoid material to get overheated and reduce the material waste.

Heating System:Diesel heating thermal oil,thermal oil heating the crack filling material



JIEHE crack sealing machine series will be your best choice!

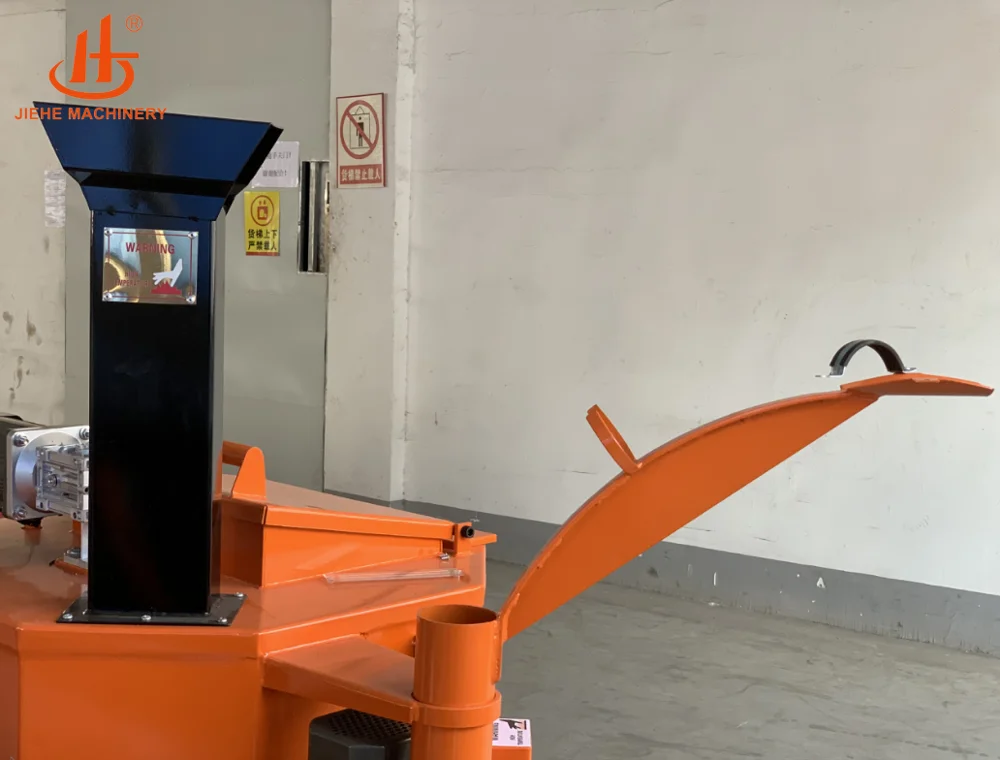

                       Side                                             Front                                            Side



Product detail

Parameter

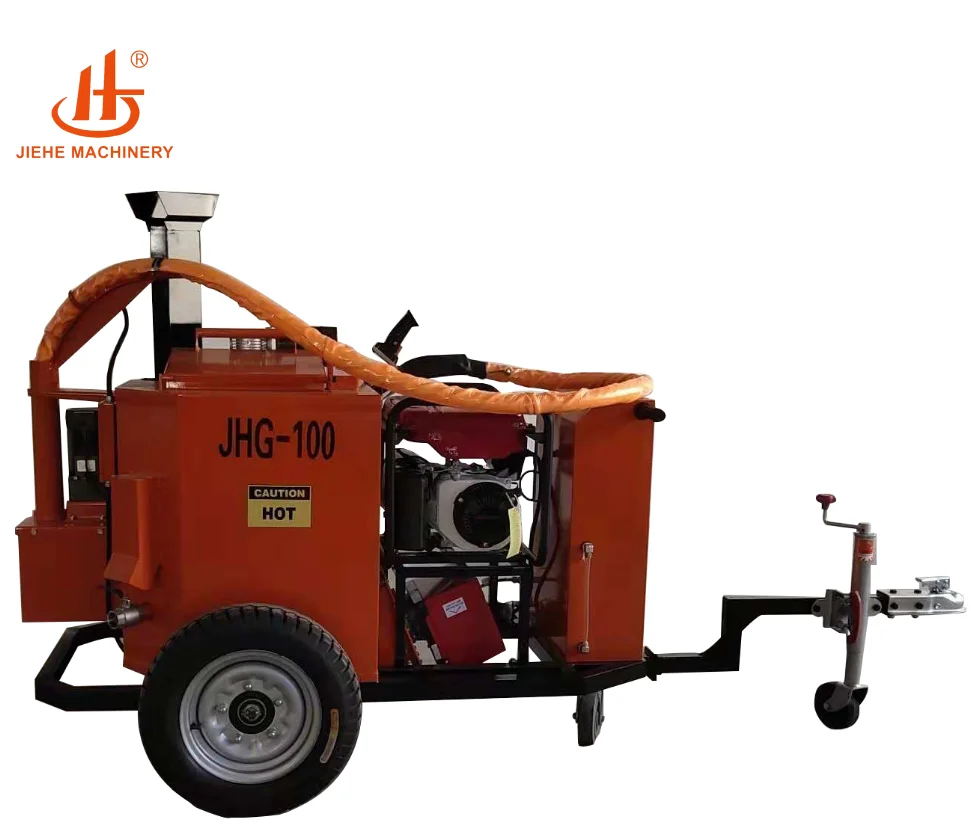

MODEL	JHG-100
Generator	Honda 2.2KW,230V 4000RPM(50HZ)
Generator Fuel	Gasoline
The Length of The Tube	5/6/7M(16*20*23ft)
Melter Volune	100L(26.4 US gal)
Thermal Oil	15L(4 us gal)
Mixing	Automatic
Pump	Gear Pump fpr pumping out and back
Burner(Heater)	Italian Riellio
Burner(Heater) Fuel	Diesel
Average Material Heating time	40 Minutes
Recommended Pouring Temperature	185℃ (365℉)
Maximum Safe Heating Temperature	200℃ (392℉)
Heat Preservation Box Temperature	80℃ (176℉)





Features and Benefits



1.To clean energy fuels, easy to use

2.Equipped with generators, providing enough power

3.Conduction oil circulation, the manual mixing, so that uniform heating fast, insulation lasting

4.Discharging pipeline heating, no need of cleaning

5.Control operation, adjustable flow

6.For ordinary asphalt and glue can be used

7.Rear universal rotation, can seam irregular cracks

8.Outlet adjustable, ensure the filling effect

9.It is a economical and environmental-friendly product.

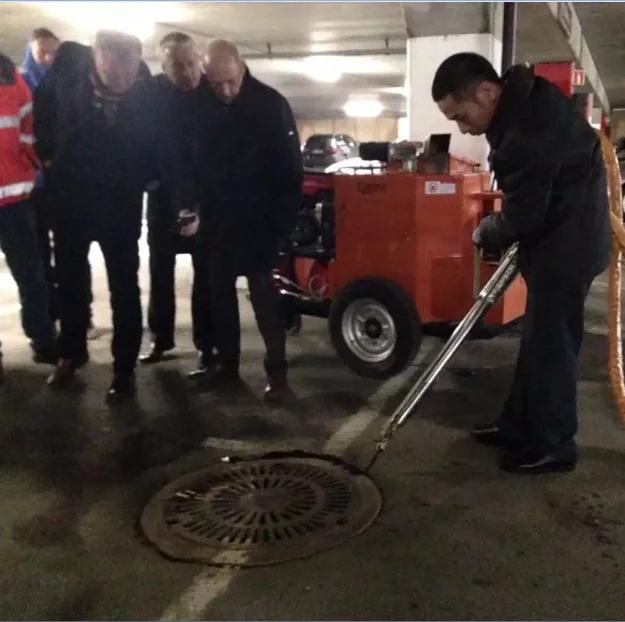

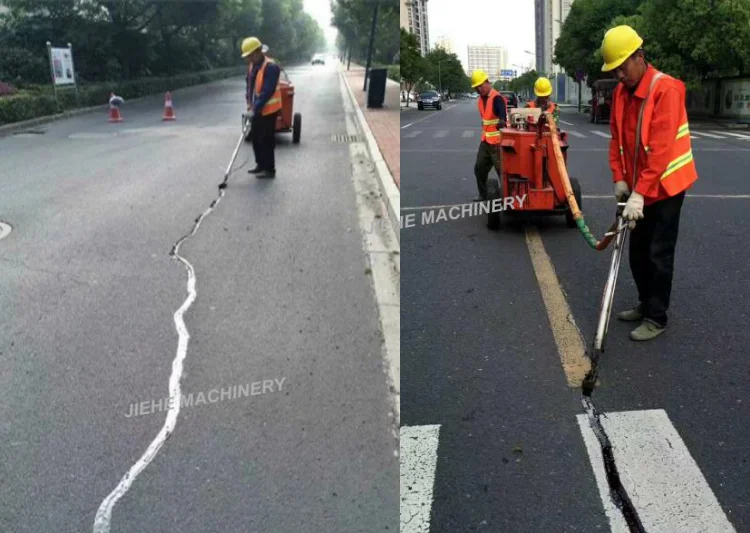

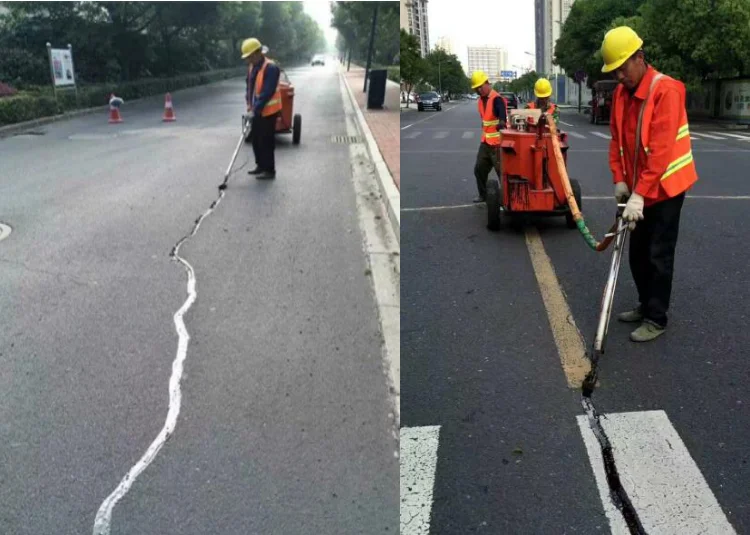

On Site





Why choose US?                                   Send Inquiry<<<

1.We are factory,direct factory price.

2.Picture and videos can be provide to you to show how to use the machine.

3.7*24 hours Serve:we treat our clients as friends.

4.High quality:we have strict quality control system and enjoy a good reputation in the world.

5. With more than 19 years manufacturing experiences.

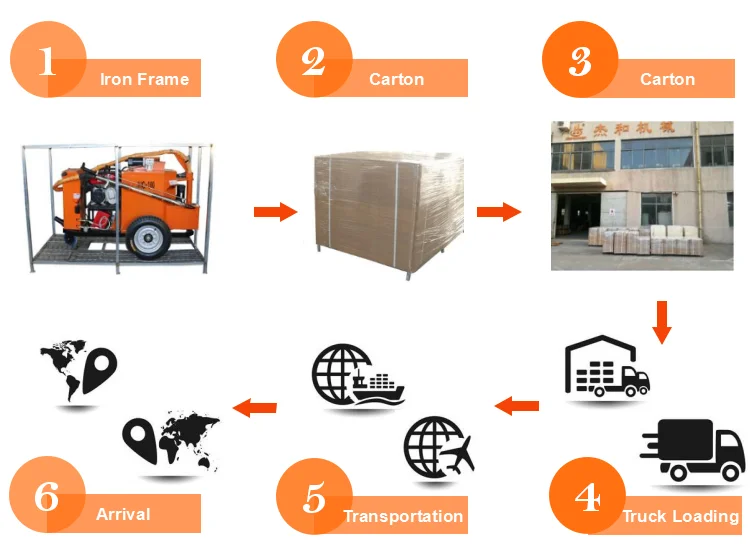

What's your Packaging & Shipping?
