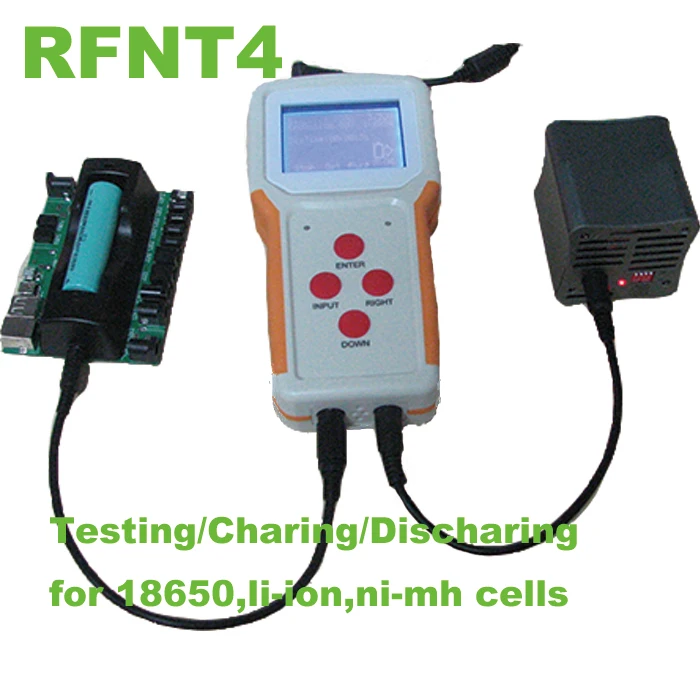

Poloso charge discharge test capacity voltage resistance 18650 battery tester

Product Overview

Description

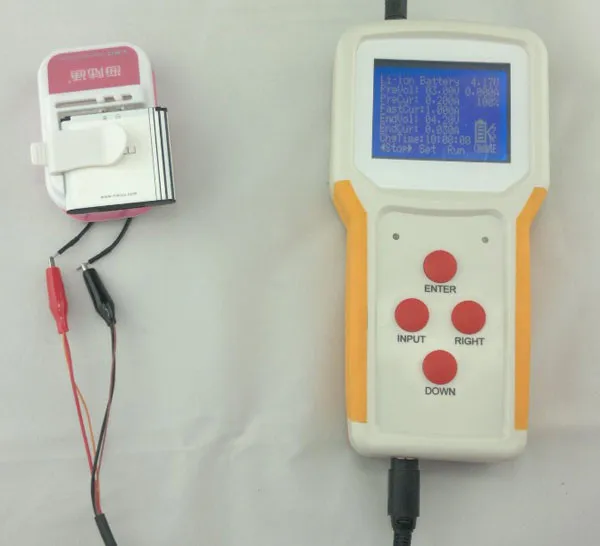

RFNT4 is a multi-function testing, repairing tools , it compatible multi-kind re-changeable batteries , like electric tools batteries, laptop batteries, mobile power bank batteries, DV batteries ,Camera batteries ,AAA batteries ,and so on. It can test the voltage(V), current(A), capacity(mAh), resistance(Ω) ,power output(W) information. It can charge, dis-charge and reacted the batteries and corrected the battery capacity



Features:

Support polymer li-ion battery, NI-MH battery, Ni Cd battery, power bank, adapter

Supply for charging, discharging, battery testing, power/adapter testing, internal resistance testing, and voltage testing, capacity testing.

LCD screen display function information.

Enter, Down, Right, Adjust function keys.

Charging consists of activate, pre-charge, constant current charge, constant voltage charge, end of charge.

Discharging can adjust to constant current discharge, system support 1000mA Max, can set by DIS.CHG. External load, Max discharge current add to 4A

Internal resistance testing support 20000mΩ Max. Voltage testing support DC 50V Max.

Capacity testing support real time charge capacity and discharge capacity.



Specification:

Model	RFNT4
Size	201 x 99 x 35 mm
Weight	383g
Adapter	Input 100~240V Output 24V/3A
Display mode	Segment LCD with white backlight + LED in red and green
Discharge mode	Constant current discharge,system support 1000mA Max, can set by DIS.CHG. External load, Max discharge current add to 4A
Charge mode	Constant current and constant voltages are the main mode. Active charge and pre-charge are available according to different battery voltage.
Active charge	Tester may not recognize 0V-battery. Users should press the charge key to start up the active charge function. Being activated and going to normal charging status, when the battery establishes communication with the tester.
Pre-charge	Battery goes into pre-charge status when voltage of battery under setting pre-charge voltage. Constant current charge Battery goes into fast charge status when voltage of battery over setting pre-charge voltage. Fast charge time relates to the battery design capacity and fast charge current.
Constant voltage charge	Battery goes into constant voltage charge, when battery voltage up to battery saturation voltage, now current will be decreasing by battery saturation voltage
End of charge	When the current reduced to terminate current, Or e capacity reaches 100% Charge current 3000mA Max, set by CHARGE function Battery testing Testing battery charge and discharge function is good or bad,test time set by user, according to user demand, can set by BT.TEST item. Test passed will display "OK" otherwise display "NG"
Working temperature	0-40°C,20%-90% RH(Non Condensing)
Storage temperature	-20°C-65°C,10%-95% RH(Non Condensing)
Acessories	1 x loader,1 x adapter ,1 x battery holder 1 x connecting wire of battery holder,1 x resistance testing wire, 1 x load connecting wire

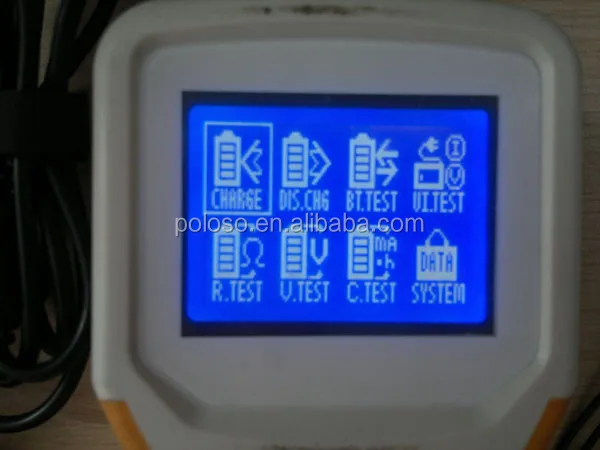

Functions

CHARGE

For charging the battery, charging consists of activate, recharge, constant current charge, constant voltage charge, end of charge.

DIS.CHG

For discharging the battery, constant current discharge,system support 1000mA Max, can set by DIS.CHG. External load, Max discharge current add to 4A

BT.TEST

For testing the battery, test battery charge and discharge function is good or bad, testing time is set by user.

VI.TEST

For testing power/adapter, test power/adapter is good or bad and meets user's requirements.

R.TEST

For testing internal resistance, correspond to Multimeter resistance file ,Max range 20000mΩ

V.TEST

For testing voltage, correspond to Multimeter voltage file, ax range 50V

C.TEST

For testing capacity, test real time charge capacity and discharge capacity
