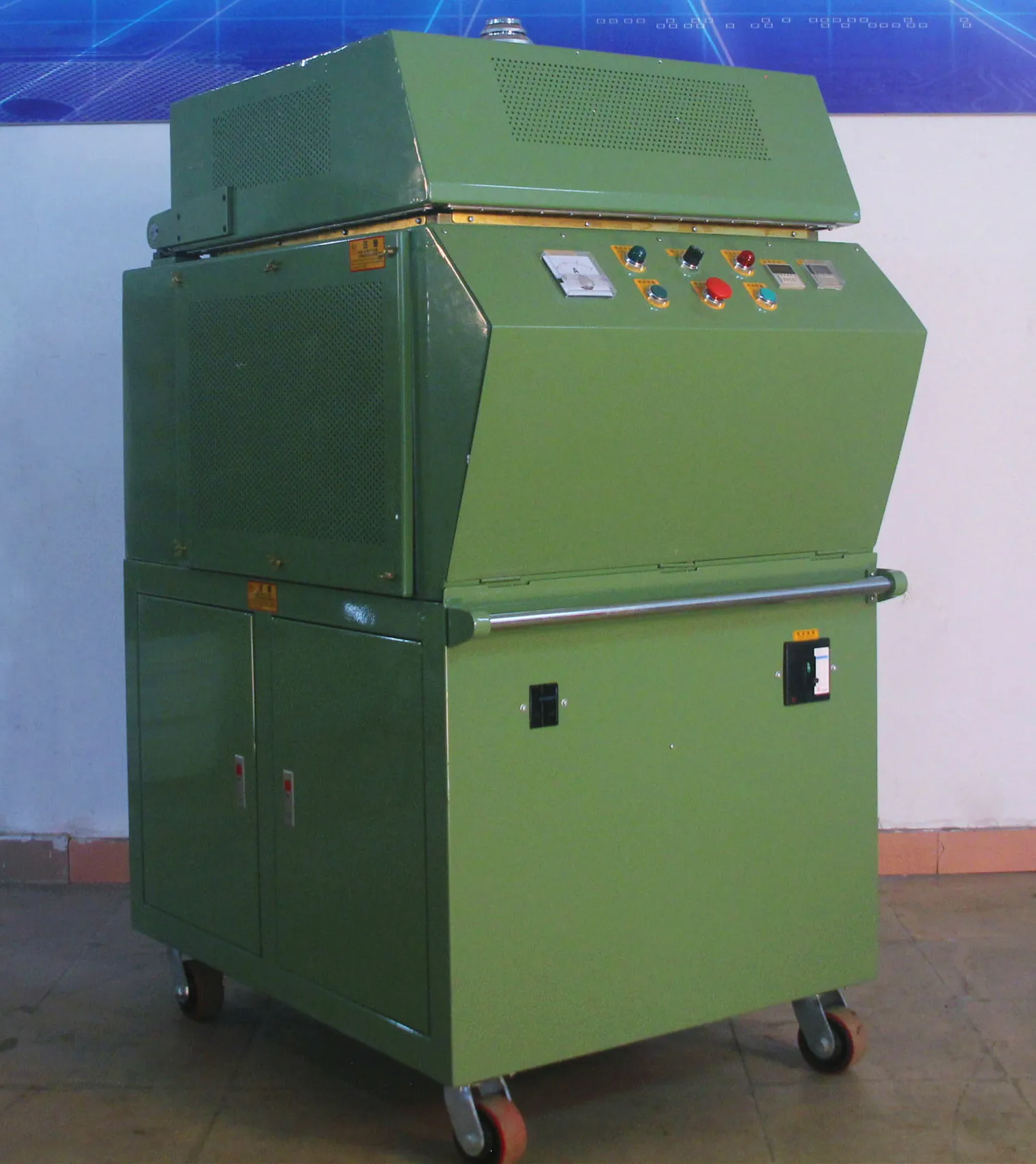

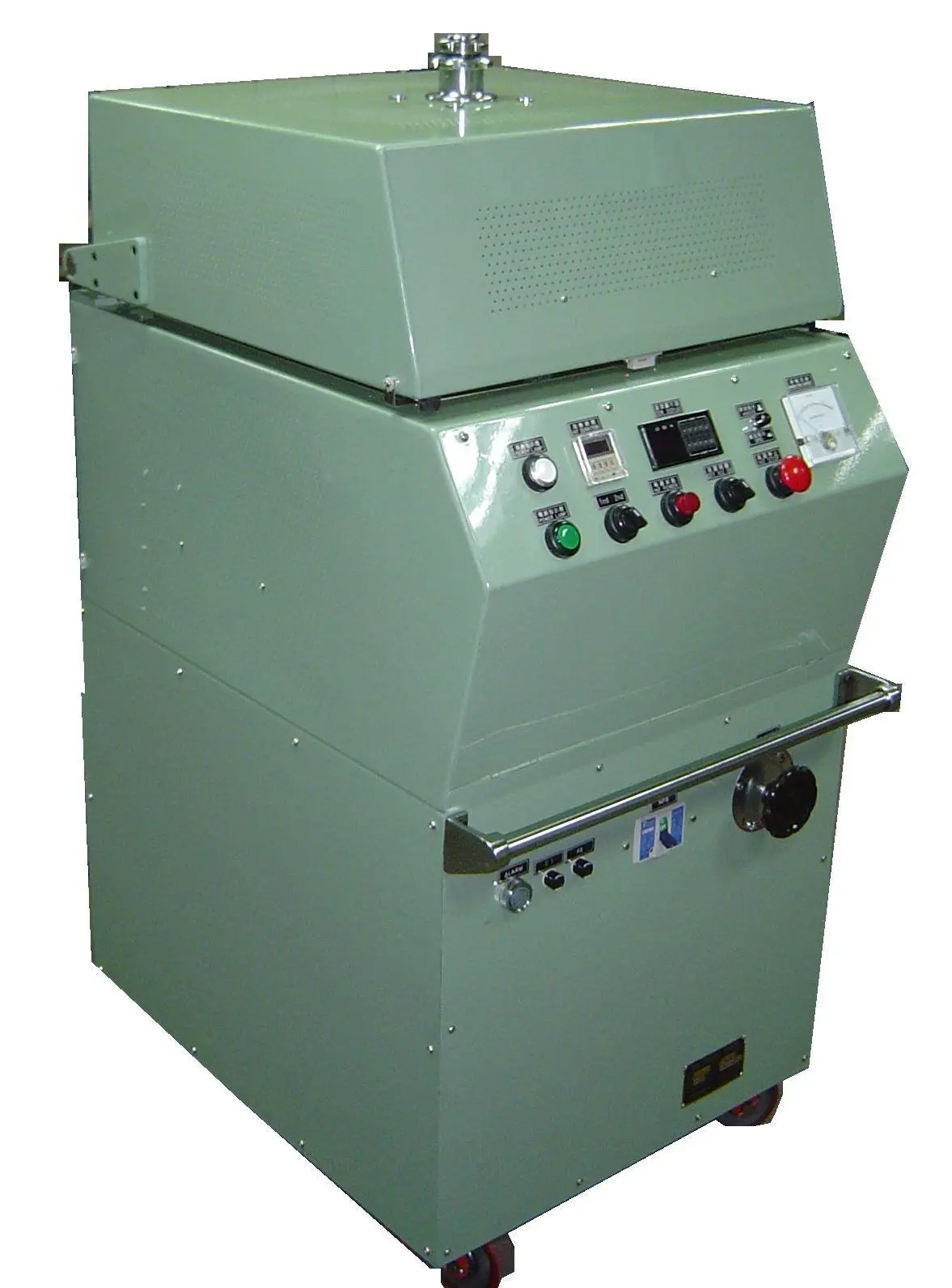

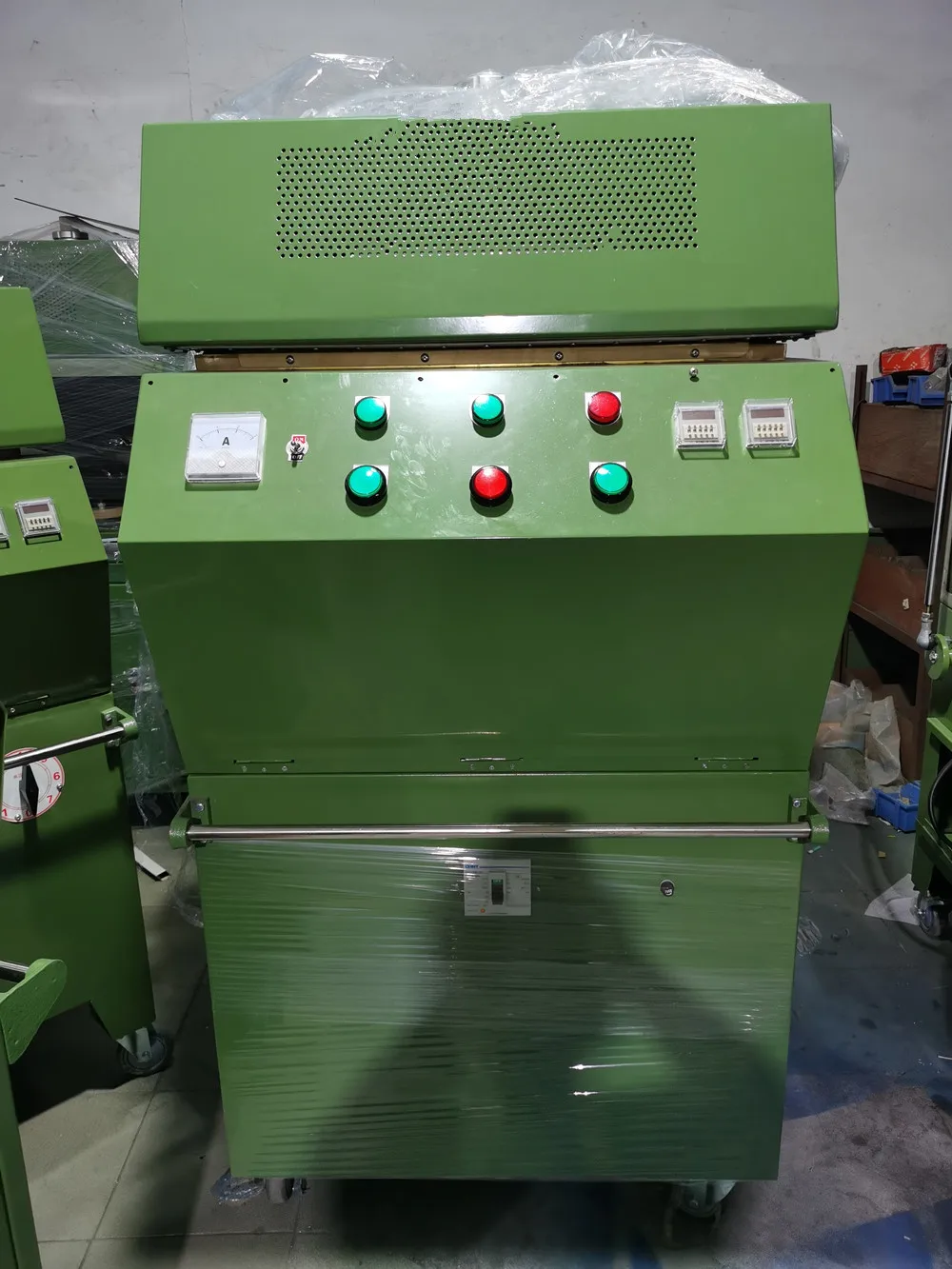

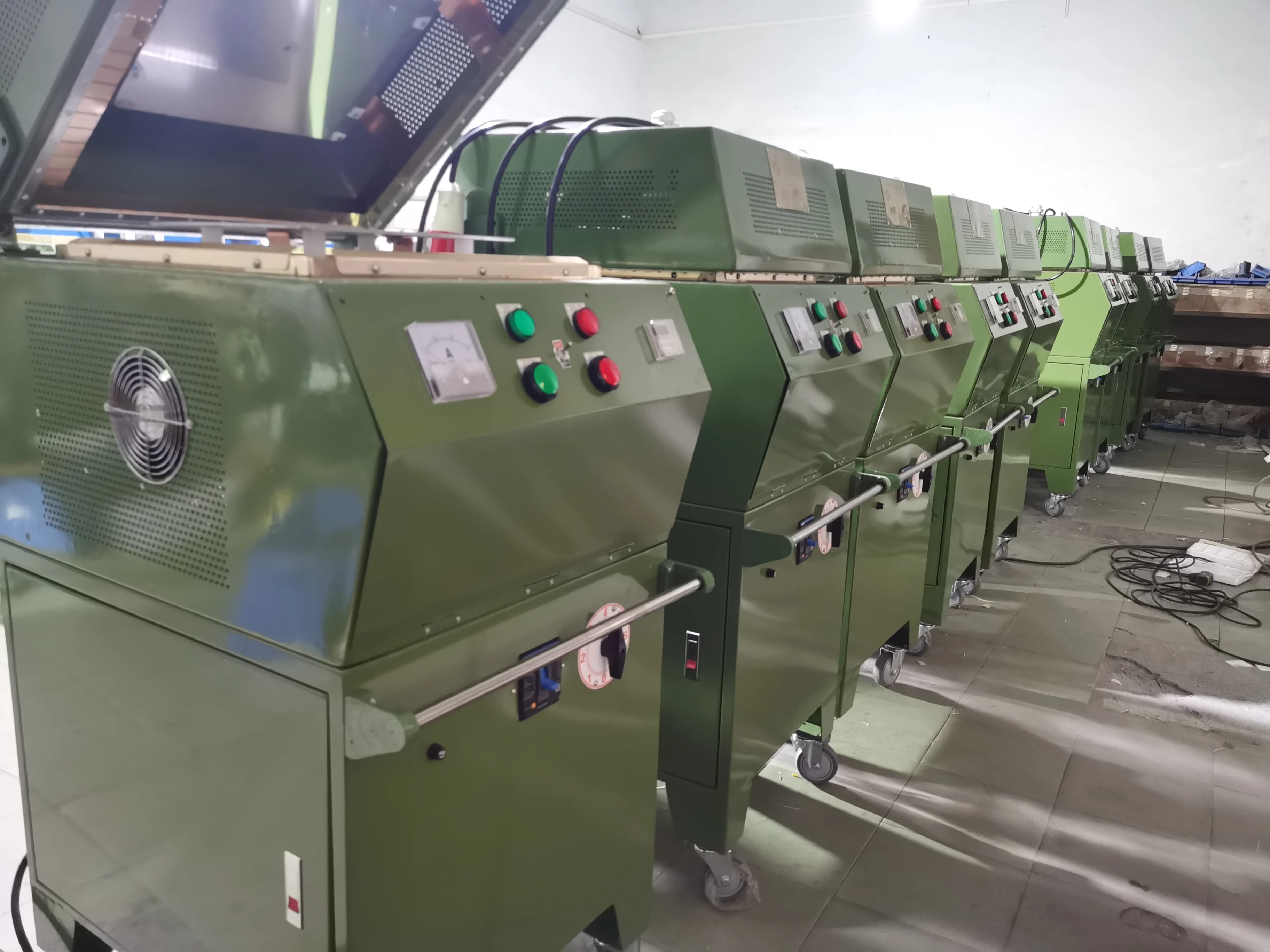

high frequency melamine ware preheating machine welding equipment for sale
- Category: >>>
- Supplier: Dongguan Jingyi High Frequency Machinery Co. Ltd.
Share on (60520954944):
Product Overview
Description
Machine Feature
Principle:
Heated material was Uniformly and quickly heated under the high frequency electric field due to the dielectric loss fast.
Application:

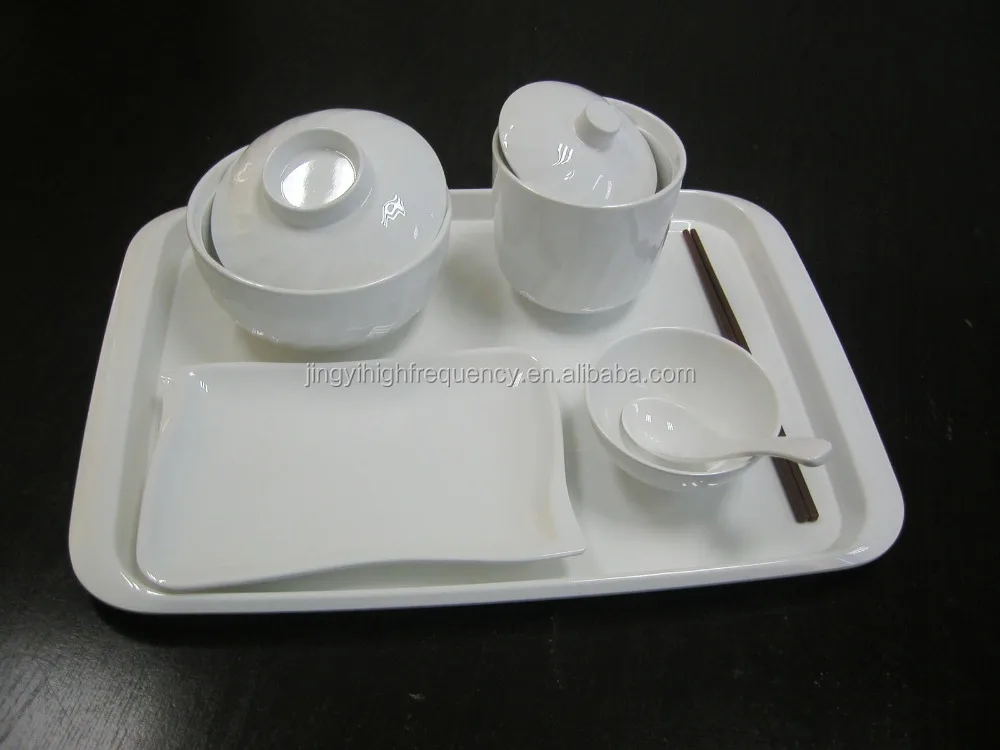

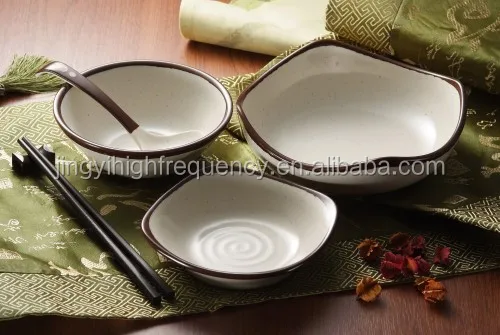

High frequency preheating machine widely used in the molding industry, such as semiconductor discrete electronic components, integrated circuits, microelectronics packaging, and other motor commutator, melamine imitation porcelain tableware, plastic electric appliance, etc.
Material:
Phenolic resin, urea, plastic, melamine, epoxy resin and thermosetting molding compound.
Function:
After high frequency preheating machine heating material, can increase the strong liquidity, shorten the casting time, eliminate stress in materials, eliminating water lines and improve the finished product is bright and clean degree, save material dosage, extend the die life.
Heated material was Uniformly and quickly heated under the high frequency electric field due to the dielectric loss fast.
Application:
High frequency preheating machine widely used in the molding industry, such as semiconductor discrete electronic components, integrated circuits, microelectronics packaging, and other motor commutator, melamine imitation porcelain tableware, plastic electric appliance, etc.
Material:
Phenolic resin, urea, plastic, melamine, epoxy resin and thermosetting molding compound.
Function:
After high frequency preheating machine heating material, can increase the strong liquidity, shorten the casting time, eliminate stress in materials, eliminating water lines and improve the finished product is bright and clean degree, save material dosage, extend the die life.
Specification
Type | Plate electrode type | Roller electrode type | |||||||||
Model | JY3000YR-P | JY5000YR-P | JY10000YR-P | JY3000YR-R | JY5000YR-R | JY7000YR-R | |||||
Output Power | 3KW | 5KW | 10KW | 3KW | 5KW | 7KW | |||||
Power Supply | 3P 220V/380V/415V | ||||||||||
Input Power | 6.7KVA | 11KVA | 20KVA | 6.7KVA | 11KVA | 13KVA | |||||

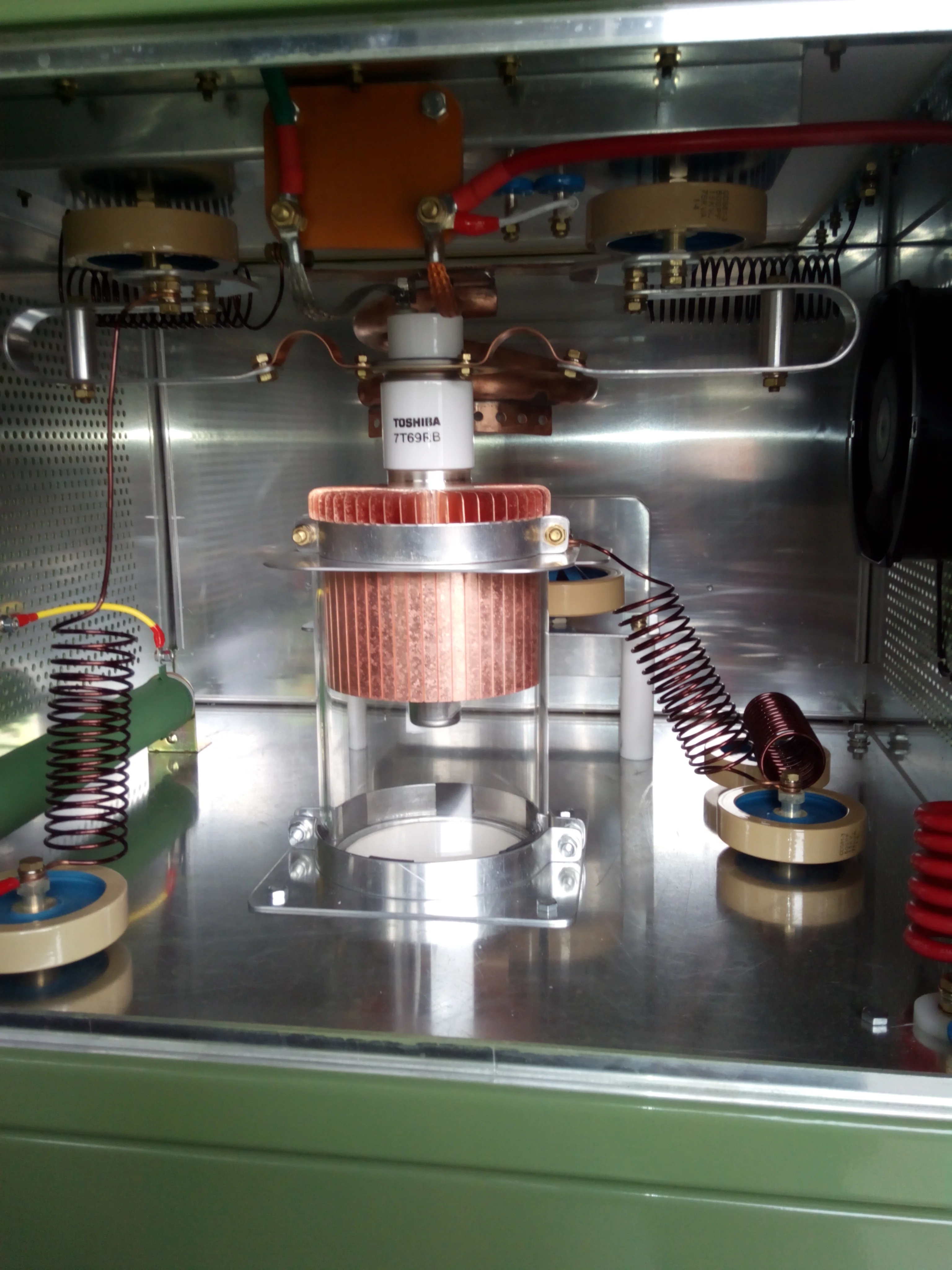

Oscillation Tube | 7T85RB/ 7T72R | 7T69RB/ 7T70R | 8T20RB | 7T85RB/ 7T72R | 7T69RB/ 7T70R | 7T69RB | |||||
Preheating power | Reach to 110℃ within 90 Seconds | ||||||||||
Oscillation Frequency | 27.12MHz | ||||||||||
Electrode size | 240*280mm | 310*340mm | 310*340mm | 240*280mm | 310*340mm | 310*340mm | |||||
Dimension(mm) | 500*775* 1280 | 600*850* 1500 | 800*1280* 1520 | 800*775* 1280 | 500*850* 1500 | 600*850* 1540 | |||||
Net Weight | 180kg | 260kg | 320kg | 180kg | 260kg | 320kg | |||||
Application

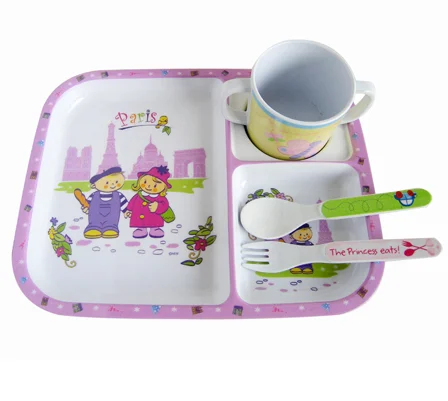

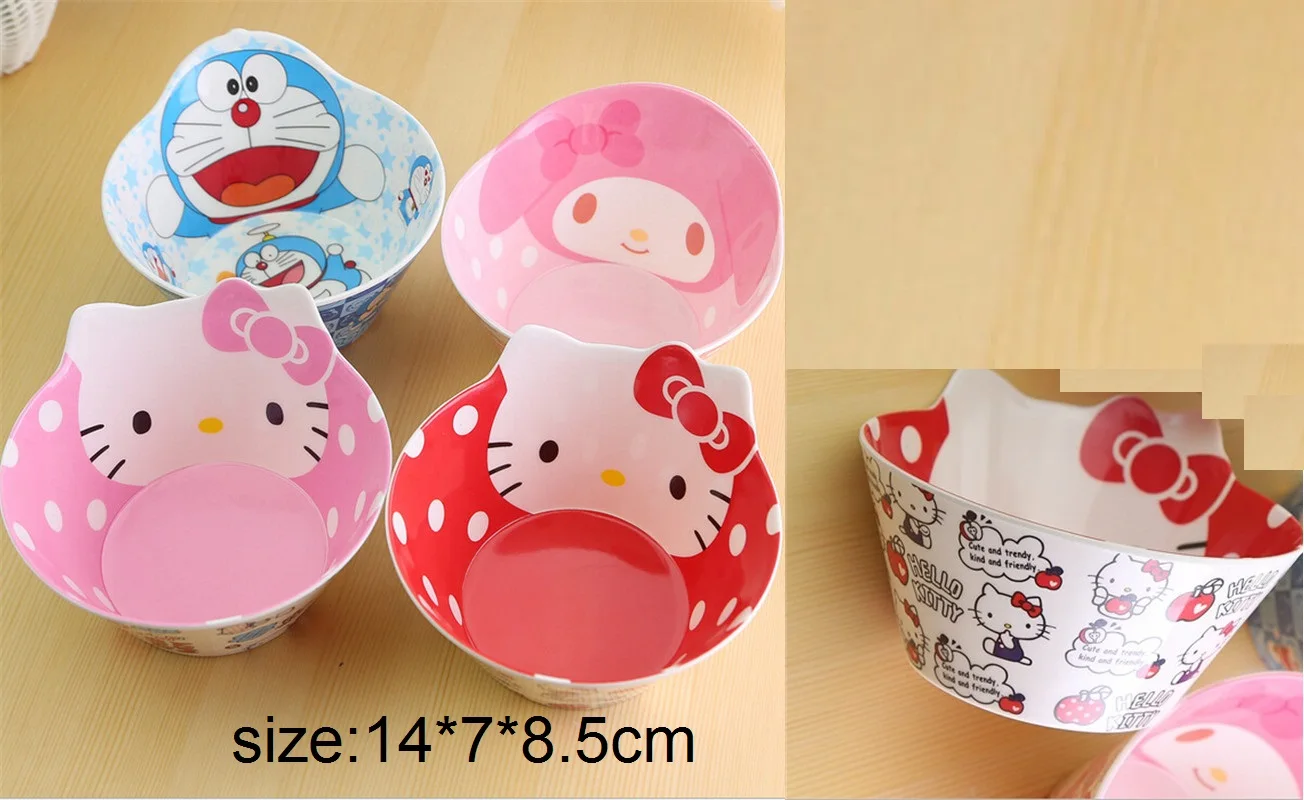

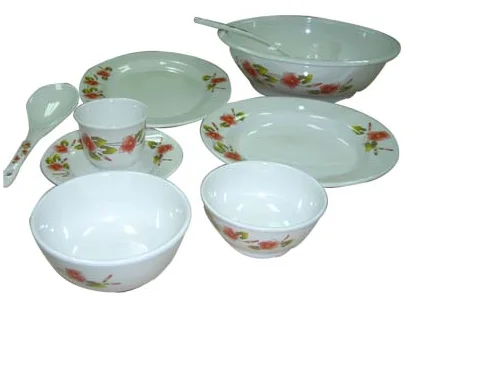

Application:
High frequency preheating machine widely used in the molding industry,
such as semiconductor discrete electronic components, integrated circuits, microelectronics packaging,
and other motor commutator, melamine imitation porcelain tableware, plastic electric appliance, etc.
