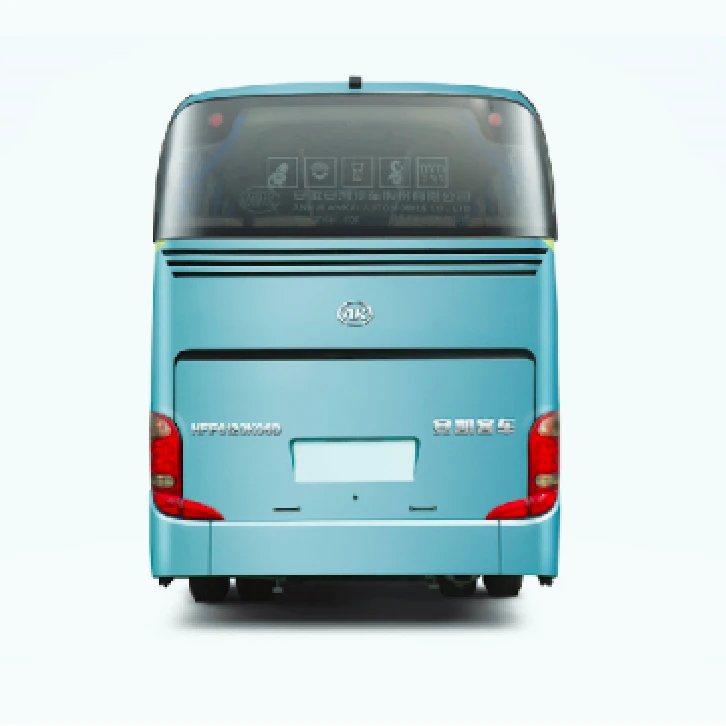

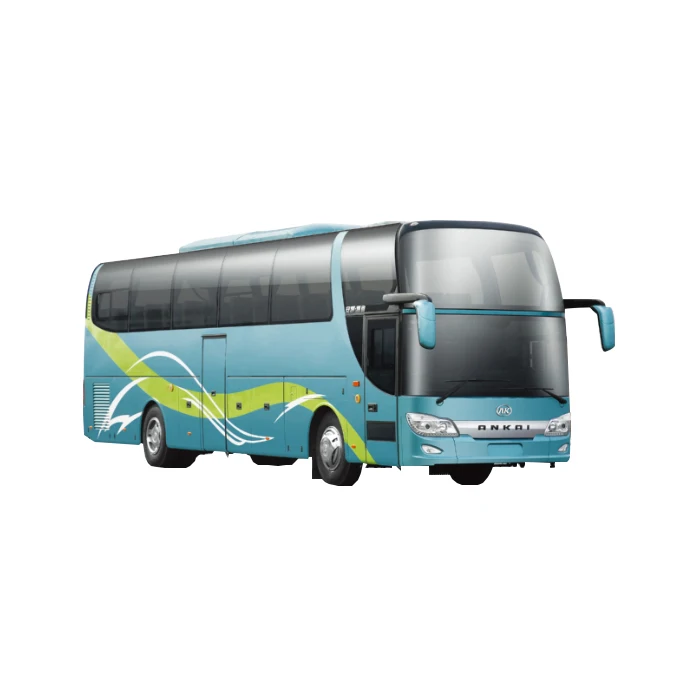

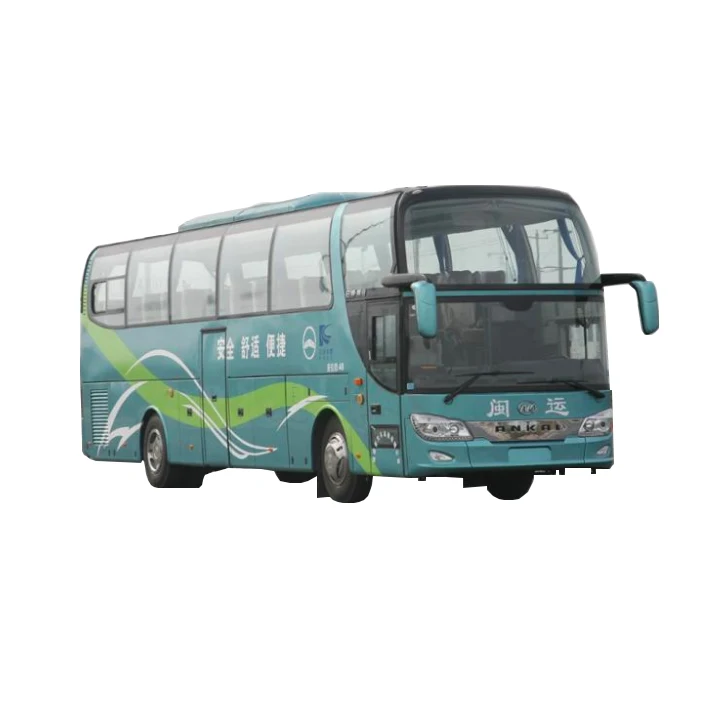

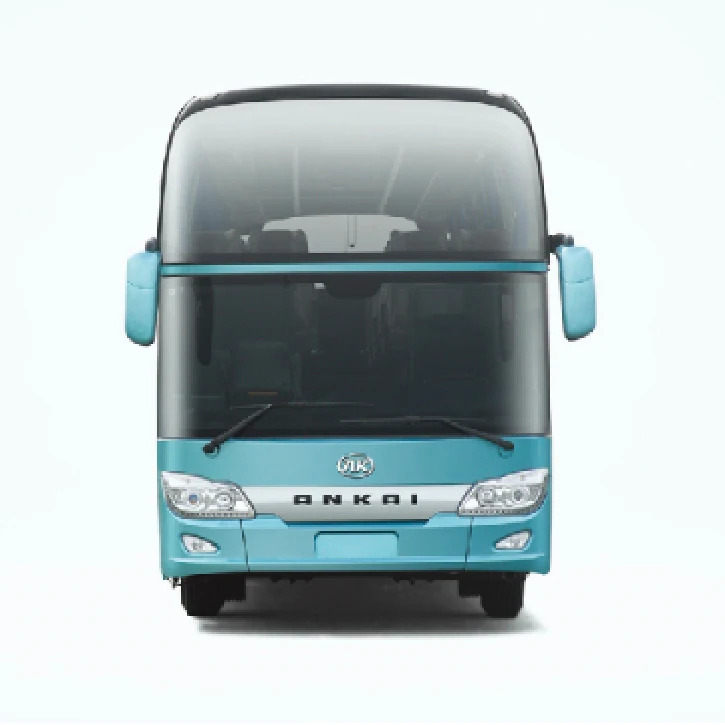

12m 50 Sseater Bus Color Design Luxury Passenger Bus with Cummins Engine
- Category: >>>
- Supplier: JC Automobile Co. Limited (Shanghai)
Share on (60521072425):
Product Overview
Description
12m 50 Sseater Bus Color Design Luxury Passenger Bus with Cummins Engine
Product Description
| performance | ||
| 1.1 | dimension(mm) | 12000×2550×3770 |
| 1.2 | approach/departure Angle(0) | 8.9/9 |
| 1.3 | wheelbase(mm) | 6080 |
| 1.4 | fuel tank capacity(L) | 600 |
| 1.5 | seat capacity | 50+1 |
| 1.6 | front/rear overhang(mm) | 2620/3300 |
| 1.7 | kerb mass(kg) | 12500 |
| 1.8 | Max.total mass(kg) | 18000 |
| engine | ||
| 2.1 | engine | Cummins ISLe375 30 |
| 2.2 | engine type | rear diesel, 6 Cylinders in-line with Turbocharge and Inter-cooler |
| 2.3 | emission | EURO II |
| 2.4 | displacement(L) | 8.9 |
| 2.5 | rated power(kw/rpm) | 276/2100 |
| 2.6 | Max.torque(N.m/rpm) | 1550/1400 |
| Chassis | ||
| 3.1 | gearbox | Chinese S6-160 |
| 3.2 | retarder | Telma |
| 3.3 | clutch | Chinese |
| 3.4 | suspension system | air suspension |
| 3.5 | front axle | ANKAI, disc brake |
| 3.6 | rear axle | ANKAI, drum brake |
| 3.7 | brake system | dual-circuit air brake with auto-adjuster arm |
| 3.8 | ABS/ASR | WABCO |
| 3.9 | steering system | Chinese |
| 3.10 | tyre | 295/80R22.5(GITI),Stainless Steel Tyre Cover |
| body | ||
| 4.0 | body | monocoque |
| 4.1 | AC | roof-mounted (30000kcal/h) |
| 4.2 | heater | with |
| 4.3 | radiator | 4 pcs |
| 4.4 | defroster | standard |

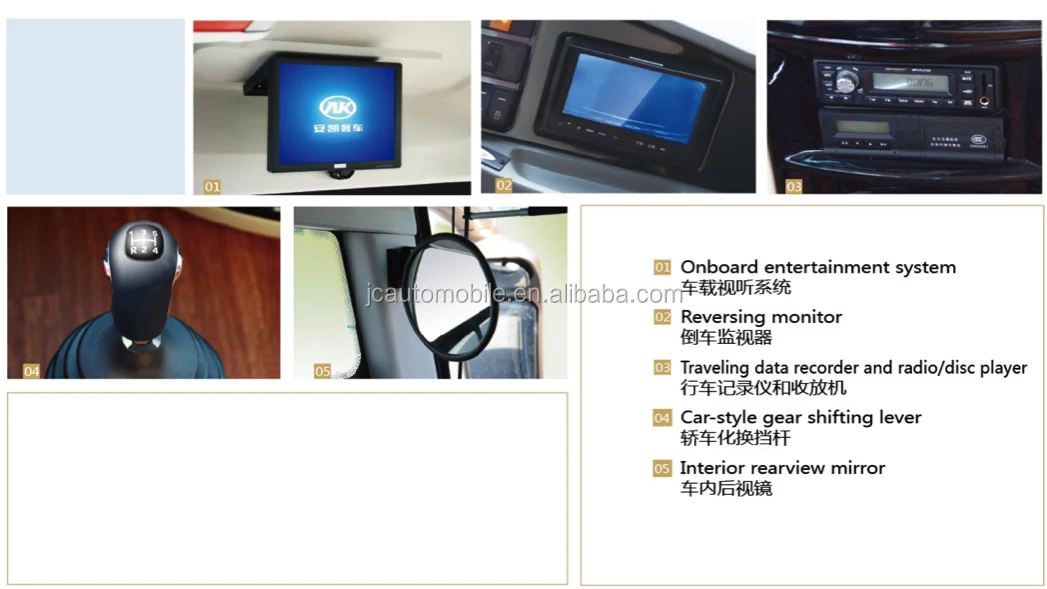

| 4.5 | radio& TV | hard disk player&2 pcs 19' LCD |
| 4.6 | floor leather | Chinese |

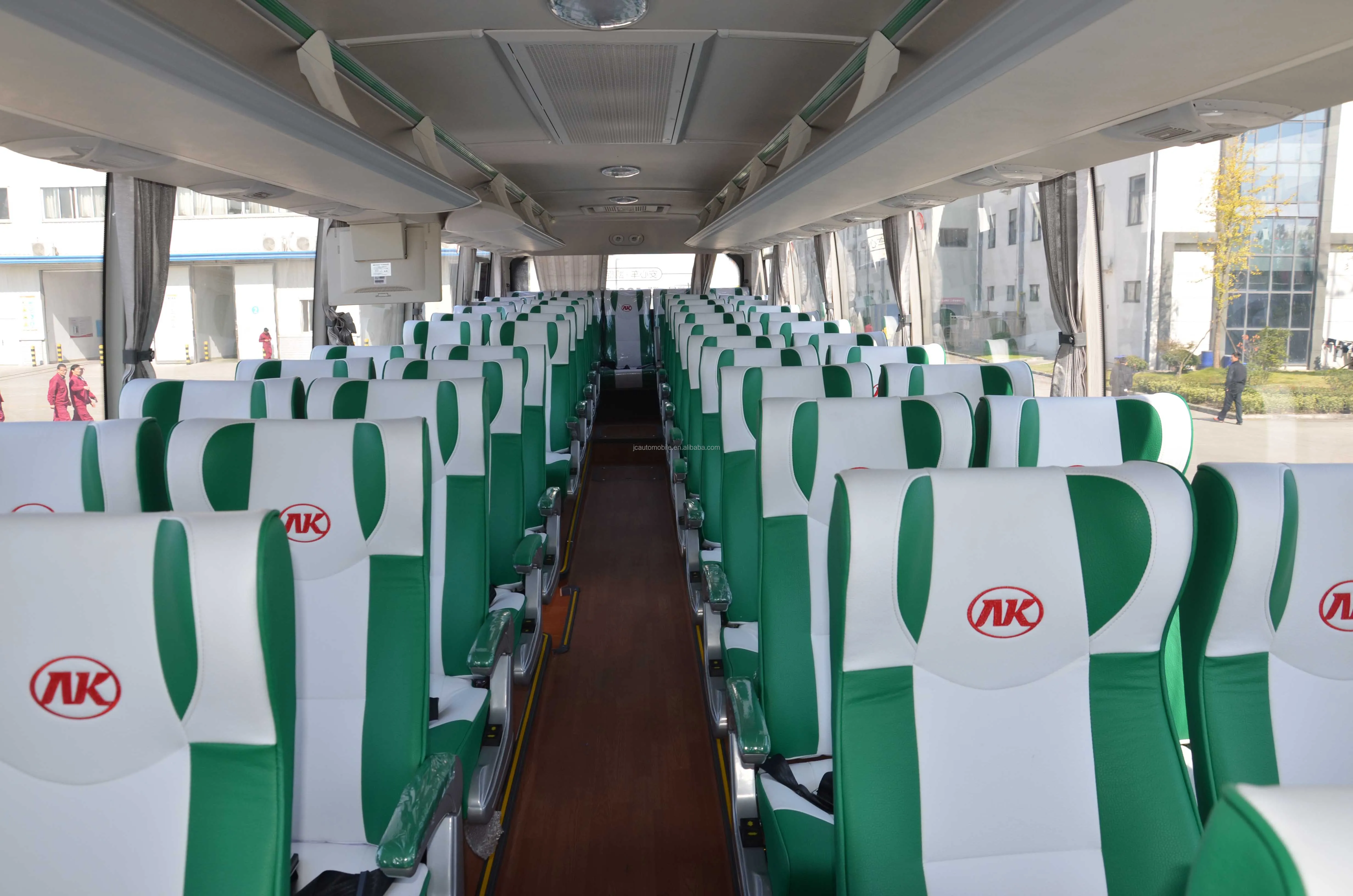

| 4.7 | seat | 2+1 layout, big type with safety-belt & footstep |
| 4.8 | reversing mirror | aotomatic |

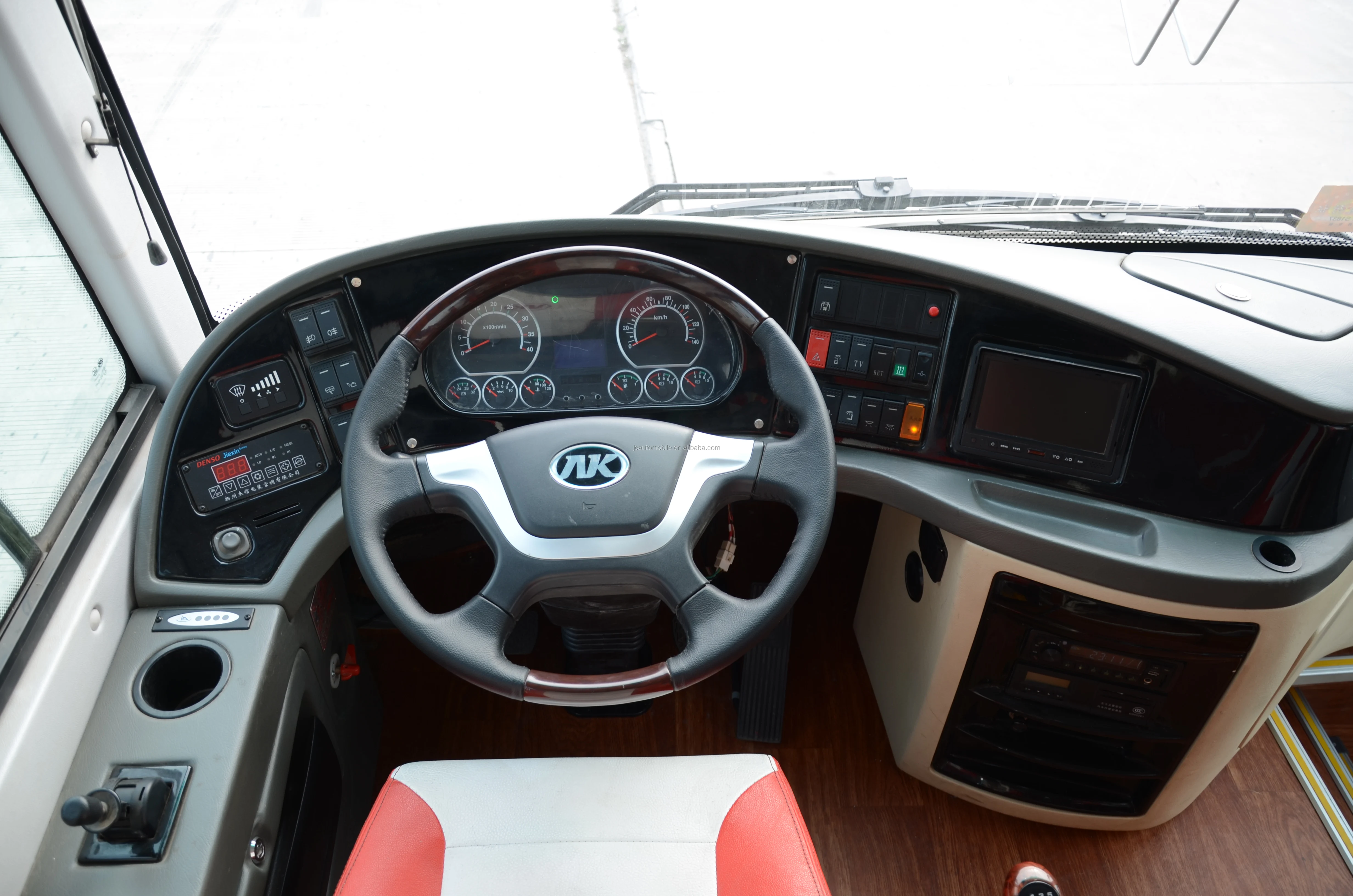

| 4.9 | instrument | Chinese, tachograph with GPS and print |
| 4.10 | lacquer | Chinese |
| 4.11 | safety roof window | two exits with fans |
| 4.12 | passenger door | front & middle passenger doors |
| 4.13 | others | 4kg fire extinguisher, Self-extinguisher for engine compartment , colorful-reversing monitor, digital clock,spare tire, folding side curtain, etc |
Product Description
We have more Coach Bus models available for you and please kindly click on below photos:

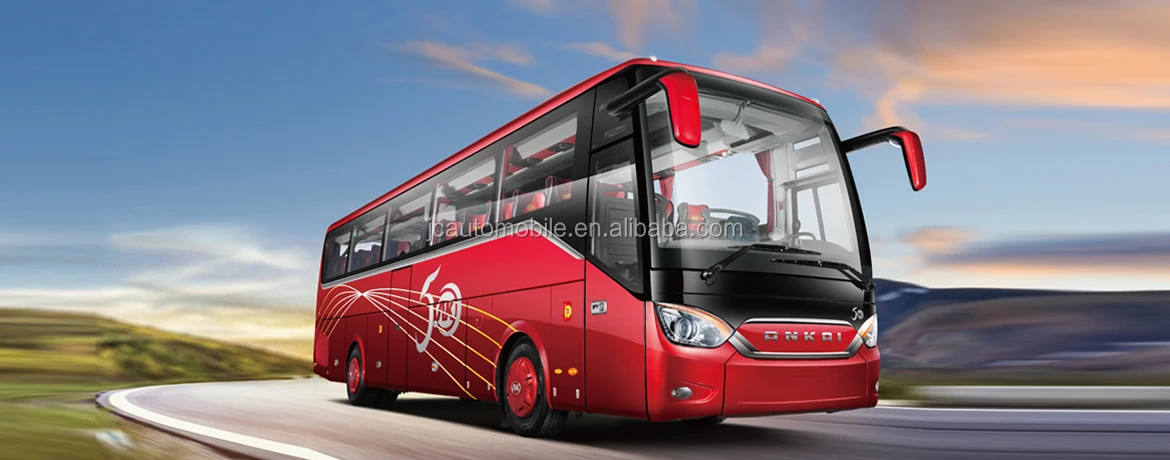

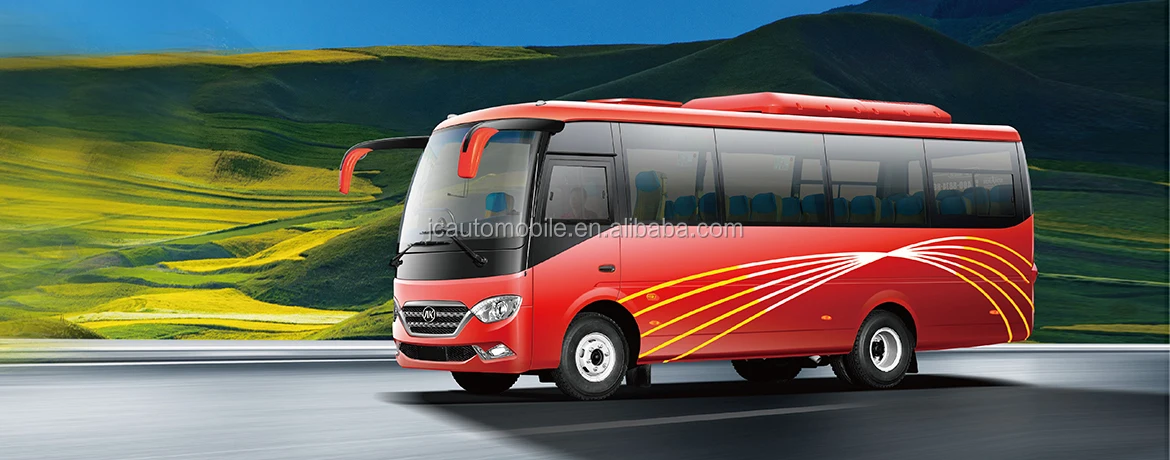

Bus Display
