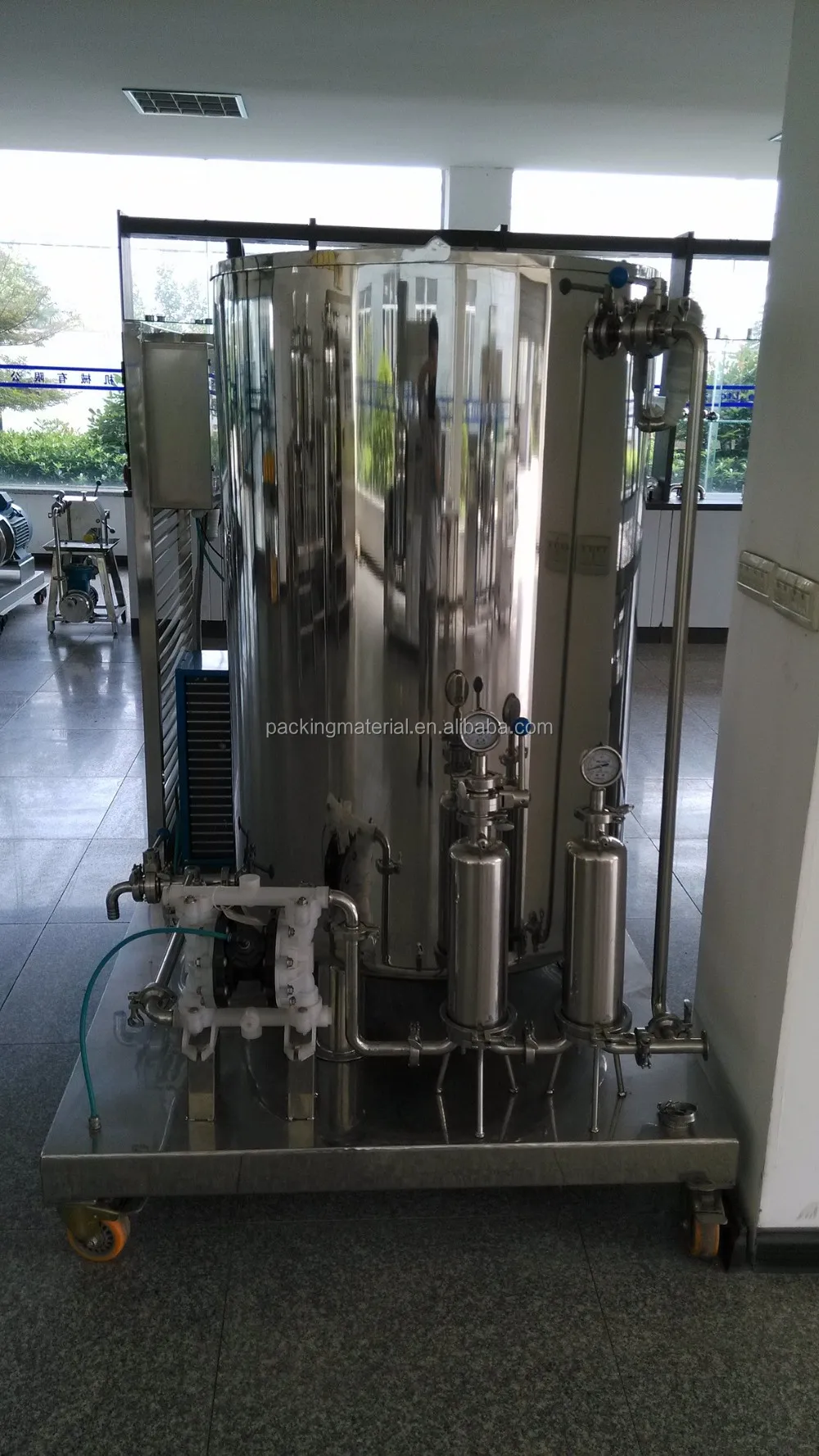

BXP 200 Perfume Mixing Machine, Perfume Mixer, Machine Wood Packing High Standard 200BPH Stainless Steel 200L

Item

Descriptions

Remarks

1. Tank

Working capacity 200L

2. Inner tank

SS304, thickness 3mm

Chilling evaporating coil inside

3. Air tube agitator

SS304, with holes at the end of the air tube

Air goes through this tube inside tank and comes through holes to generate bubbles for mixing.

4. Jacket

SS304, thickness 2mm

Polyurethane foam as insulation

5. Cover

SS304, thickness 2mm

Portable

Control panel

SS304

1. Main breaker

Chint, China brand

2. Sub-breaker

Schneider, Germany brand

3. Contactor

Schneider, Germany brand

4. Thermal relay

Schneider, Germany brand

5. Auxiliary relay

Omron, Japan brand

6. Push button

Schneider, Germany brand

7. Indicator light

Schneider, Germany brand

8. Transformer

Chint, China brand

9. Emergency stop

Fato, China brand

Air diaphragm pump

1/2”, PP;

Efali, China brand

Perform as circulation and transfer pump

Filtration

SS304, 10”, 2 sets

1st phase:1µm filter;

2nd phase:0.2µm filter

Wind-cooled chiller

Power 3HP;

Dan Foss, Denmark brand

Condenser, fan, solenoid valve, ALCO filter, expansion valve etc.

Fittings

SS304

Clamp connection

Frame

SS304

Together with control system

Castor wheels

4 Pieces

2 fixed, 2 portable

Dimensions (L×W×H)

1700×1050×1550mm

Total power

3HP

380V, 50Hz, PH3
