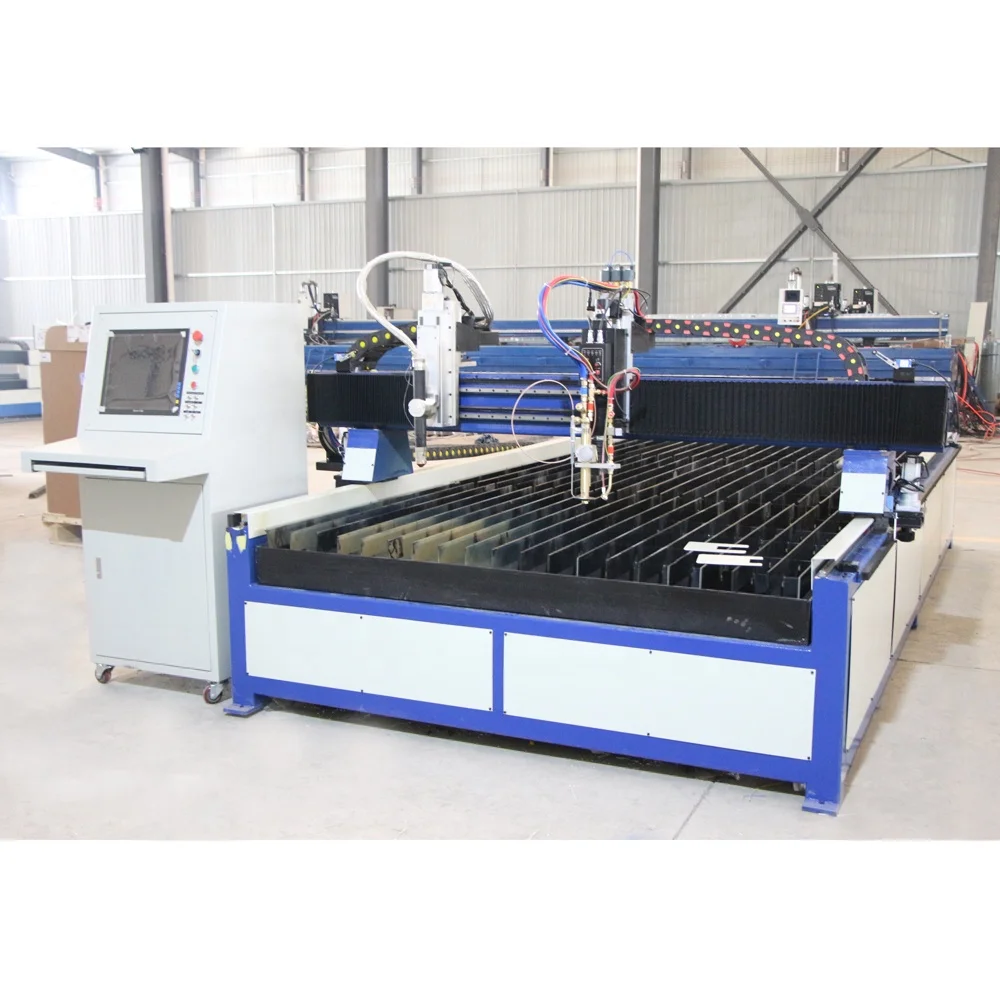

Table Type CNC Plasma and Flame / Gas Cutting Machine for Stainless Steel Sheet/Plate
Products Description

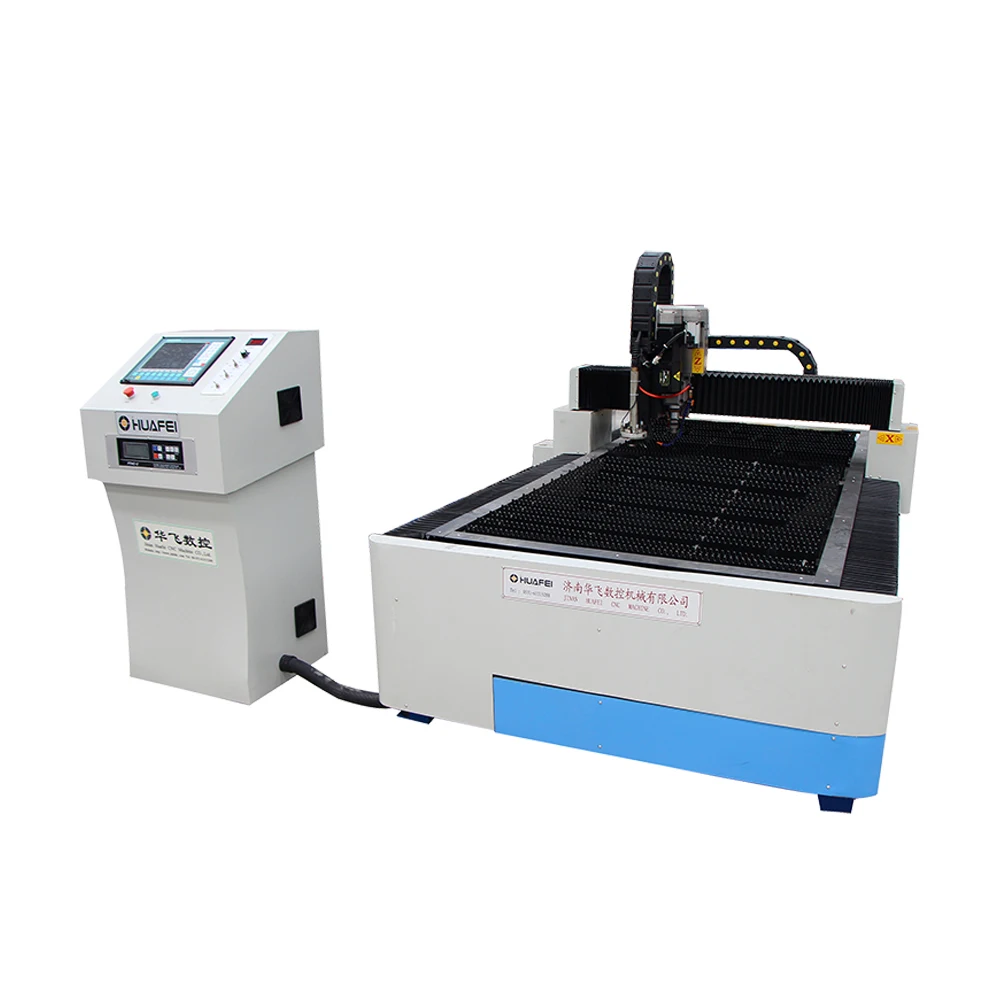

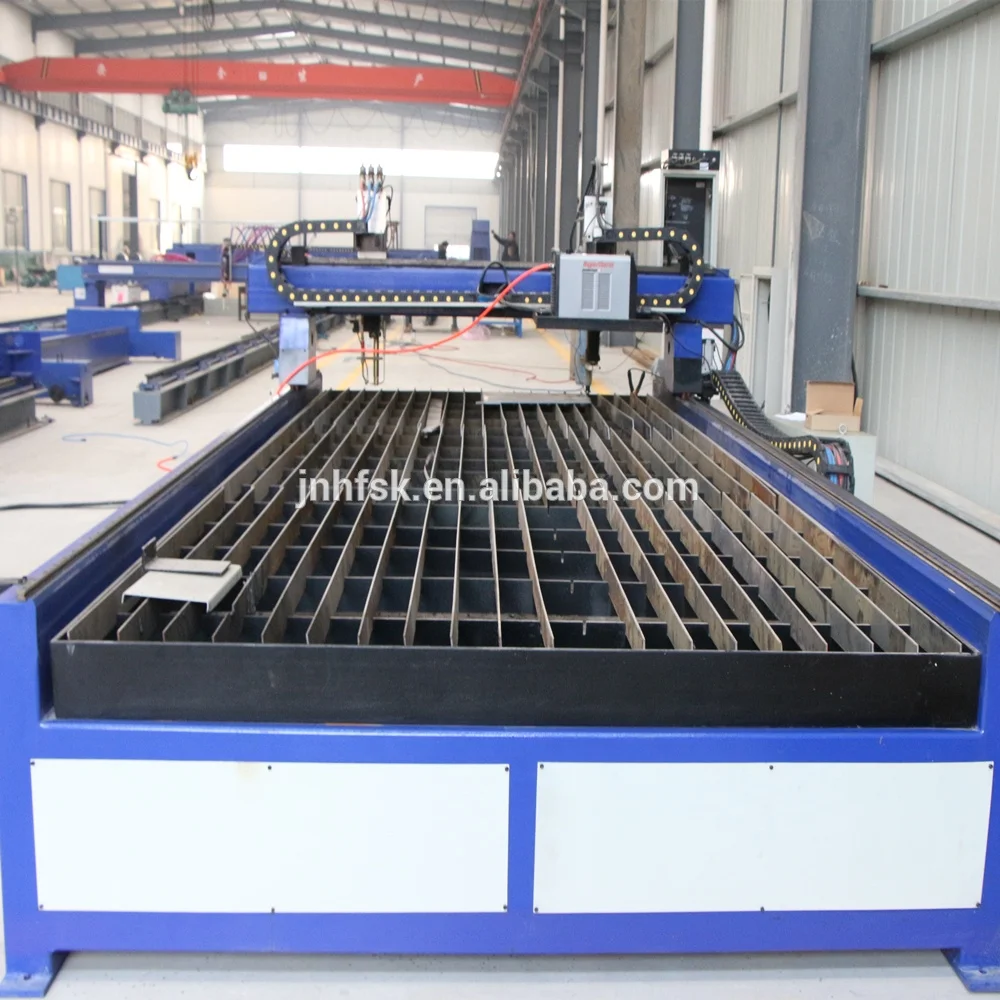

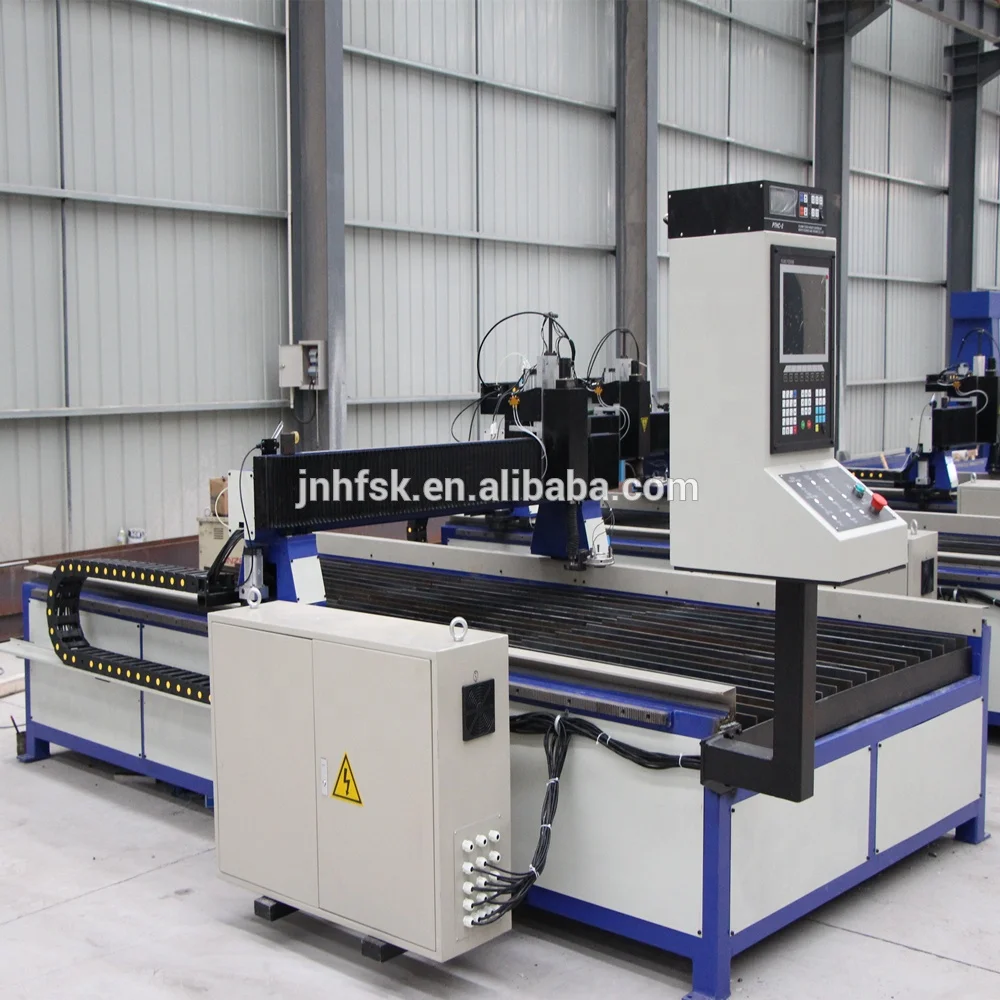

QGI desktop CNC cutting machine is a high-efficiency, high-precision and high-reliability cutting device integrating computer control, precision mechanical transmission and thermal cutting. The good man-machine interface makes the operation more convenient and simple, and can cut quickly and accurately. A variety of complex shapes of plates, especially suitable for medium and thin non-ferrous metal sheets, stainless steel and carbon steel sheet automatic cutting, it adopts integrated modular design, quick installation and easy to move.
Product Paramenters
Main components:
1. The bench frame and the square tube welded frame structure are integrally annealed after welding to completely eliminate the internal stress so that it does not deform during long-term use.
2. The mechanical transmission system adopts the precision rolling bearing and the precision meshing of the precision helical gear with the processing precision of the national standard 7 grade, which makes the equipment operation more precise, effective and stable.
3. Guide rail: The vertical and horizontal rails adopt linear slide rails to make the two rails travel accurately and smoothly.
4. All equipment parts and components are treated with blackening, electroplating and other surface treatments.
5. The whole machine is sprayed with sandblasting primer, the topcoat is made of orange paint, and the color is blue.
2. The mechanical transmission system adopts the precision rolling bearing and the precision meshing of the precision helical gear with the processing precision of the national standard 7 grade, which makes the equipment operation more precise, effective and stable.
3. Guide rail: The vertical and horizontal rails adopt linear slide rails to make the two rails travel accurately and smoothly.
4. All equipment parts and components are treated with blackening, electroplating and other surface treatments.
5. The whole machine is sprayed with sandblasting primer, the topcoat is made of orange paint, and the color is blue.
Model | 1530 | 1840 | |||||
Cutting effective width (mm) | 1500 | 1800 | |||||
Total width (mm) | 2000 | 2400 | |||||
Cutting effective length (mm) | 3000 | 4000 | |||||
Total length (mm) | 4000 | 5000 | |||||
numerical control system | US Hypertherm system or Shanghai Jiaotong University system or according to your choice | ||||||
Plasma power supply | American brand name or according to your requirements | ||||||
Cutting thickness | Depending on the power source you choose | ||||||
Cutting table | Optional normal workbench or dust station | ||||||

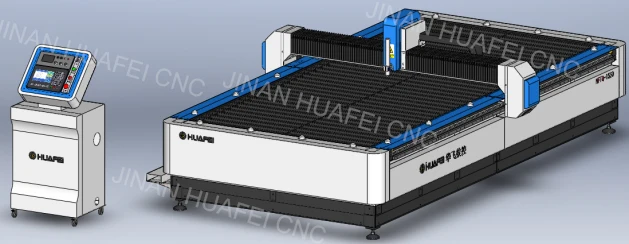

Overall structure
Advanced integrated structure. compactand solid and stable: horizontal light-typestructure and double-side driving servosystem guarantees an excellent runningperformance
Servo drive system

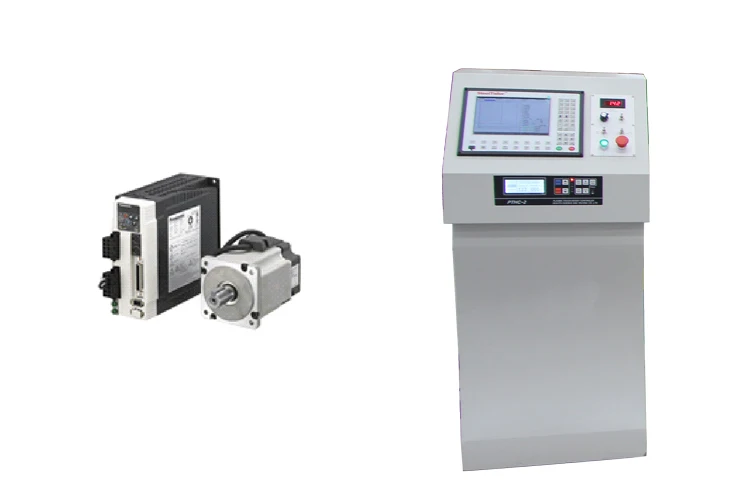

We use Panasonic's servo drive system with character position detection, high precision and short acceleration time. The drive system adopts Japanese original planetary reducer, and its input and output error is only 16 arc minutes. At the same time, in the horizontal and vertical gear transmission structure, the device for automatically compensating the gap is added, so that the transmission structure can accurately execute the command issued by the numerical control system. .

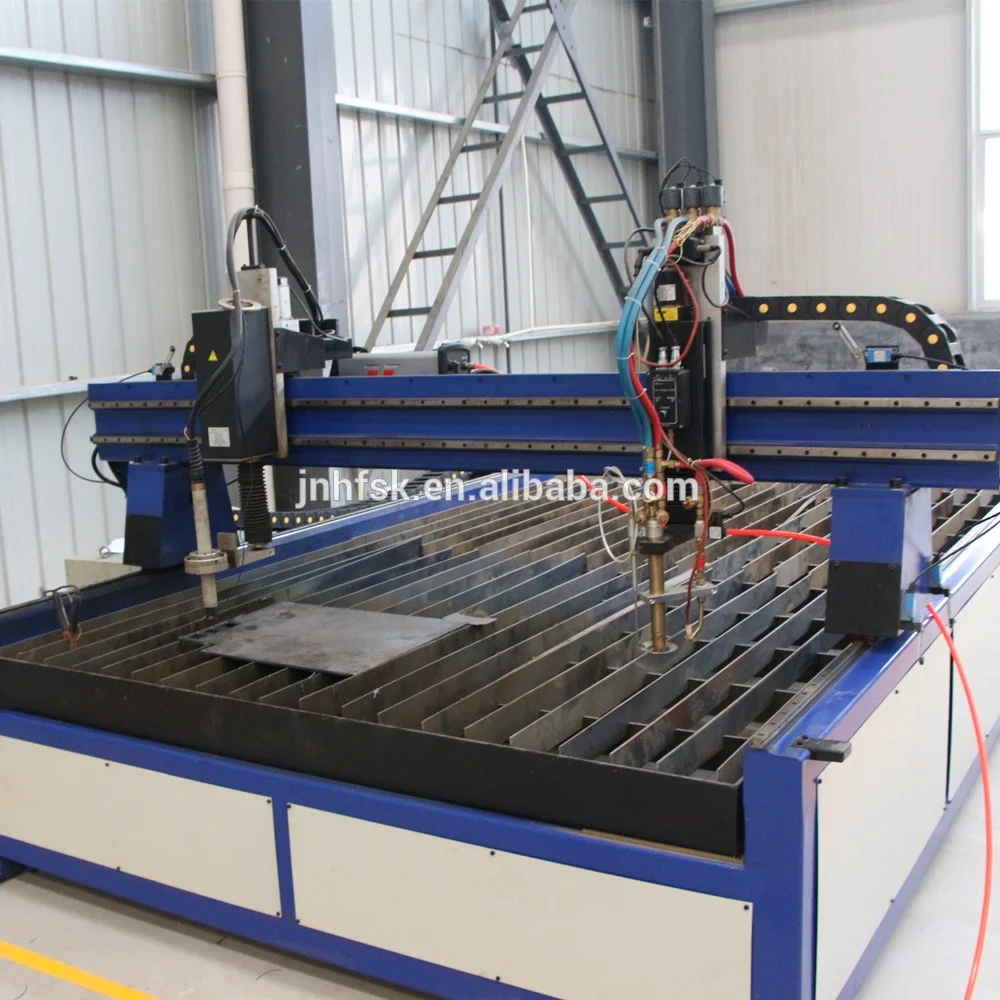

Gas system

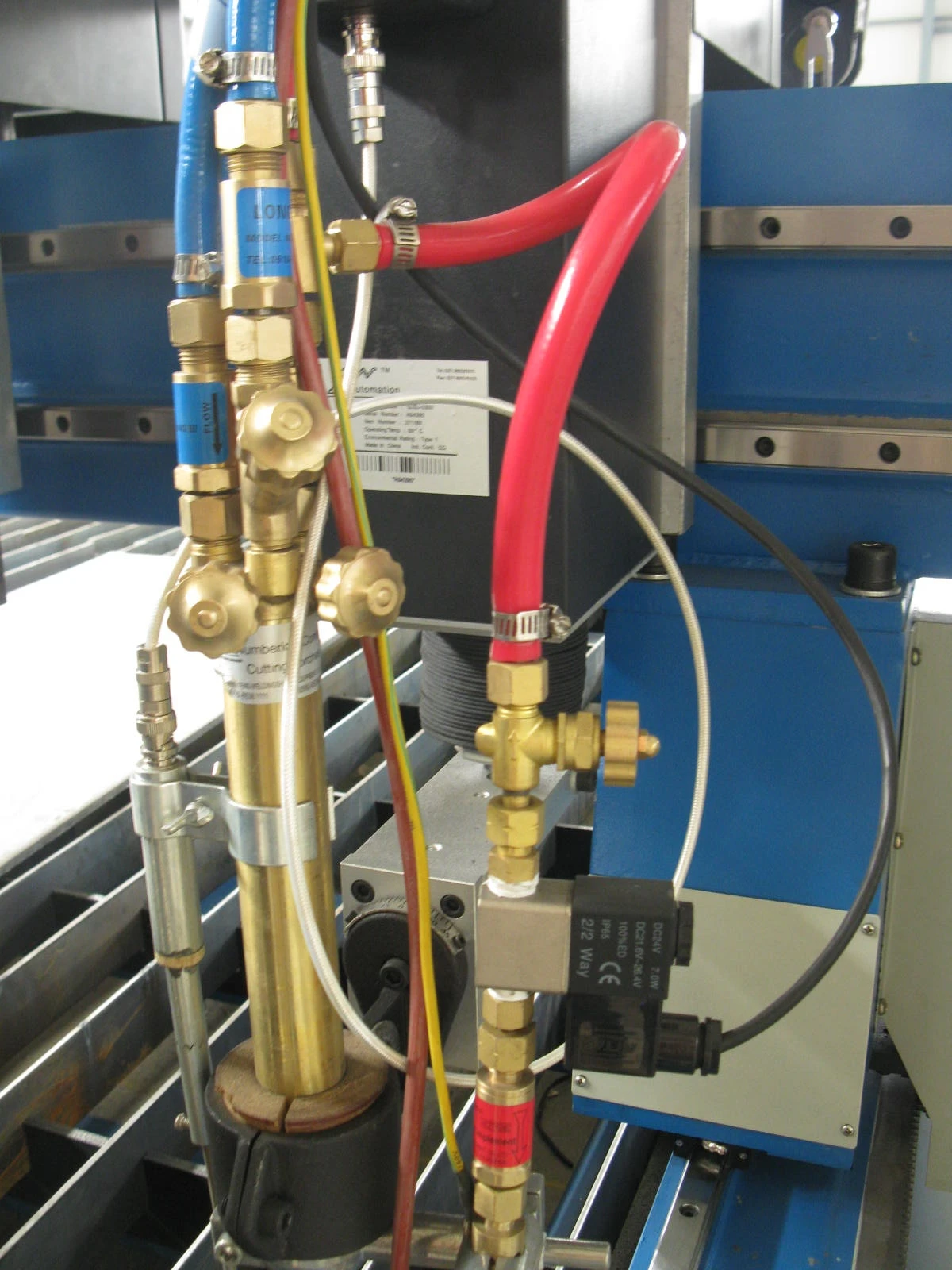

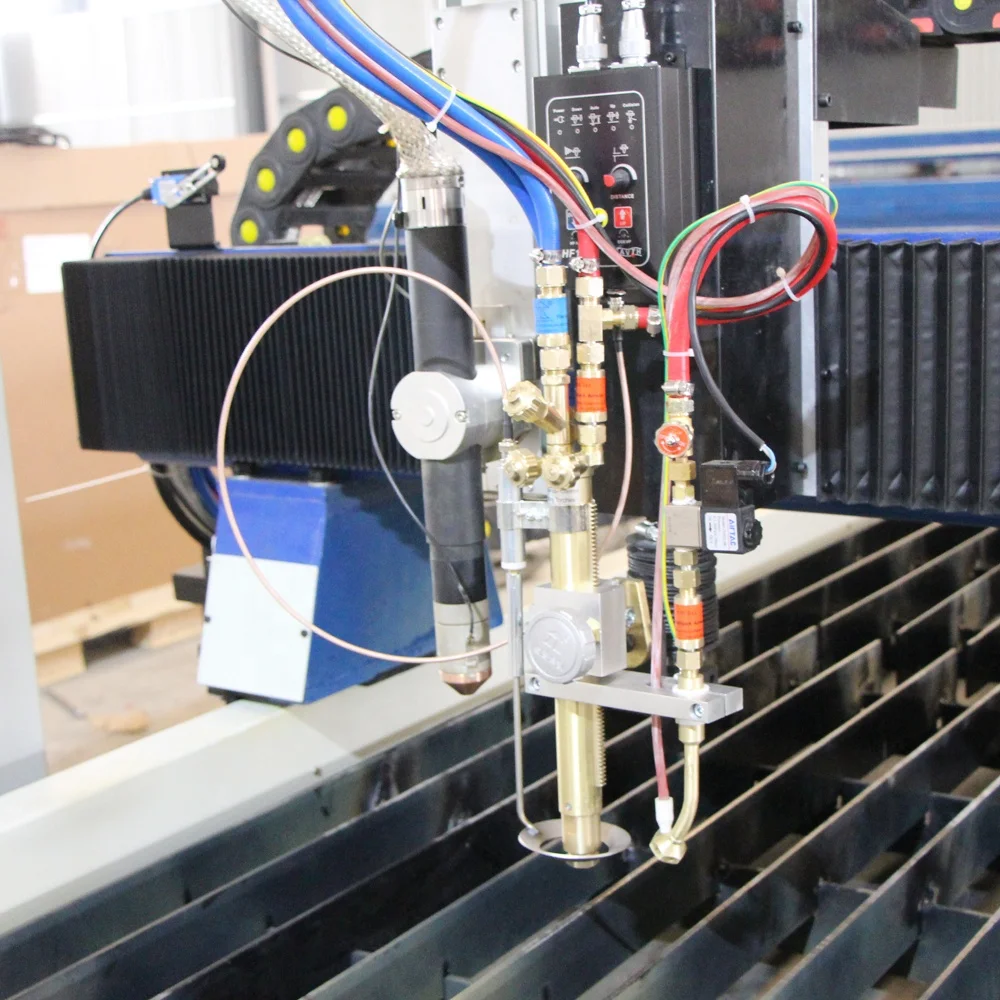

Fuel technology is combined with computer technology and mechanical technology to realize the automatic cutting process of ignition, preheating, cutting and extinguishing. The gas path adopts central gas gathering unit, pressure adjusting unit, solenoid valve, one-way valve, flow adjusting valve, temper preventer and other components, such as high and low pressure conversion, pressure flow, stepless adjustable, temper prevention and other functions, to ensure the safety and efficiency of cutting.
Cutting power supply
Optional plasma power sources fordifferent materials cutting
Rack drive
China top brand or imported linear guide railsfor transmission, precise and stablecustom-made driving rack and gear withsurface carburized and quenched fromprofessional manufacturers, solid and presiceGerman NEUGART planetary reducer fortransmission which is characterized of biggertorque, low gap and free maintenance
1. Installation accuracy of guide rail:
1) Straightness accuracy of main rail ±0.2mm/10m
2) levelness between two rails ±0.5mm/10m
3) Longitudinal levelness of main rail ±0.2mm/m; ±2mm/ overall length
4) Parallelism between two rails <±2mm/ rail space
2. Machine precision:
a. Longitudinal effective stroke >nominal size 20mm
b. Transverse effective stroke > nominal size 10mm
c. Linear positioning accuracy ±0.1mm/10m
(1000×1000mm Comprehensive graphics detection) GB deviation≤±0.3mm
d. Linear repeat accuracy ±0.4mm/10m
e. Torch stroke ≤170mm
f. Cutting speed ±5% of setting speed
g. Automatic lifting precision ±0.5mm
3. Comprehensive machine precision:
a. Length deviation(four sides) 0.3mm
b. Diagonal deviation 0.3mm
c. Back to the origin of the deviation 0.2mm
d. Diagonal straightness accuracy 0.3mm
e. Intersection deviation 0.3mm
f. Linear deviations 0.2mm
g. Entire machine positioner precision 0.1mm
Cutting effect
Related Products
1.gantry plasma cutting machine
The gantry cutter uses a heavy-duty gantry frame with a plasma and flame double gun head for higher efficiency, more stable cutting and custom cutting length.
The opposite tube and the round tube can be cut at multiple angles to support the bevel cutting.
You can choose this product when your workpiece needs to be cut and drilled.
If the above machines can not meet your needs, please contact us, professional engineers to provide you with the best solutions and quotations!.
Company Profile
Since established, Jinan Huafei CnC Machine Co.,Ltd. has focused on introducing and cultivating high-tech talents and takes it as development strategy. at present, many professionals have been brought together who specialize in researching and developing of uncoiling and leveling machines, CnC welding and cutting equipments. technical strength is always cherished as core competitiveness of our company.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in the world, including Australia, Indonesia, India, Burma, Iran, Spain, Brasil, Peru, Russia, Azerbaijan, KZ, uZ, Sri Lanka, etc. During establishing the national brand of Huafei, we always hold the responsibility of culture communication between china and the world.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in the world, including Australia, Indonesia, India, Burma, Iran, Spain, Brasil, Peru, Russia, Azerbaijan, KZ, uZ, Sri Lanka, etc. During establishing the national brand of Huafei, we always hold the responsibility of culture communication between china and the world.
Product packaging
FAQ
1.Does your company accept customized offer, we have special need.
HUAFEI CNC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
2.What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
3.Does your company accept CIF price?
CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.
4.What’s your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.
5.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
6.Does MC have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)
