China plant construction i beam making machine

BRIEF INTRODUCTION

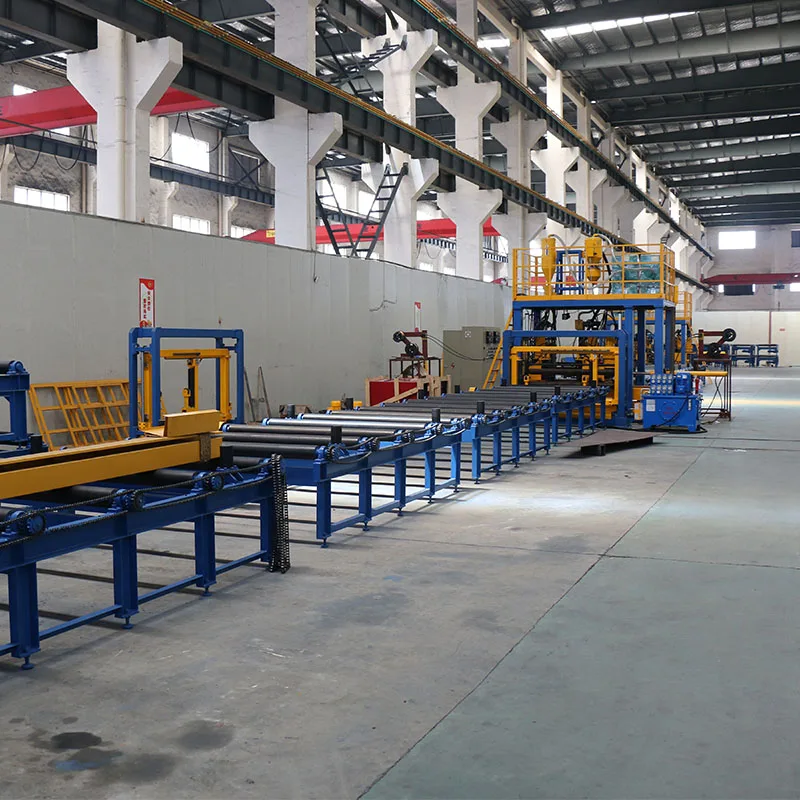

H-beam steel horizontal production line is a special welding production line that directly

assembles steel plate into H type steel. Compared with the ordinary H-beam steel vertical

welding production line (T type first,H type after), it has the characteristics of high production

efficiency and low welding deformation, and is especially suitable for the welding production

of light type. The production line consists of assembling machine, front welding machine,

overturning machine, end welding machine and input/output conveyor , can achieve H type

steel group, welding, turning, transportation and other work. H-beam steel horizontal production

line can improve the working efficiency and reduce the operation cost, the efficiency is 1.5 times

that of the ordinary steel and the security is better, it also can adapt to various environments.

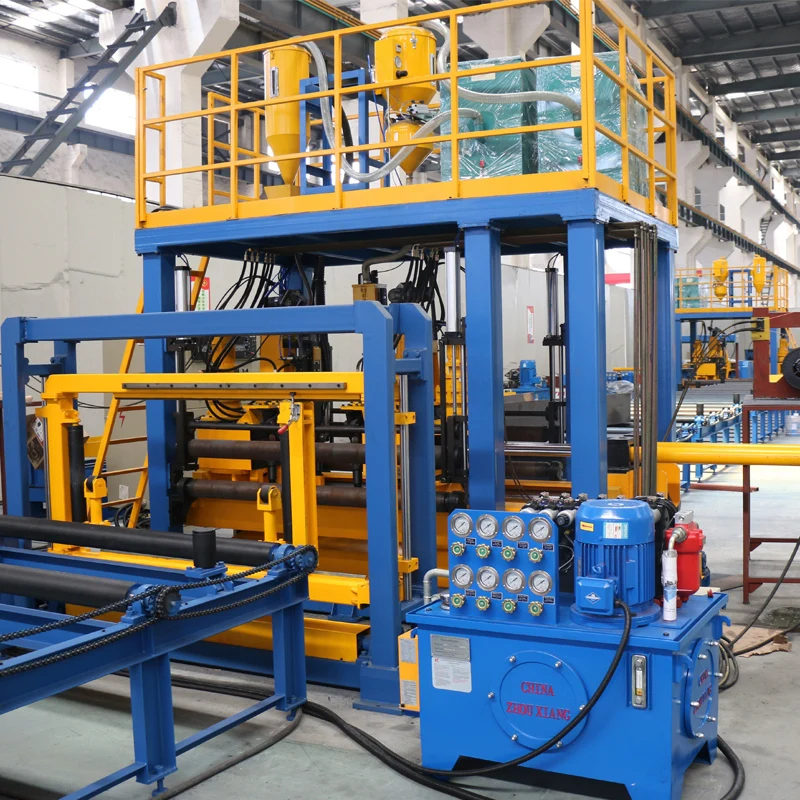

Assembling machine

Input/Output conveyor

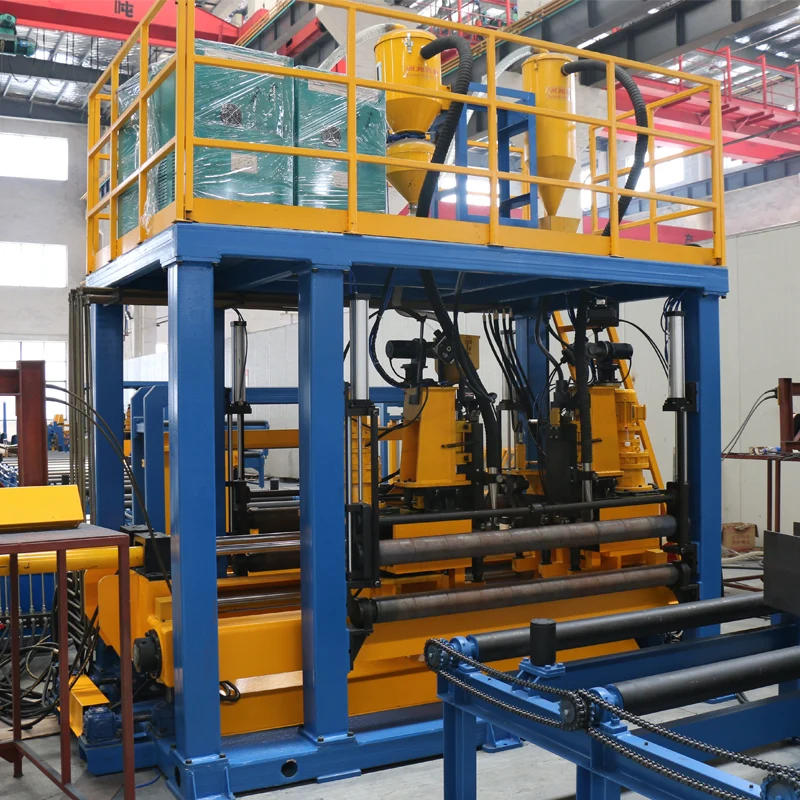

Front welding machine

Double 90°overturning machine

End welding machine

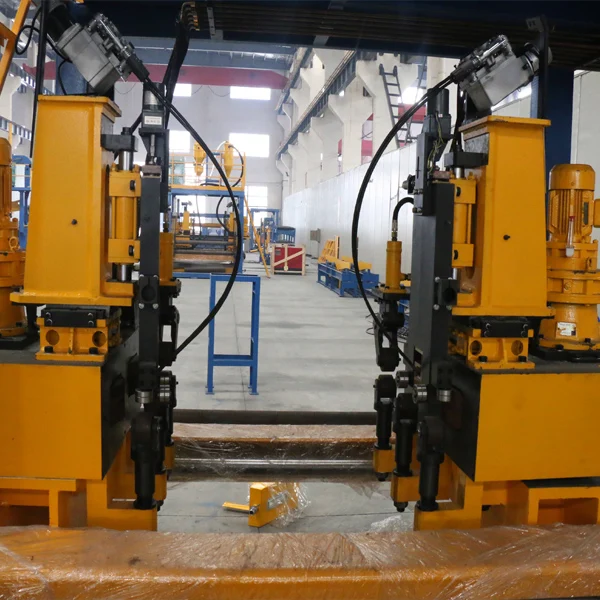

Welding
Torch

Magnet
Adsorption

Lincoln
Control Box

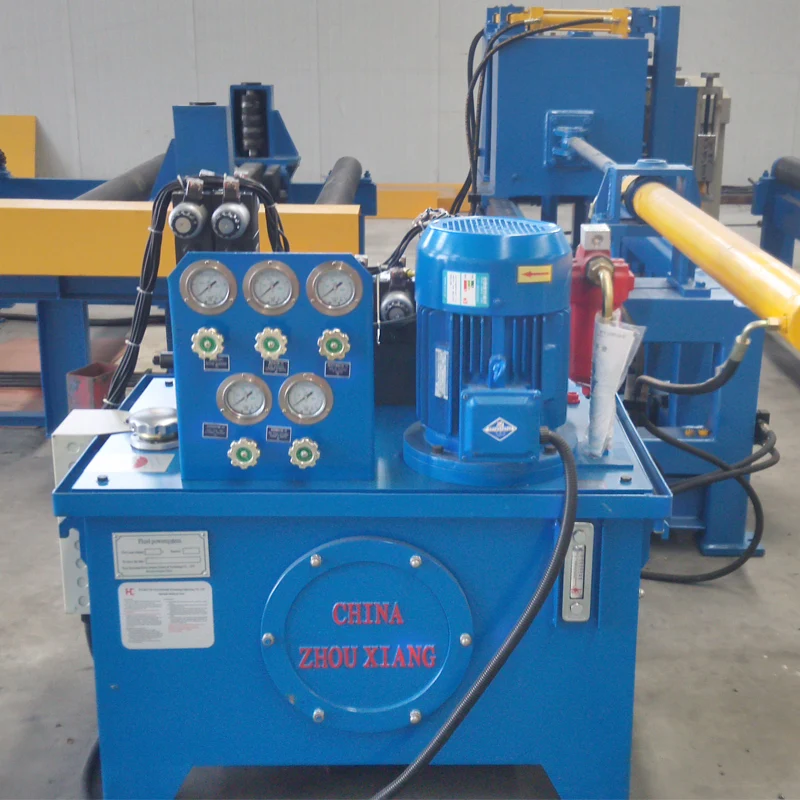

Hydraulic
Pump Station

Electrical
Control Cabinet

TECHOLOGY FUNCTION

1.When assemble, just needed to do spot welding of H beam end, then can go into the welding
   process, welding machine will re-position the three plate, thus increase assemble speed.

2.Work piece is put horizontally (web is horizontal and flange is vertical), and beam will move
   during   welding, and can weld two seam at the same time to reduce deformation caused by
   welding heat.

3.A variety of welding methods,submerged arc welding and gas shielded welding are available.

4.Machine is equipped with Lincoln DC-1000 welders, which used single arc double wire
   welding mode, wire diameter is 1.6mm, and welding speed can reach 1200mm/min, the welding
   seams are well formed and look beautiful.

5.It is suitable to weld variable cross section H beam ≤8°.

6.This line is more automatic then traditional ones, so can reduce the labor intensity, and reduce
    operator, only need 4~5 operators for normal production.
