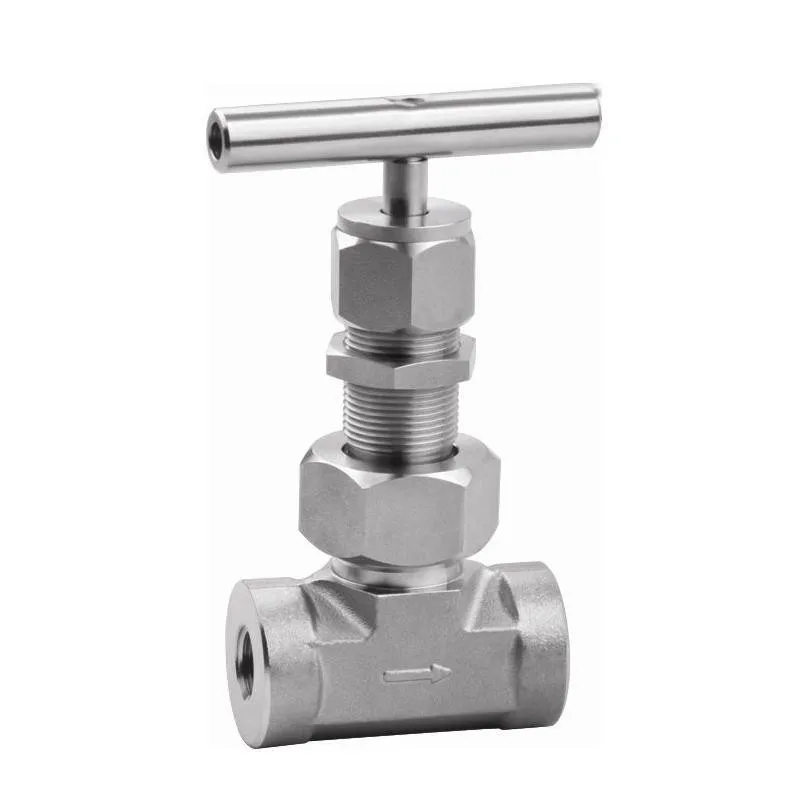

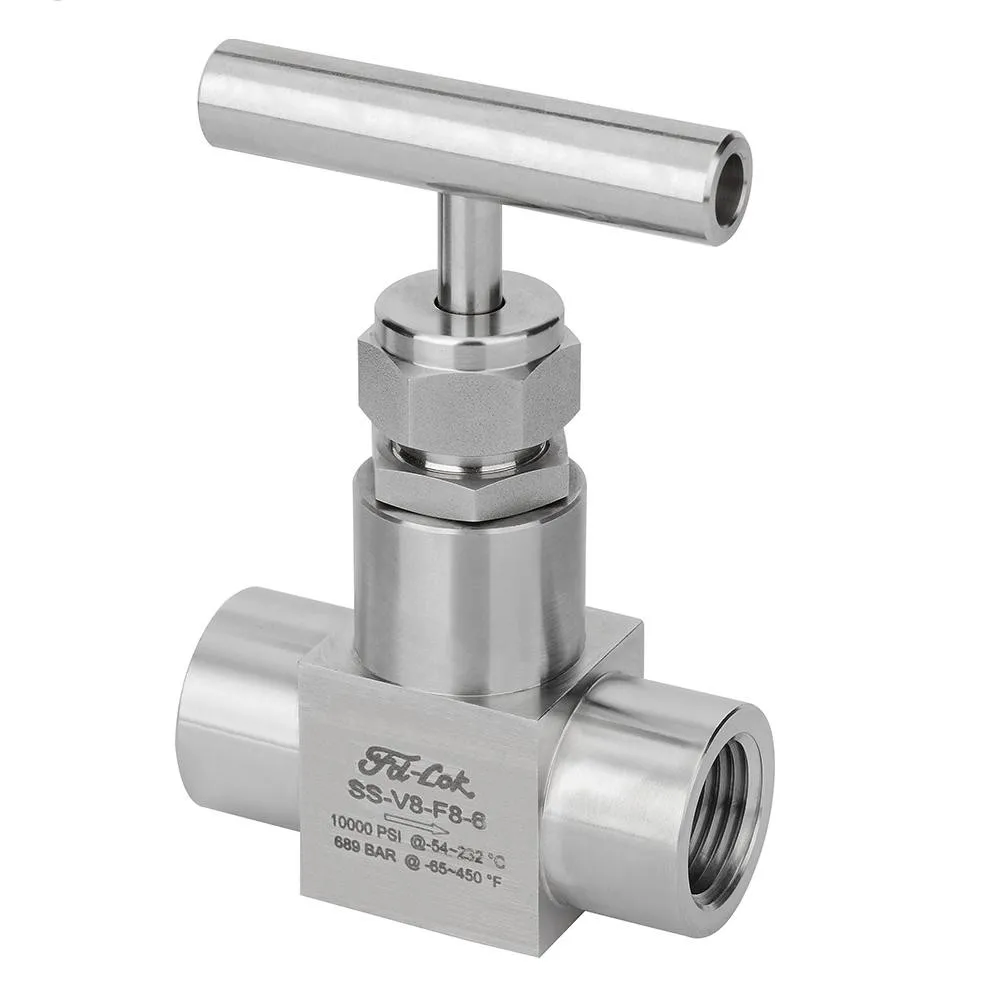

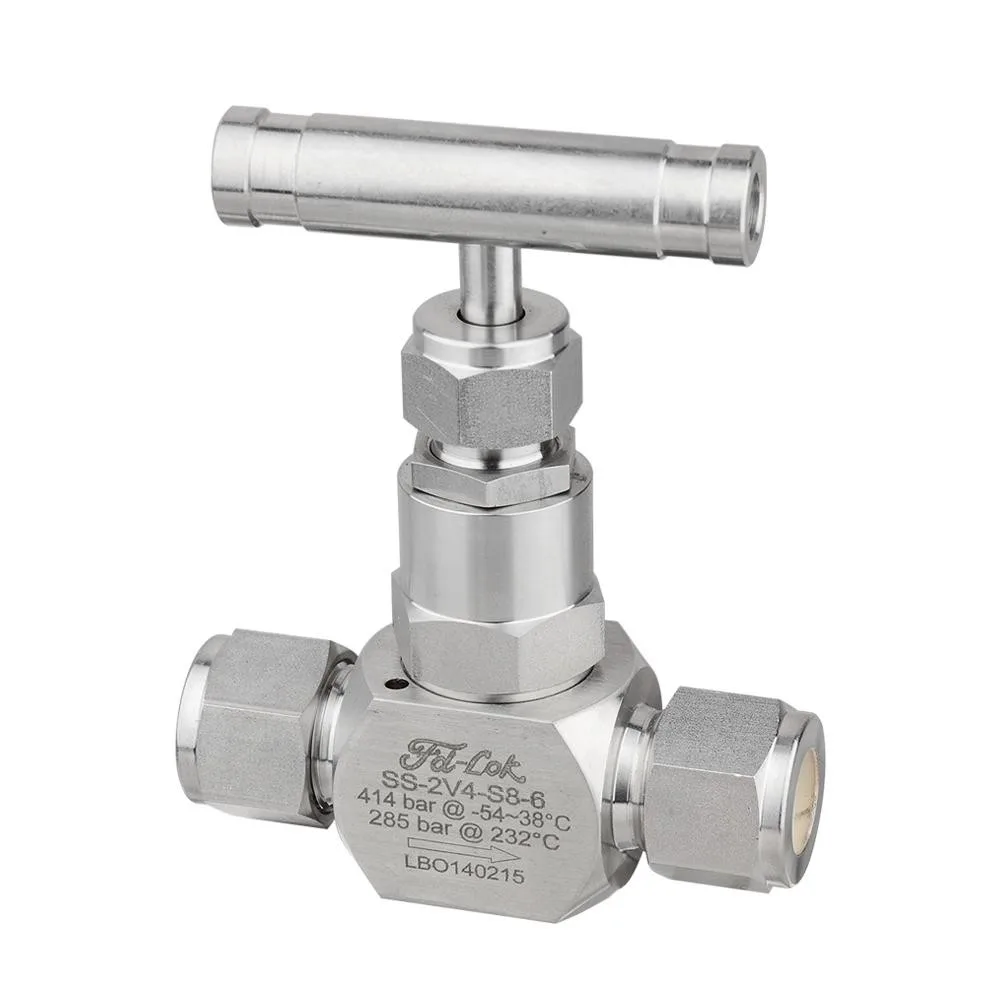

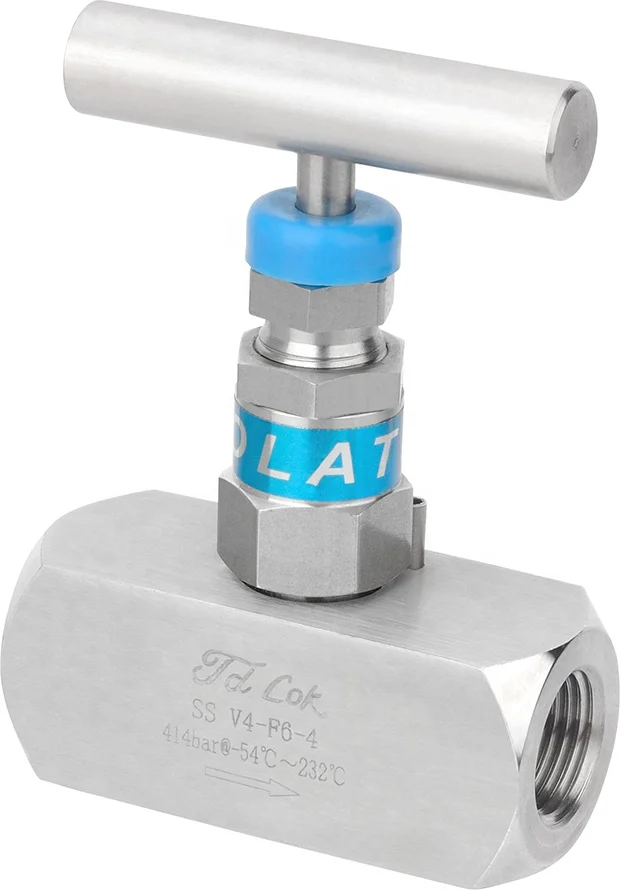

Needle valve 10000psi 1/2 NPT thread needle valve SS316 10000psi 6000psi
- Category: Needle Valves >>>
- Supplier: Zhejiang Fangdun Instrument Valve Co. Ltd.
Share on (60521278328):
Product Overview
Description
Product Description
1. Pressure: up to 6000 psig （414 bar）for standard series.
up to 10000psig (689 bar) for high pressure series.
2. Temperature: PTFE Packing: -65 °F to 450 °F ( -54 °C to 232 °C)
PEEK Packing: -65 °F to 600 °F ( -54 °C to 315 °C)
Graphite Packing: -65 °F to 1200 °F ( -54 °C to 649 °C )
3. Panel mountable
Graphite Packing: -65 °F to 1200 °F ( -54 °C to 649 °C )
3. Panel mountable
4. Packing nut permits stem packing adjustment
5. Live-loaded packing system
6. Non-rotating stem tip
5. Live-loaded packing system
6. Non-rotating stem tip
7. Packing below stem thread isolates the thread lubricants form the media
8. Body to bonnet seal with metal constant compressing, isolates bonnet thread from the media
Product Name | Needle valve 10000psi 1/2 NPT thread needle valve SS316 10000psi 6000psi |
Material | SS316, SS316L,C276,M400,F51,F53,F53,625,825 |
Size | Fractional Sizes from: 1/8" - 1" Metric sizes from: 2mm - 28mm |
Working Pressure | Pressure up to 10,000 psig (689 bar) |
Technics | Forged |
MOQ | If have stock .unlimited quantity. If no stock , MOQ 100pcs . |
Applicable medium | oil,gas,water or other medium |
About samples | free sample can be send to test qulity before place on order |
Product Description
Product name | Stainless steel needle valve 60000psi needle valve |
Material | 316SS, 316LSS, Monel 400, Hastelloy C276, F51, F53, F55, 625, 825 |
Size | Fractional Sizes from: 1/8" - 2"/Metric sizes from: 3mm - 38mm |
Pressure | 6000psi 10000psi |
Details:
1.Pressure up to 6000 psig (414 bar) for standard series
Pressure up to 10000 psig (689 bar) for high pressure series
2.Temperature from -65°F to 450°F ( -54°C to 232°C )
with PTFE packing
Temperature from -65°F to 1200°F ( -54°C to 649°C )
with Grafoil packing
3.Safe union-bonnet constrution
4.Back seating design protects the packing in fully
open position
5.Panel mountable
6.Packing below stem thread isolates the thread
lubricants from the media
7.Non-rotating stem tip
8.100% factory tested
1.Pressure up to 6000 psig (414 bar) for standard series
Pressure up to 10000 psig (689 bar) for high pressure series
2.Temperature from -65°F to 450°F ( -54°C to 232°C )
with PTFE packing
Temperature from -65°F to 1200°F ( -54°C to 649°C )
with Grafoil packing
3.Safe union-bonnet constrution
4.Back seating design protects the packing in fully
open position
5.Panel mountable
6.Packing below stem thread isolates the thread
lubricants from the media
7.Non-rotating stem tip
8.100% factory tested

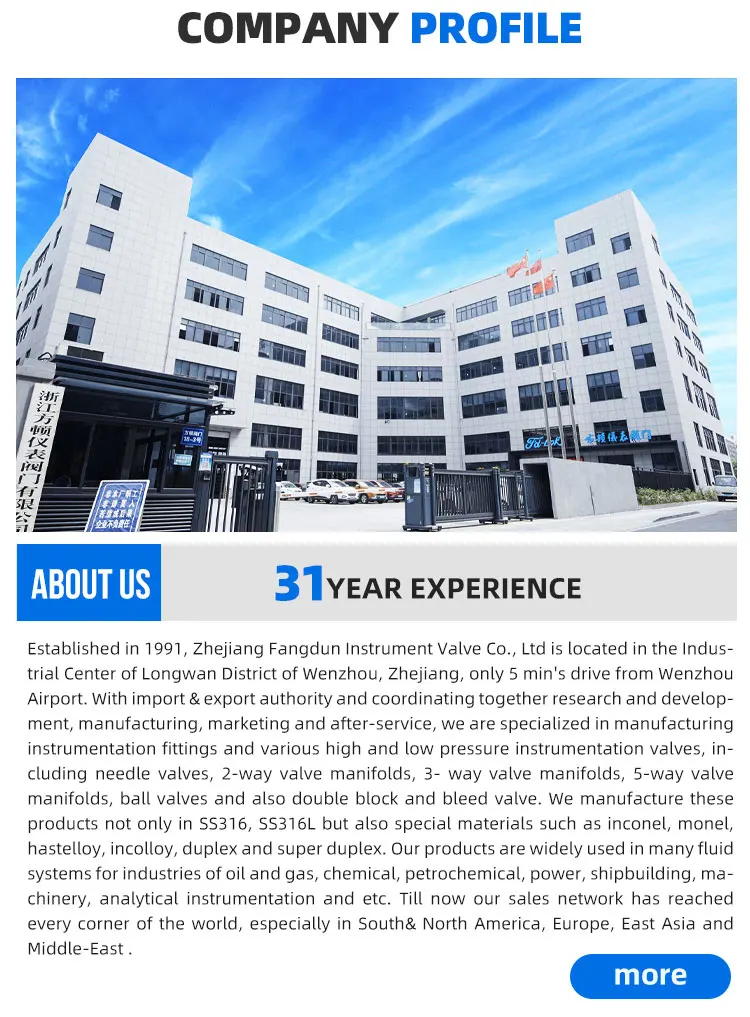

Company Profile
Our test equipments
Cooperative enterprises

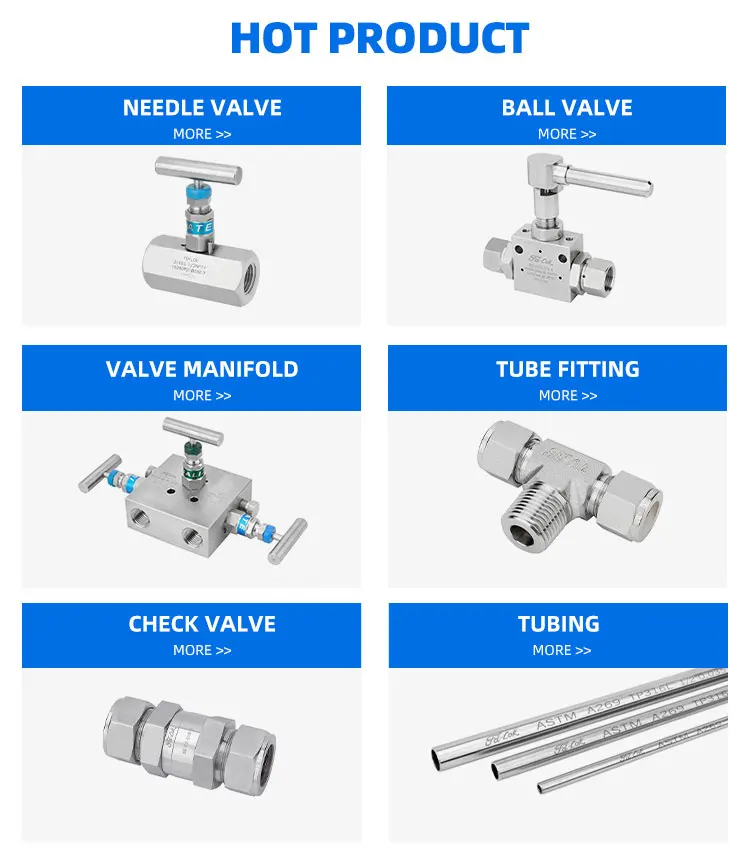

Main products
FAQ&Shipping
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A: stock products 100% payment before shipping out . In generally,30% deposit , 70% balance against B/L copy, L/C is also
acceptable. Other payment method is negotiable.
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A: stock products 100% payment before shipping out . In generally,30% deposit , 70% balance against B/L copy, L/C is also
acceptable. Other payment method is negotiable.
If you have another question, pls feel free to contact us as below:
