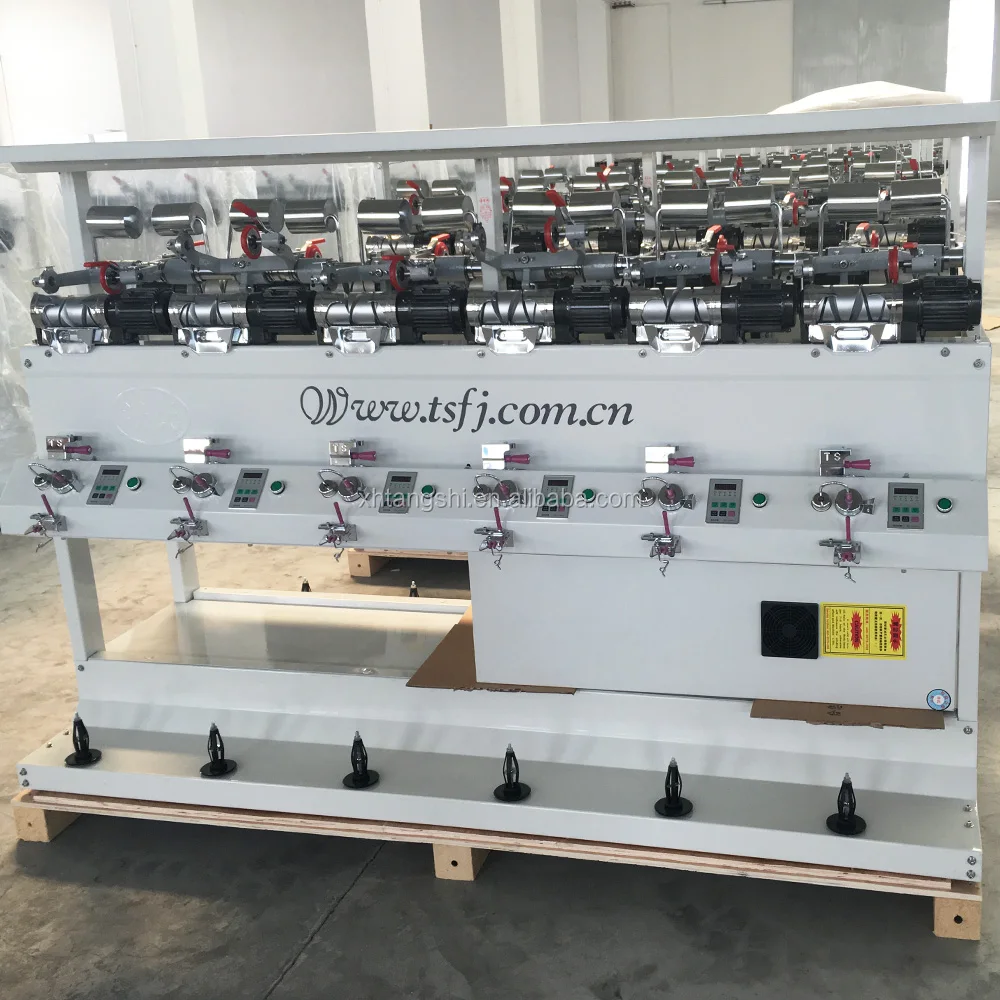

TS008S High Speed Soft cone winding machine——its function is winding perfect soft yarn cone for the yarn cone dyeing and it is suitable for winding fiber, cotton yarn, wool yarn, FDY, polyester yarn,etc.
TS008S Specification
TS008S Specification
Bobbin type
6"(170mm)
Layout
Double-side, can be 12-120 spindles
Power supply
Three phases 400v±10% 50/60HZ
Motor power
90w/spindle
Working speed
100-1000m/min
Take-up package
Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Winding traverse
152mm
Max.package diameter
250mm
Yarn tension
Every spindle with disc tensioner
Driving
Every spindle per motor
Auto stop device
Each spindle has yarn detector
Length counter
Each spindle has length counter
Electronic yarn clearer
Optional installed
Air splicer
Optional installed
Blower cleaner
Optional installed
Lighting system
Contain
Dimensions
L11950 x W 1100 x H 1400 mm (60 spindles)
Main Features
Main features
1. Winding speed is 100-1000meter/min,which can be set according to your yarn type. Cotton: about 800M/min, Fiber: about 600 M/min,etc. (Density: 0.2-0.4g/cm³)

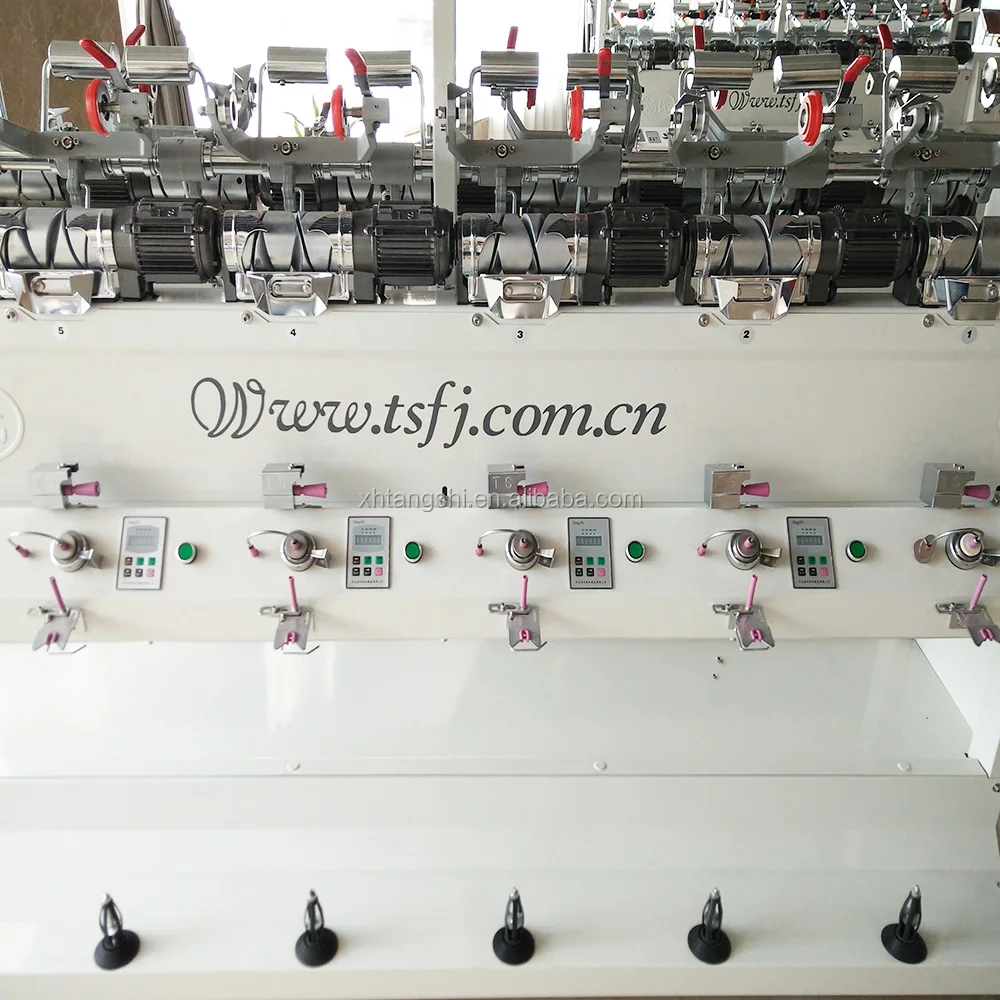

2. The winding speed and length of all the spindles can be set the same and shown on the touch screen. Also,each spindle is individual and has length counter ,the winding speed and length of each spindle can be set differently and shown on each control panel.
3.Each spindle has systems of Anti-Hard-Edge and Electronic Anti-overlapping.
4.Each spindle has auto-stop device(motion sensor/yarn detector).When the yarn breaking or the yarn cone finished, the motor of the spindle will immediately stop.
Customers To Use
Customers to use
Our yarn winding machines have been sold to Bangladesh,India,UZ,Egypt, Thailand, Russia, Malaysia, Spain and many other countries.We set our first office in Bangladesh so that you can see our machines in Bangladesh.These pictures show our machines used by different factories in different countries.If you are interested in our yarn cone winding machines,contact us please and we will show you more kinds of yarn winding machines.
We are Tangshi Textile Machinery Co.,Ltd ,an experienced and professional manufacturer of yarn winding machine such as yarn hard cone winding machine,soft package cone winding machine,yarn doubling and twisting winding machine,hank to cone winding machine,sewing thread winding machine,etc.Our company was established in 1993 and locates in 1#,Chaoyang Road,Minzheng industry park,XingHua city,Jiangsu province,China. We set up Tangshi research and development center in 21st Dec,2014. For providing customers with best quality and most valuable yarn winding machines,we spend all our savings making research and improvement on our machines.
