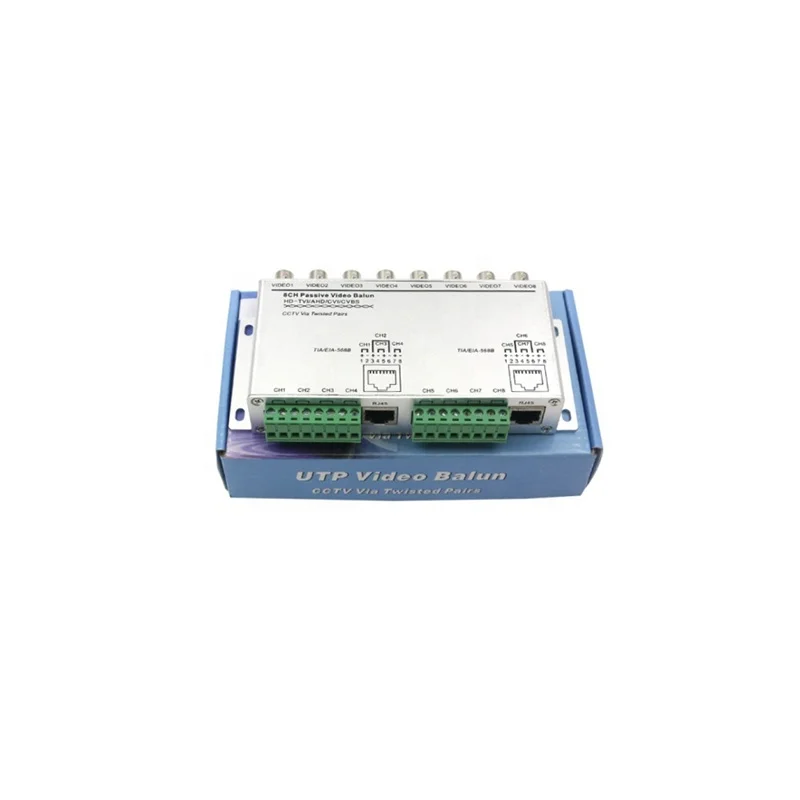

1.8 Channel Passive Video Balun 2.Transmission:Long distance & high quality 3.Professional 3.Responsible price 4.OEM Service
Features:
a) High quality zinc alloy Male BNC, excellent video signal transmitting.
b) Screw terminal, easy installation.
c) High quality discharging tube, perfect transient supression protection. Can work in bad weather.
Product parameters
Balun Type:
Passive
Video transmitting distance
330m with passive video transceiver
1500m with active video transceiver
Video Formats:
NTSC, PAL, SECAM
Crosstalk & noise immunity:
60dB
Built-in transient supression protection:
Yes
Frequency Response:
DC to 8MHz
Working temperature:
-10 Celsius to + 70 Celsius
Storage Temperature:
-30 Celsius to + 70 Celsius
Material:
Aluminium-alloy
Detailed Images

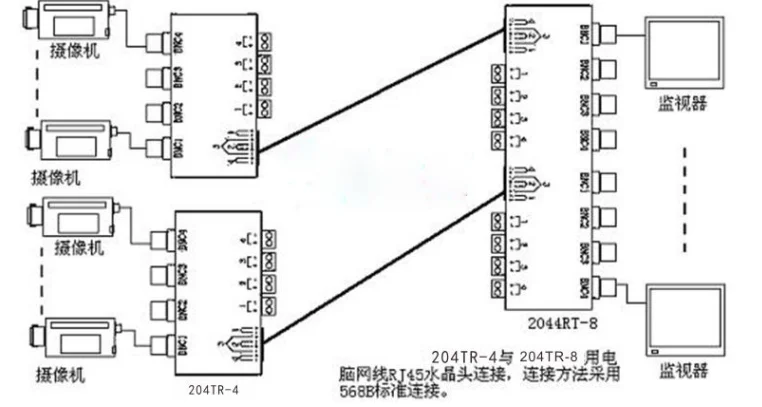

Product application
• Smart Buildings
• Intelligent Transportation System
• Security and Surveillance, CCTV System
• Connection of Sub-network for Surveillance Center
• High Way & Toll Station Surveillance
• High Quality Video Conference
Our Services
Shippment
(1) Ordered products will be shipped within 3 days after payment verified.
(2) We ship products to the address that mentioned.
(4) If ordered products not reach you over 30 days, please be patient contact us,we will implement priority international tracking. (5) DHL / UPS / TNT / FedEx shippment is suggested. You can also choose your own shipping way (7) Buyer may need to pay extra for the goods import to their country (if have,such as custom clearance fees, import TAX etc).
Warranty
(1) We provide 7 day (date upon receiving) testing period for all of our products, if un-satisfy of the product, please return it with original state (product , item , package , accessories etc.) within 30 days, we full refund you total amount of the order, but buyer have to pay the return shipping fees. We NOT ACCEPT fully or partially refund for keep the products.
(2) We provide 24 months (2 years) warranty of all our selling products (date upon receiving), including repair , replacement , maintenance etc. Please be noted that if the damage of the product is cause by un-proper usage, we have to charge buyer for components cost (if has), repairing fee is free during 36 months. During warranty period, buyer have to pay all transportantion fees (including return, send back, import TAX, export TAX etc).
Service
1.Please Message us from 9:00am. to 18:00pm. (GMT+8) of Monday to Saturday. 2.If you have any questions, please message us and give us a chance to assist you. All messages will be answered within 1 business day (except Public holidays in China). If you do not receive our reply, please kindly re-sent your message and we will reply to you as soon as possible. 3.We apologize for the late reply during holidays (included Sundays).
