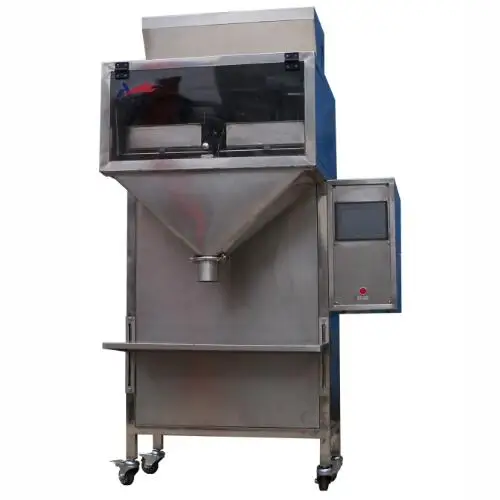

granule weighing filling machine semi automatic grain packing machine 30 2000g, 500 6000g, 4 25kg, 5 50kg

Product Overview

Description

granule weighing filling machine semi automatic grain packing machine 30-2000g, 500-6000g, 4-25kg, 5-50kg



Introduction

This double scale semi automatic grain packing machine is mainly suitable for granule, including all kinds of small particles mixed material. Such as: pesticide, fertilizer, salt, veterinary medicine, health care products, dyes, chemical products, food ingredients, additives, micronutrient fertilizer, rice, washing powder, medicine powder, etc.



Why choose us?

1.The gap and precision tracking technology, the machine itself has its own function of error correction, in order to obtain higher repeatability, precision is higher

2. double scale two weighing blanking independent system unit, with multi-stage electromagnetic vibration feeder.
3. electronic scale measurement, ensure the accuracy

4. According to the features of the material size adjustable blanking unit, realize the fast feeding, slow loading adjustment, in order to get higher packing speed and accuracy
5. open institutions is the motor to open the door, have the effect of low noise.
6. The feeding tank has adjusting damper, used for adjusting the flow rate of the feed material as much as possible in order to improve the packaging speed

7. parts contacting with materials are all made of stainless steel cleaning convenience, prevent cross contamination
8. Completely separate $is strong, weak current road, strong anti-jamming capability
9. packaging range: the range 50-1000 grams, it can achieve the same device of the inner packing.
S photoelectric control, simple operation, the mouth clean, easy to seal
10. optional automatic feeding system, realizing the real-time control of material level, automatic feeding



Technical parameter

Model	YN-2DC-2K	YN-2DC-6K	YN-4DC-2K	YN-4DC-6K
Packing range	30-2000g	500-6000g	30-2000g	500-6000g
Packing error	±0.2-0.5%
Packing speed	0-30bag/min	0-30bag/min	0-50bag/min	0-60bag/min
Volt/power	AC220V/500W	AC220V/500W	AC220V/1000W	AC220V/1500W
Machine size	100x65x190cm	150x80x230cm	150x80x230cm	200x80x250cm

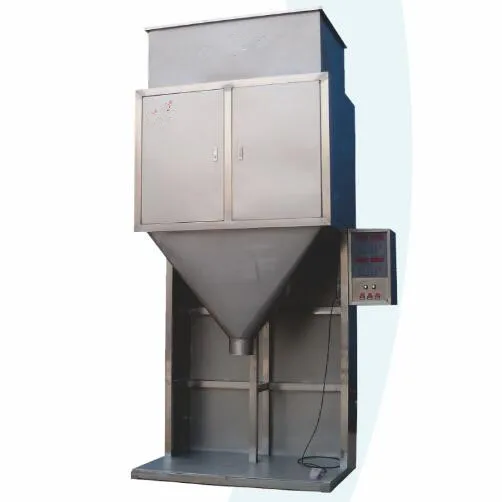

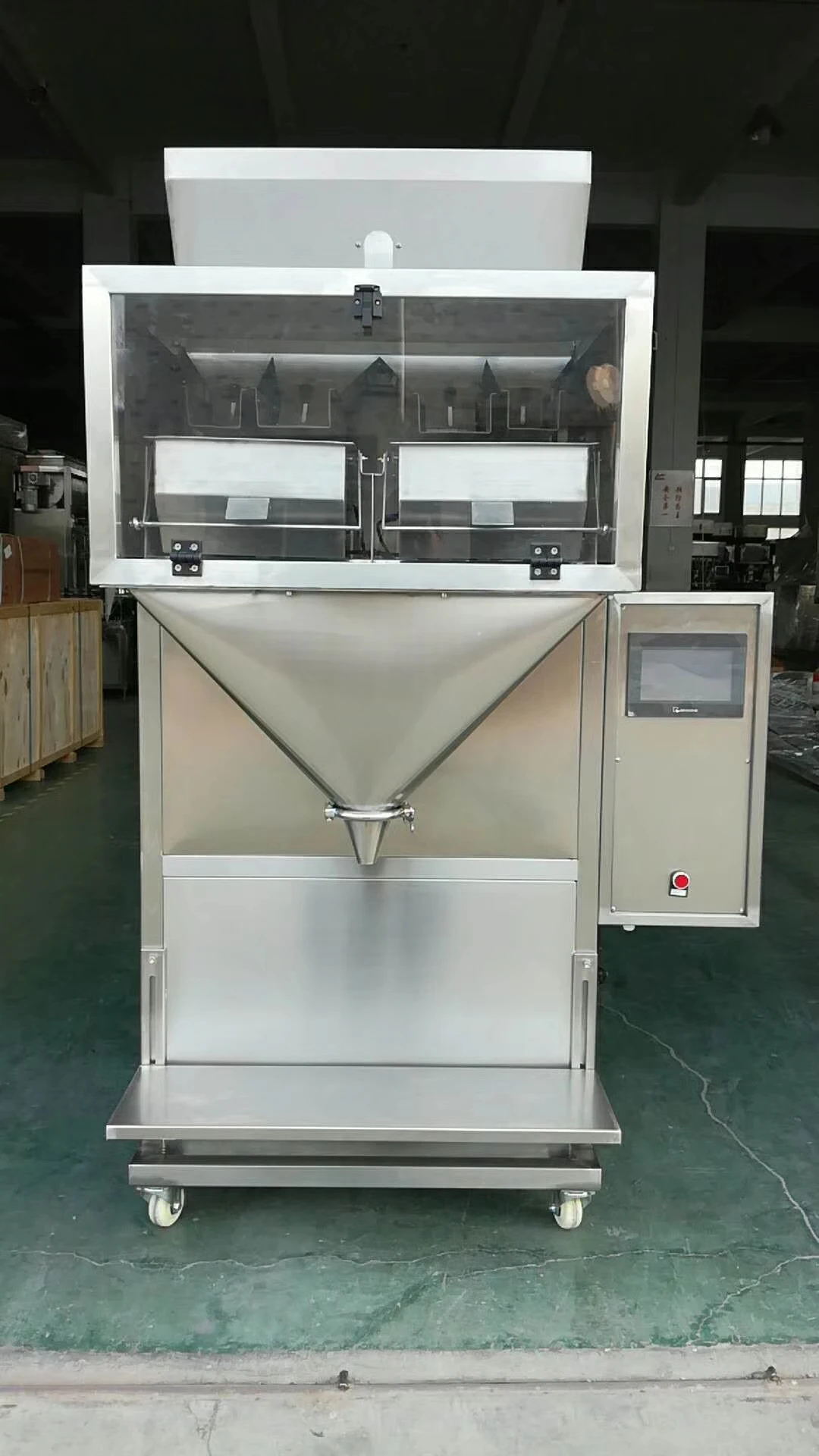

2 scale granule weighing filling machine semi automatic grain packing machine

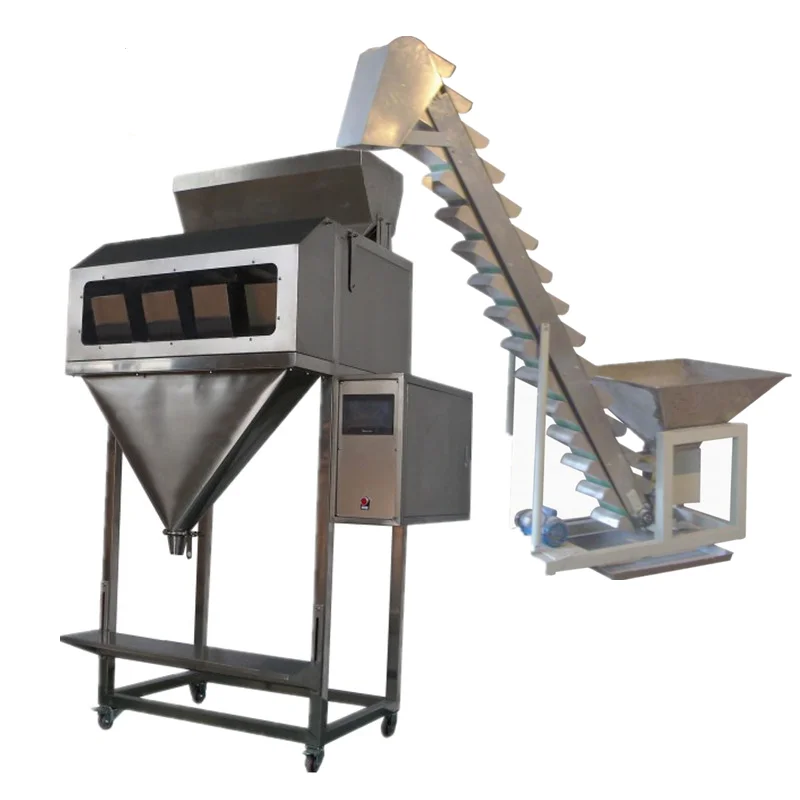

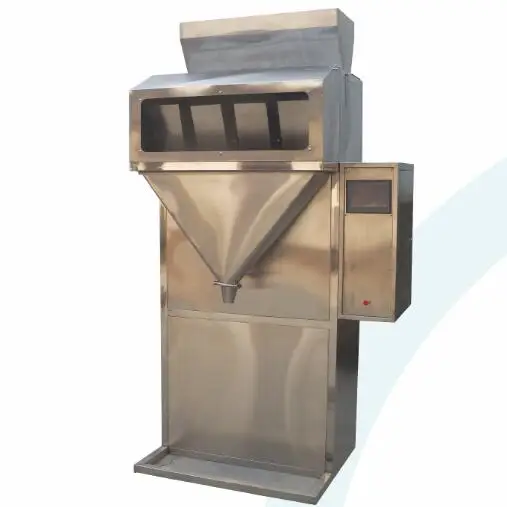

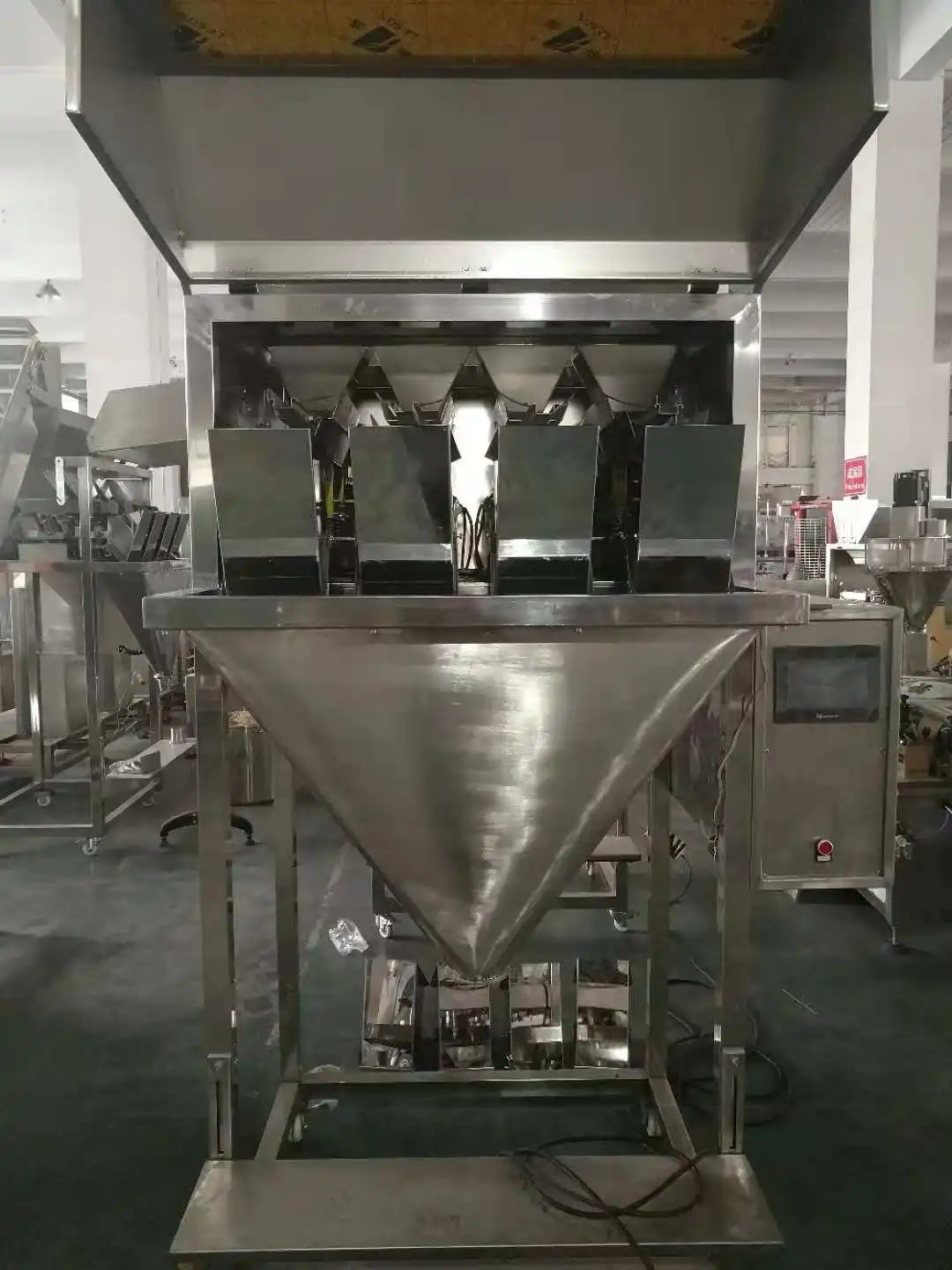

4 scale granule weighing filling machine semi automatic grain packing machine

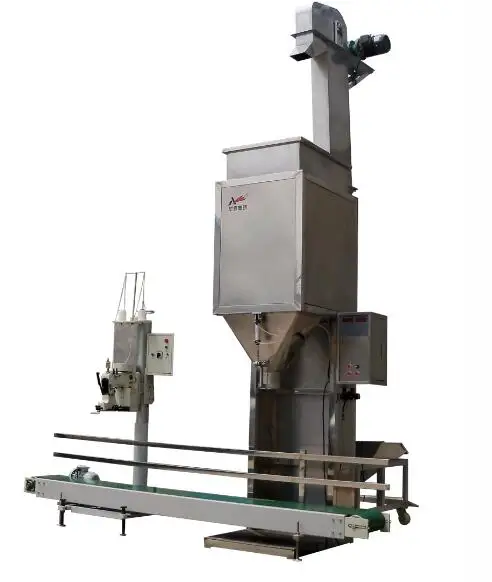

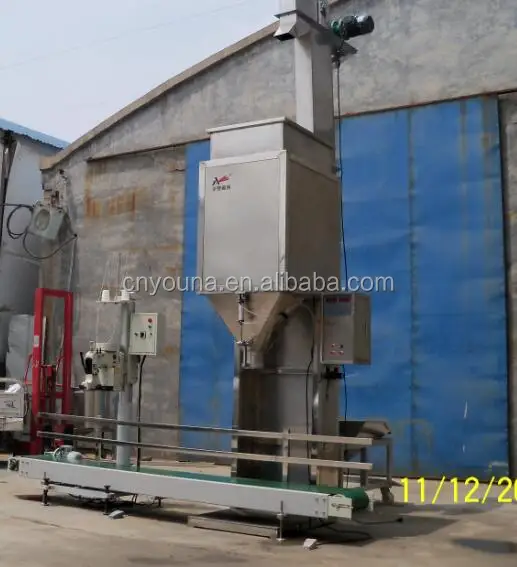

granule weighing filling machine semi automatic grain packing machine 5-50kg











matched  hopper





double scale semi automatic grain packing machine application for refer





double scale semi automatic grain packing machine more information, pls contact freely,
