JABO3CG Automatic navigation bait boat GPS positioning Fish finder

JABO3CG is another product of the JABO series intelligent bait boat. This product adopts GPS positioning, electronic compass navigation, can store 8 target dens, can automatically (manually) set the starting point, and realizes starting from the starting point, automatically Navigate to the target point, automatically nest (release hook), automatically return to the starting point of the one-button navigation function, at the same time with the fish, measuring water depth, bottom lights to attract fish, measuring water temperature and other functions.

The main functions and features of JABO-3CG bait boat:

1.JABO3CG features precise positioning and precise navigation. Positioning, navigation error radius is less than 5 meters, the error is basically within 2 meters when testing

2.JABO3CG can store 8 target nests. Once the target nests are identified for the first time, they can be nested (released) within the radius of 1000 meters on the same surface and different fishing positions. This can achieve accurate positioning and increase the fishing scale. The chance of more fishing also saves on the resources of the bait and increases the enjoyment of fishing. Especially in the occasion of night fishing, ordinary boating can not achieve accurate nesting (free hooking). Even if there is no moonlight in the night, the JABO3CG can be used to correct nests (release hooks).

3.JABO3CG working frequency 2.4g, can be set to 250 frequency points, allowing multiple warships to be used simultaneously in the same fishing ground.

4The starting point can be set manually (automatically) each time you use it. After successfully setting the starting point, you can safely return to the "home" after each departure. JABO3CG can also automatically set the starting point when the starting point is not set manually. Since it takes time to automatically set the starting point to receive satellite positioning, the starting point of the automatic setting may be relatively long.

5.Each time the ship's power switch is turned on, the docking crew will automatically begin to establish contact with the navigation satellites. It usually takes 1 to 5 minutes to establish a successful connection.

6.The JABO5CG has two bait bins and two hooking devices. Each bait bin can carry3KG of bait, and two hooking devices can tow two sets of hooks.

7.The power part of the bait boat is directly driven by the dual 775 high-power motor to achieve silent driving. By improving the structural design of the motor gearbox of the bait bin, it also greatly reduces the noise during operation of the bait bin.

8 In order to be suitable for night operation, two navigation lights of different colors are set on the ship. At night, the operator can control and recognize the navigation direction of the ship according to the different colors of the indicator lights. At the same time, in order to facilitate the fishing night fishing, JABO3CG is equipped with a night light that can be remotely controlled.

9.JABO3CG has the function of finding fish, measuring water depth, attracting fish by lure of fish bottom, and measuring water temperature.

10. When it rains on cloudy days, the navigation function may weaken or even fail due to the satellite signal being shielded by clouds!

Main Specifications:

JABO3CG bait boat:

1 Dimensions 80*57*28cm

2 Weight: 11KG (including7.4V10A lithium battery*2)

3 Power Supply: 10A/7.4V Li-Ion Battery Charger can work for 2-3 hours

4 Speed: 60 meters/minute

5 remote control distance: About 300 meters in water.

6 Drive Components: Double 775 *2 motor drive with built-in propeller.

7 main actions: forward, backward, turn right, turn left, release hook (feeding material), measure water temperature, bottom lamp lure fish, measure depth, fish (fish can be distinguished), automatic positioning, Automatic navigation, automatic return Features.

8 Bait load: 3kg*2

9 GPS positioning can store 8 target dens.

10 electronic compass guide + satellite positioning navigation, navigation accuracy radius is less than 5 meters

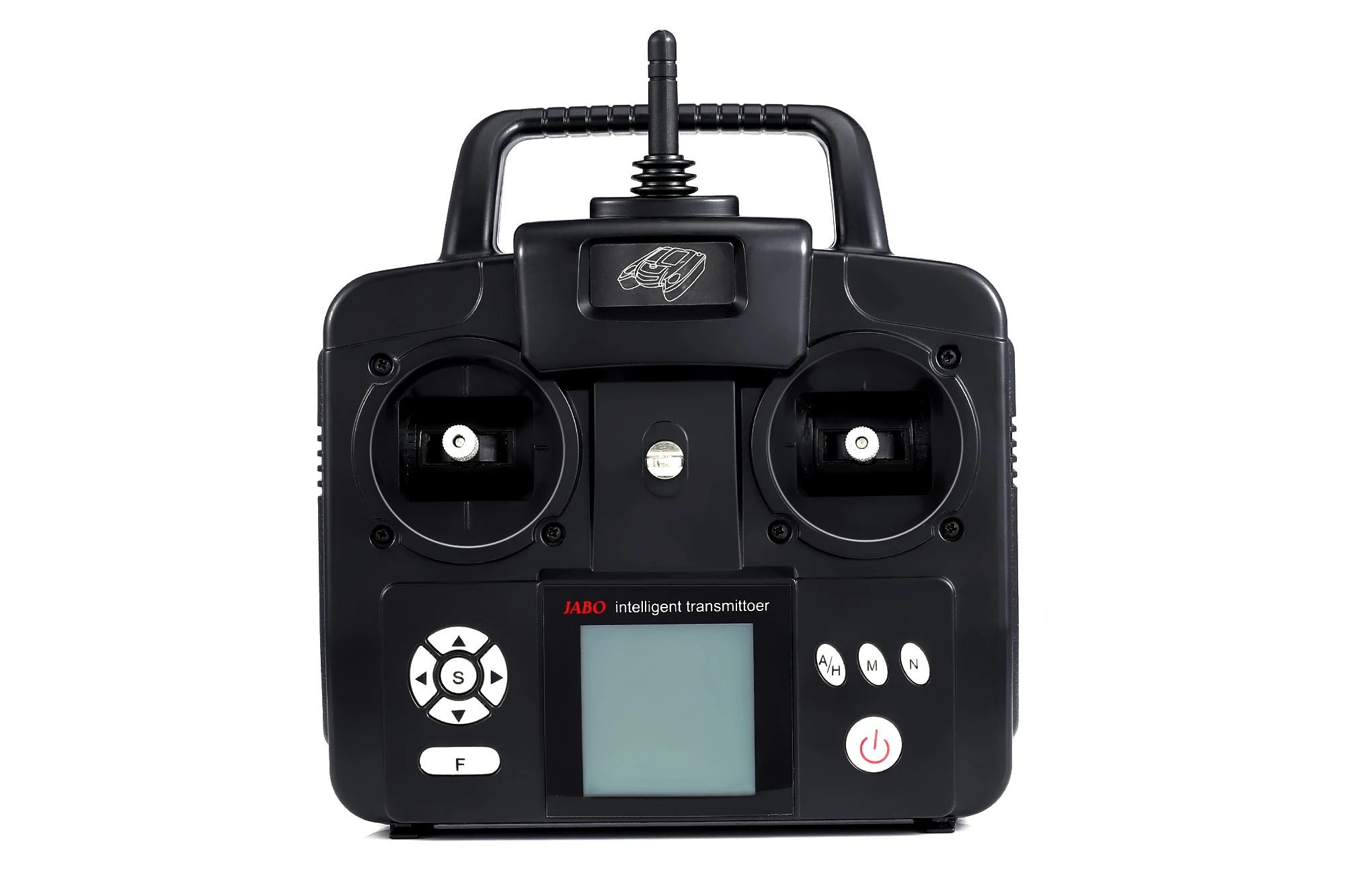

Remote control: 165×42.5 (including handle height)×96mm

Power supply: 3.7v lithium battery.

Remote control LCD:FSTN 128×128 dot matrix

Screen size: 45mm × 45mm

Sonar fishfinder frequency: 200KHz

Sonar fishfinder angle: 20 degrees

Water depth detection range: 1-30 meters.

Depth detection resolution: 0.1 meters

Underwater outline display: Yes

Water temperature detection range: 0-50 degrees Celsius

Display unit conversion: m/in; Celsius/Fahrenheit

Remote control frequency: 2.4G

User-selectable remote control channel: 250

Low battery alarm: Yes

Remote control distance: 300 meters

GPS accuracy: radius ≤ 5m

GPS satellite capture time: 0.5 - 5 minutes

Current latitude and longitude display: Yes

Maximum navigation distance: 1000 meters (Note: The maximum navigation distance is not a remote control distance. For example, a fishing friend first uses a nesting boat at point A, and drives the boat to point B. The distance between A and B is less than the remote control distance 300. m; The next time the netizen moves to point C, if the two points C and B are less than 1000 meters and they are in the same water surface with no obstacles, they can also navigate the boat from point C to point B.

J

1. Sample available; accept trail order; OEM/ODM

2. If you want to import some products to test the market, we can lower the MOQ .

3. Agency is most welcomed!

4.Warranty: Half a year after you received the item, free electronic components for your problem boat.

5.Small orders shipped directly from Germany warehouse.

Shenzhen ZHJABO Electronics Co.,Ltd is a company specializing in designing, producing,direct selling, great after-sale service, OEM&ODM remote control fishing bait boat for 8 years. Quality is our culture, we got lots of CE&RoHs certifications.
We also had honor to serve many peer companies with our JABO fishing bait boat. And “JABO” has the honor to be one of most popular word on Alibaba platform.
Till now, our main RC fishing bait boat has contained four series, each series has its own advantages.
JABO-1 series is the smallest one among all boats with single hull, single propeller. JABO-2 series is the best selling among our boats. JABO-3 series, the featured products and JABO-5 series both are the double hull, double propellers boat.
All of our boats with built-in propeller are convenient for using, avoid the aquatic plants. Special design for the shape is Anti-wind and anti-wave. High quality engineering plastic as material is portable. Till now, JABO remote control fishing bait boat has the lead-edge GPS and sonar fish finder, which will be soon upgrade to GPS navigation and underwater imaging system.
More upgrade versions and new boats will come soon.
Our mission is let you place order to us with confidence!

HUGE PRODUCTIVITY:
We have the huge-productivity product line provide 2000 sets fishing bait boats per month.
RICH EXPERIENCE&LEAD-EDGE TECHNOLOGY
We have made fishing bait boats for 8 years and have mature Lead-edge technology with GPS and sonar fish finder, which will soon upgrade to GPS navigation and underwater imaging system.
MULTIPLE QUALITY TESTS:
Assembly test, Finished check test, Function test before packaging
Final recheck test before shipping
MOST FAVORABLE PRICE:
We give you most profit anyone can not provide.
Agents has more discount for per order.

Fishing bait boat Certifications:

Q: All boats of JABO Brand is remote control fishing bait boat?

A: Yes, all with intelligent handset.

Q:All fishing bait boats have GPS and sonar fish finder?

A: No,till now there are JABO-2CG, JABO-3CG and JABO-5CG fishing bait boat     are with GPS and sonar fish finder.

Q:All JABO fishing bait boats could enjoy half-year warranty?

A:Yes,any fishing bait boat with JABO Logo could enjoy our warranty.

Q:Are your boats shipped from Germany?

A:Yes,small order could be shipped directly from Germany immediately after payment received.

Q:Are you looking for Agency?

A:Yes, we are looking for agency around the world.
