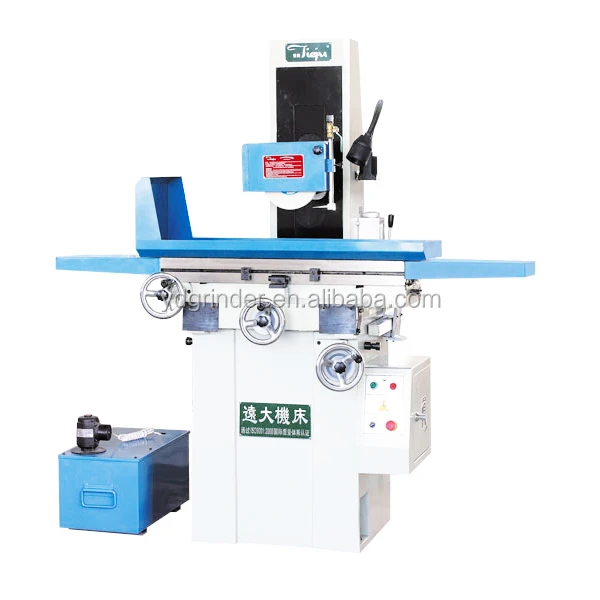

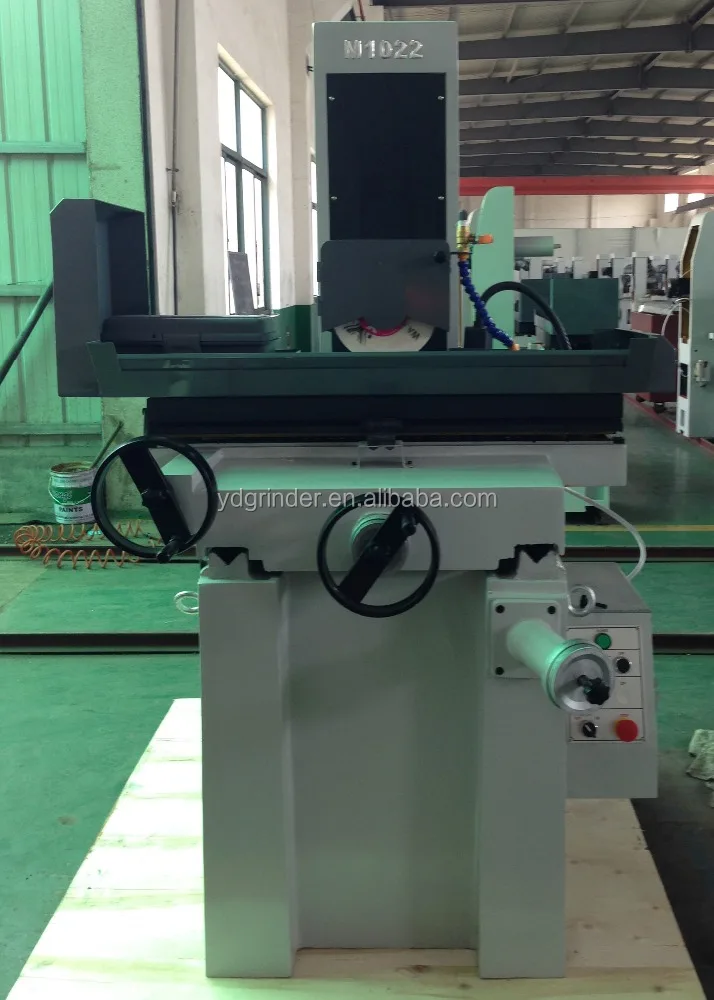

Flat grinding machine flat surface grinder price M1022

Model

M1022

Working table

Table Size (L× W)

mm

540×250

Max movement of working table(L× W)

mm

560×260

T -Slot number×width

mm

1×14

Grinding head

Max distance from spindle center to table surface

mm

420

Wheel Size(Outer diameter×width×Inner diameter)

mm

φ200×20×Φ31.75

Wheel speed

50HZ

r/min

2850

60HZ

3360

Feed amount

Vertical feed on  handwheel

Per revolution

mm

4.0

Per graduation

mm

0.02

Cross feed on handwheel

Per revolution

mm

1.25

Per graduation

mm

0.01

Motor power

Spindle motor

kw

1.5

Coolant pump motor

w

40

Working precision

The parallelism of working surface to base level

mm

300:0.005

Surface roughness

μm

Ra0.32

Weight

Net

kg

850

Gross

kg

950

Overall dimension(L×W×H)

mm

1680x1220x1720

Package dimension(L×W×H)

mm

1200x1400x1940
