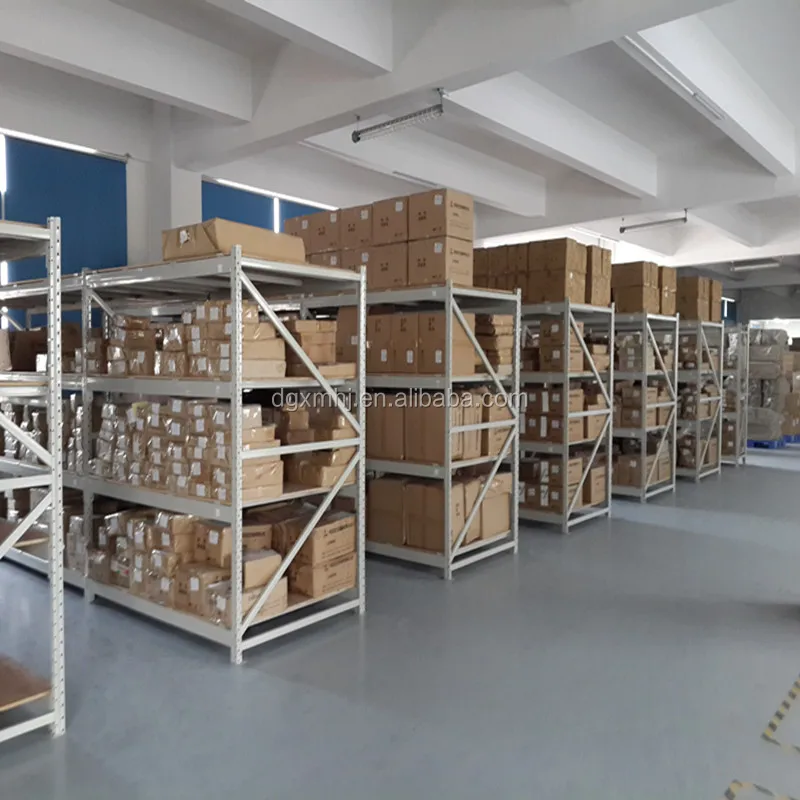

Cheap Storage Warehouse Metal Medium Duty Weight Goods Stacking Racks & Shelves
- Category: >>>
- Supplier: Dongguan Xinmiao Storage Equipment Co. Ltd.
Share on (60521650822):
Product Overview
Description
Product Description
Medium Duty Rack:
Medium duty rack belongs to warehouse storage racking systems.It can be adjusted by each 50mm,and the load capacity can be reach 200~500kg.The beam is "P" type beam,whose height mataches with that of the layer board.
Standards Size | Layer | Loading Weight | Beam(mm) | Upright(mm) | Thickness of Board(mm) |
L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
Product Name | Medium Duty Rack/Shelf | |||||
Material | High-Quality Q235 Colded-Coll Steel | |||||
Loading Capacity | 200~500kgs/level | |||||
Thickness | Upright:60*40*1.0,1.2,1.5mm,Beam:60*40/80*40*1.0,1.2,1.5mm,Steel:0.5,0.6,0.7mm | |||||
Color | Upright:bule,Beam:Orange,Steel:Gray white.It can be customized any color. | |||||
Surface Treatment | Electrostatic Spray Surface; | |||||
Packing Term | Air bubble,Carton,Wooden Case. | |||||
Warranty | 10 Years | |||||
Certification | ISO | |||||
1.Long span shelving rack is very convenient for installation. 2.The adjustment distance of steel layers is 50mm for multiple usages. It is consisted of vertical columns, layer plates, corner pieces, pins, special bolts and plastic footing. 3.The surface is electrostatic sprayed and the color is selectable. It has good ability of corrosion protection and rust protection. 4.It is widely used in families, stores, supermarkets, company storages and public institutions. It is the most updated products. | ||||||

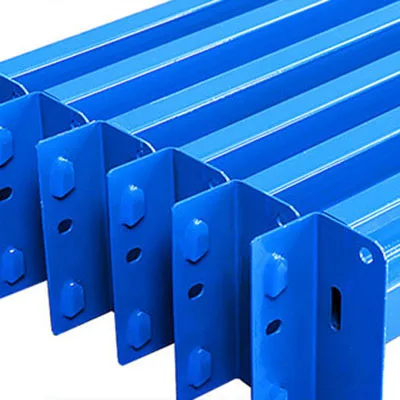

Beam Loading Capacity&Size
\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t
Medium Duty Rack | ||
Size | L2000*D600*H2000mm, Loading:300kg/layer,Layer:4 levels. | |
Material | Upright:60*50*1.0,Beam:60*40*1.2, Steel:0.5mm | |
Color | Upright is bule,beam and steel is gray white. | |
Packaging Term | Air bubble; | |
Surface treatment | Powder Coating | |

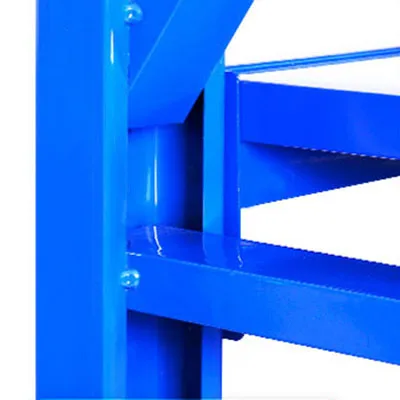

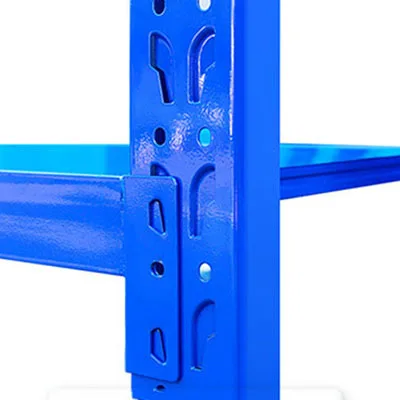

Beam&Upright Connect
Diagnal&horizontal bracing Installed
Steel Board Section
\t\t\t\t\t\t\t\t\tHot Sale \t\t\t\t\t\t\t
Company Information
About Xinmiao
Dongguan Xinmiao Storage Equipment Co.,Ltd. devotes itself to the design and manufacture of storage equipment.We are specialised in producing various pallet racking, longspan shelving, warehouse rack,mould rack,wire container,mobile filing cabinet,cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, stacking racking and other related storage equipment.
Through products and service aimed at providing complete assistance for all warehouseing,products showcasing and sales outlet requirements. We are able to offer our customers a wide range of products of highest quality with competitive price,as well as rapid delivery time and first-class back-up service.
\t\t\t\t\t\t\t\t\tColor As You Request \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPackaging & Shipping \t\t\t\t\t\t\t

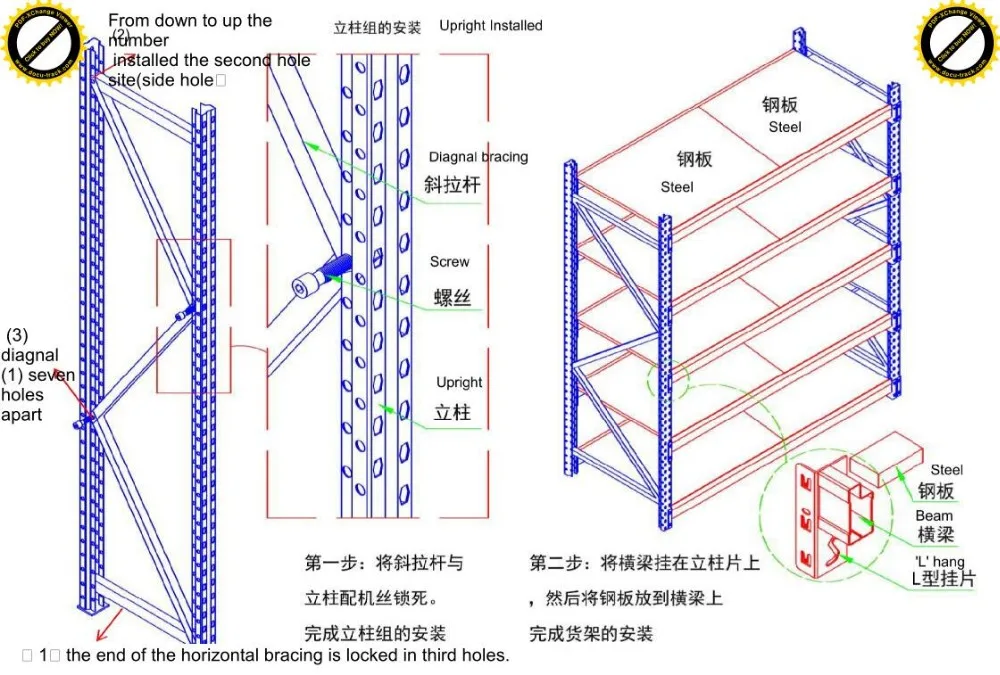

Install drawing 1
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Chang'an City, Guangdong Province, China, near Shenzhen.You can fly to Shenzhen&Guangzhou airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is he material of your products?
A: The material is Q235 Cold rolled steel . We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. Jusonwoodpeople always attach great importance to quality controlling from the very beginning to the very end. Our factory has ISO9001 2001authentication.
