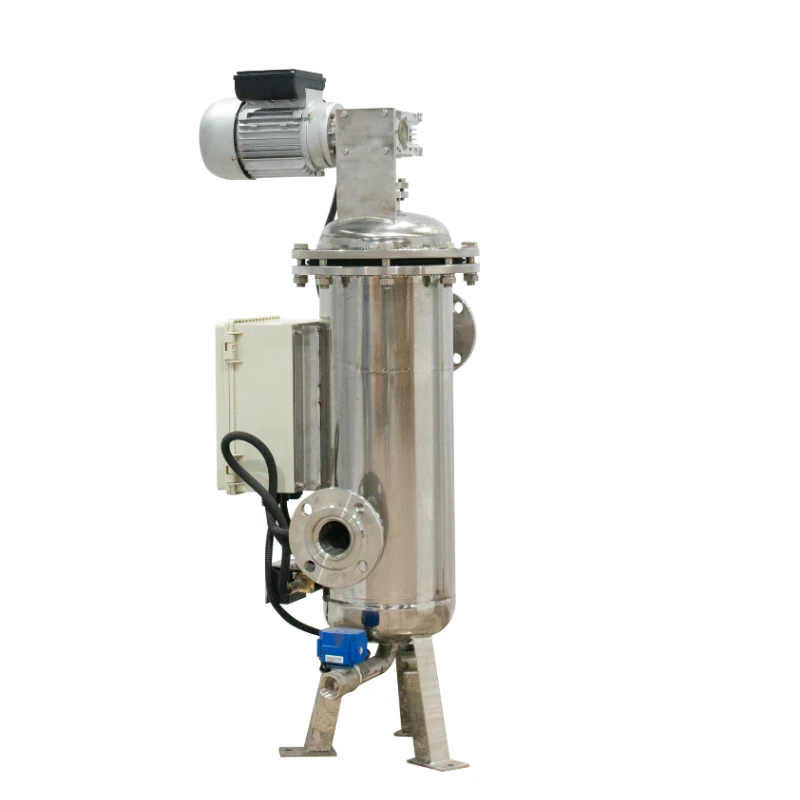

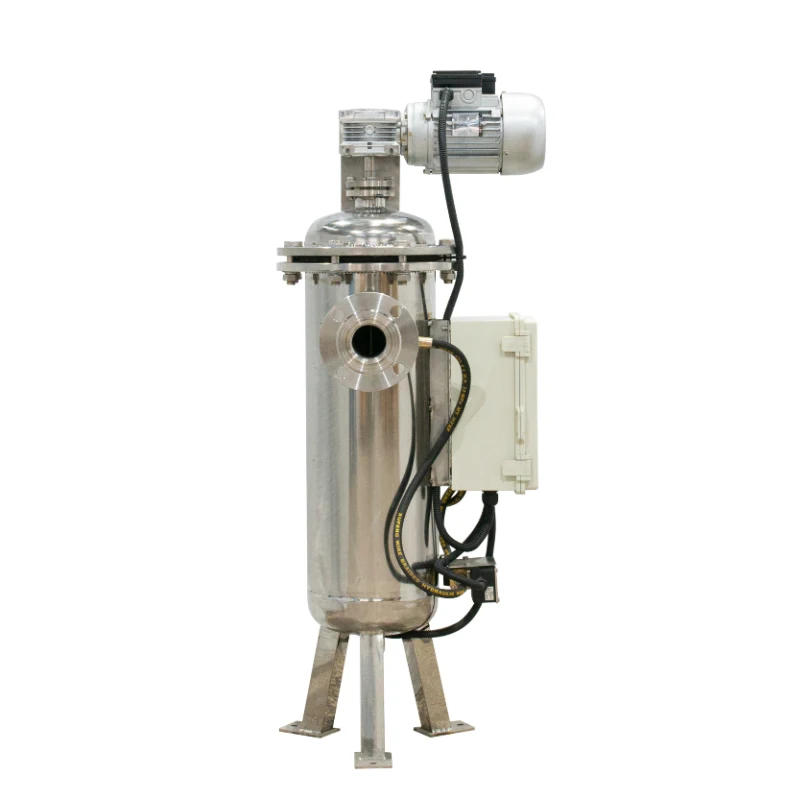

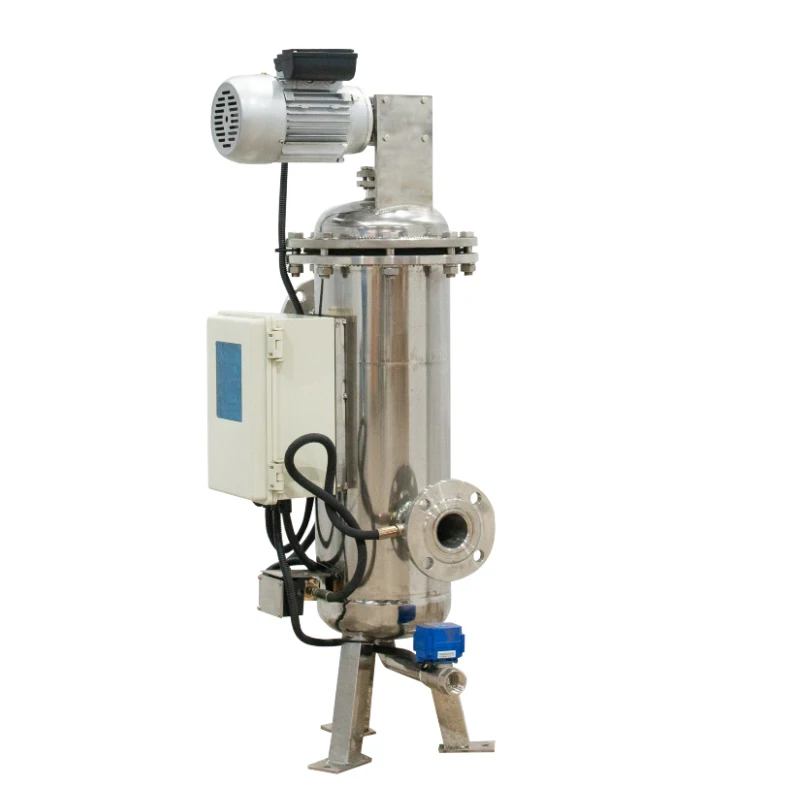

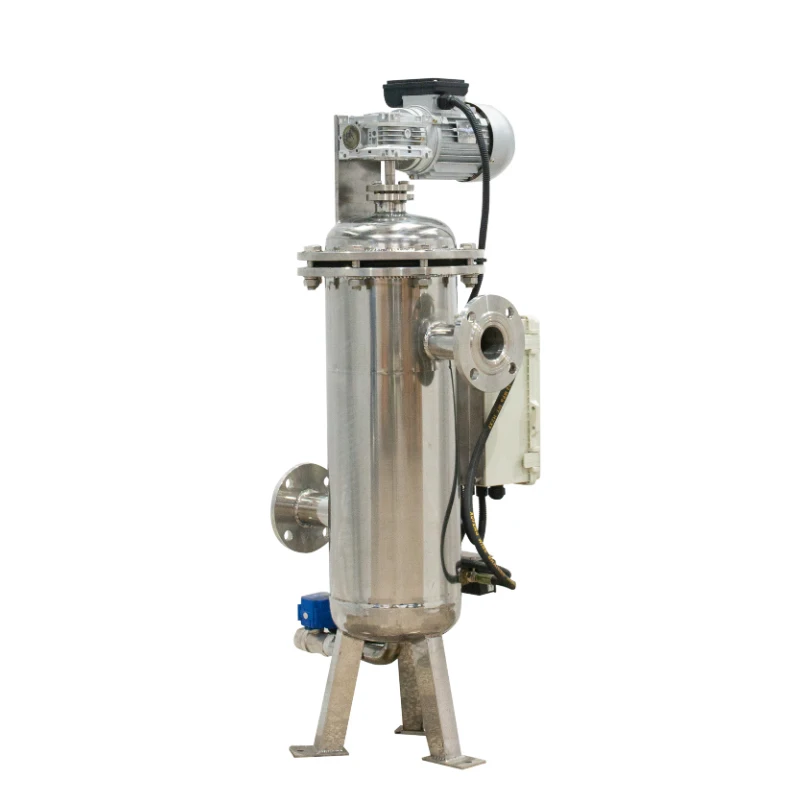

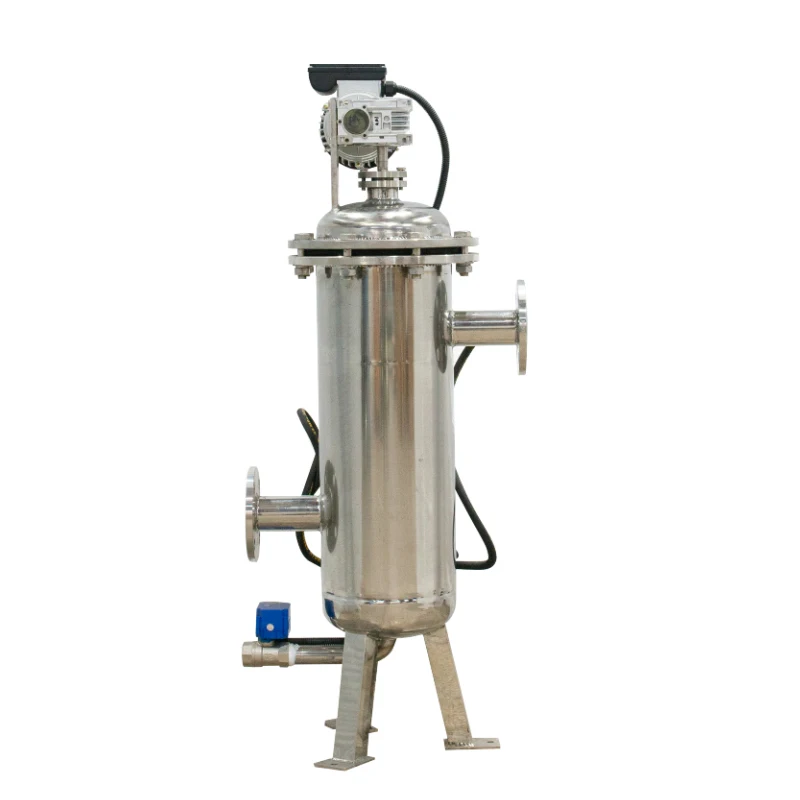

100 200 Micron Automatic Self cleaning Water Filter For Cooling Towers Water Filtration

Automatic water filter:

In certain areas, it may prove impossible to use a large surface water source to provide adequate cooling water. Some examples include the lack of a suitable source in close proximity, increasingly stringent regulations which prohibit the use of surface water for once through cooling, etc. The requirement is then for a system which will provide a constant supply of cooling water, without requiring a large external water source. Cooling towers are the most common solution when faced with this problem.

Although cooling towers can exist in many forms, they all involve the main principle of exposing as much surface area of the water as possible to a draft of ambient air. This usually involves spraying the water over a series of baffles or similar material. As the water travels down through the tower, it impacts successive layers, which break the water droplets apart, exposing more and more surface area. At the same time, an ambient airstream is either forced or induced, usually in a counterflow or cross flow direction, contacting the water and removing the excess energy.

The cooling tower is a source of several kinds of particulates, which could be detrimental to the system. By nature, it acts as an air scrubber, that is, any airborne particulates with which the water comes in contact are removed from the air and carried into the cooling system. In addition, organic matter can grow on the surfaces of the tower, occasionally breaking free and entering the cooling system.

Applications scopes

• Well water   Water strainers provide an effective filtration of well water to reduce operating costs by eliminating down time for maintenance and preventing equipment damage caused by high dirt loads.


• Hydroelectric Dam water used for the cooling of the turbine bearing and sealing equipment of the hydroelectric power plants creates fouling in the pipes and heat exchanging surfaces and damages turbine bearings and seals.


  Automatic self-cleaning water filters extend the life of bearings and seals equipment.





• Fish Farm Fish farms must have clean, purified water to ensure optimum conditions for fish production.


  Automatic water filter provide the most convenient and hygienic filtration for aquafarming.





• Cooling tower and HVAC By using automatic self cleaning filters in the cooling system, either as sidestream or full flow applications, you will avoid system maintenance shut downs and also decrease chemical consumption for water conditioning.


• Steel Industry and Nozzle Protection Industrial water filters provide a perfect solution to prevent clogging of nozzles and to maintain non-stop production of high quality steel.


  Our special "high energy back-flushing system" avoids screen blockages from oil and grease which are expected to be present in cooling water used in the steel industry.





• Irrigation Automatic self cleaning filters protect irrigation and fertilizing systems from all kinds of particles and assure years of continued operation without the clogging of drippers, springlers, etc.


  Irrigation water filters with patented technology are the perfect water purification solution for golf courses, agriculture and gardening with their ability to filter water sources with very high dirt loads.





• Sea Water Automatic self cleaning filters are used for sea water filtration on oil platforms, protection of heat exchangers, Ultra-Filtration and Reverse-Osmosis units.


  Sea water filters provide permanent solution with rubber coating over stainless steel body.





• Surface water, ultrafiltration & Reverse Osmosis  Our surface water filtration units provide both coarse and fine automatic filtration for lake and river water purification.


  Thanks to our patented new technology, you can expect an amazingly high dirt removal efficiency with two consecutive stages of advanced vacuum nozzle cleaning system and completely prevent consequent loss of efficiency in heat exchangers, nozzles, ion exchange systems, seals, membranes and other sensitive equipment.







  Specifacation:
















































































  Model	Inlet and outlet parameter		Drain	Flow rate(T/H)
  	mm	in	mm
  YL-X-50	50	2	25	19
  YL-X-80	80	3	25	50
  YL-X-100	100	4	25	80
  YL-X-125	125	5	32	125
  YL-X-150	150	6	32	150
  YL-X-200	200	8	40	200
  YL-X-250	250	10	50	250
  YL-X-300	300	12	50	300
  YL-X-350	350	14	65	350
