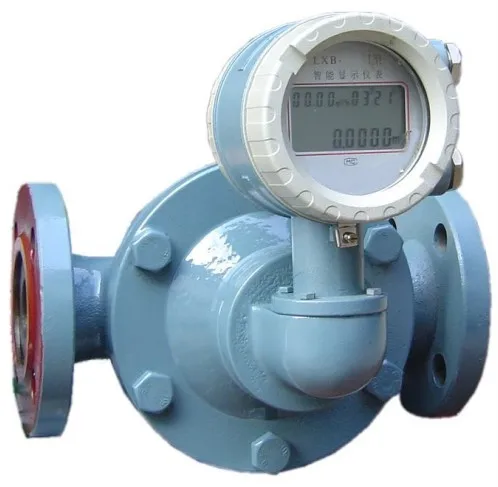

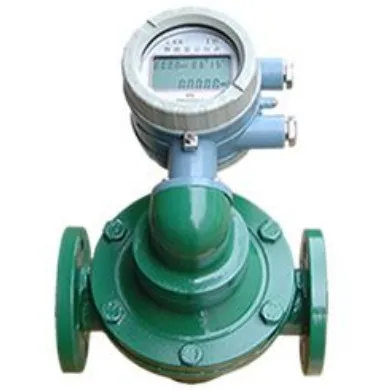

LC Digital Oval Gear Flow Meter Crude Oil Flow Meter Heavy Fuel Oil Flow Meter Vegetable Oil Flow Meter Flowmeter

Share on (60521849635):


Price:

Quantity:


Product Overview

Description



 photobank(24)








www.meterytech.com








Technical parameters of LC Digital Oval Gear Flow Meter Crude Oil Flow Meter Heavy Fuel Oil Flow Meter Vegetable Oil Flow Meter










































Inside nominal diameter (mm)



8~250



Accuracy



0.2%,0.5%



Pressure loss



0~1000Mpas<80kpa



Wirking pressure



1.6,2.5,4.0,6.3,10,16,25,42MPa



Temperature range



-20°C~+300°C



Dielectric viscosity



0.1~1000Mpas



Environment condition



The temperature of -20 °C ~ +50 °C moisture ≤ 85%, pressure 86kpa ~ 106kpa



Connection flange



GB, the other can according to user specified flange standard



Anti-hazard classification



Intrinsic safety type laII CT4, explosion suppression dII BT4









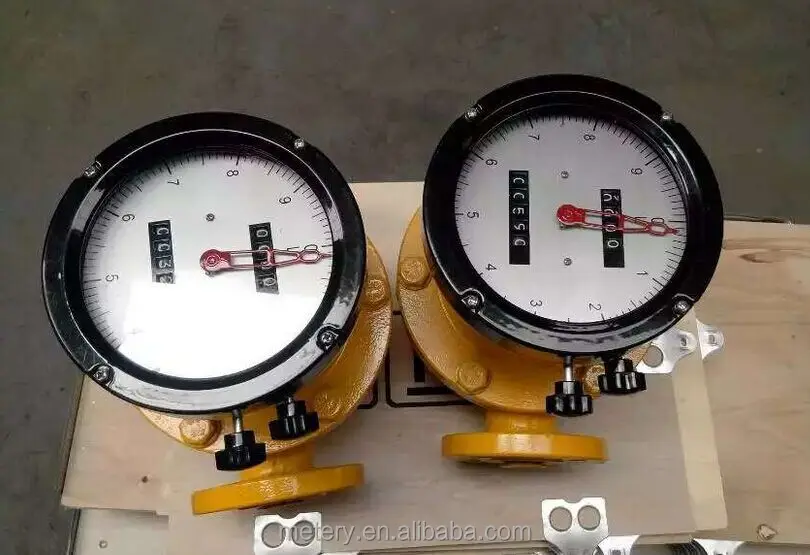

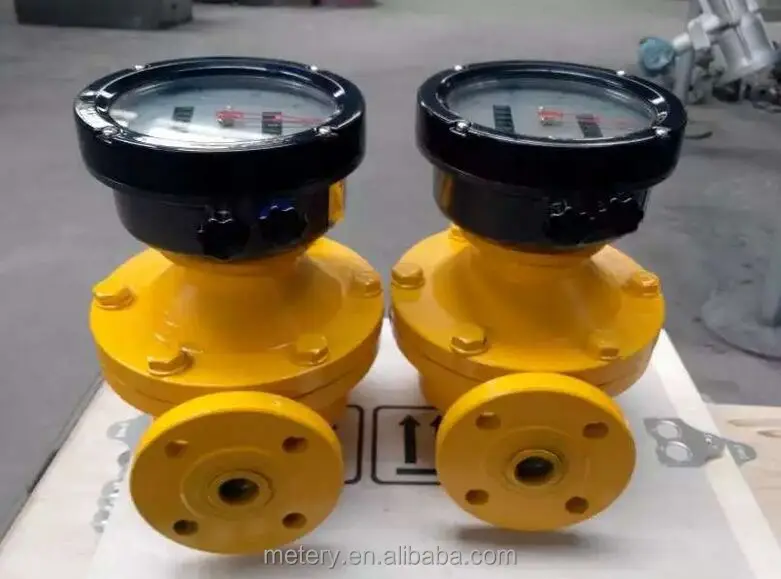

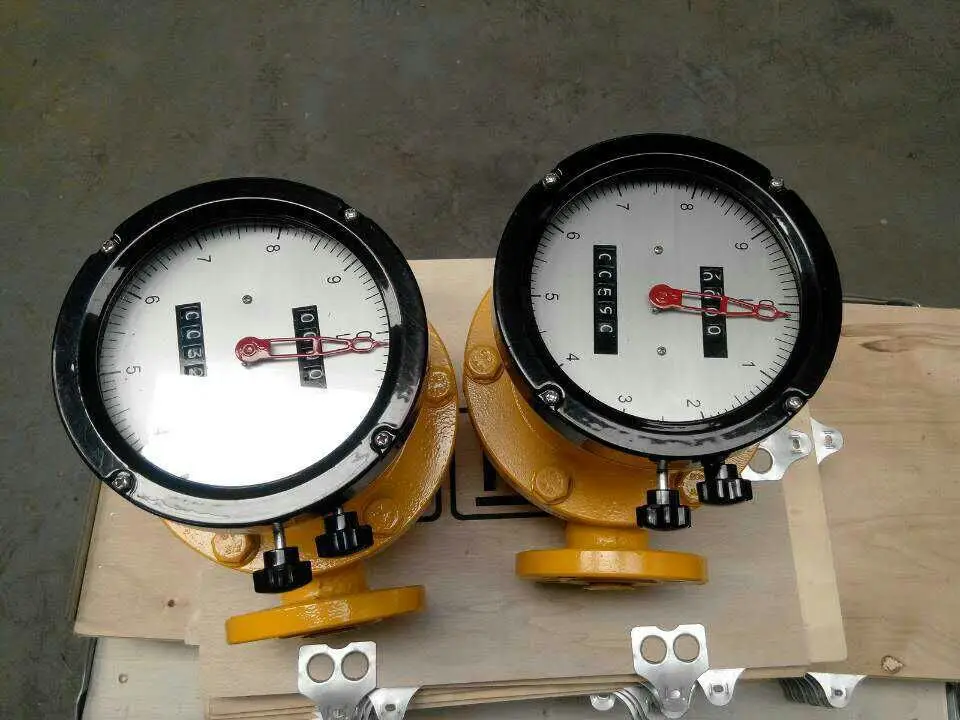

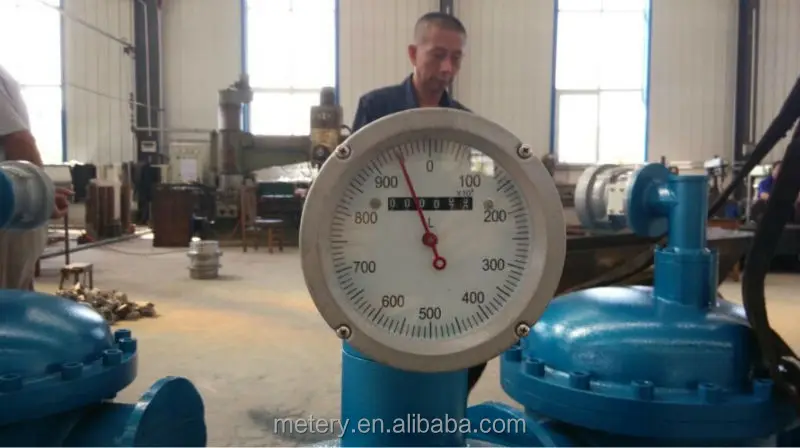

Product Details of LC Digital Oval Gear Flow Meter Crude Oil Flow Meter Heavy Fuel Oil Flow Meter Vegetable Oil Flow Meter











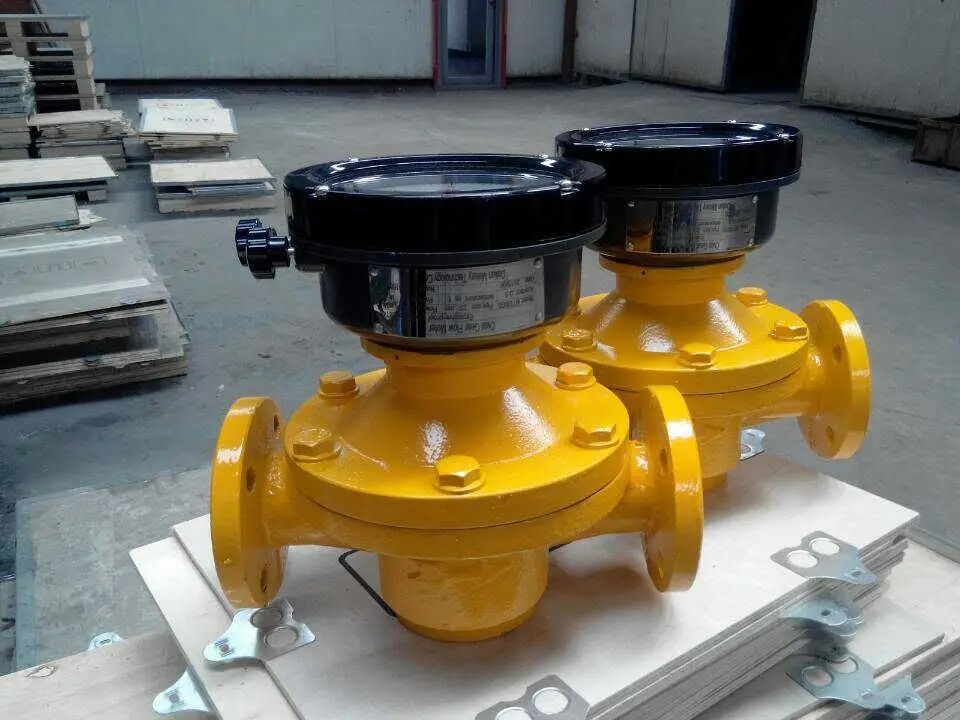

oval gear.4











oval gear.3














Flow range










































































Inside nominal diameter (mm)



Flow range  m3/h



Accuracy class 0.5



Accuracy class 0.2



8



0.05~0.5



0.1~0.3



10



0.1~0.6



0.2~0.6



15



0.16~1.6



0.5~1.5



20



0.25~2.5



0.8~2.4



25



0.6~6.0



2~6



40



1.6~16



5~15



50



2.5~20



6~18



80



6~48



12~48



100



8~80



20~60



150



25~200



60~180



200



45~360



100~300



250



80~500



150~450



Note: Can be custom-made non-standard flow meter





Overall dimensions for installation



























































































Type and nominal


diameter(mm)



Flange spacing-L



Total height-


H



Center height- M



Material quality



Pressure rating -MPA



Installation



MT 8



180



260



35



carbon steel


304


316



1.6


2.5


4.0


6.3


10


26


42



horizontal type



MT 10



180



260



50



MT 15



180



260



60



MT 20



240



300



100



MT 25



240



300



100



MT 40



280



350



150



MT 50



280



350



150



MT 80



400



500



250



MT 100



400(560)



600



300



MT 150



650(700)



700



350



1.6


2.5


4.0


6.3



MT 200



1000(800)



700



350



MT 250



1000



800



400






Structure and working diagram


5588





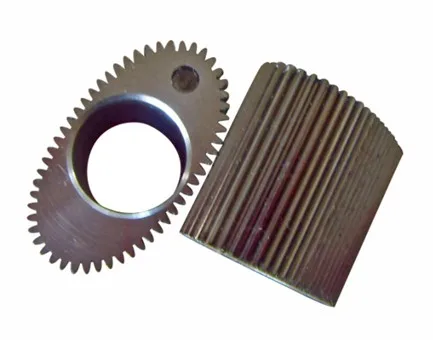

Detailed Mechanical Principle

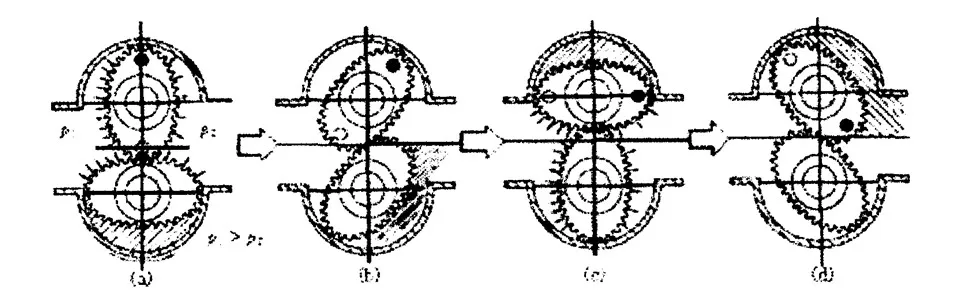

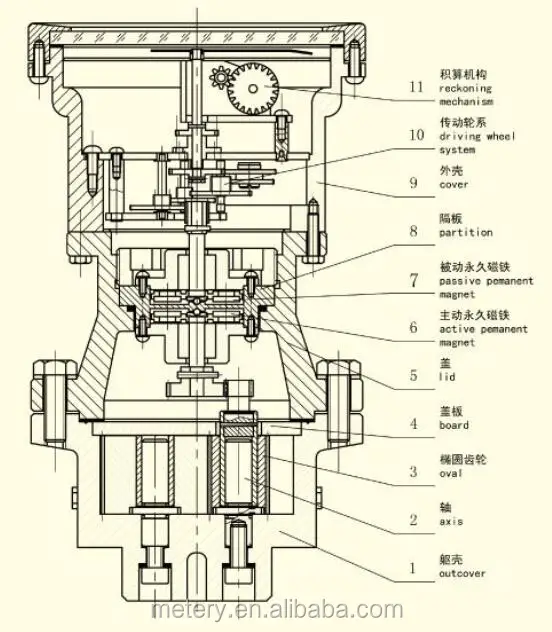

structural diagram of oval gear flow meter.











Installation Diagram

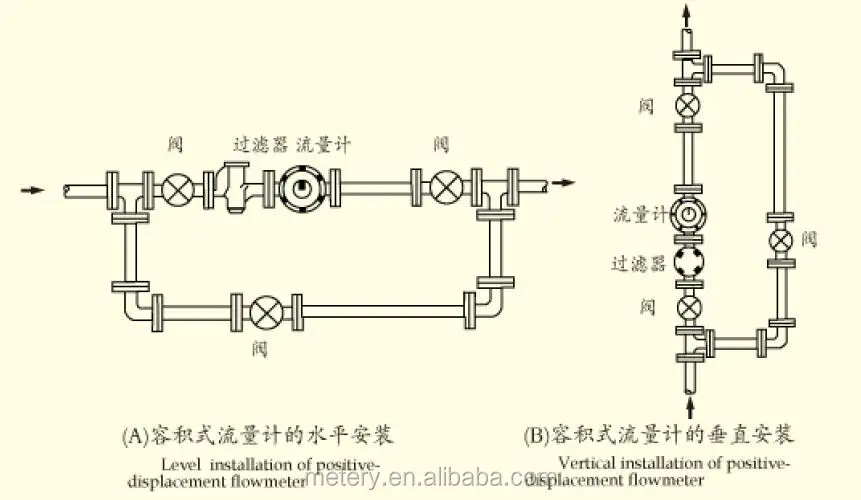

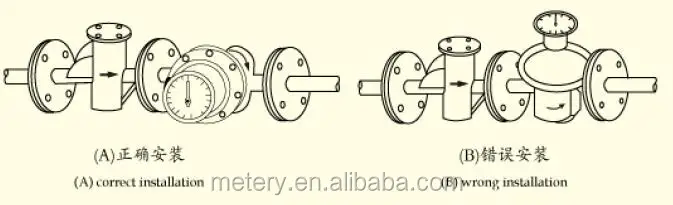

Installation diagram
