Industrial machinery Paper pen making machine price for commerical using
Introduction of paper pen tube making machine
The machine mainly making paper tubes,automatic cutting with high effciency.The machine is suit for making paper pen tube,paper straw,yarn tube ,etc.Tube range is at 5-30mm diamter.Also can customzie machines according ur customer detail requests.
Features of paper pen tube making machine
1.Automatic & high efficiency
2.Function:Making small diameter tubes.
3.Customzie machines according to customer demands.
Specification of paper pen tube making machine
specification | Control system | ||
Number of roller | 2-8 layers | Main power | 2.2 KW |
Tube diameter | 5-30 mm | PLC control | Taiwan |
Tube thickness | 0.5-3 mm | Touch screen | Beijing |
Rolling speed | 3-20 m/min | Length fixed method | Optoelectronic switch |
Operator | 1person | Glue way | Automatic |
Glue method | Double sides | Cutting motor | WANXIN |
Winding head | 3 | Dimension & size | |
Cutting method | Saw blade
| Main machine size | 1600*1200*1200 mm |
Core mould fixed way | Three jaw chuck | Total weight | 1000 KG |
Equip device | Area space | 7000*5000 mm | |
Paper shelf stand | have | Belts | 4 |
Glue system | have | Core mould | 2 |

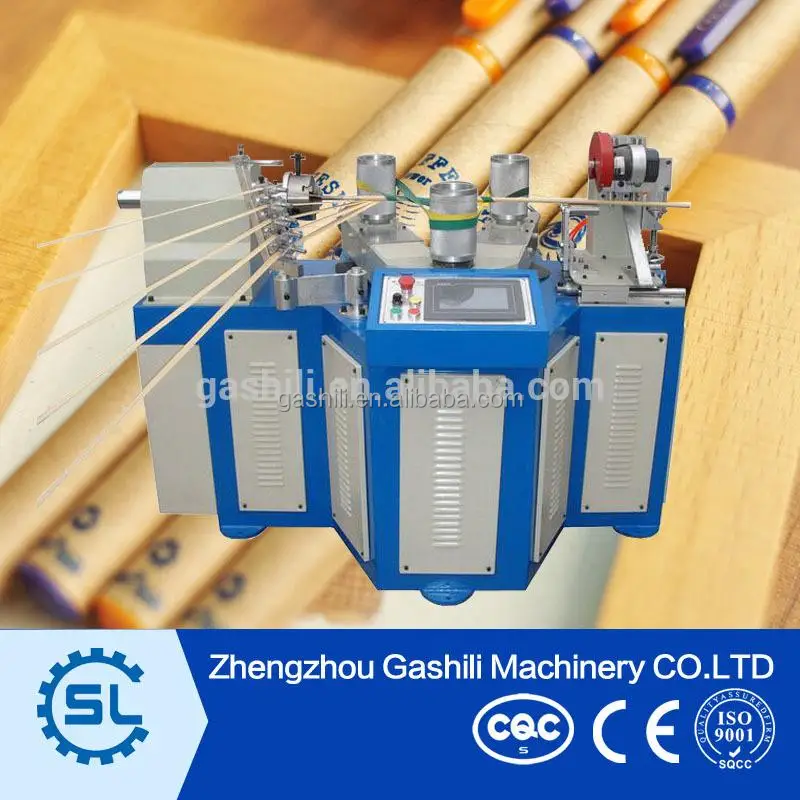

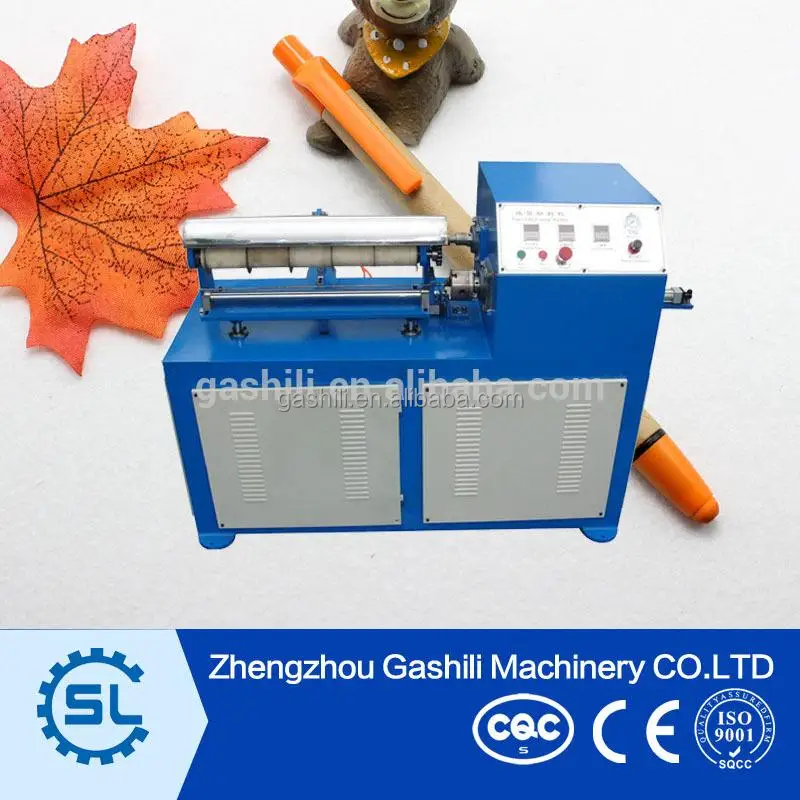

Photos of paper pen tube making machine
