2CR1/3N 3v lithium battery CR2 cr123a crp2 for GPS Security systems with green shrink wrap

Product Overview

Description

 camera photo battery 2CR1/3N CR2 CR123A

6V 2CR1/3N lithium battery



1.Model:2CR1/3N
2.Nominal Voltage:6V
3.Nominal Capacity:170mAh

4.Max.constant current:60mAh

5.Max.pulse current:1000mAh

6.Operating temperature range:-40°c~+85°c

7.Nominal weight:7g

8.Max.Outer dimensions :11.9×22.0mm

9.Application:Radio communication transmitter-receiver, underwater weapons, medical instruments, RFID active tag/card, automatic sanitaryware, intelligent IC card, PC computer RAM, CMOS memory backup powersupply, portable communication equipment, time counter, number counter and so on.



Certificates: CE,ROHS,MSDS etc.

Packing: bulk





Related Models:

Model	IEC	Nominal Voltage (v)	Nominal Capacity(mAh)	Max. Continuous Current(mA)	Max. Pulse Current(mA)	Operating Temperature	Max. Dimension (mm)	Weight(g)
CR11108	CR1/3N	3	170	60	80	-40°C~+80°C	11.6*10.8mm	3
CR15270	CR2	3	800	500	1000	-40°C~+80°C	15.5*27.5	11
CR14250	1/2AA	3	800	100	200	-40°C~+80°C	14.5*25.0	9
CR14250SE	1/2AA	3	950	7	70	-40°C~+80°C	14.5*25.0	11
CR14505	AA	3	1400	1500	3000	-40°C~+80°C	14.5*50.5	21
CR17335	CR123A	3	1500	1500	3000	-40°C~+80°C	17.0*34.5	16
CR17450	4/5A	3	2200	1500	3000	-40°C~+80°C	17.0*45.0	23
CR17450SE	4/5A	3	2400	15	150	-40°C~+80°C	17.0*45.0	28
CR34615	D	3	10000	2000	3000	-40°C~+80°C	34.2*61.5	120
CR-P2	-	6	1400	1500	3000	-40°C~+80°C	19.5*34*35.8	42
2CR5	-	6	1400	1500	3000	-40°C~+80°C	17*34*45	43
CR9V	-	9	800	120	400	-40°C~+80°C	17.2*26.0*





2CR1/3N Lithium Battery

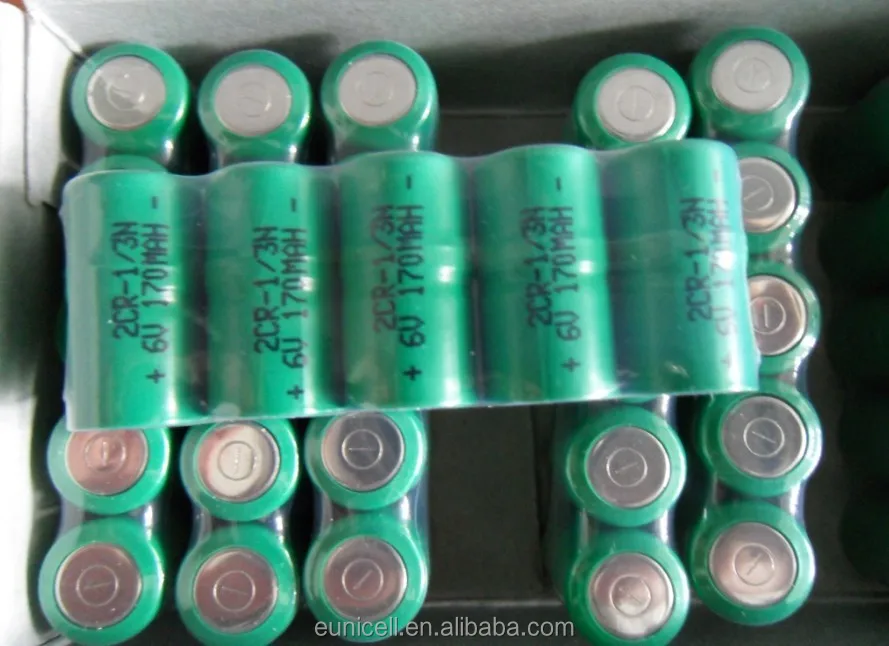

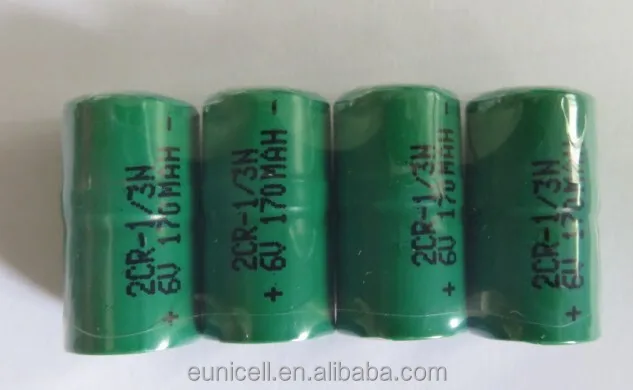

CR1/3N shrink wrapped batteries

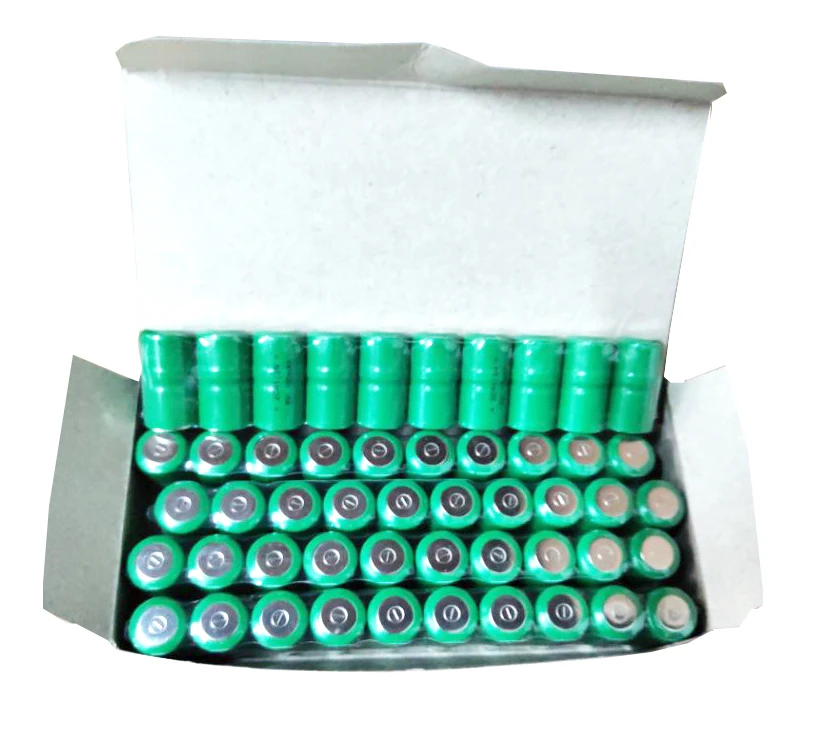

bulk packing
