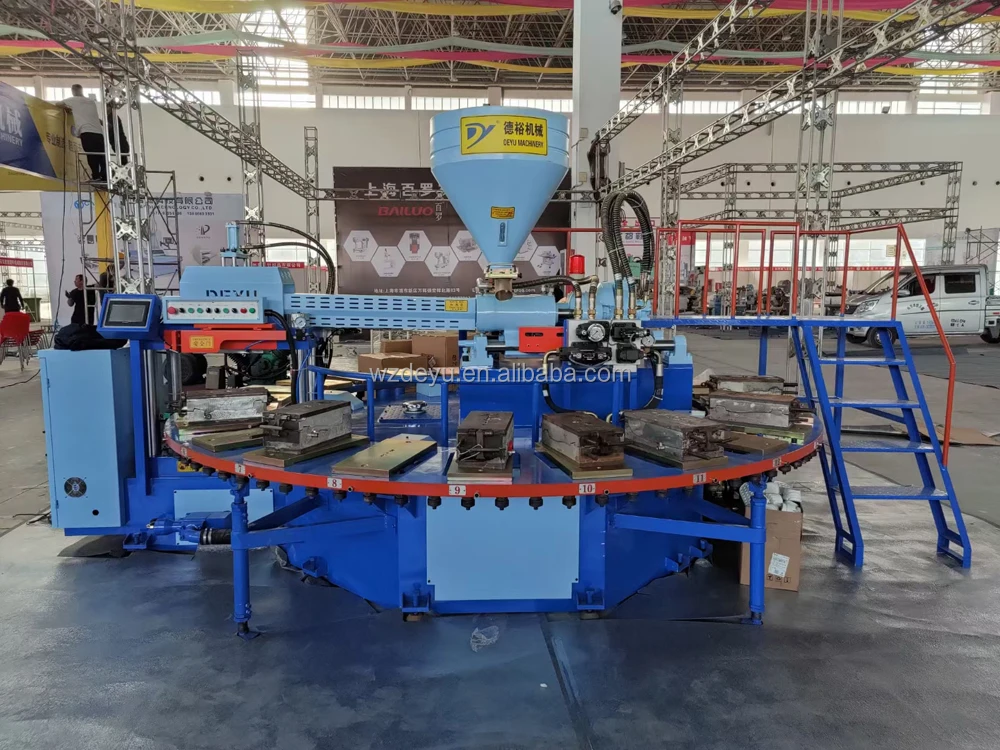

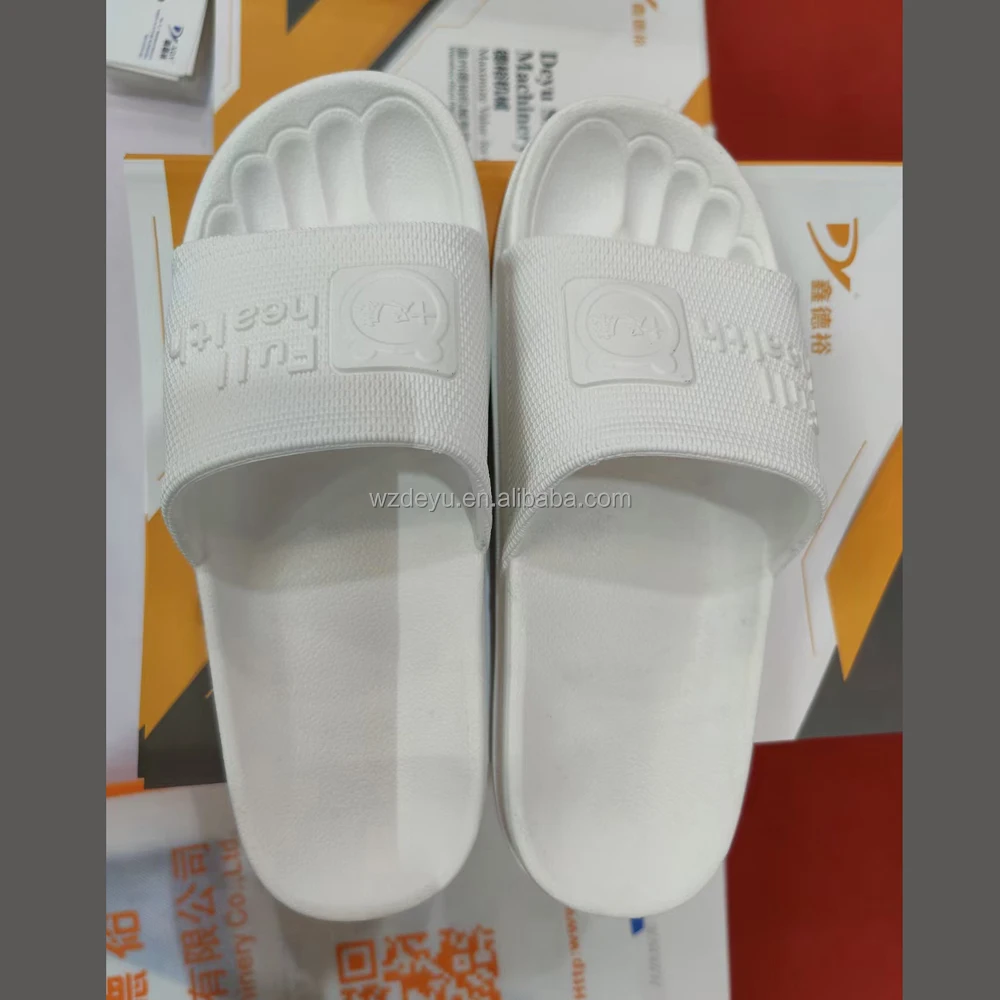

1.The machine is used for pvc pcu air blown slipper, shoes and soles. 2.normal motor and servo motor two choices for saving energy use. 3.semi-automatic mould operation can Saving labors 4.one time injection for complete slipper. 5.Qualified products 6.15 to 20 days for machine preparation, quick response to market require. 7.Easy operation, and provide different PLC languages for customers from different countries. 8.Fully automatic operation with PLC complete control 9.Unexperienced workers can also run the production. 10.Convenient maintenance
Feature

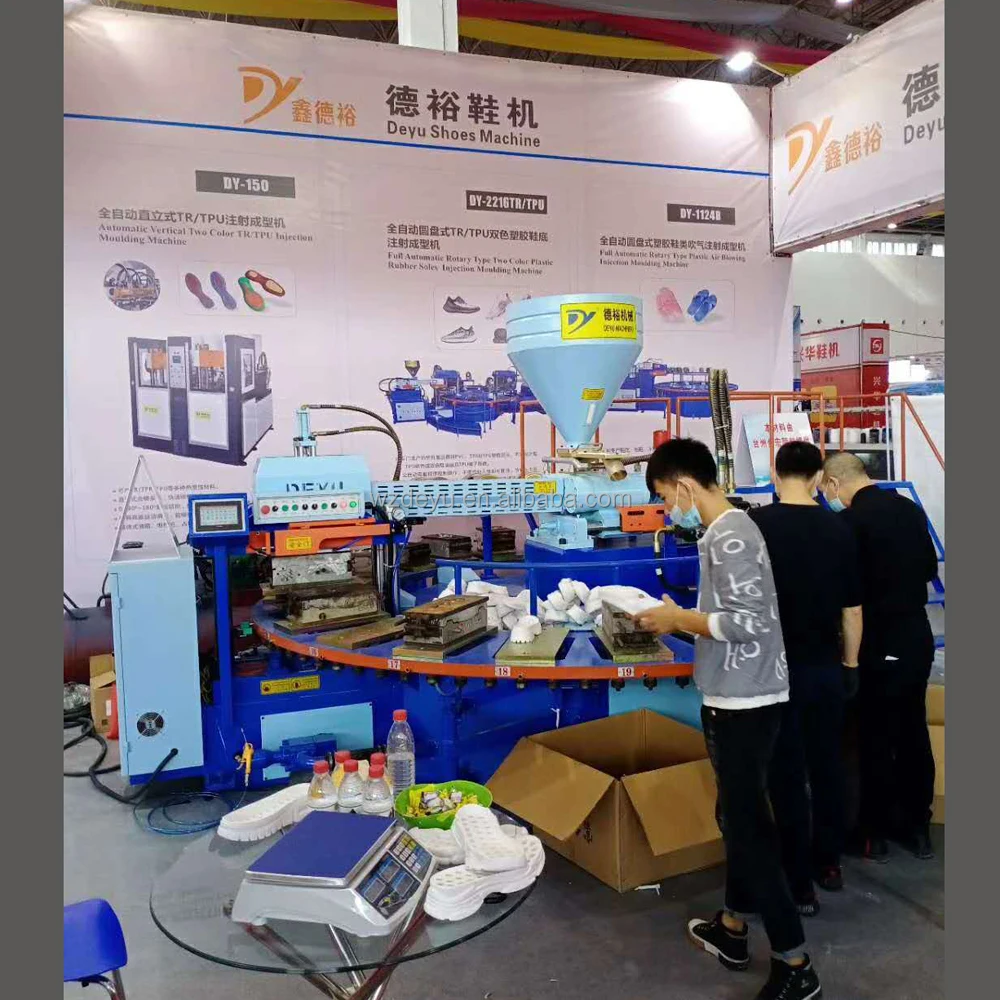

1.This rotary air blowing shoe making machine is specifically used for producing two /three color rain boots/jerlly shoes in PVC/TPU/TPR. 2. PLC control of industrial human-machine interface and touch screen, easy for operation. 3. Precise digital measurement. 4. Manipulator adopts stepper motor; the drive system has been updated. It can save labour and improve productivity. 5. Rubber melting adopt material clamping setting, melting back pressure could be adjusted freely to make products perfect. 6. Reasonable layout, simple operation, it could be used without professional operator. 7. This machine has servo system for customer to choose; the oil-cooling servo motor can maintain oil temperature and lengthen service life of the machine. Servo system can save electricity and energy. Under normal circumstances, Servo system can save 20%-50%.
Why choose us
1.factory price 2.quick delivery 3.sample available 4.customized design, logo can be done 5.high quality and reliability 6.muilti language PLC operation for different countries.

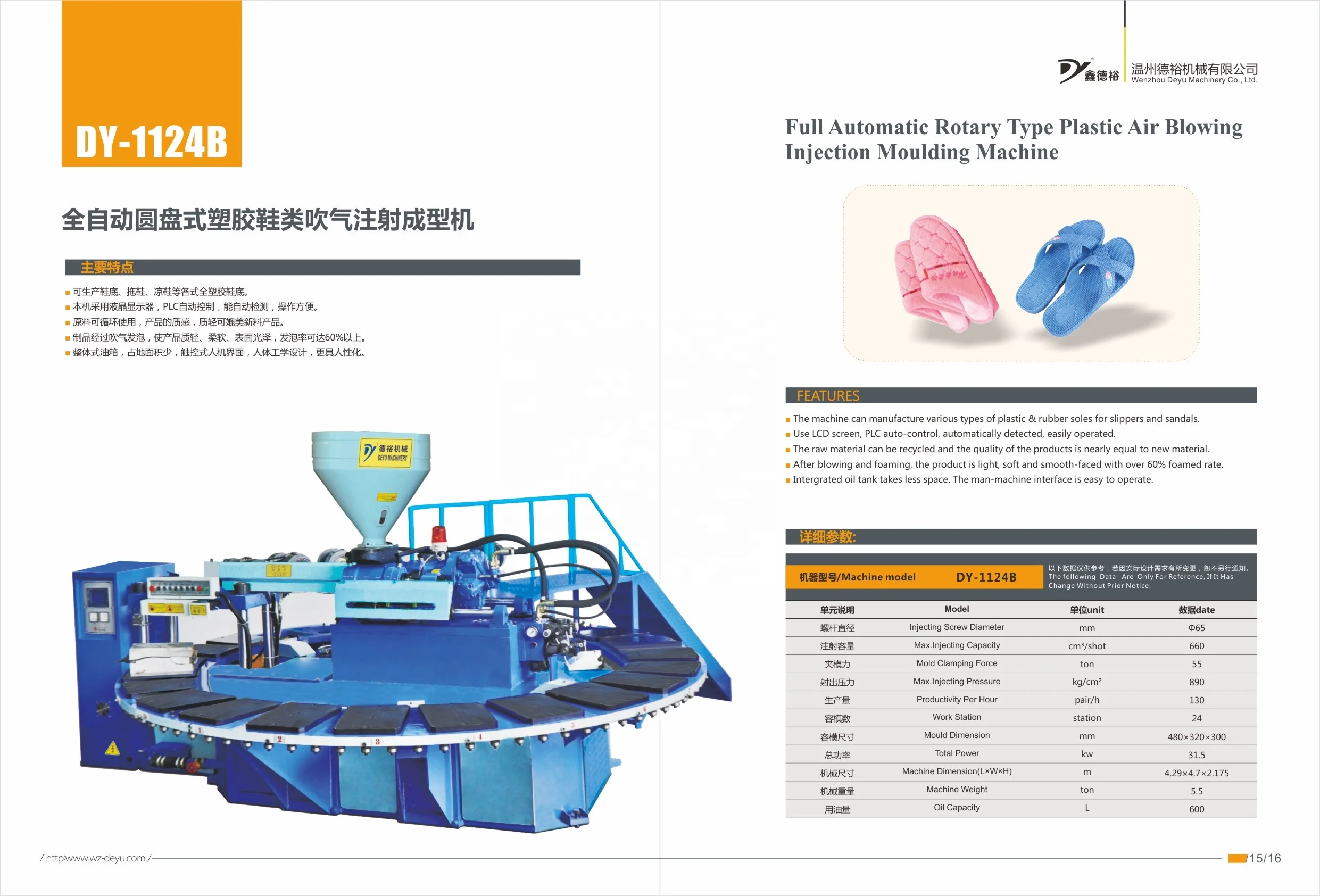

MODEL
UNIT
DATA
Injecting Screw Diameter
mm
φ65
Max Injection Capacity
cm³/shot
660
Mold Clamping Force
ton
55
Max Injection Pressure
kg/cm²
890
Productivity per Hour
pair/h
130
Work Station
station
24
Mould Dimension
mm
480×320×300
Total Power
kw
31.5
Machine Dimension(L×W×H)
m
4.29×4.7×2.175
Machine Weight
ton
5.5
Oil Capacity
L
600

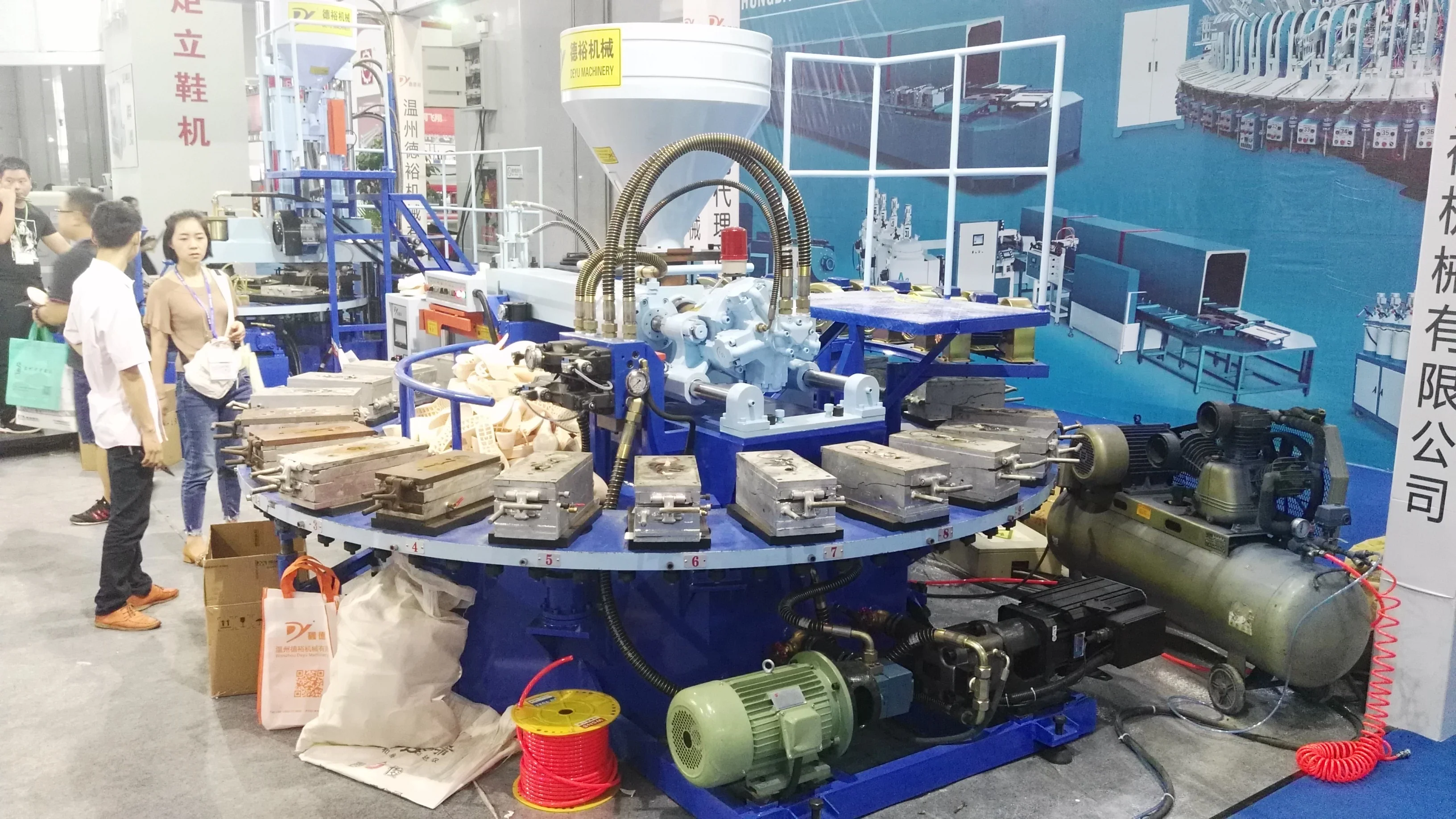

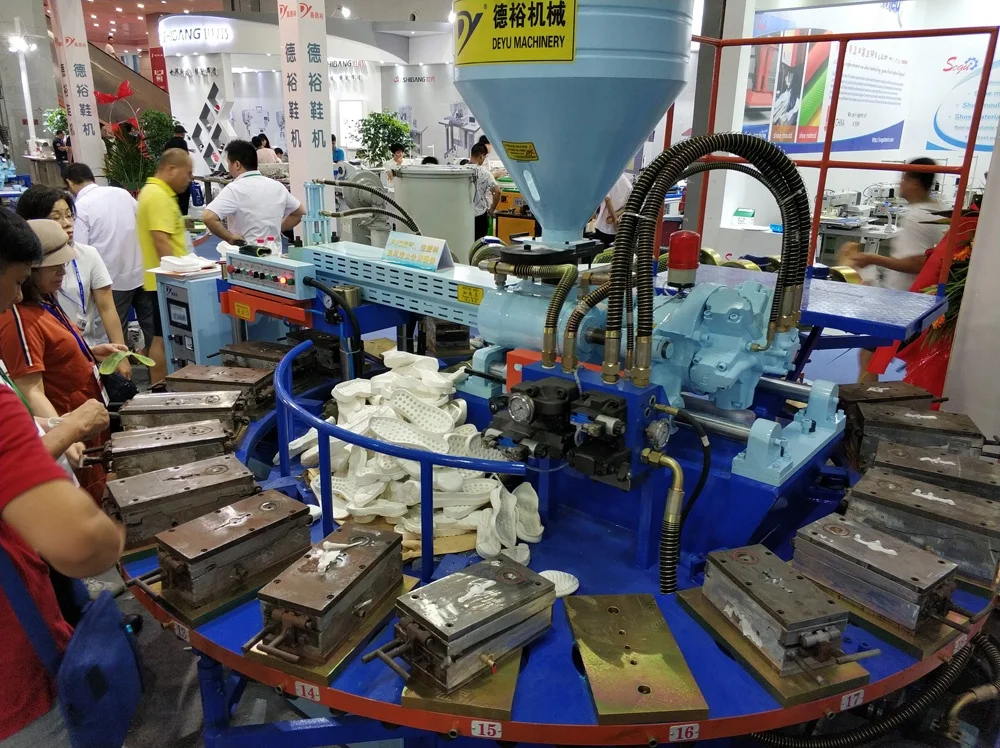

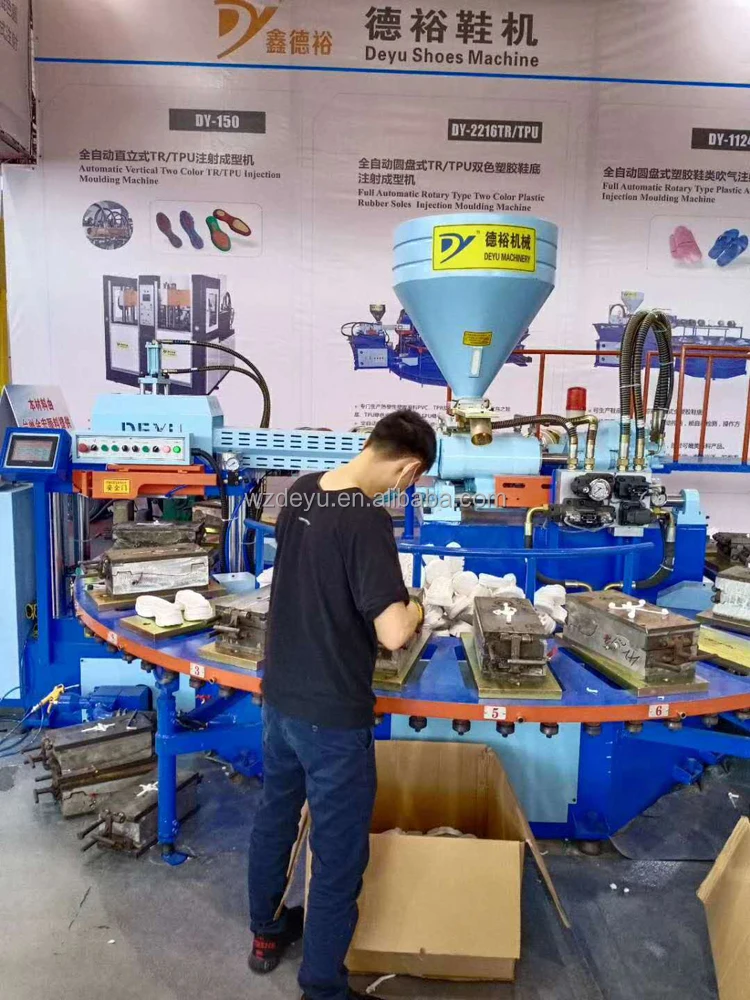

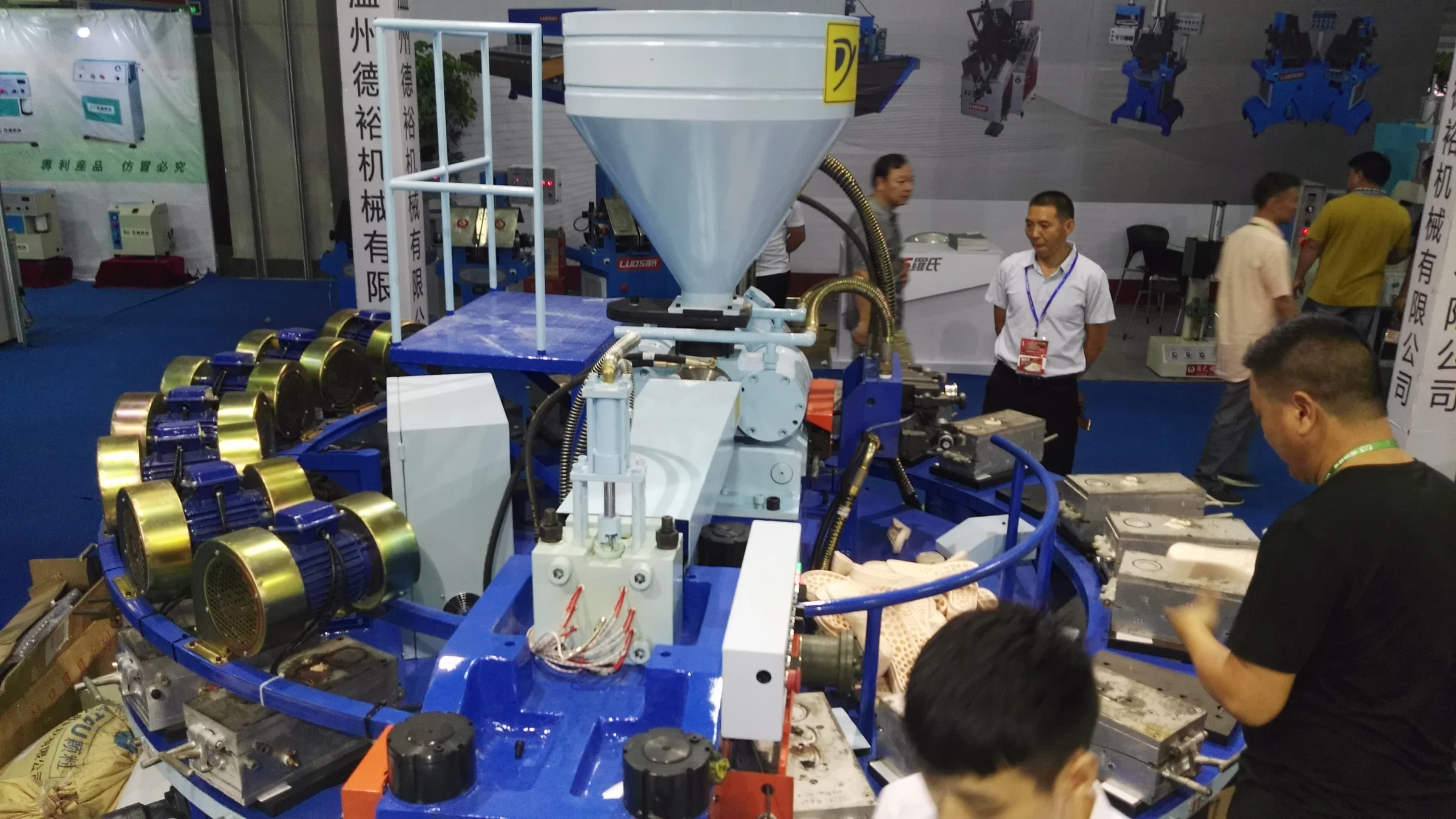

Details Images
Packaging & Shipping
Company Information
FAQ
Q:Where is your company? How I can visit it? A:Our company is located in Wenzhou City,Zhejiang,China. It needs 2 hours from Guangzhou by air.
Q:Are you a foreign trade company? A:No. We have a factory, welcome to visit our factory. You can also check here :www.wz-deyu.com

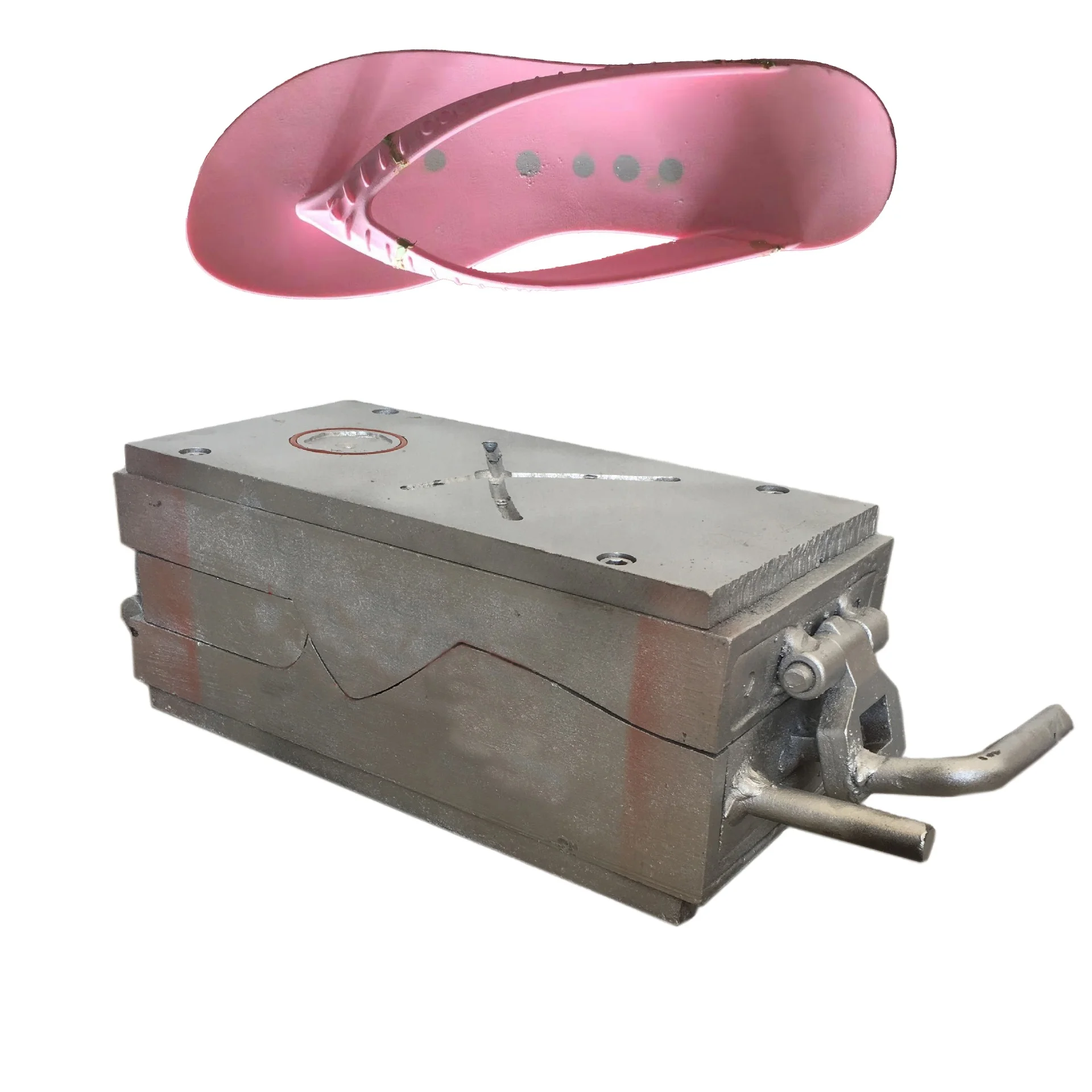

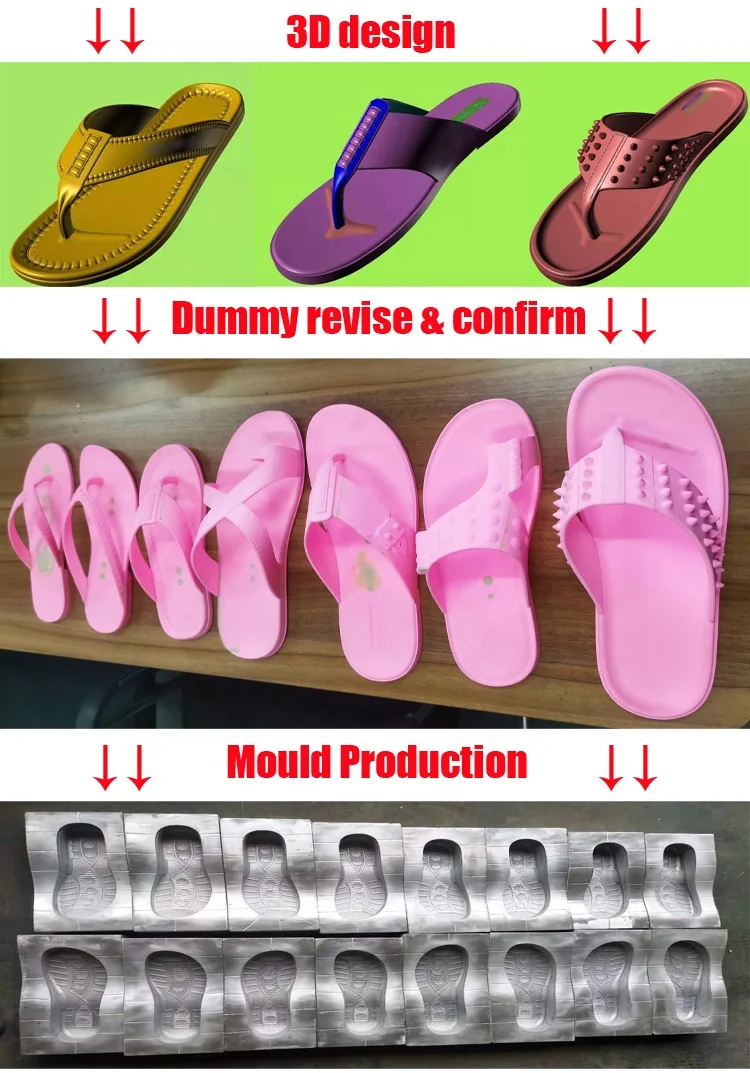

Q:Do you also supply shoe mould? A:Yes,we have shoe mould facotry.Beside providing customers with existing sampless,we also accepts customizing orders.
Q:What are your payment terms? A:As usual, 30% deposit in advance and balance T/T before shipment or L/C
Q:What is your delivery time? A:It depends on your order quantity. Normally ,it needs 20-30days.
