Big Capacity Vertical Pressure Leaf Filter For Paraffin Wax

Product Overview

Description

KODI Big Capacity Vertical Pressure Leaf Filter For Paraffin Wax

1, Paraffin Wax pressure leaf filter/Pressure Leaf Filter For Paraffin/Paraffin Filter

2, Saving engery

3, Easy operate and maintance

4, Widely application

5, High pressure



Main Use and Application of High Pressure Leaf Filter For Paraffin

The Paraffin Wax vertical leaf filter is widly used for many industry, such as:

1. Oil industry: hair-pressing machine oil filter, oil filter decolorization, hydrogenated oil filters, oil filters, such as winter.

2. Food industry: sugar, glucose, such as the sugar solution activated carbon filter decolorization, sunflower seeds,wine, fruit juice, soft drinks and so on to clarify the filter.

3. Chemical industry: petrochemical industry, inorganic chemicals, organic chemicals in the process of the crystals separated from the catalyst for a variety of filtering separation, chemical products, such as decolorization filter.

4. Environmental protection industry: rivers, lakes, water, sewage treatment station supernatant insurance purification filter, water purification filter back to the swimming pool.






Working Principle of KODI High Pressure Leaf Filter For Paraffin

KODI high pressrue Paraffin Wax vertical filter  forms a complete filtering system with mixing tank, conveying pump, pipes, valves, electrical control, and other auxiliary facilities. The filtering process will be decided by the medium to be filtered.

The main leaf filter tank by filter, filter chip, starting to build institutions, such as automatic device composed of slag. Filter aid in the mixing tank with a mixture of materials through the filter pump in the formation of on-chip layer cake, once a stable layer cake, small particle filter to help provide the numerous small channels, the suspension to help out the storm all sorts of things, but also allow the adoption of clear liquid, there will be no plug, such materials through the cake layer on the actual filter. By the multi-layer film filter screen of stainless steel, installed in the aggregate control center, the assembly and disassembly clean-up is very convenient.



Technical Parameters of Paraffin Wax Pressure Leaf Filter

Model	Filter area(m2)	Cake volume (L)	Capacity (T/h)			Working Pressure( Mpa )		Working Temperature (℃)	Filter Tank Volume(L)	Weight(kg)
			Oil	Resin	Drink	Rated pressure	Max pressure
XY-A-2	2	30	0.4-0.6	1-1.5	1-3	0.1-0.4	0.5	≤150	120	300
XY-A-4	4	60	0.5-1.2	2-3	2-5				250	400
XY-A-7	7	105	0.5-1.8	3-6	4-7				420	600
XY-A-10	10	150	1.0-3	5-8	6-9				800	900
XY-A-12	12	240	1-4	6-9	8-11				1000	1100
XY-A-15	15	300	1.5-5	7-12	10-13				1300	1300
XY-A-20	20	400	2.5-6	9-15	12-17				1680	1700
XY-A-25	25	500	3-7	12-19	16-21				1900	2000
XY-A-30	30	600	4-8	14-23	19-25				2300	2500
XY-A-36	36	720	4.5-9	16-27	23-31				2650	3000
XY-A-45	45	900	5.5-11	21-34	30-38				3200	3500
XY-A-52	52	1040	6.5-13	24-39	36-44				3800	4000
XY-A-60	60	1200	7.5-15	27-45	42-51				4500	4500
XY-A-70	70	1400	8.5-15	30-52	48-60				5800	5500
XY-A-80	80	1600	9.5-18	36-60	56-68				5860	6000
XY-A-90	90	1800	10.5-21	40-68	64-78				6700	6500



Pressure Leaf Filter For Paraffin Overall and Installing Dimensions

Model	Tank Diameter	Filter spacing	Inlet	Outlet	Overflow Port	Discharge Port	Height
XY-A-2	Ø400	50	DN25	Ø32	DN25	Ø50	1200
XY-A-4	Ø500	50	DN40	Ø45	DN25	Ø50	1750
XY-A-7	Ø600	50	DN40	Ø45	DN25	Ø50	1850
XY-A-10	Ø800	70	DN50	Ø57	DN25	Ø300	2500
XY-A-12	Ø900	70	DN50	Ø57	DN40	Ø400	2550
XY-A-15	Ø1000	70	DN50	Ø57	DN40	Ø500	2580
XY-A-20	Ø1000	70	DN50	Ø57	DN40	Ø500	2800
XY-A-25	Ø1100	70	DN50	Ø57	DN40	Ø500	2950
XY-A-30	Ø1200	70	DN50	Ø57	DN40	Ø600	3000
XY-A-36	Ø1200	70	DN65	Ø76	DN50	Ø600	3500
XY-A-45	Ø1300	70	DN65	Ø76	DN50	Ø600	3600
XY-A-52	Ø1400	75	DN80	Ø80	DN50	Ø600	3700
XY-A-60	Ø1500	75	DN80	Ø80	DN50	Ø600	3800
XY-A-70	Ø1600	80	DN80	Ø80	DN50	Ø700	3900
XY-A-80	Ø1700	80	DN80	Ø80	DN50	Ø700	3900
XY-A-90	Ø1800	80	DN80	Ø80	DN50	Ø700	4000

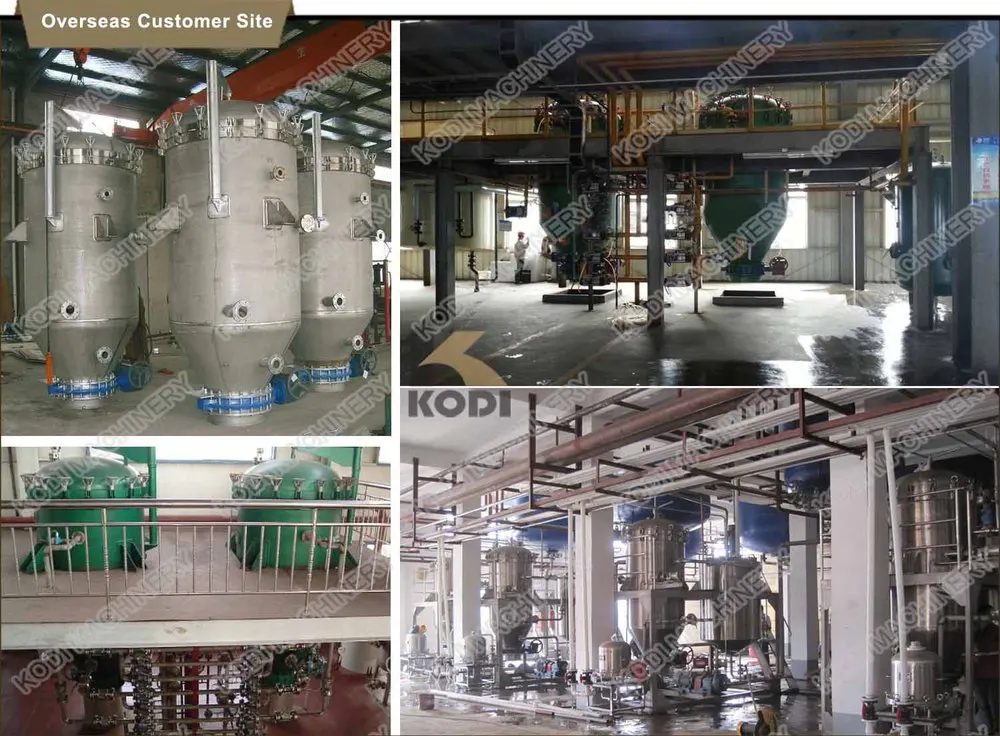

Successfull Project of KODI Pressure Leaf Filter For Paraffin





Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.



KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Food ingredients spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and high pressure Paraffin Wax vertical leaf filter,Pressure Leaf Filter For Paraffin,Paraffin Filter etc.



We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.



KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.



We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!









Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.



After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.



Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.



          In order to quota you the right Paraffin Wax pressure leaf filter/Pressure Leaf Filter For Paraffin/Paraffin Filter with best price, we would like to get the following information include in your inquiry:

•


  -What is the raw material?  Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.





•


  -What is the capacity per hour you need (kg/h)?





•


  -What is the initial moisture and final moisture of finished products you require to get?





•


  -What about the maximum heat temperature of raw material?





•


  -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?





•


  -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?





•


  -Provide us your country’s electricity information, such as phases, voltage, HZ?





•


  -How about dust collect requirements?





•


  -Other special requirements?




Frequently Asked Questions

             Q: Can I visit your factory?
             A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.



             Q: What’s the quality of your products?
             A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.



             Q: What to do if the machine has a problem?
             A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.



             Q: How long is the warranty of your equipment?
             A: Our warranty period is one year generally.



             Q: What is your payment term?
             A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.



             Q: Does your price include freight?
             A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
