Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine
- Category: >>>
- Supplier: Zhangjiagang Auto Well Co. Ltd.
Share on (60522190881):
Product Overview
Description
Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine
Product Description
Auto-well----Aluminum Foil Food Container Machine:
===Specification===
| Item | Aluminium Foil Container Machine |
| Model | 45T |
| Size | 5*2.5*3.5M |
| Power | 4.5 - 11KW |
| Speed | 50-70pcs/stroke/cavity |
| Feeding Speed | 0-35m/min |
| Driven Type | Pneumatic |
| Certificate | CE Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine |
| Warranty | 2 years , and we will provide you technical support forever |
===Feature===
- High Precision, High Efficient, low lost, easy operation
- Good after-sale service
- We are manufacturer
- Only need 1 operator
- Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine
[Semi-automatic Machine]: Pneumatic Press, Automatic Feeder with and Small collecting table

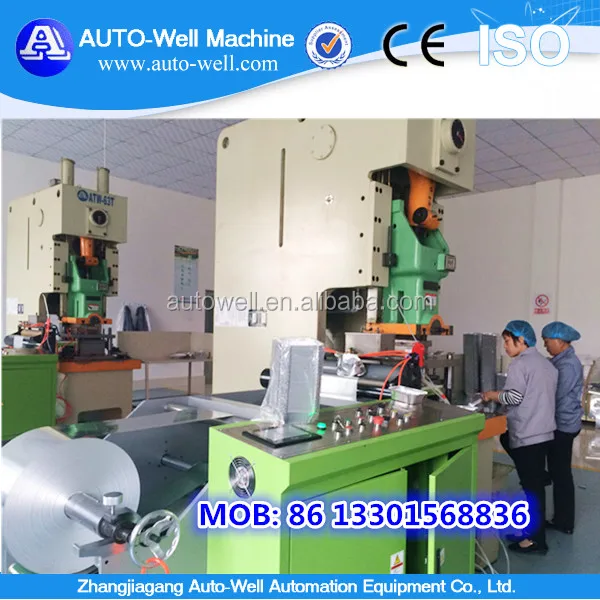

[Automatic machine]:Pneumatic Press, Automatic Feeder with Lubricating System, Scrap Collector and Automatic Stacker
Main Technical Parameters

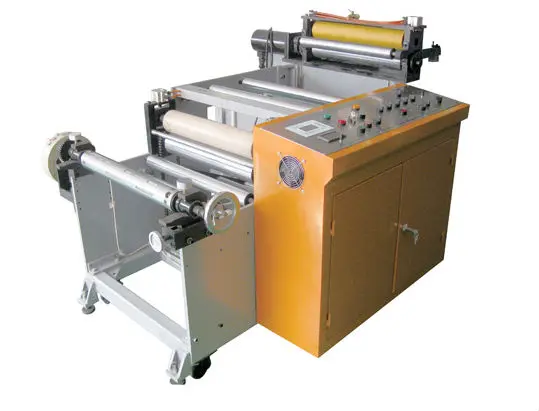

Feeding Machine | Model | ATW-SL550 | ATW-SL700 |
| Max. Width of Roll | 500mm | 650mm |
Max. Unwind Roll Diameter | 600mm | 600mm | |
Feeding Speed | 0-35m/min | 0-35m/min | |
Feeding Length | 80-999mm | 80-999mm | |
Feeding Accuracy | ±0.3mm | ±0.3mm | |
Working Voltage | 380/220V | 380/220V | |
Total Power | 2kw | 2.3kw | |
Weight | 850kg | 1000kg | |
Dimension (mm) | 2000*1300*900 | 2000*1450*900 |
Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine

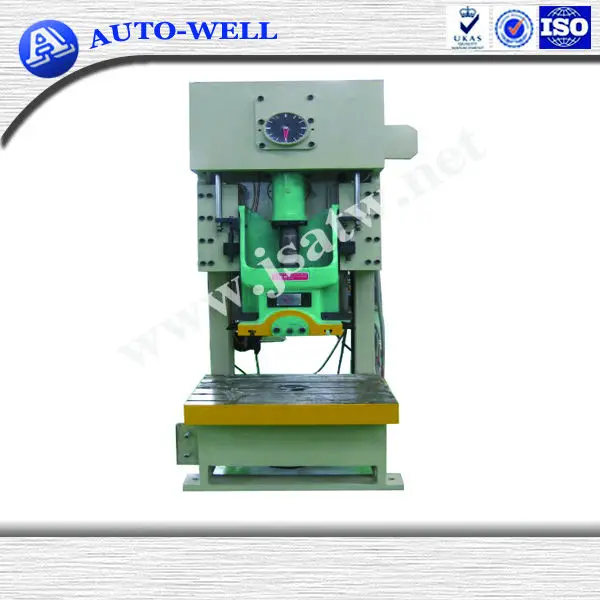

Punching Machine | Model | ATW-45T | ATW-63T |
| Nominal Pressure | 450KN | 630KN |
Slide Block Stroke | 220mm | 230mm | |
Slide Stroke Per Minutes | 50-70times/min | 50-70times/min | |
Maximum Die Set Height | 400mm | 450mm | |
Slide Bottom Size | 430X340mm | 480X400mm | |
Stemhole Size | Φ60mm* 65m | Φ60mm* 65m | |
Bolster Surface Size | 800*900mm | 950*1000mm | |
Total Power | 5.5kw | 7.5kw | |
Weight | 5000KG | 6500KG | |
Dimension (mm) | 2500*1600*1100 | 2600*1700*1200 |
Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine
Aluminum Foil Container (Final Products) Show:
Video Show-Links:
https://www.youtube.com/watch?v=wzZihso_YeI
https://www.youtube.com/watch?v=7vlCdkVBr0Q
https://www.youtube.com/watch?v=ptGbck6uiPo
https://www.youtube.com/watch?v=2CU1cZJezKc
https://www.youtube.com/watch?v=70aZ9NwWa-U
https://www.youtube.com/watch?v=x3iQXNYy-EY
https://www.youtube.com/watch?v=SRUEuW47WMs
https://www.youtube.com/watch?v=ppg4QgwosY4
Packaging & Shipping
Packaging & Shipping:
1. Packaging with Film and Exported Wooden Case
2. Port: Shanghai Port
3.Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine
4. Packaging Data: Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine
Delivery Time | Packaging | Length | Weight | Height | Gross Weight | Net Weight | Volume |
60days | Wooden Crate | 5m | 2m | 4m | 4t | 3t | 18 m3 |
Our Services
Company Information
Company Profile:
Zhangjiagang Auto-well Automation Equipment Co., Ltd. is professional researching and developing manufacturer which is specialized in the designin Pneumatic Driven Type Aluminum Foil Container Machine g and making the aluminum foil container mould, aluminum foil container machine, aluminum foil rewinding machine.
Our products have been exported to Italy, Saudi Arabia, United Arab Emirates, America, Bahrain, South Africa, Australia, Iran, Czech Republic, Syria and so on more than 20 countries.
Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine
Trusted Certificates:
FAQ
FAQ for Aluminum Foil Container Making Machine:
Q1. Which type of aluminum foil container machine I should take:
Generally we suggest 45T and 63T:
45T is suitable for making the container size maximum: 300*300*50mm (L*W*H)
63is suitable for making the container size maximum: 350*350*60mm (L*W*H)
45T can make 250, 450, 750 ml container with two cavity
63T can make 250, 450, 750 ml container with three cavity
Q2. Can you do special mould, like smooth wall container?

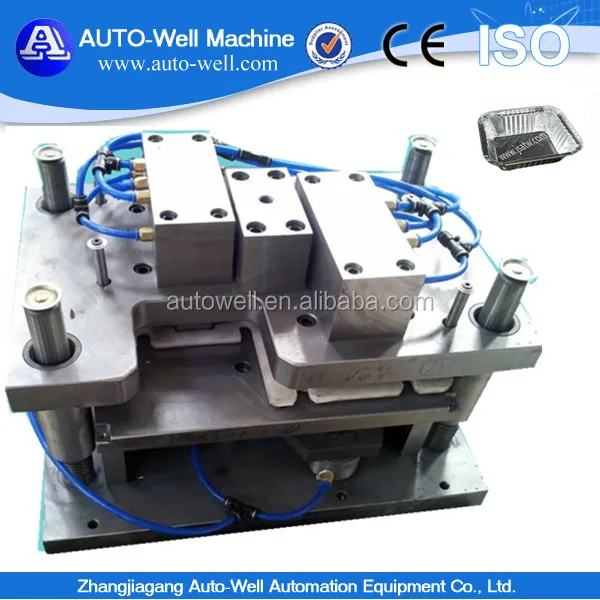

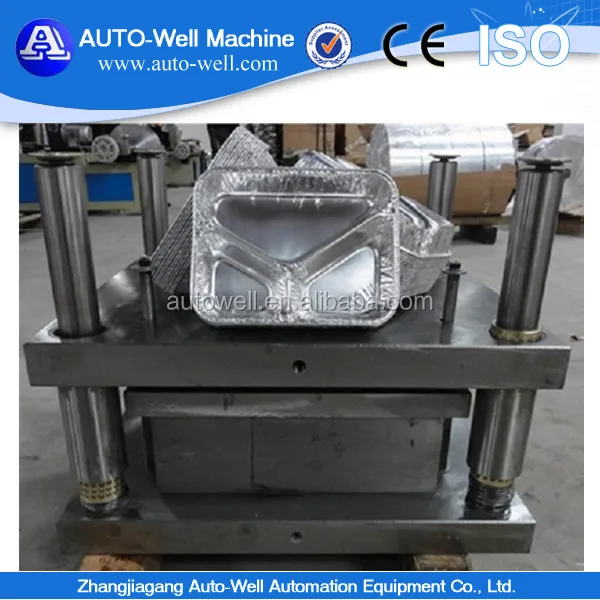

Yes, we can also make mould for smooth wall container, BBQ container, pet food container, and 2&3 compartment container, you just show us your sample and size, we will make the mould according to your size.
Q3. Production speed:
40-70pcs/stroke, mould also can be made into 2 or 3 cavity.
Q4. Are you manufacturer or trading company? Where is your company located?
Yes, we are manufactures; workshop running is available, running condition. welcome your visiting our factory , our factory is located in Zhangjiagang city , near Shanghai and Wuxi airport .If from Shanghai to our city it is about 2 hours by car , If from Wuxi to our city it is about 30 minutes (Here is fast train from Shanghai to Wuxi , about 30 minutes )
Aluminum Foil Box/Can/Tray/Plate/Container/Dish Making Machine
Welcome to more questions for details by:
