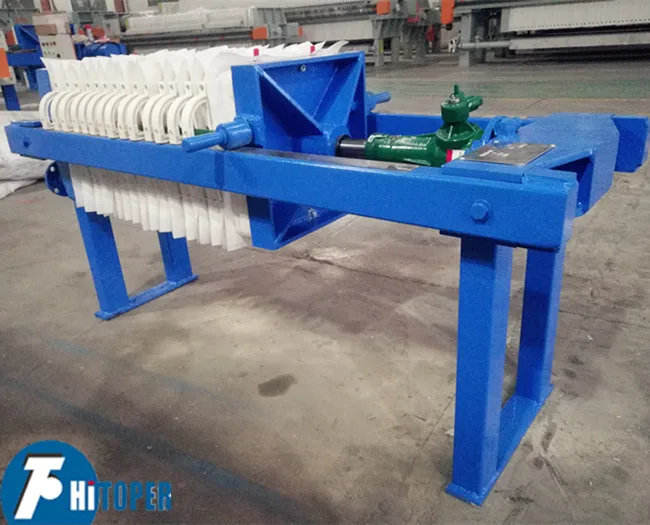

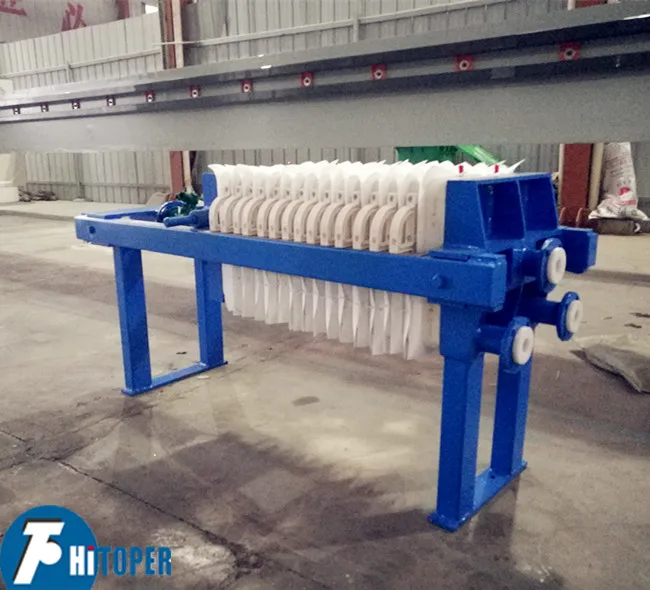

Wastewater treatment small manual filter press,screw jack compressed press filter for sale
Product Description

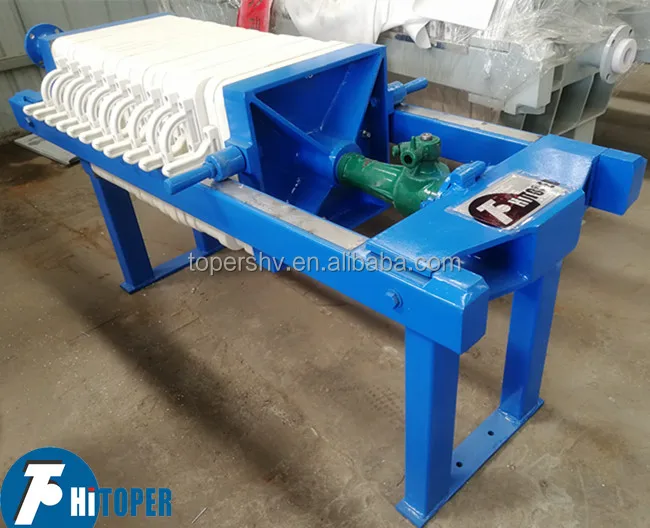

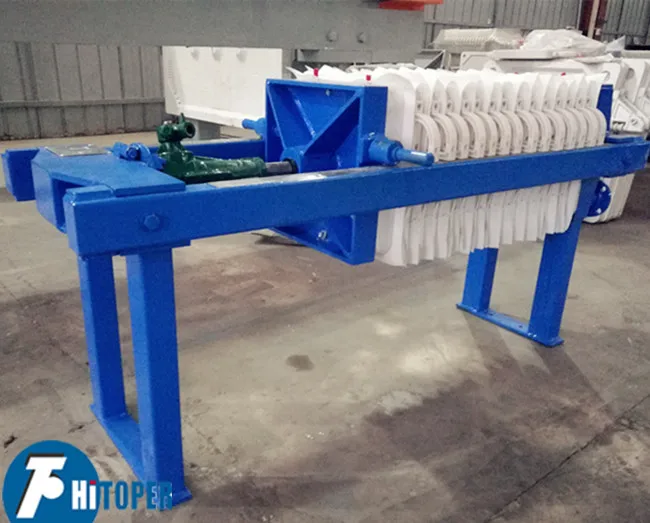

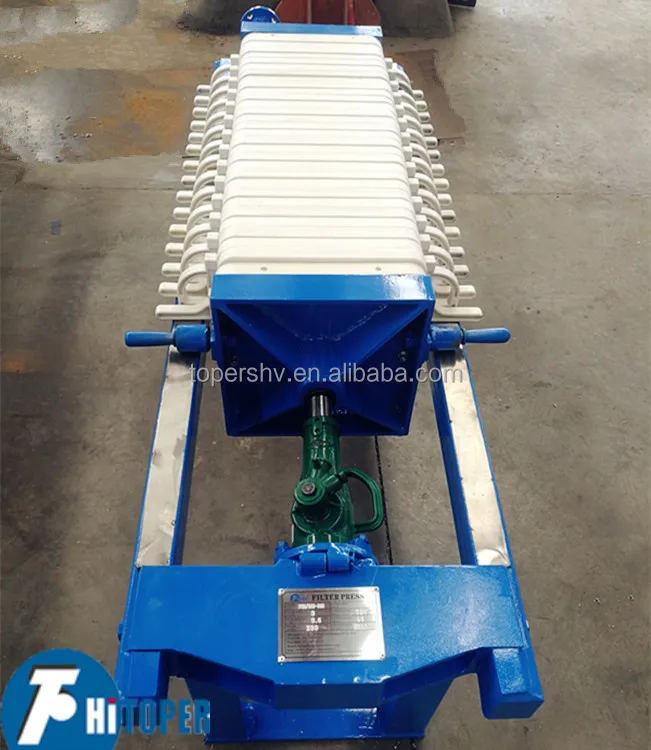

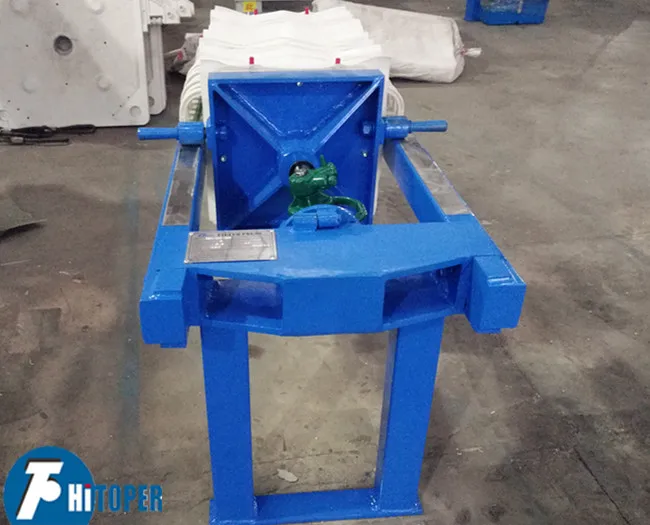

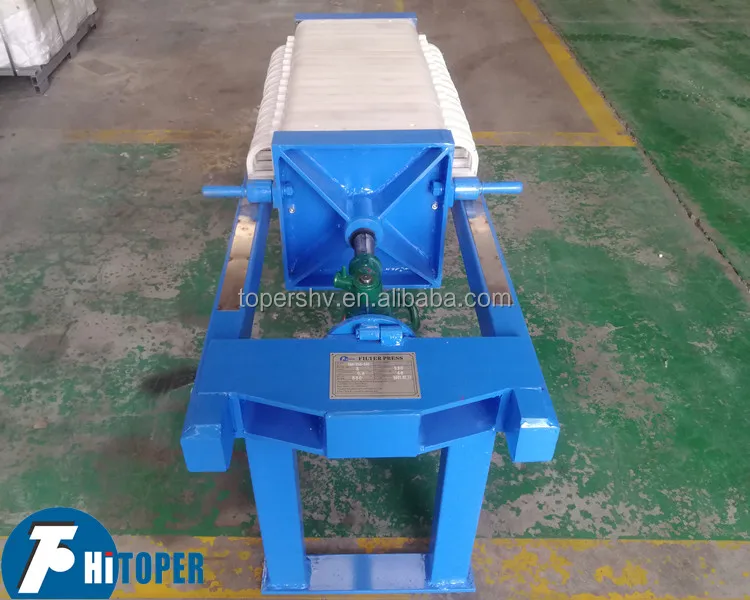

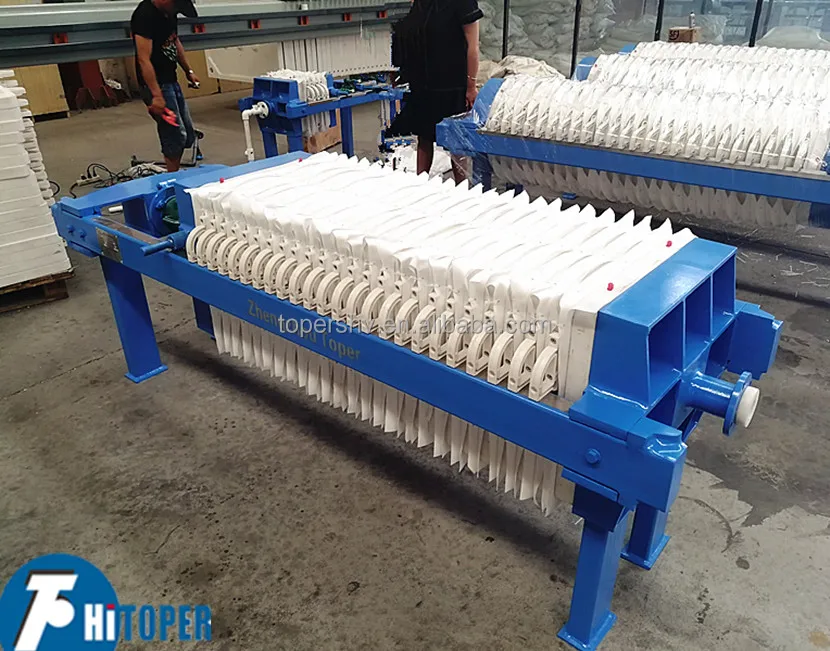

Brife introduction of the chamber type small manual filter press
1. A screw jack as the pressing device, don’t need power.
2. Filter area ranges from 1m2 to 40m2, smaller than hydraulic or automatic filter press, better for
beginner start production one.
3. Chamber type and plate & frame type for your choosing.

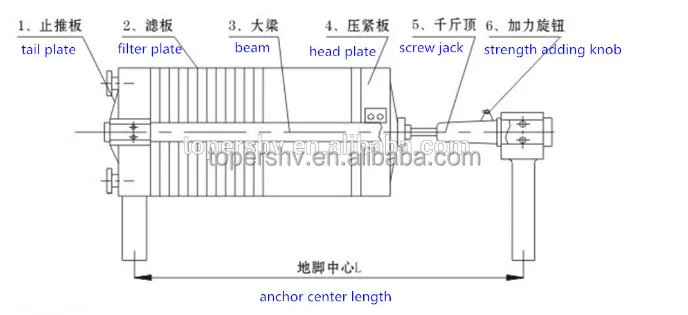

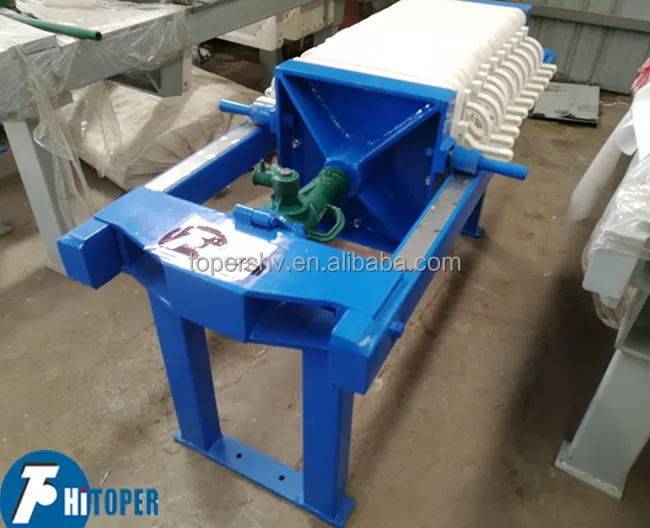

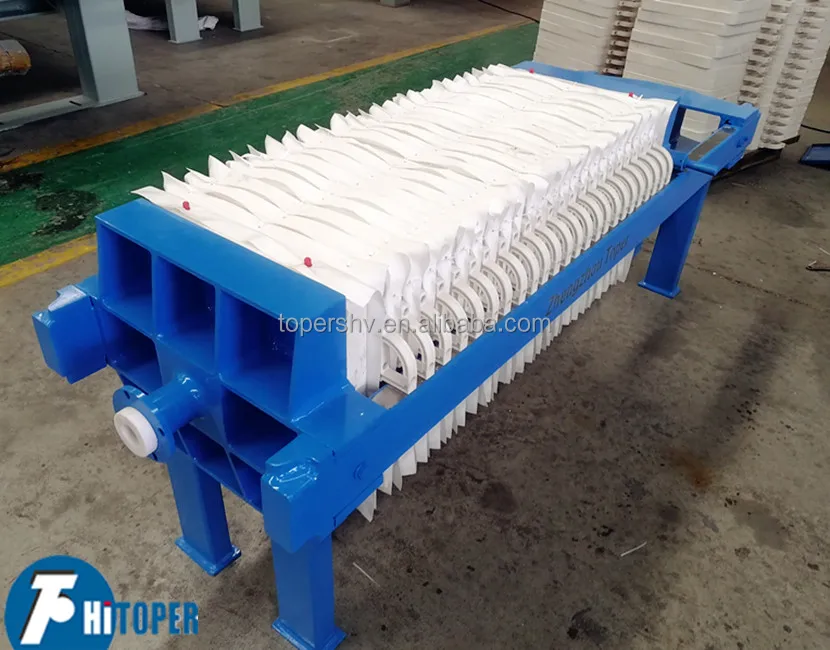

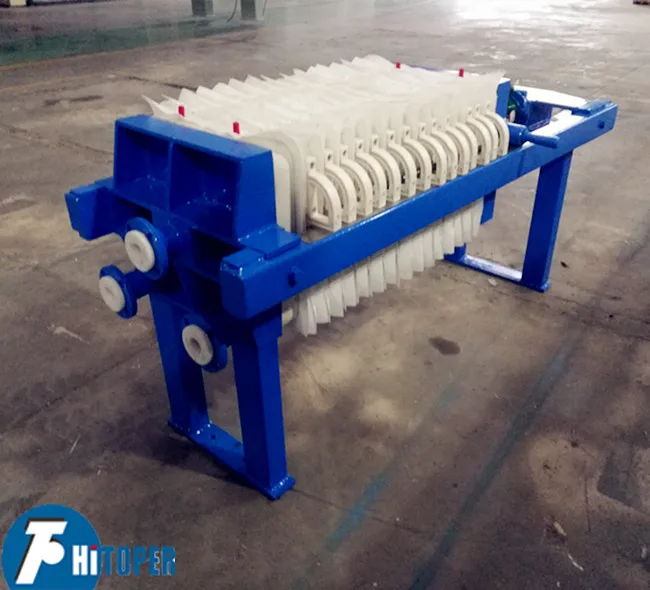

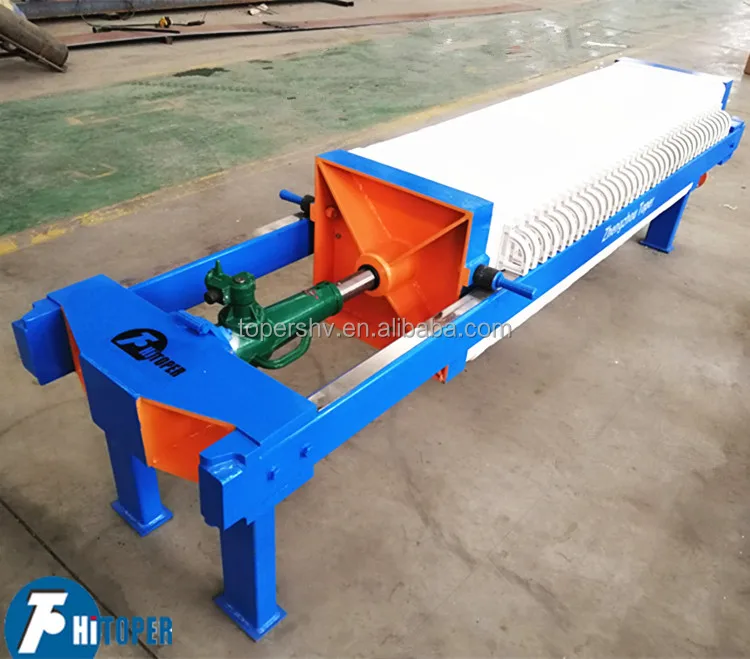

The manual filter press is the simplest type one, it consists of screw jack, beam, filter plate and filter cloth.
Working principle the chamber type small manual filter press :
1. Press. Sort filter cloth to be flat and no folding, then put the strength adding rod into the jack of screw
jack. Adjust the direction valve, rotate the screw jack in clockwise, until one man’s strength is use up.
2. Return. Put the strength adding rod into the jack of screw jack, adjust the direction valve, rotate out
the screw jack in counterclockwise.
3. In the process of press or return, if the slippage situation comes out, it shows your direction valve’s
direction is wrong. Change to another direction is ok.
4. The press strength is ok with one man’s strength. If there is leakage, add the press strength.
5. After the filtration process, return the head plate, pull the filter plates one by one to discharge the cake,
then sort the filter plate and cloth, to start another cycle.
This manual filter press is widely used in oil, chemical industry, dye, metallurgy, pharmacy, food, paper
making and sewage treatment, and other solid-liquid separation fields

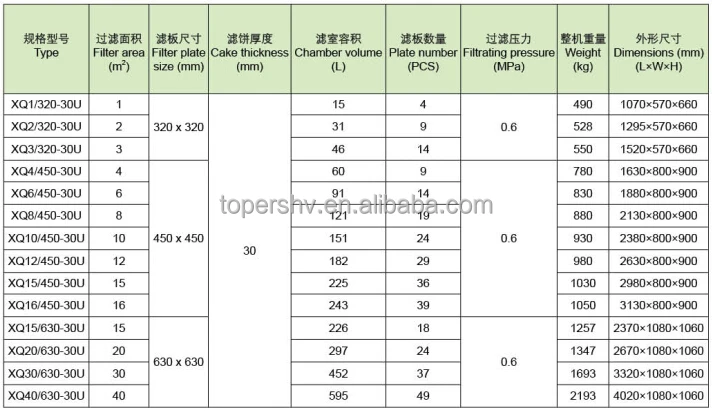

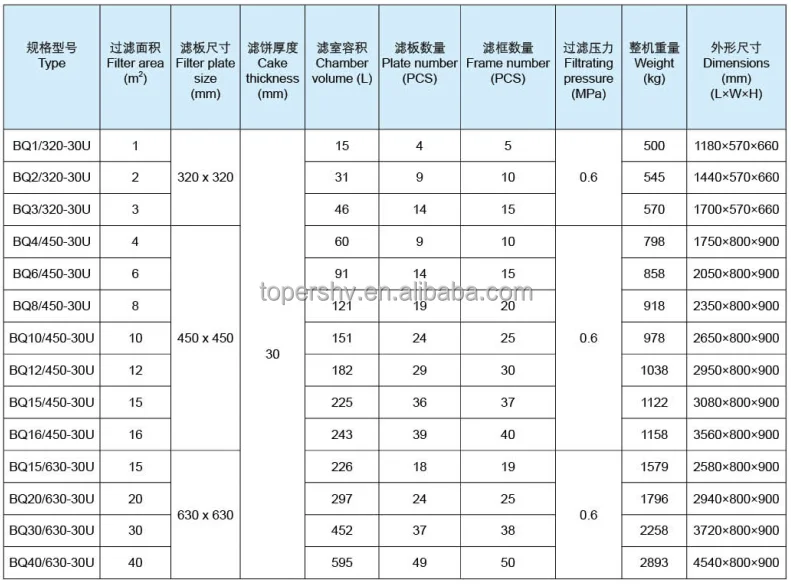

Technical parameters of all the models of our Jack filter press
01. The chamber type
02.The plate and frame type

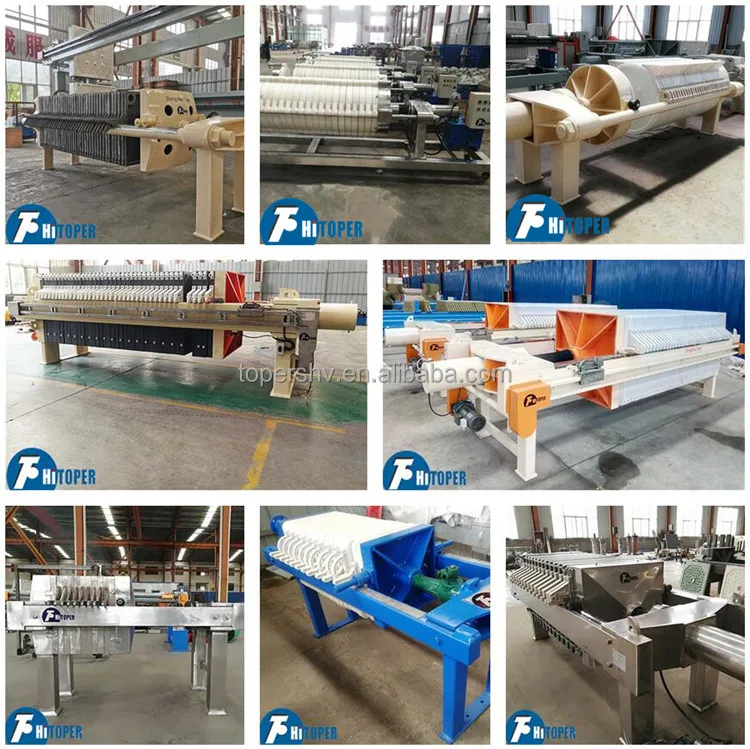

Other type of Toper's filter press :

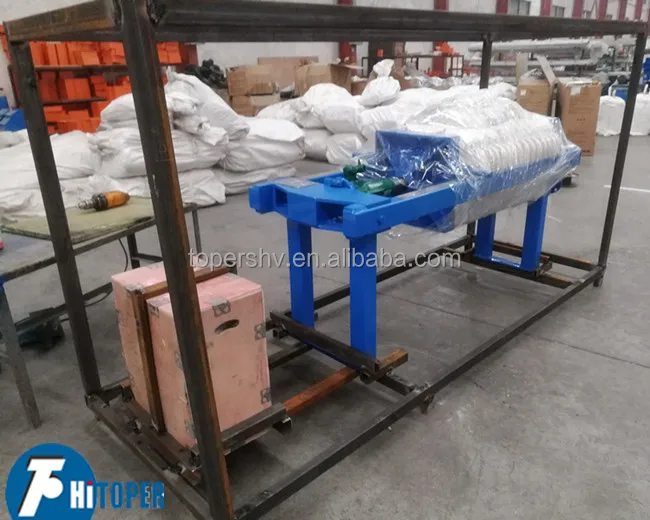

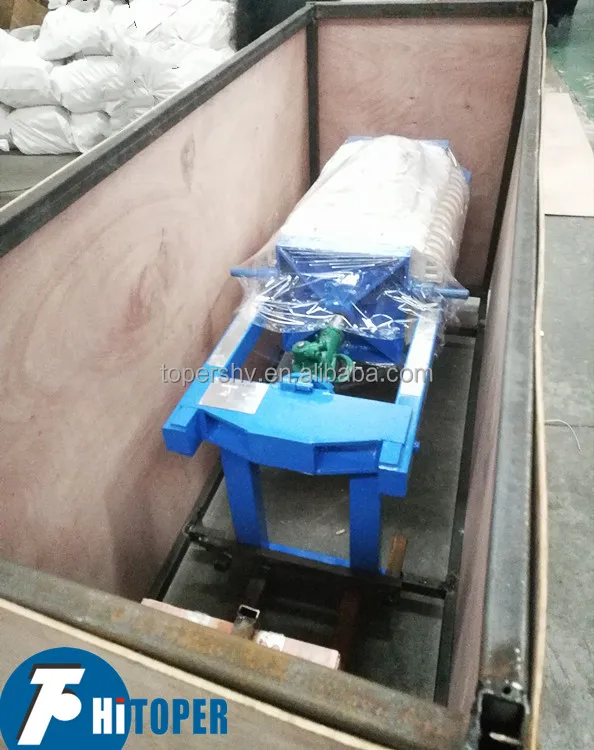

Packaging & Shipping
